GOT710A

Status : Available

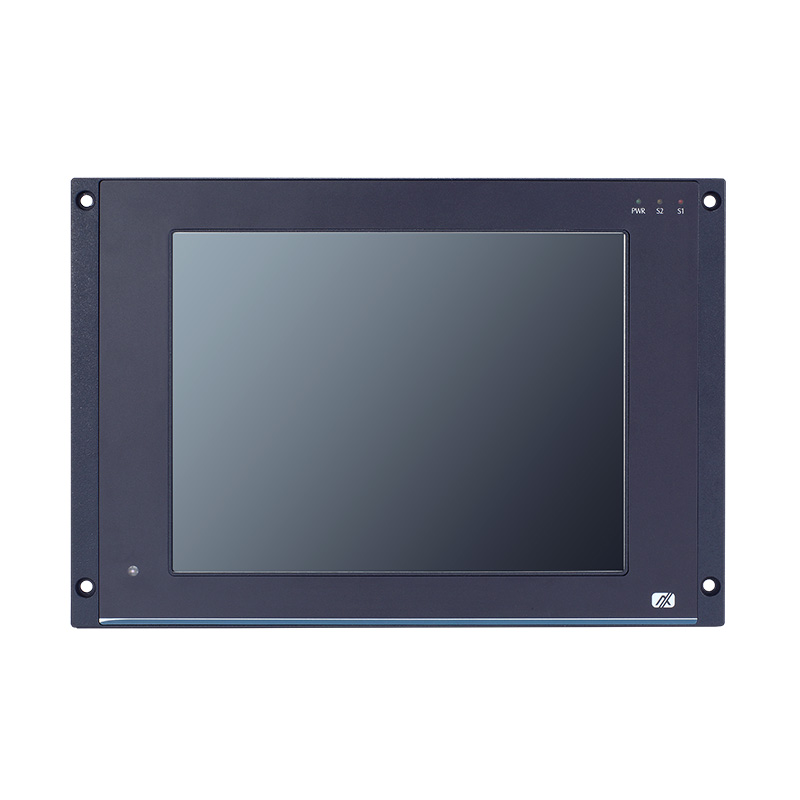

EN 50155 S3 10.4" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® Processor x6425E (12W) 2.0 GHz (-40°C to +70°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT710A
GOT710A
GOT710A
GOT710A
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Sunlight readable 10.4" XGA TFT LCD
  • Intel Atom® processor x6425E, 12W (Elkart Lake)
  • Alternative keypad control on the front bezel
  • M12-type lockable connectors design
  • Auto-dimming for different environments
  • -40°C to +70°C wide temperature range (EN 50155 OT4)
  • Typical 24 to 110 VDC wide power input range, EN 50155 Class S3 20ms power interruption protection
  • EN 50155 and EN 45545-2 certified for railway applications
Low-Power Consumption
Low-Power Consumption

Intel Atom® processor x6425E
Auto-dimming

Easy Operation
Easy Operation

Projected capacitive touch
Alternative keypads

EN 50155
Designed for Railway

EN Certified
M12-coded lockable connector



Market-Ready

Eliminating concerns for verification and certification, the market-ready GOT710A is EN 50155, EN 45545-2, CE, LVD, and FCC certified, and UIC-612-01 Keypad layout complied.

Rugged and Reliable Design

The IP65-rated GOT710A supports a wide 24 to 110 VDC power input range, compliant with EN 50155 S3 standards, and operates seamlessly across extreme temperatures from -40 °C to +70 °C (EN 50155 OT4). It features a comprehensive range of M12-coded I/O connectors, delivering robust connectivity options tailored for diverse railway applications.

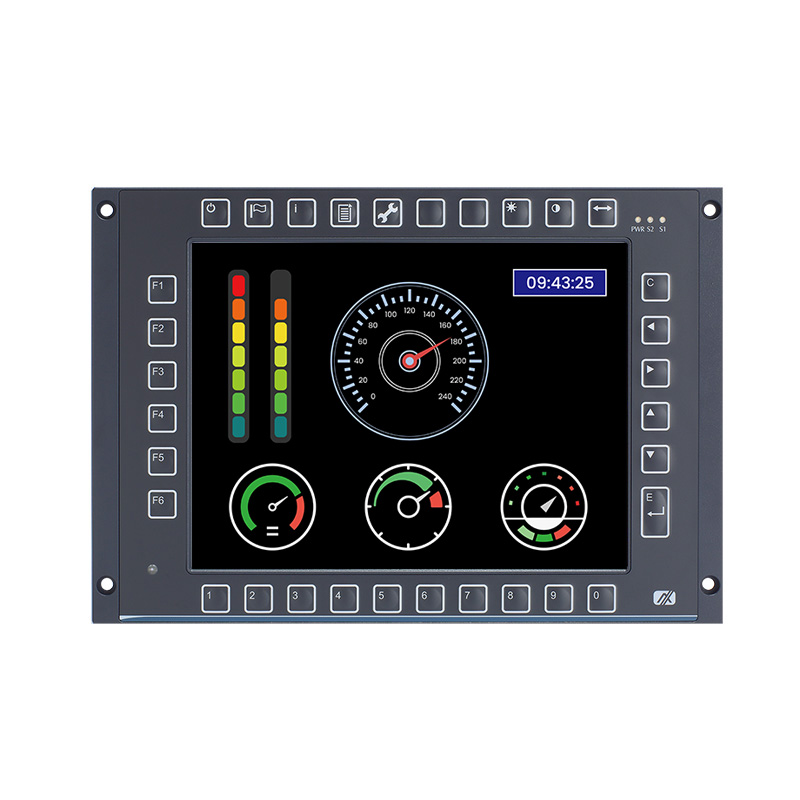

10.4-inch XGA LCD Display with Keypads

The GOT710A has a 10.4-inch XGA TFT LCD with a projected capacitive touch and 500 nits of brightness. It features alternative keypads, compliant with UIC-612-01 standards, for convenient operation and easy cleaning.

Great Memory and Storage Capacity

The GOT710A supports one 260-pin DDR4-3200 SO-DIMM slot with up to 32GB of system memory and one M.2 Key B 2242 SSD for expansive storage.

GOT710A High Performance DDR4 RAM and M.2 SSD Storage Architecture

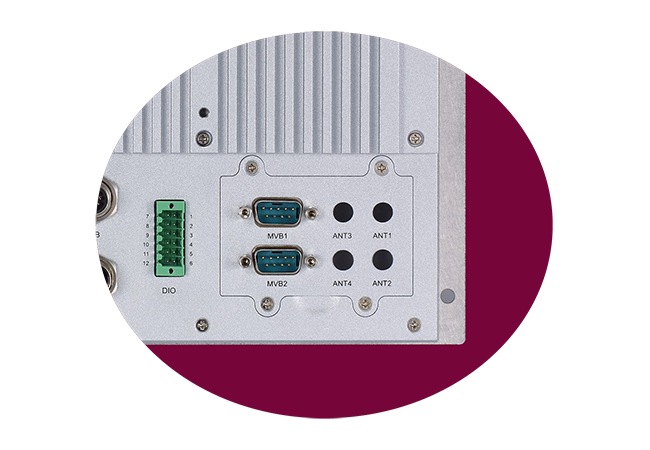

Flexible I/O Window

The flexible I/O expansion window allows for quick customization to meet various requirements, making it particularly effective for aftermarket expansion projects.

GOT710A Flexible I/O Window Customization Options

Expansion Capability

  • 1 x Full-size Mini Card slot (PCIe/USB/SIM)
  • 1 x Full-size Mini Card slot (PCIe/USB/mSATA)
  • 1 x M.2 Key B 2242 slot (PCIe/SATA)
  • 1 x M.2 Key A + E 2230 slot (PCIe/USB)

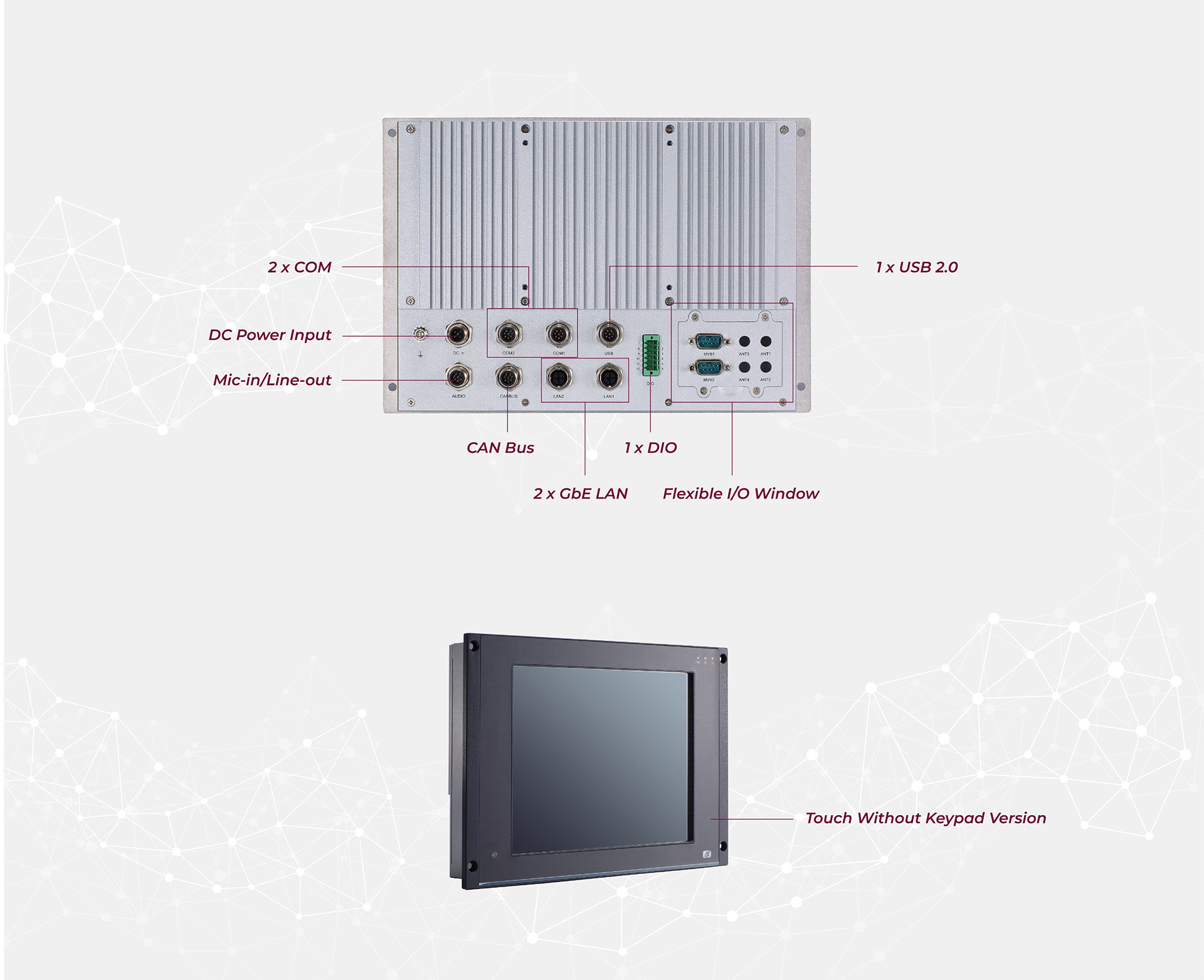

Rich I/O Interfaces

GOT710A EN 50155 Railway Panel PC Rich I/O Interfaces

Specifications

LCD Panel
  • 10.4" XGA TFT LCD
  • 500 nits
  • 1024 x 768
  • 176°/176°
CPU
  • Intel Atom® processor x6425E, 12W (Elkart Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB (default 4GB)
BIOS
  • AMI
COM
  • 2 x M12 A-coded RS-232/422/485
USB
  • 1 x M12 A-coded USB 2.0 (2-port signal)
Ethernet
  • 2 x M12 X-coded-8P GbE LAN
Display
  • N/A
Audio
  • 1 x M12 A-coded-8P Mic-in/Line-out
Storage
  • 1 x M.2 Key B 2242 SSD (default 128GB)
DIO
  • 1 x Terminal block DIO (6-in/2-out)
CANbus
  • 1 x M12 A-coded-8P CAN bus
Expansion
  • 1 x full-size Mini Card slot (PCIe/USB/SIM)
  • 1 x full-size Mini Card slot (PCIe/USB/mSATA )
  • 1 x M12 Key B 2242 slot (SATA)
  • 1 x M12 Key E 2230 slot (PCIe/USB)
Others
  • MVB (optional)
Touchscreen
  • Projected capacitive touch
Front Bezel
  • IP65-rated aluminum front bezel and IP40-rated rear protection
Power Supply
  • Typical 24 to 110 VDC
  • EN 50155 Class S3 20ms power interruption protection
Power Comsumption
  • N/A
Watchdog Timer
  • 255 levels, 1 to 255 seconds
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) (EN 50155 OT4)
Relative Humidity
  • 10% to 90% @ +40°C, non-condensing
Vibration
  • NA
Dimensions (W x D x H)
  • 310 x 55 x 214 mm (12.20" x 2.17" x 8.43")
Weight (net/gross)
  • 2.69 kg (5.93 lb)/4.17 kg (9.19 lb)
Certifications
  • CE/FCC Class A, EN 50155, EN 45545-2 certified and UIC-612-01 Keypad layout complied
EOS
  • Windows® 11
  • Ubuntu 22.04
Mounting
  • Wall mount
  • VESA mount

Ordering Information

  • GOT710A-ELK-TC (P/N-E22B710A00)
    10.4" XGA railway fanless touchscreen panel PC with Intel Atom® x6425E, sunlight readable LCD (500 nits), projected capacitive
  • touchscreen, 24 to 110 VDC power input, and EN 50155 Class S3 20ms power interruption protection, default with DDR4 4GB and M.2 SSD 128GB
  • GOT710A-ELK-TCK (P/N-E22B710A01)
    10.4" XGA railway fanless touchscreen panel PC with Intel Atom® x6425E, sunlight readable LCD (500 nits), projected capacitive
  • touchscreen, 24 to 110 VDC power input, and EN 50155 Class S3 20ms power interruption protection and keypad, default with DDR4 4GB and M.2 SSD 128GB
  • E29R318100
    ACC318-501-203 / LTE NL668-EAU kit
  • E29R301103
    ACC301-701-203 / Wi-Fi 5 QCNFA364A kit
  • 594B8122820E
    M12 A-coded USB cable
  • 594B7102100E
    RS-232 cable
  • 594B7102700E
    M12 X-coded LAN cable
  • 594B7100B00E
    M12 DC-in power cable with ACC signal, length 1.8 m
  • 509000002200
    PWS 9NA0908344 FSP 90W / AC to DC (24V) adapter with M12 connector
  • E39Q108103
    CANBus module with 2DB9 for flexible window expansion
