GOT712A

Status : Available

EN 50155 12.1" XGA TFT LCD Railway Fanless Touchscreen Panel PC with Intel Atom® x6425E Processor (12W) 2.0 GHz (-40°C to +70°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT712A
GOT712A
GOT712A
EN 50155

EN 50155

Fanless

Fanless

Low Power

Low Power

M12 Connector

M12 Connector

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Sunlight-readable 12.1" XGA TFT LCD
  • Intel Atom® x6425E processor, 12W (Elkart Lake)
  • M12-type lockable connectors design
  • Auto-dimming for different environments
  • Operating temperature ranges from -40°C to +70°C (EN 50155 OT4)
  • Typical 24 to 110 VDC wide power input range for all types of trains
  • EN 50155 and EN 45545-2 certified for railway applications

Specifications

LCD Panel
  • 12.1" XGA TFT LCD
  • 600 nits
  • 1024 x 768
  • 178°/178°
CPU
  • Intel Atom® x6425E processor, 12W (Elkart Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI

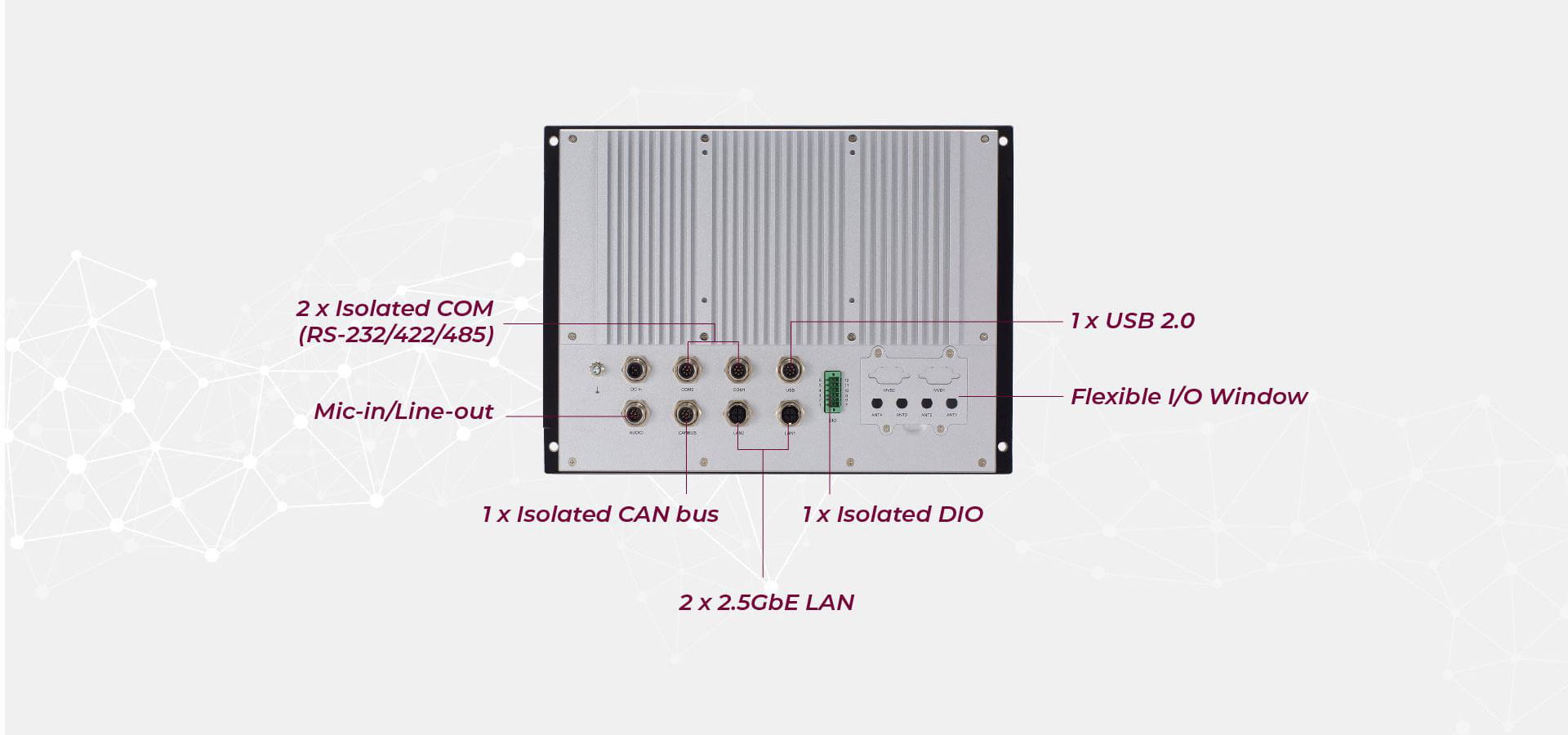

COM
  • 2 x M12 A-coded 8-pin isolated RS-232/422/485
USB
  • 1 x M12 A-coded USB 2.0 (2-port signal)
Ethernet
  • 2 x M12 X-coded 8-pin 2.5GbE LAN
Display
  • N/A
Audio
  • 1 x M12 A-coded 8-pin Mic-in/Line-out
CANbus
  • 1 x M12 A-coded 8-pin isolated CAN bus
Storage
  • 1 x M.2 Key B 2242 SSD
DIO
  • 1 x terminal block isolated DIO (6-in/2-out)
Expansion
  • 1 x full-size Mini Card slot (PCIe/USB/SIM)
  • 1 x full-size Mini Card slot (PCIe/USB/mSATA )
  • 1 x M.2 Key B 2242 slot (SATA)
  • 1 x M.2 Key E 2230 slot (PCIe/USB)
Others
  • MVB (optional)
Touchscreen
  • Projected capacitive touch
Front Bezel
  • IP65-rated aluminum front bezel and IP40-rated rear protection
Power Supply
  • 1 x M12 A-coded isolated DC-in
  • Typical 24 to 110 VDC EN 50155 Class S2 10ms power interruption protection
Power Comsumption
  • N/A
Watchdog Timer
  • 255 levels, 1 to 255 seconds
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) (EN 50155 OT4)
Relative Humidity
  • 10% to 90% relative humidity @ +40°C, non-condensing
Vibration
  • N/A
Dimensions (W x D x H)
  • 330 x 55 x 245 mm (12.93" x 2.17" x 9.65")
Weight (net/gross)
  • 3.22 kg (7.09 lbs)/5.6 kg (12.34 lbs)
Certifications
  • CE/FCC Class A, EN 50155, and EN 45545-2 certified
EOS
  • Windows® 11
  • Ubuntu 22.04
Mounting
  • Wall mount
  • VESA mount

Ordering Information

  • GOT712A-ELK-TC (P/N-E22B712A00)
    12.1" XGA railway fanless touchscreen panel PC with Intel Atom® x6425E, sunlight readable LCD (600 nits), projected capacitive touchscreen, 24 to 110 VDC power input, default with DDR4 8GB and M.2 SSD 128GB
  • E29R318100
    ACC318-501-203 LTE NL668-EAU kit
  • E29R301103
    ACC301-701-203 Wi-Fi 5 QCNFA364A kit
  • 594B8122820E
    M12 A-coded USB cable
  • 594B7102100E
    RS-232 cable
  • 594B7102700E
    M12 X-coded LAN cable
  • 594B7100B00E
    M12 DC-in power cable with ACC signal, length 1.8 m
  • 509000002200
    PWS 9NA0908344 FSP 90W AC to DC (24V) adapter with M12 connector
  • E39Q108103
    CANBus module with 2DB9 for flexible window expansion

Download

Drivers

Date Description Version Download File
2026/03/16 6. HD Audio VA1.0
2026/03/16 7.Fintek CANBUS Driver VA1.0
2026/03/16 5.Intel® Serial IO Driver_5.123.1.1025 VA1.0
2026/03/16 4.Intel ME Driver VA1.0
2026/03/16 2.Intel Graphic Driver VA1.0
2026/03/16 3.Intel LAN Driver VA1.0
2026/03/16 1.Intel Chipset Driver VA1.0

Software

Manual

Date Description Version Download File
2026/03/30 User's Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2026/06/15 CE LVD Verification
2026/06/15 UKCA Declaration of Conformity
2026/06/15 CE-Conformity Declaration
2026/06/15 FCC Verification
2026/06/15 CE EMC Verification
2026/06/04 EN50155 Certificate

Frequently Asked Questions

You Might Also Like

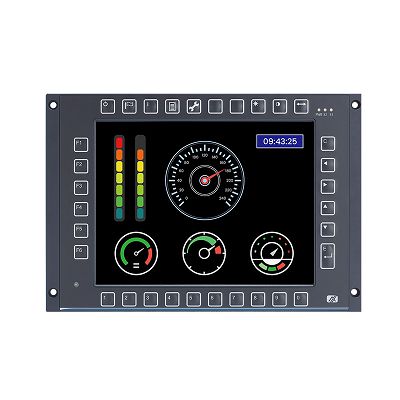

Picture of GOT710A
