Solutions for Railway Safety
Even though railway technology continues to advance, accidents still occur frequently. Between 2017 and 2021, in the United States, there were a total of 681 train accidents, resulting in numerous casualties and significant financial losses. The emergence and development of artificial intelligence (AI), the Internet of Things (IoT), and big data have provided the rail sector with opportunities to advance future trains and railways, particularly in AI behavior analysis, train diagnostics, and cybersecurity. As a leading supplier to the rail industry for decades, Axiomtek provides complete railway embedded solutions and leverages its field-proven technologies in AI, IoT, and edge computing to improve rail operations, maintenance, and passenger safety.

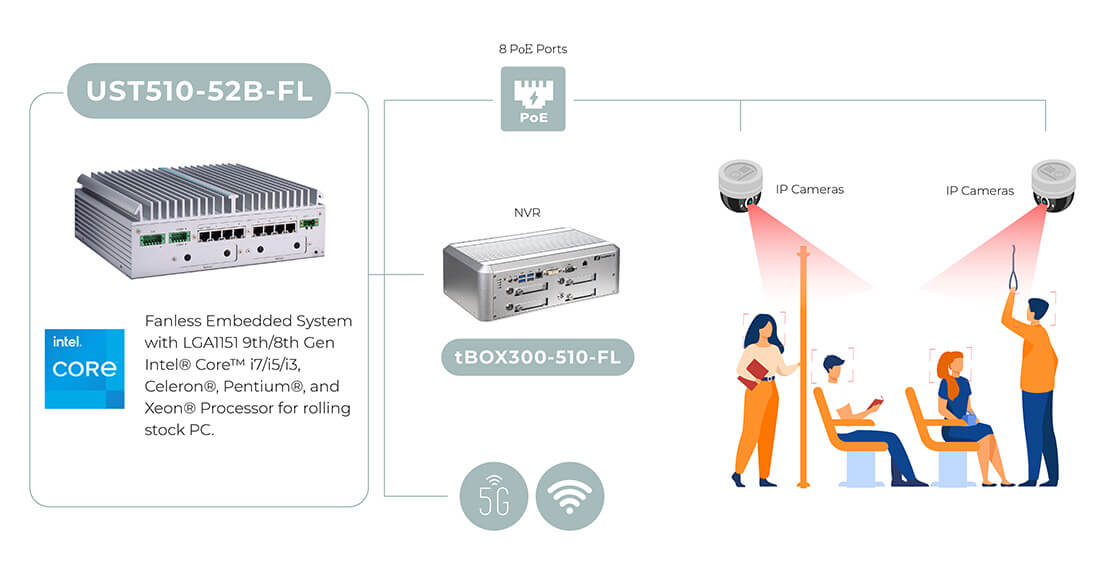

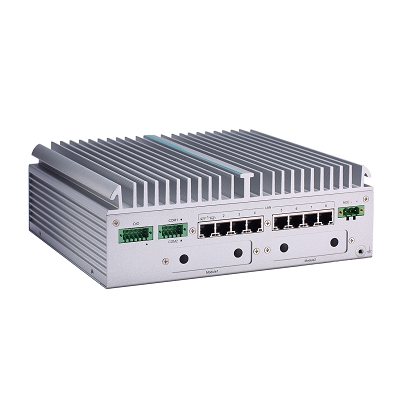

UST510-52B-FL: High Performance, Compact Size, and Rugged Design
High Performance Intel Processor
The UST510-52B-FL is powered by an Intel® Xeon® processor with up to 65W TDP. It delivers high-performance image processing computing power with two DDR4 system memory slots supporting up to 64GB, which can be further enhanced with an accelerator module via an M.2 or PCIe Mini Card slot.
PoE Ports
The UST510-52B-FL features eight PoE ports to support IP cameras, allowing the cameras to be deployed across multiple cars for real-time surveillance.
Storage Expansion
The UST510-52B-FL is equipped with one M.2 Key B 3050 slot for a 5G module. It also offers two hot-swappable 2.5-inch SATA drives with Intel® RAID 0/1 support, as well as two mSATA slots for additional storage.

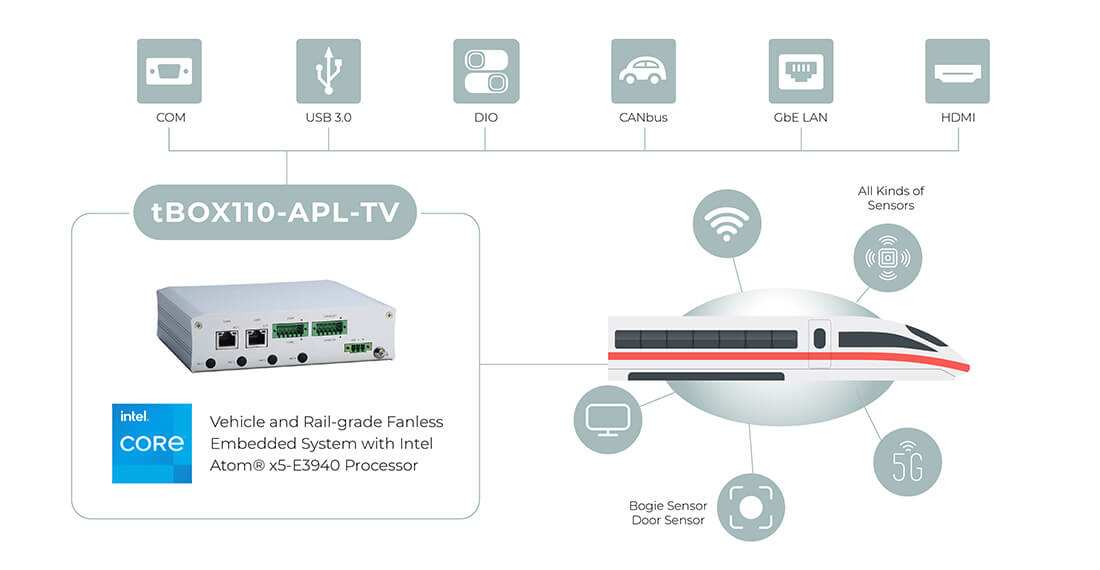

tBOX110-APL-TV: Recommended for Railway Predictive Maintenance
Rich I/O for Various Applications
The tBOX110-APL-TV offers a rich set of I/O interfaces. It features two CANBus ports, two high-speed COM ports, two LAN ports, two USB 3.0 ports, and 6-in/2-out DIO, making it ready for additional peripherals and serving as a cost-effective gateway for collecting multiple digitalized signals.
Compact Size with Rugged Design
The tBOX110-APL-TV measures only 16.4 × 12.8 × 4.4 cm. Despite its compact size, it is designed to withstand challenging railway environments worldwide, performing reliably under a wide temperature range from -40°C to +70°C.
2 Mounting Choices
The tBOX110-APL-TV supports two mounting options, DIN-rail or wall-mount, providing flexible installation even in space-constrained train cabins.

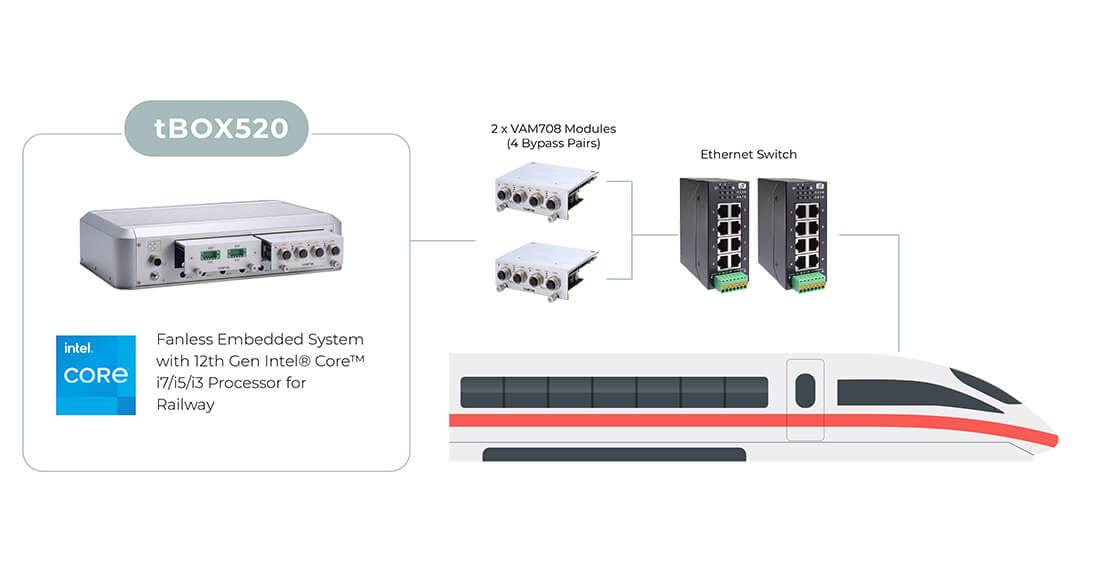

tBOX520: High-Performance Modular Embedded System Designed for Railway
High Performance Intel Processor
The tBOX520, powered by 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processors, stands out with its versatile VAM options, making it a preferred hardware firewall for system integrators.
Scalable VAM for Customization
The tBOX520 has two slots for value-added modules that support LAN ports, CANBus, or PoE, offering flexible configuration options. For uninterrupted firewall functionality, we recommend adding two VAM708 modules, each with four M12 A-code LAN ports and two LAN Bypass ports.
Railway Standards
The tBOX520 is EN 50155 and EN 45545-2 certified, capable of operating under a wide temperature range from -40°C to +70°C. It ensures reliable performance with intelligent power management features, including ACC on/off delay, shutdown delay, and over/under voltage protection. The system also supports 24V to 110V DC power input for rolling stock applications.
