tBOX110

Status : Available

Vehicle and Rail-grade Fanless Embedded System with Intel Atom® x5-E3940 Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
tBOX110
tBOX110
tBOX110
tBOX110
tBOX110
tBOX110
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • CE, FCC, LVD, EN 45545-2, EN 50155, and E-Mark certified
  • Wide operating temperature range from -40°C to +70°C (EN 50155 OT4)
  • Wide range 9 to 36 VDC and full range 24 to 110 VDC power input
  • Smart ignition ensures safe shutdown and protects the vehicle battery
  • Compact design with rich I/O connectivity and TPM 2.0 support
Compact Size
Compact Size

64 x 128 x 44 mm
Weighs 1.0 kg

Rugged Design
Rugged Design

3 Grms Vibration Resistance
Operating Temperature -40 °C to +70 °C

Smart Ignition Power Control
Power Control

Equipped with Smart Ignition



Market-Ready

The market-ready tBOX110 comes fully certified—EN 50155, EN 45545-2, CE, LVD, FCC—and meets ISO 7637-2 standards, eliminating verification and certification concerns.

Elevate Your Safety Level and Save More Energy

The tBOX110 features a reliable safe shutdown function to protect critical components and data during power disruptions. Users can also set power on/off schedules via the BIOS, ensuring device longevity and efficiency, making it an energy-conscious solution.

Outstanding Power Control for Vehicle and Railway

The reliable transportation system supports 12/24 VDC typical automotive power input with smart ignition, or 24 to 110 VDC for railway use and a wide-range 9 to 36 VDC power input for general purposes.

Smart Ignition Support

Equipped with smart ignition power control, the tBOX110 allows scheduled power on/off events to protect the vehicle battery from unstable voltage and supports multiple power modes.

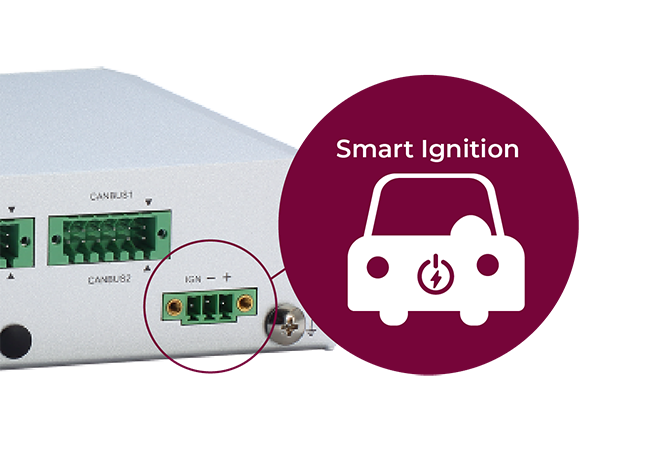

tBOX110 Smart Ignition Power Control Module Layout

DIN-rail and Wall-Mountable

The tBOX110 offers DIN-rail and wall mounting, and its compact, lightweight design fits easily into space-constrained environments.

tBOX110 Compact Chassis with DIN-rail and Wall Mount Kit

Expansion Capability

The tBOX110 features two full-size Rev.1.2 PCI Express Mini Card slots—one USB/PCIe and one mSATA/USB/PCIe—each with an external SIM socket for high integration.

Rich I/O Interfaces

Front View

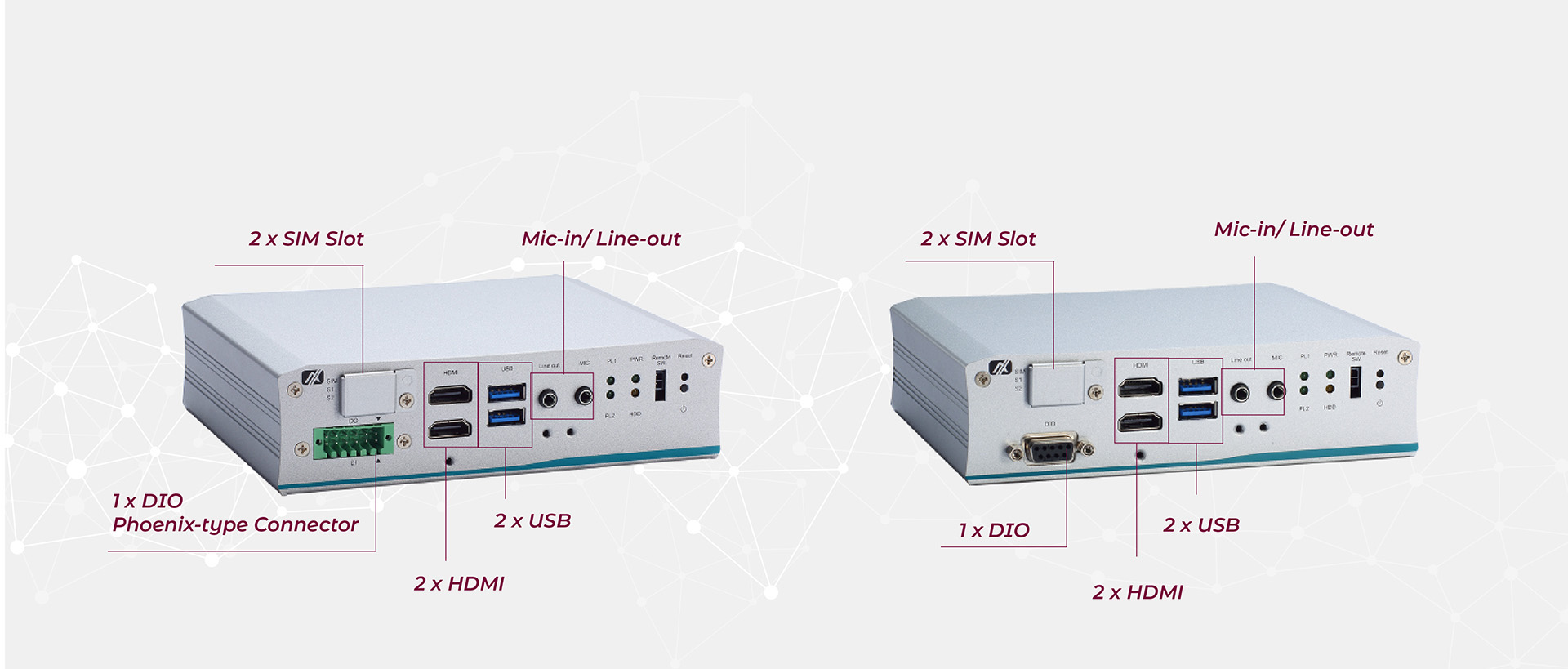

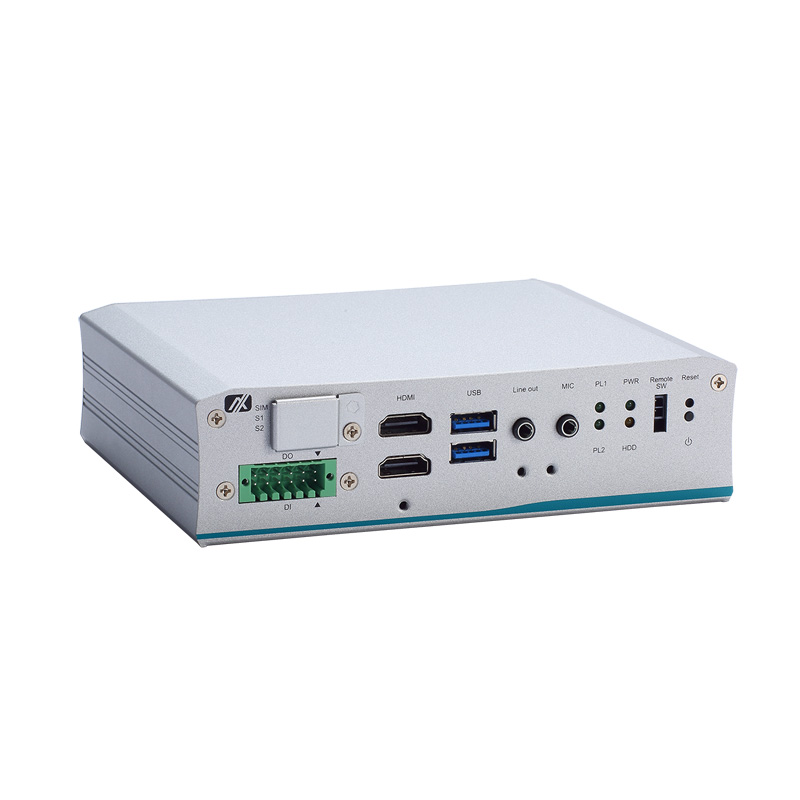

tBOX110 Ultra-Compact Transportation PC Front View I/O Layout
Rear View

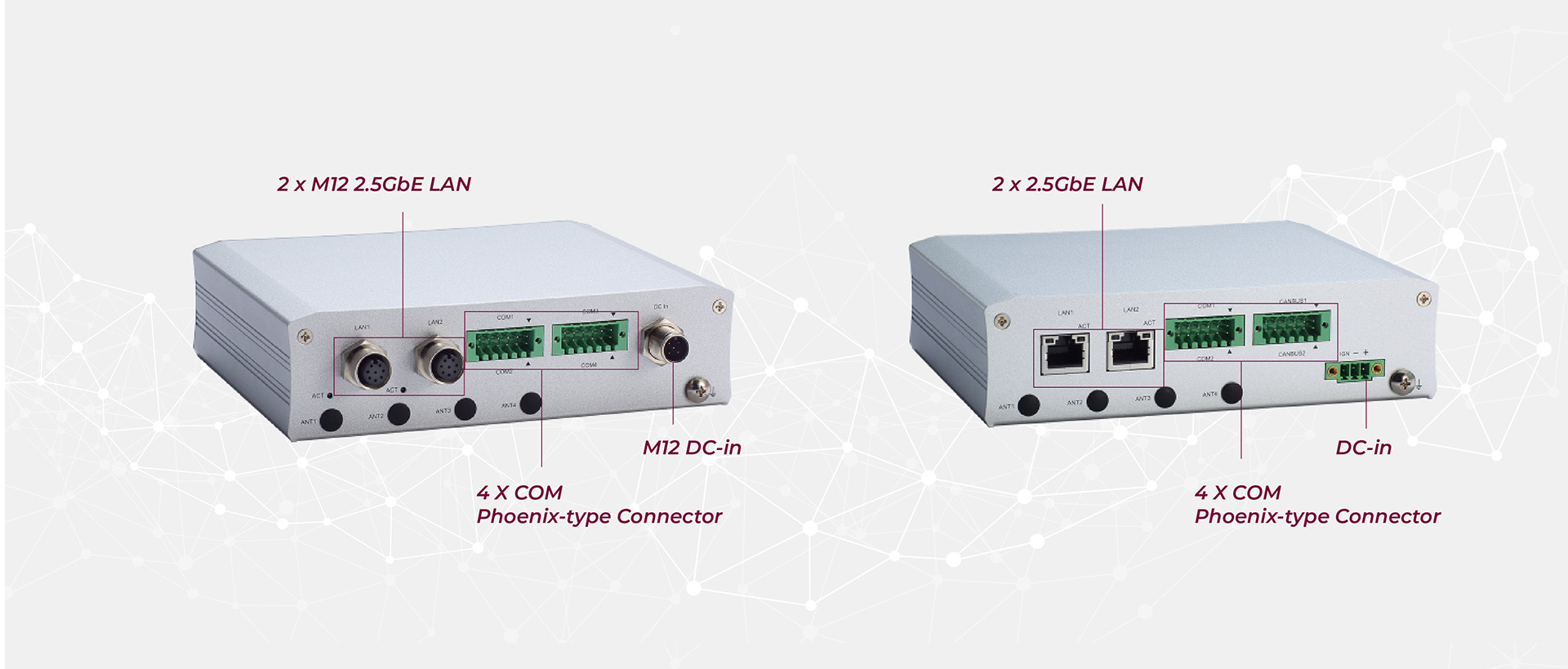

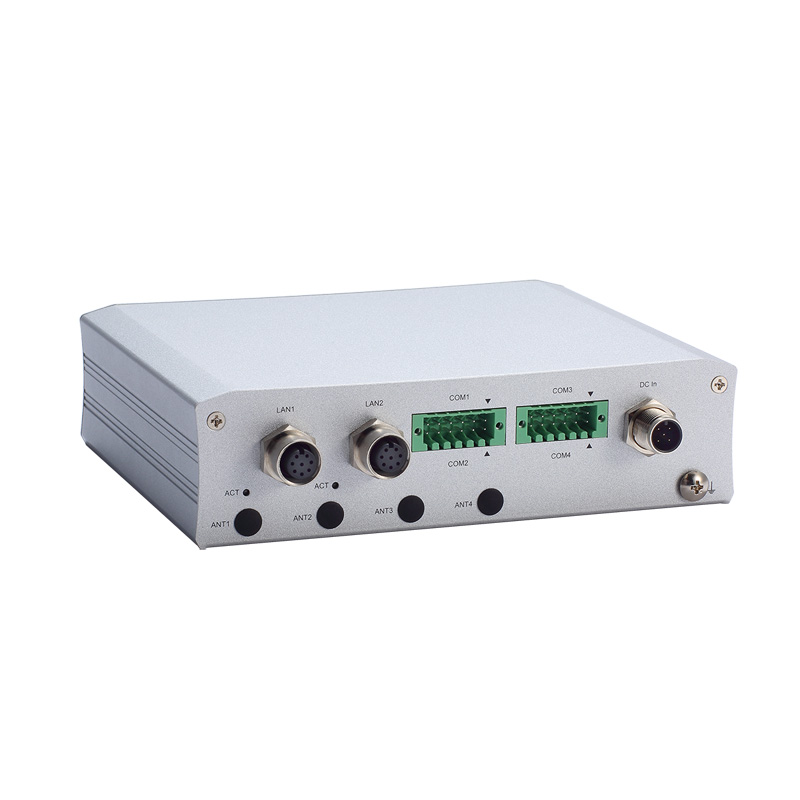

tBOX110 Ultra-Compact Transportation PC Rear View I/O Layout

Specifications

CPU
  • Intel Atom® x5-E3940 4C @1.6 GHz, TDP: 9.5W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • Vehicle: 2 x RS-232/422/485 (4-wire) with shield grounding
  • Railway: 4 x Isolated RS-232/422/485 (4-wire) with shield grounding
USB
  • 2 x USB 3.0
Ethernet
  • Vehicle: 2 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-IT)
  • Railway: 2 x M12 A-coded/X-coded 10/100/1000 Gbps Ethernet (Intel® I210-IT)
PoE
  • N/A
Display
  • 2 x HDMI 1.4b (with screw lock)
CANbus
  • Vehicle: 2 x Isolated CANBus 2.0 A/B with
  • SocketCAN supported
Digital I/O
  • Vehicle: 1 x DB9 8-bit programmable DIO
  • Railway: 1 x Isolated terminal block DIO (4-in/4-out)
Audio
  • 1 x Mic-in, 1 x Line-out
Storage
  • 1 x Internal 2.5" SATA drive (9.5 mm height)
  • 1 x mSATA (occupied 1 PCI Express Mini Card slot)
Expansion
  • 2 x Full-size Rev.1.2 PCI Express Mini Card slot:
  • 1 x USB/PCIe with external SIM socket (Standard size SIM socket)
  • 1 x mSATA/USB/PCIe with external SIM socket (Standard size SIM socket)
TPM
Others
  • 1 x Reset button
  • 1 x Power button
  • 1 x Remote switch
  • 4 x Antenna opening
Power Consumption (Max.)
Power Supply
  • Vehicle: 1 x Terminal block, 9 to 36VDC with Smart Ignition
  • Railway: 1 x M12 Male A-coded, 24 to 110VDC with Smart Ignition
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP20
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 1 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock
  • EN 50155: EN (IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
Dimensions
(W x D x H)
  • 164.1 x 128 x 44.1 mm (6.46" x 5.04” x 1.74”)
Weight (net/gross)
  • 1.02 kg (2.24 lb)/1.44 kg (3.17 lb)
Certifications
  • CE, FCC, LVD, EN 45545-2, EN 50155, and E-Mark certified
EOS Support
  • Windows® 10 64-bit, Ubuntu 20.04
Software Support
  • N/A
Mounting
  • Wall mount, DIN-rail (optional)

Ordering Information

  • tBOX110-APL-TV (P/N-E26N110100)
    Fanless vehicle embedded system with Intel Atom® x5-E3940, 2 RJ-45 GbE LAN, terminal block DC-in, 2 USB 3.0, 2 HDMI, 2 COM, DIO, 2 CAN, audio mic-in/line-out, Smart Ignition, TPM 2.0, and 12/24 VDC
  • tBOX110-APL-MR2 (P/N-E26N110102)
    Fanless railway embedded system with Intel Atom® x5-E3940, 2 M12 A-code GbE LAN, M12 DC-in, 2 USB 3.0, 2 HDMI, 4 COM, DIO, audio mic-in/line-out, TPM 2.0, and 24 to 110VDC
  • tBOX110-APL-MR4 (P/N-E26N110103)
    Fanless embedded system with Intel Atom® x5-E3940, 2 M12 X-code GbE LAN, M12 DC-in, 2 USB 3.0, 2 HDMI, 4 COM, DIO, audio mic-in/ line-out, TPM 2.0, and 24 to 110VDC
  • E29R303101
    ACC303-001-20A (WiFi5 MCR822CE-P)
  • 886N11012A0E
    LTE NL668-JP tBOX110 M1R 2020(E)
  • E29R318109
    ACC318-501-207 (LTE NL668-EAU)
  • E39P118106
    EIO118-JP-001 (LTE NL668-JP)
  • 509000001500
    PWS FSP120-AAAN3(9NA1206647) FSP 120W for E26N110100 tBOX110-APL-TV
  • 509000002200
    PWS 9NA0908344 FSP 90W for E26N110102/E26N110103 tBOX110-APL-MR2&4
  • 594B8120B30E
    DC IN CABLE M12 FEMALE 5P 180CM W/O ACC (for testing purpose)
  • 594B8152710E
    LAN CABLE M12-XCODE/RJ45PLUG CAT6 180CM
  • 594N3202730E
    LAN CABLE M12-A MALE 8P TO RJ-45
  • 59906000010E
    Power Cord YP-12/YC-12(Japan)
  • 59903000000E
    Power Cord YP-22/YC-12 (Europe)
  • 59904010000E
    Power Cord/UK YP-61A/YC-12 L=1830mm
  • 59905000000E
    Power cord YP-35/YC-12 (Australia)
  • 886N11011A0E
    tBOX110 DIN-rail kit(s) (E)
  • 8816N1000A0E
    tBOX Anti-vibration kit(s) (E)

Download

Drivers

Date Description Version Download File
2023/04/11 Win10_64_CANBUS Driver VA1.1
2023/04/11 Win10_64_Intel Ethernet VA1.1
2023/04/11 Win10_64_Intel Chipset VA1.1
2023/04/11 Win10_64_Intel TXE Driver VA1.1
2023/04/11 Win10_64_Intel GPIO VA1.1
2023/04/11 Win10_64_Intel Graphics VA1.1
2023/04/11 Win10_64_Audio Driver VA1.1

Software

Manual

Date Description Version Download File
2024/11/14 tBOX110-APL-MR User's Manual VA6
2024/10/21 tBOX110-APL-TV User_s Manual VA2 VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/08/16 EN50155 Certificate
2023/04/17 UKCA Declaration of Conformity
2023/04/17 FCC Verification
2023/04/17 CE-Conformity Declaration
2023/04/17 CE EMC Verification
