UST210-83K-FL

Status : Available

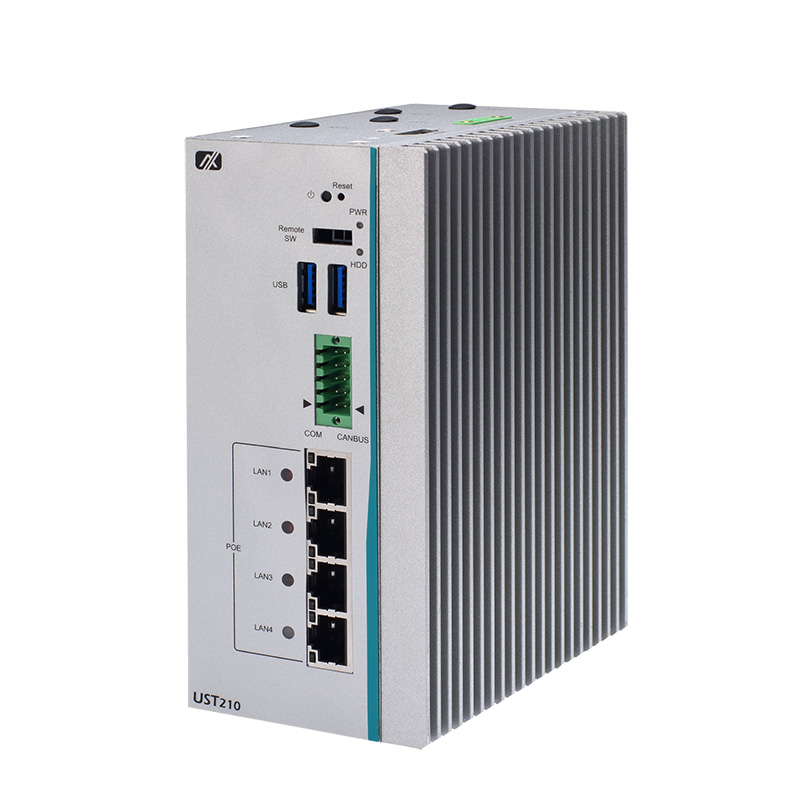

Robust and Compact DIN-rail Fanless Embedded System with Intel Atom® x5-E3940 Processor for In-Vehicle Gateway Applications

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
UST210-83K-FL
UST210-83K-FL
UST210-83K-FL
UST210-83K-FL
UST210-83K-FL
E-Mark

E-Mark

Fanless

Fanless

Low Power

Low Power

PoE

PoE

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • CE, FCC and E-Mark certified
  • Intel Atom® x5-E3940 processor (Apollo Lake-I)
  • Extreme cost-effective with fanless and cableless design
  • Wide operating temperature range from -40°C to +70°C
  • Supports typical 12 and 24V DC in-vehicle power input
  • Smart Ignition for power on/off schedule, vehicle battery protection, and different power modes
  • Supports COM, CAN, USB, and GbE PoE LAN
  • 8-bit programmable DIO for IoT gateway applications

Specifications

CPU
  • Intel Atom® x5-E3940 4C @1.6 GHz, TDP: 9.5W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • Up to 2 x Terminal block Serial console or RS-232/422/485
USB
  • 2 x USB 3.0
Ethernet
  • 4 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-AT)
PoE
  • Up to 4 x configurable RJ-45 PoE output, each with a maximum of 30W, compatible with PoE and PoE+
  • PoE (802.3af 15.4W perport)
  • PoE+ (802.3at 30W perport)
Display
  • 1 x HDMI (up to 1920x1080@60Hz)
CANbus
  • 1 x Terminal block CANBus 2.0 A/B
Digital I/O
  • 1 x DB9 8-bit programmable DIO
Audio
  • N/A
Storage
  • 1 x Internal 2.5” SATA drive (9.5 mm height)
  • 1 x Half-sized mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion
  • 1 x Full-size PCI Express Mini Card slot with SIM Slot (only USB)
  • 1 x Half-size PCI Express Mini Card slot (USB/mSATA)
Others
  • 4 x Antenna opening
  • 1 x Power button
  • 1 x Reset button
  • 1 x Remote switch
  • TPM 2.0
Power Supply
  • 1 x Terminal block, 12 and 24V DC with smart ignition
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP20
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Gms with mSATA and SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock
  • N/A
Dimensions
(W x D x H)
  • Non-PoE SKU: 48 x 110.4 x 155 mm (1.89" x 4.33" x 6.1")
  • PoE SKU: 67 x 110.4 x 155 mm (2.63" x 4.33" x 6.1")
Weight (net/gross)
  • Non-PoE SKU: 0.51 kg (1.12 lb)/0.79 kg (1.74 lb)
  • PoE SKU: 0.84 kg (1.85 lb)/1.12 kg (2.47 lb)
Certifications
  • CE (Class A), FCC (Class A), E-Mark (E24) certified
EOS Support
  • Windows® 10 64-bit, Linux
Software Support
  • N/A
Mounting
  • Wall mount, DIN-rail

Ordering Information

  • UST210-83K-FL-E3940-CANCOM-TVDC (P/N-E274210100)
    Fanless embedded system with Intel Atom® x5-E3940 processor, 1 CAN, 1 COM, 4 LAN, 2 USB, 1 DIO and 1 HDMI, TPM 2.0 supported, with Smart Ignition
  • UST210-83K-FL-E3940-2COM-TVDC (P/N-E274210101)
    Fanless embedded system with Intel Atom® x5-E3940 processor, 2 COM, 4 LAN, 2 USB, 1 DIO and 1 HDMI, TPM 2.0 supported, with Smart Ignition
  • UST210-83K-FL-E3940-4POE-CANCOM-TVDC (P/N-E274210102)
    Fanless embedded system with Intel Atom® x5-E3940 processor, 1 CAN, 1 COM, 4 PoE LAN, 2 USB, 1 DIO and 1 HDMI, TPM 2.0 supported, with Smart Ignition
  • UST210-83K-FL-E3940-4POE-2COM-TVDC (P/N-E274210103)
    Fanless embedded system with Intel Atom® x5-E3940 processor, 2 COM, 4 PoE LAN, 2 USB, 1 DIO and 1 HDMI, TPM 2.0 supported, with Smart Ignition
  • Wi-Fi
    Wi-Fi WPET-239ACN (BT) FOR ICO120 (E)
  • 509000001500
    PWS FSP120-AAAN3(9NA1206647) FSP 120W
  • 599000001100
    Power cord YP12/YC12_CY-U0032 YUNG_LI 1830mm
  • 59906000010E
    Power cord YP-12/YC-12 (Japan)
  • 59903000000E
    Power cord YP-22/YC-12 (Europe)
  • 59905000000E
    Power cord YP-35/YC-12 (Australia)
  • 59904010000E
    Power cord/UK YP-61A/YC-12 L=1830mm
