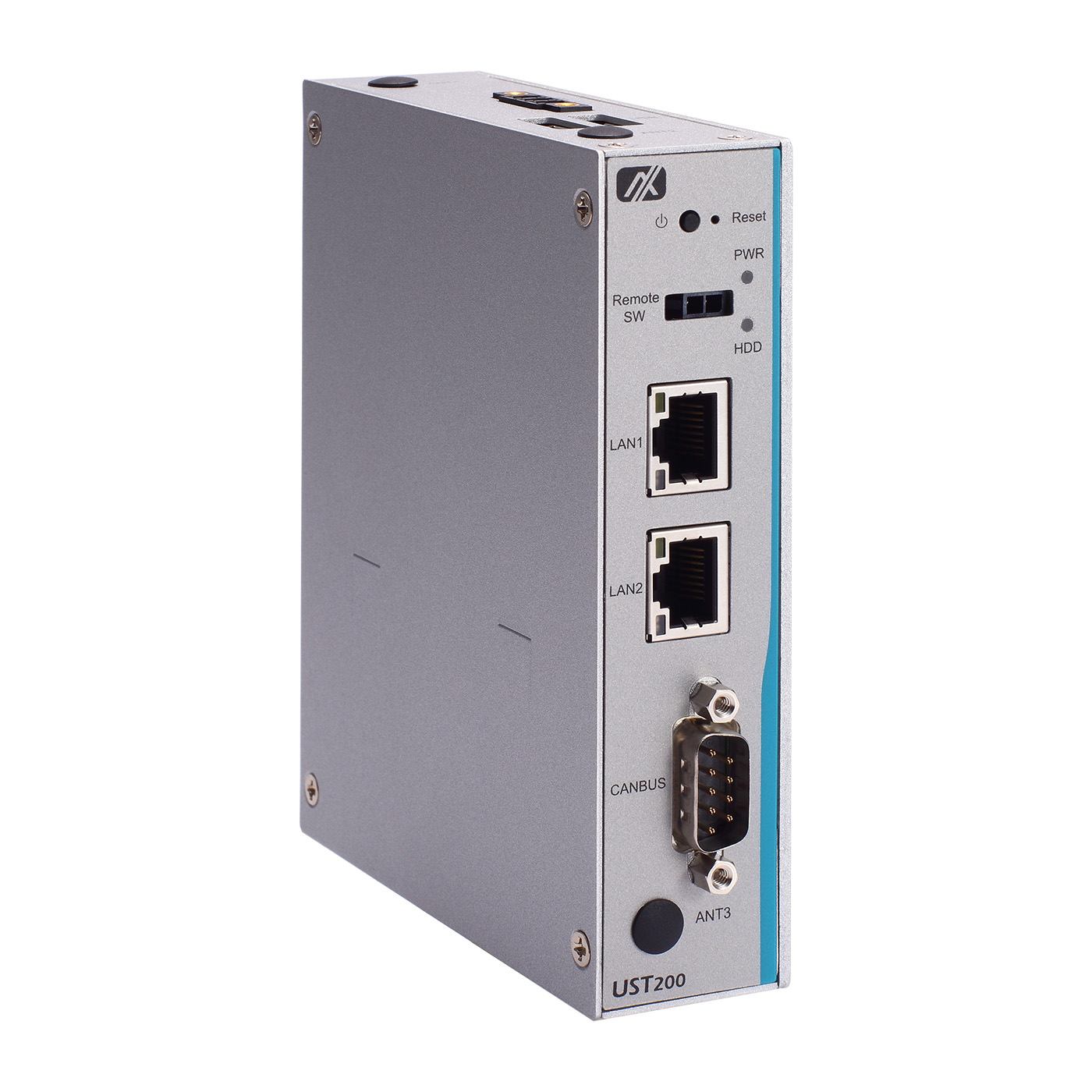

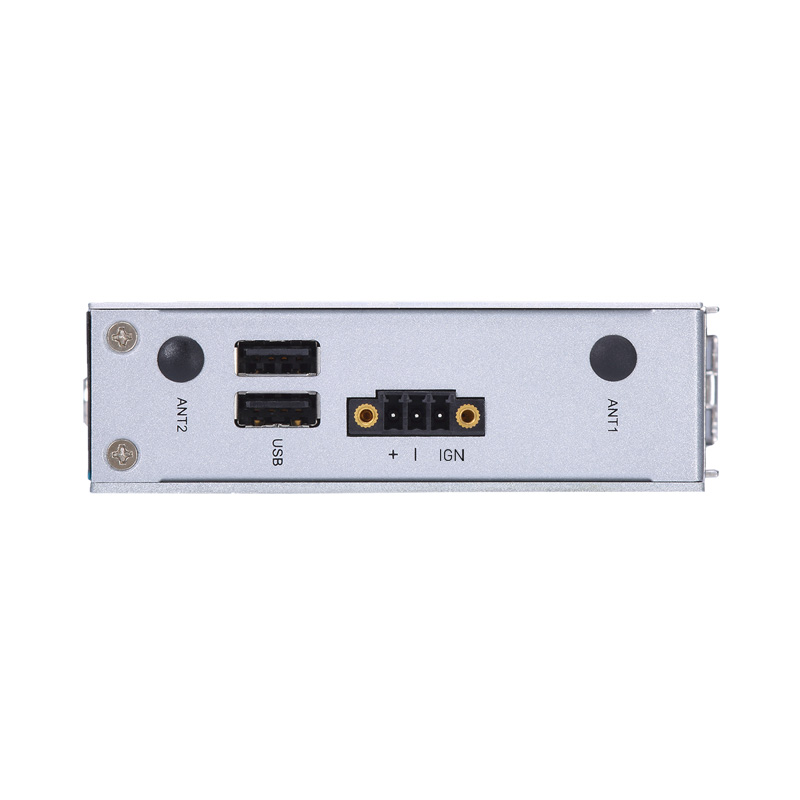

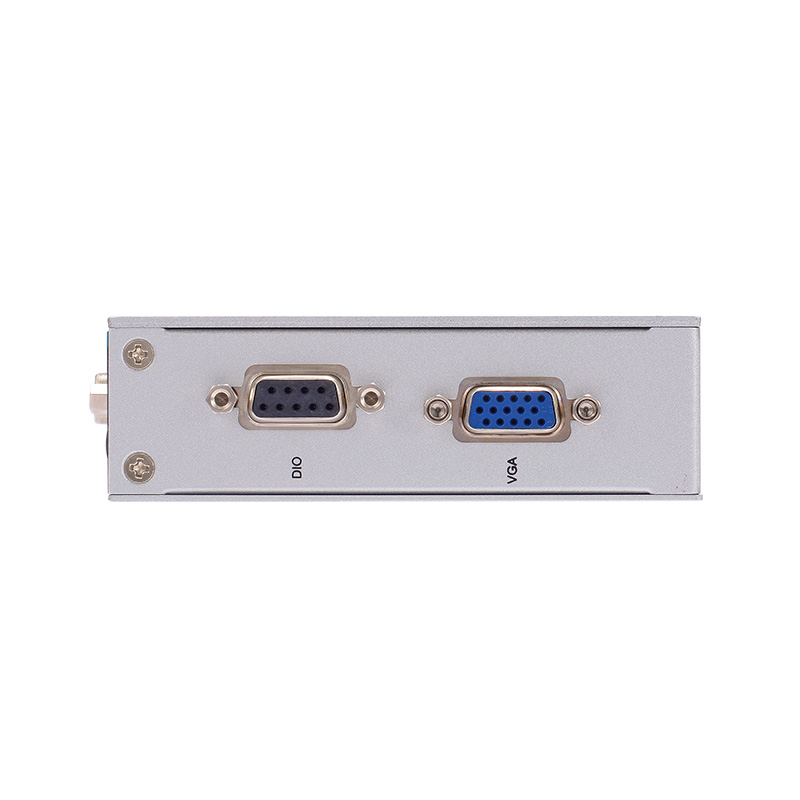

UST200-83H-FL

Status : Available

Robust and Compact DIN-rail Fanless Embedded System with Intel Atom® x5-E3930 Processor for In-Vehicle Gateway Applications

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
UST200-83H-FL
UST200-83H-FL
UST200-83H-FL
UST200-83H-FL
UST200-83H-FL
E-Mark

E-Mark

Fanless

Fanless

Smart lgnition

Smart lgnition

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • CE, FCC and E-mark certified
  • Intel Atom® x5-E3930 processor (Apollo Lake-I)
  • Extreme cost-effective with fanless and cableless design
  • Wide operating temperature range from -40°C to +70°C
  • Supports typical 12 and 24V DC in-vehicle power input
  • Smart Ignition for power on/off schedule, vehicle battery protection and different power mode
  • Supports COM, CAN, USB, and GbE LAN

Specifications

CPU
  • Intel® Atom® x5-E3930 2C @1.3 GHz, TDP: 6.5W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x DB9 Serial console or RS-232/422/485
USB
  • 2 x USB 2.0
PoE
  • N/A
Ethernet
  • 2 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-AT)
Display
  • 1 x VGA (up to 1920 x 1200 @60Hz) (HDMI optional)
CANbus
  • 1 x DB9 CANBus 2.0 A/B
Digital I/O
  • 1 x DB9 8-bit programmable DIO
Audio
  • N/A
Storage
  • 1 x Half-sized mSATA (occupied 1 x PCI Express Mini Card slot)
Expansion
  • 1 x Full-size Rev. 1.2 PCI Express Mini Card slot (USB/PCIe with SIM socket)
  • 1 x Half-size Rev. 1.2 PCI Express Mini Card slot (mSATA/USB/PCIe)
Others
  • 3 x Antenna opening
  • 1 x Power button
  • 1 x Remote switch
Power Supply
  • 1 x Terminal block, 12 and 24V DC with smart ignition
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP20
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Grms with mSATA (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
Shock
  • N/A
Dimensions<br>(W x D x H)
  • 31 x 100.4 x 125 mm (1.22" x 3.93" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.67 lb)/0.45 kg (0.99 lb)
Certifications
  • CE (Class A), FCC (Class A), E-Mark (E24) certified
EOS Support
  • Windows® 10 64-bit, Linux
Software Support
  • N/A

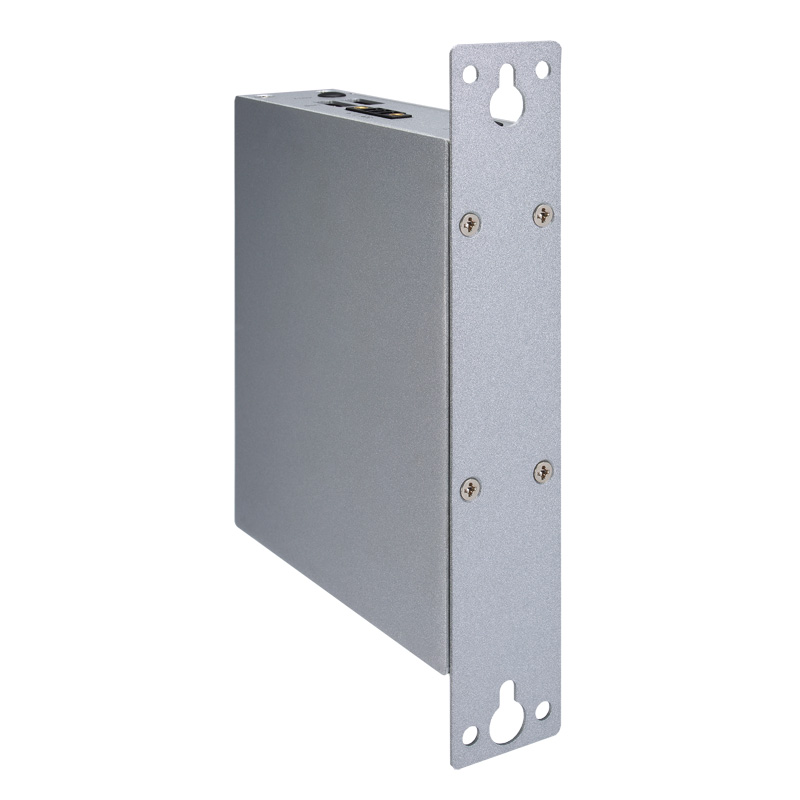

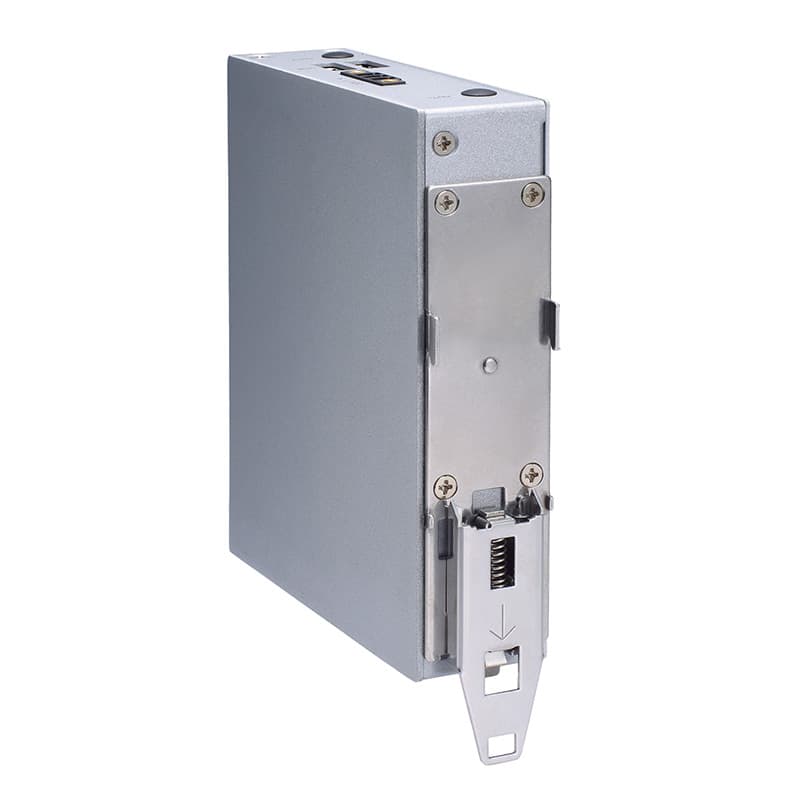

Mounting
  • Wall mount, DIN-rail

Ordering Information

  • UST200-83H-FL-E3930-CAN-TVDC (P/N-E274200100)
    Fanless embedded system with Intel Atom® x5-E3930 processor, 1 CAN, 2 LAN, 2 USB and 1 DIO, operating temperature from -40 to 70°C, TPM 2.0 supported, and Smart Ignition
  • UST200-83H-FL-E3930-COM-TVDC
    Fanless embedded system with Intel Atom® x5-E3930 processor, 1 COM, 2 LAN, 2 USB and 1 DIO, operating temperature from -40 to 70°C, TPM 2.0 supported, and Smart Ignition
  • E29R318103
    ACC318-501-201 (LTE NL668-EAU)
  • E29R318108
    ACC318-541-30F (LTE NL668-EAU with GPS antennas)
  • 509000001500
    PWS FSP120-AAAN3 (9NA1206647) FSP 120W
  • 599000001100
    Power cord YP12/YC12_CY-U0032 YUNG_LI 1830mm
  • 59906000010E
    Power cord YP-12/YC-12 (Japan)
  • 59903000000E
    Power cord YP-22/YC-12 (Europe)
  • 59905000000E
    Power cord YP-35/YC-12 (Australia)
  • 59904010000E
    Power cord/UK YP-61A/YC-12 L=1830mm
