tBOX520

Status : Available

Fanless Embedded System with 12th Gen Intel® Core™ i7/i5/i3 Processor for Railway

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

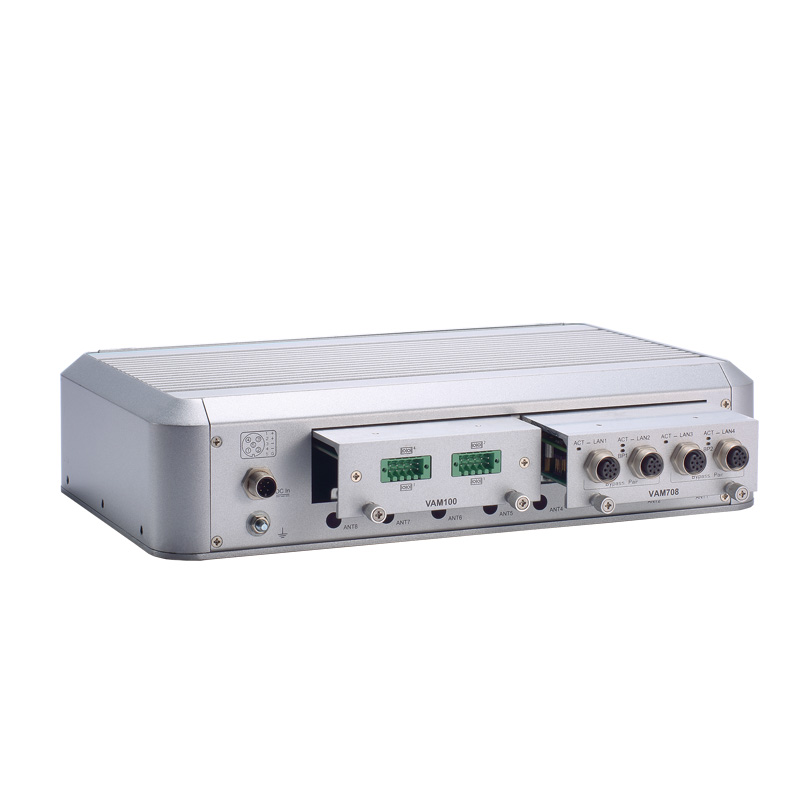

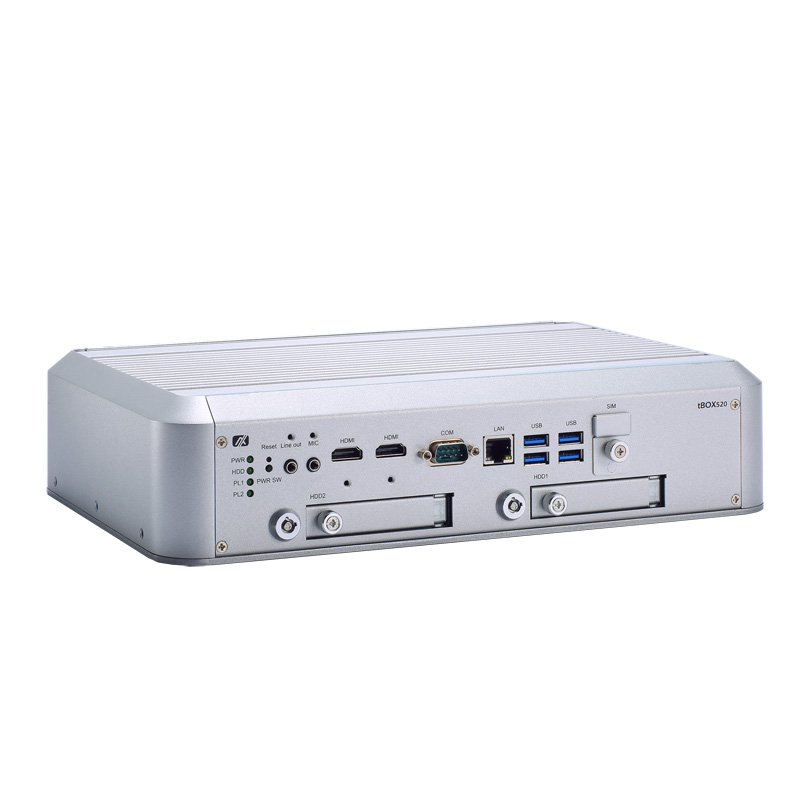

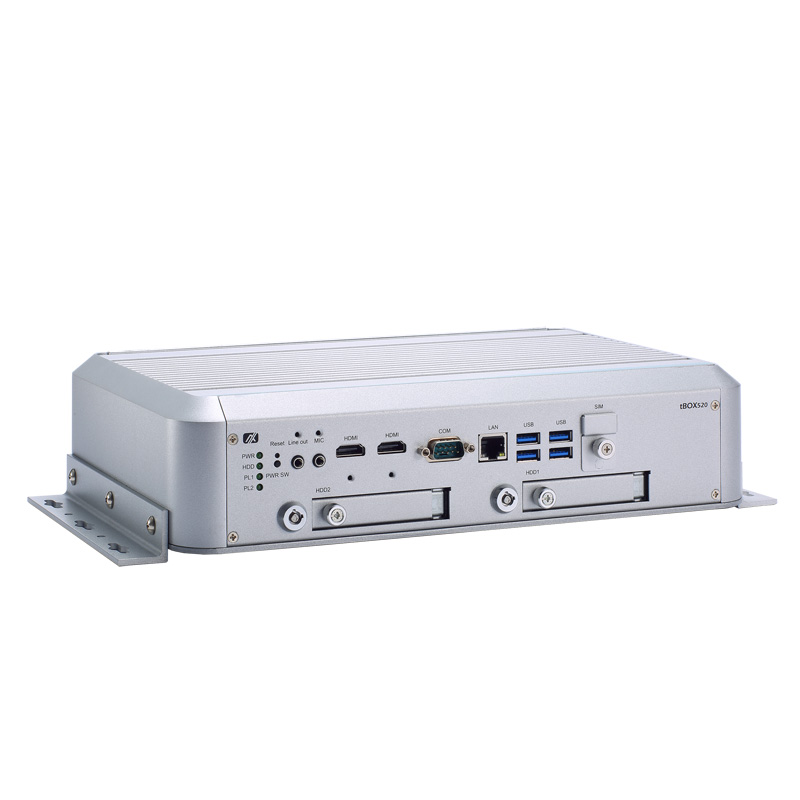

tBOX520
tBOX520
tBOX520
tBOX520
tBOX520
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • CE, LVD, FCC, EN 50155, EN 45545-2 certified
  • 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Alder Lake P)
  • 24 to 110 VDC for railway applications
  • Value-added modules available for various I/O requirements (COM/LAN/DIO/PoE/CAN/BNC)
  • Intelligent solution of power management (Smart Ignition)
  • 2 swappable 2.5" SATA drives
Smart ignition power control
Outstanding Power Control

24–110 VDC wide-range DC input
Smart ignition power control

EN 50155
Railway Certification

EN 50155 & EN 45545-2
IP67 Rating

Ruggedized Railway PC
Rugged Design

-40°C to +70°C operating temperature
3 Grms vibration endurance



Market-Ready

Eliminating concerns for verification and certification, the market-ready tBOX520 is EN 50155, EN 45545-2, CE, LVD, and FCC certified.



Single Configuration for All

The tBOX520 offers versatile support for value-added modules catering to diverse I/O needs, including COM, LAN, DIO, PoE, CAN, and BNC interfaces to support a range of peripherals and connections. Its adaptability allows the customers to employ a single configuration for diverse settings and shorten time-to-market.



Cybersecurity Gateway

Through integration with the VAM708 module featuring four M12 A-code LAN ports with LAN Bypass function, this railway embedded system ensures uninterrupted communication and networking flow.

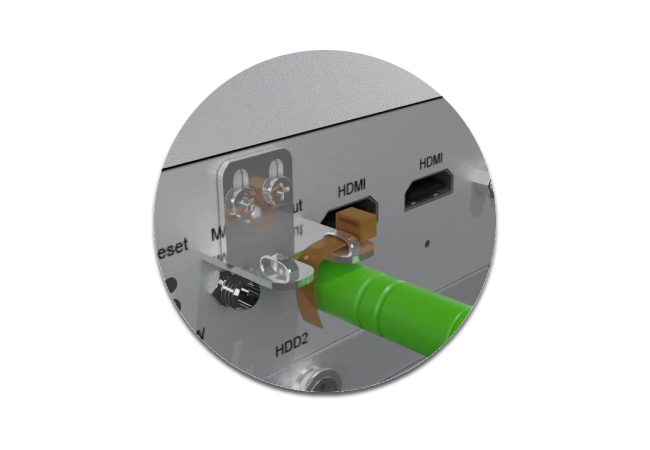

Secure Cable Lock Design

Secure HDMI and audio cables to their ports to avoid accidental disconnection due to vibration.

Secure Cable Lock Design

Fanless Yet High Performance

The tBOX520 is powered by the 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processor. It features two DDR5-4800 SODIMM slots for up to 32 GB of system memory and one M.2 Key M 2280 slot for high-speed NVMe SSD, offering an overall boost of computational performance.

Expansion Capability

  • 1 x full-size PCIe Mini Card slot: USB/PCIe for LTE, Wi-Fi, and Bluetooth
  • 1 x M.2 Key A+E slot: Wi-Fi 6 and Bluetooth
  • 1 x M.2 Key B slot: 5G, Wi-Fi 6, and Bluetooth
  • 2 x Nano SIM card slots for easy access to the network

Applications

Passenger Flow Management

Security Surveillance System

Trackside Monitoring Detection

Rich I/O Interfaces

Front View

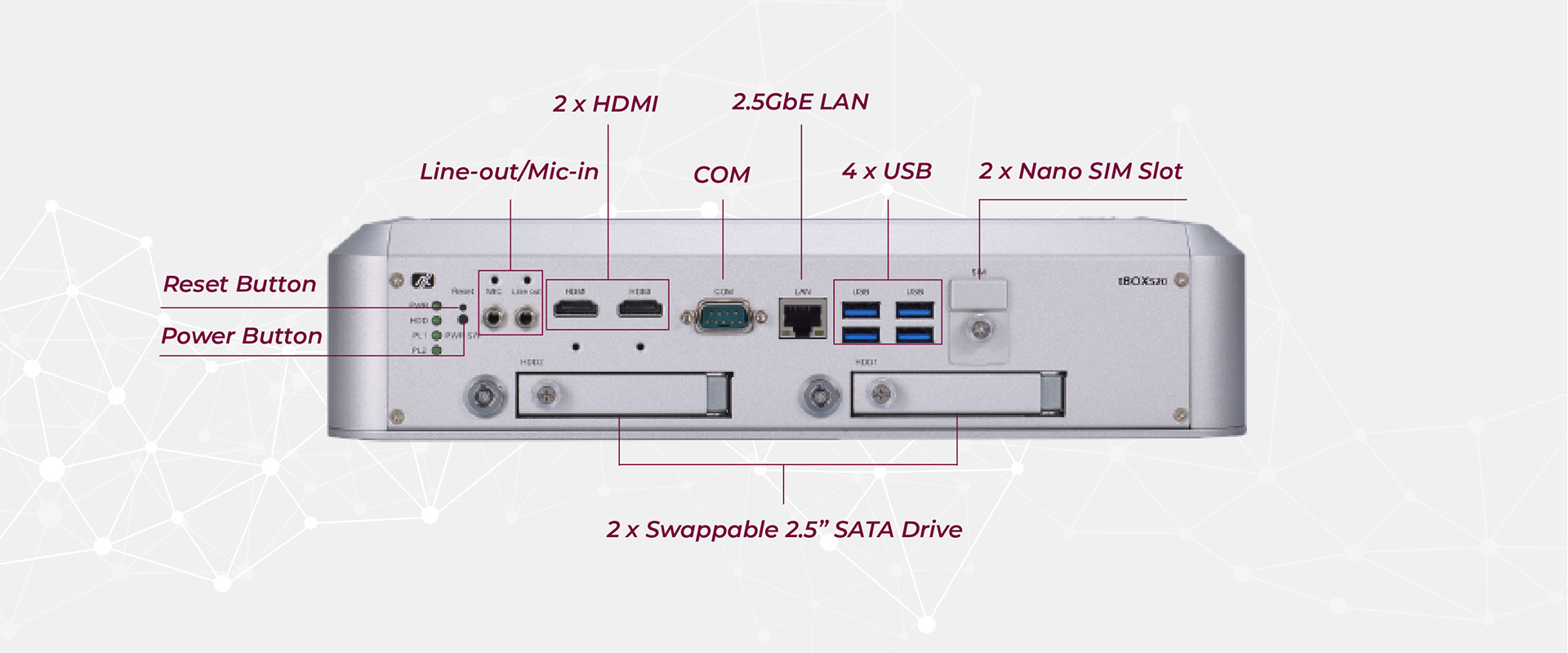

tBOX520 Front I/O

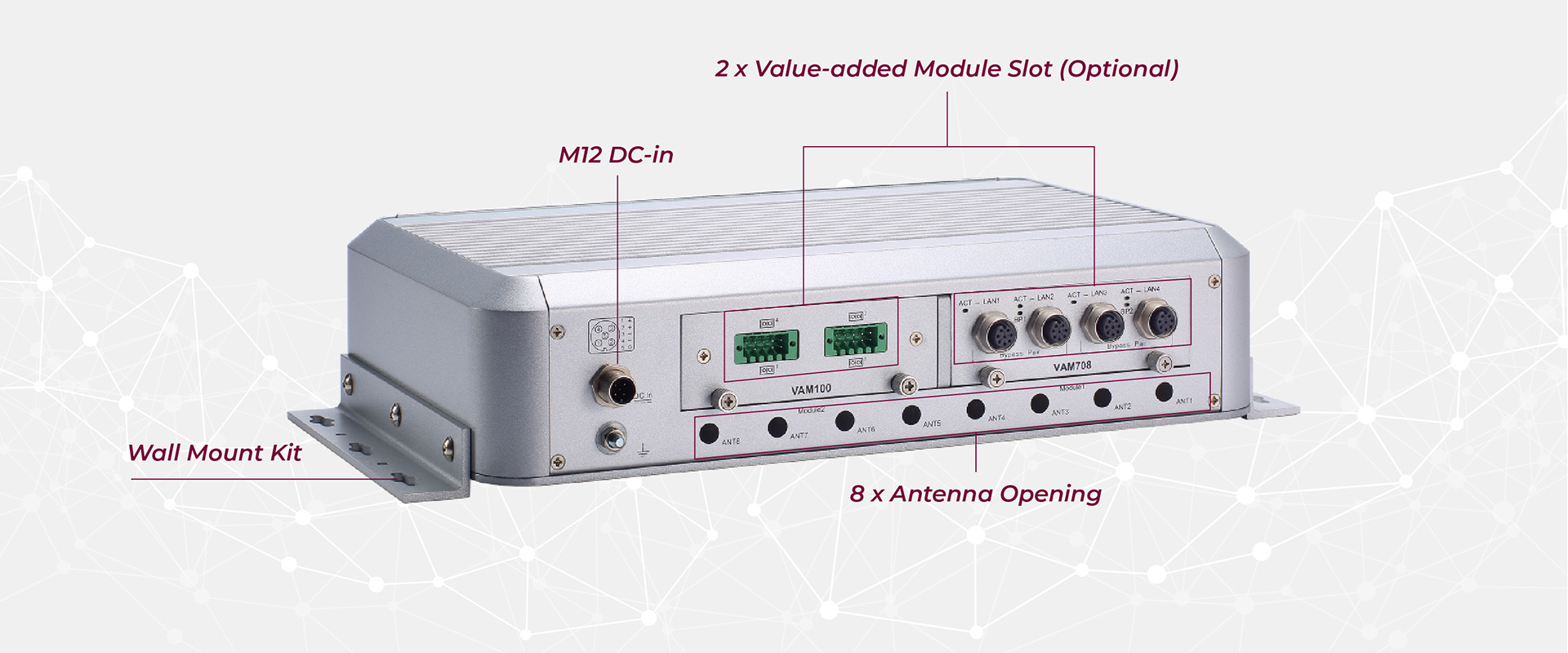

Rear View

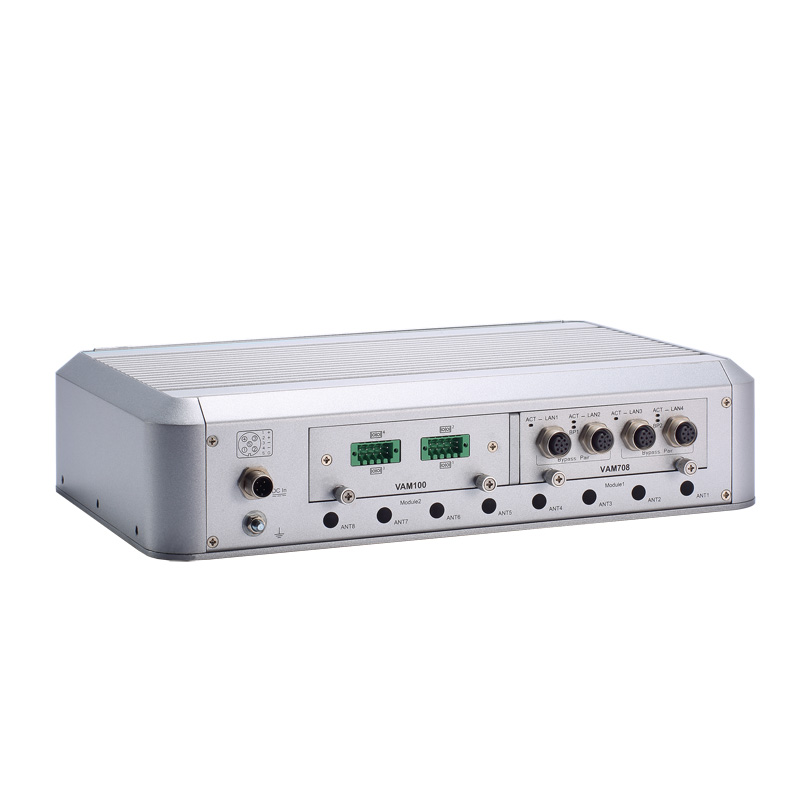

tBOX520 Rear I/O

Specifications

CPU
  • 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processor (13th Gen by request)
Chipset
  • SoC integrated
System Memory
  • 2 x DDR5-4800 SO-DIMM
  • non-ECC: dual channel up to 32GB; single channel up to 16GB
BIOS
  • AMI
COM
  • 1 x DB9 serial console or RS-232/422/485
  • More COM ports available from I/O module (optional)
USB
  • 4 x USB 3.0
Ethernet
  • 1 x RJ-45 2.5GbE LAN (Intel® I226-IT)
PoE
  • The tBOX520 PoE SKUs equipped with VAM701/703/705/707 can support up to 8 configurable M12/RJ-45 PoE ports
  • • PoE (802.3af 15.4W per port)
  • • PoE+ (802.3at 30W per port)
Display
  • 2 x Type A HDMI 1.4b (4K)
CANbus
  • Available from I/O module (optional)
Digital I/O
  • Available from I/O module (optional)
Audio
  • 1 x Mic-in
  • 1 x Line-out
Storage
  • 1 x M.2 M key 2280 NVMe SSD (PCIe x4)
  • 2 x Swappable 2.5" SATA drive (9.5 mm height), Intel® RAID 0/1 supported
TPM
Expansion
  • 1 x M.2 Key B 3052/3042 for 5G/LTE (4G) (PCIe/USB)
  • 1 x full-size Rev. 1.2 PCIe Mini Card slot for LTE/Wi-Fi/Bluetooth/GPS (PCIe/USB)
  • 2 x Nano SIM slot
  • 1 x M.2 Key A or E for Wi-Fi 6/Bluetooth (PCIe/USB)
Others
  • TPM 2.0
  • 1 x Reset button
  • 8 x Antenna opening
  • 1 x Power button
Power Supply
  • 1 x M12, 24 to 110 VDC
Power Consumption (Max.)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 3 Grms with SSD (5 to 500Hz, X/Y/Z direction; random, operating)
  • 1 Grms with HDD (5 to 500Hz, X/Y/Z direction; random, operating)
  • MIL-STD-810G, Method 514.6C-VI Category 4 compliant
  • EN 50155: EN 61373 category 1 class B
Shock
  • EN 50155: EN(IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction)
Dimensions
(W x D x H)
  • 321 x 210.2 x 73.3 mm (12.64" x 8.28" x 2.89") (without wall mount)
Weight (net/gross)
  • 3.9kg (8.6lb)/ 6.0kg (13.2lb)
Certifications
  • CE (Class A), LVD, FCC (Class A), EN 50155, EN 45545-2
EOS Support
  • Ubuntu 22.04, Windows® 11 64-bit
Software Support
  • AXView

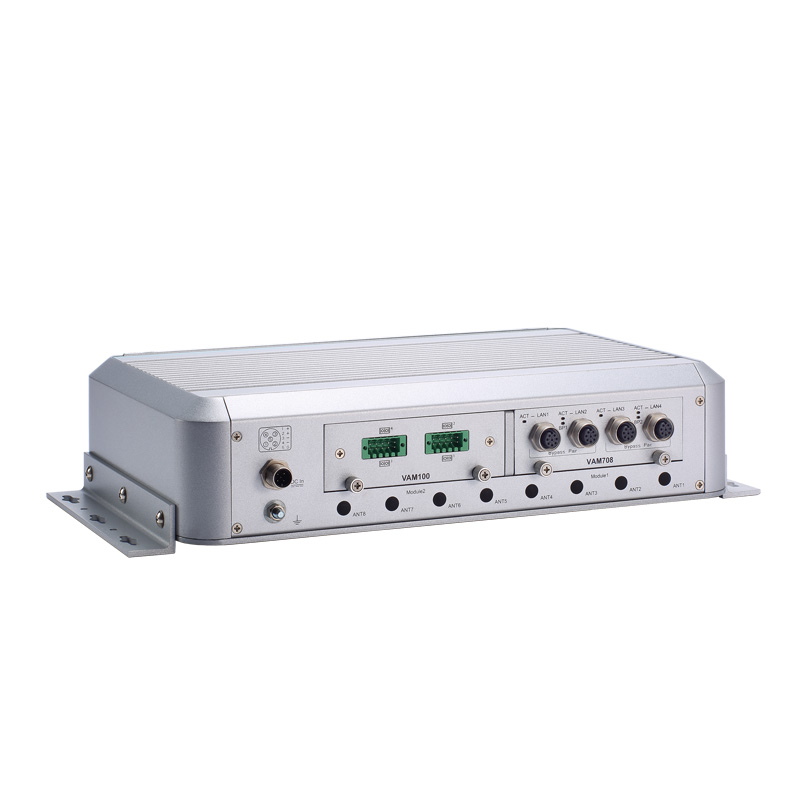

Mounting
  • Wall mount

Ordering Information

  • tBOX520-ADL7-MR (P/N-E26N520100)
    Fanless railway embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.0, 2 HDMI, LAN, serial console or RS-232/422/485, Mic-in/Line-out, two 2.5" SATA trays, M12 A-code DC-in, and 24 to 110 VDC
  • tBOX520-ADL5-MR (P/N-E26N520101)
    Fanless railway embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.0, 2 HDMI, LAN, serial console or RS-232/422/485, Mic-in/Line-out, two 2.5" SATA trays, M12 A-code DC-in, and 24 to 110 VDC
  • tBOX520-ADL3-MR (P/N-E26N520102)
    Fanless railway embedded system with Intel® Core™ i3-1215UE processor, 4 USB 3.0, 2 HDMI, LAN, serial console or RS-232/422/485, Mic-in/Line-out, two 2.5" SATA trays, M12 A-code DC-in, and 24 to 110 VDC
  • tBOX520-ADLC-MR (P/N-E26N520103)
    Fanless railway embedded system with Intel® Celeron® 7305E processor, 4 USB 3.0, 2 HDMI, LAN, serial console or RS-232/422/485, Mic-in/Line-out, two 2.5" SATA trays, M12 A-code DC-in, and 24 to 110 VDC
  • tBOX520-ADL7P-MR (P/N-E26N520105)
    Fanless railway embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.0, 2 HDMI, LAN, serial console or RS-232/422/485, Mic-in/Line-out, two 2.5" SATA trays, M12 A-code DC-in, 24 to 110 VDC, and PSE (supporting PoE LAN ports with VAM701/703/705/707)
  • tBOX520-ADL5P-MR (P/N-E26N520106)
    Fanless railway embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.0, 2 HDMI, LAN, serial console or RS-232/422/485, Mic-in/Line-out, two 2.5" SATA trays, M12 A-code DC-in, 24 to 110 VDC, and PSE (supporting PoE LAN ports with VAM701/703/705/707)
  • VAM100 (P/N-E277100100)
    4 x Terminal block 4-wire isolated RS-232/422/485; Isolation voltage
  • VAM102 (P/N-E277102100)
    4 x Terminal block isolated CANBus 2.0A/B; Isolation voltage
  • VAM200 (P/N-E277200100)
    1 x Terminal block isolated DIO 8-in/8-out; Isolation voltage
  • VAM400 (P/N-E277400100)
    4 x BNC video-in & 1 x BNC audio-in
    2 x Full size Rev. 1.2 PCI Express Mini Card slot (1 x USB with SIM socket & 1 x USB/PCIe with SIM socket) (Occupied by 1 x Capture Card)
  • VAM600 (P/N- E277600100)
    2 x Full size Rev. 1.2 PCI Express Mini card slot (1 x USB/PCIe with SIM socket & 1 x USB with SIM socket)
    4 x Antenna opening
  • VAM700 (P/N-E277700100)
    4 x M12 A-code GbE
  • VAM701 (PoE) (P/N- E277701100)
    4 x M12 A-code Gigabit PoE
  • VAM702 (P/N-E277702100)
    4 x RJ45 GbE
  • VAM703 (PoE) (P/N-E277703100)
    4 x RJ45 Gigabit PoE
  • VAM704 (P/N-E277704100)
    4 x M12 D-code 10/100 Mbps Ethernet
  • VAM705 (PoE) (P/N- E277705100)
    4 x M12 D-code 10/100 Mbps PoE
  • VAM706 (P/N-E277706100)
    4 x M12 X-code GbE
  • VAM707 (PoE) (P/N-E277707100)
    4 x M12 X-code PoE
  • VAM708 (P/N-E277708101)
    4 x M12 A-code with LAN Bypass
  • VAM900 (P/N-E277900100)
    2 x Full-size Rev.1.2 PCI Express Mini Card slot (2 x USB with SIM socket)
    1 x Half-size Rev.1.2 PCI Express Mini Card slot ( PCIe)
    1 x Terminal block 4-wire isolated RS-232/422/485 COM (isolation Voltage
  • Communication Module
    Wi-Fi M.2 2230 AX210.NGWGII.NV PCIe 6E WT
  • Communication Module
    4G EM12-G M.2 3042 WT
  • AC to DC Adapter (P/N-509000002200)
    PWS 9NA0908344 FSP 90W
  • 594B8120B30E
    DC-in cable M12 female 5P 180CM without ACC
  • 59412042700E
    LAN cable M12 D-code 4P to RJ45 8P L=180cm
  • 594N3202730E
    LAN cable M12 A code male 8P to RJ-45
  • 594B8152710E
    LAN cable M12 X-code to RJ45 plug CAT6 180cm
  • 599000001100
    Power cord YP12/YC12_CY-U0032 YUNG_LI 1830mm
  • 59906000010E
    Power cord YP-12/YC-12 (Japan)
  • 59903000000E
    Power cord YP-22/YC-12 (Europe)
  • 59904010000E
    Power cord YP-61A/YC-12 (UK) L=1830mm
  • Anti-vibration Kit (P/N-8816N5008A0E)
    For in-vehicle/rolling stock, which improves HDD stability in NVR applications
