Enhance Gaming Operations and Guest Services with Real-Time Edge AI
Casinos bring together gaming, hospitality, and guest services in fast-paced environments. From recognizing chips during redemption and settlement to powering intelligent gaming machines and supporting service robots, AI can help operators improve responsiveness across the casino floor.
By processing data close to where it is generated, Edge AI can support real-time visual analysis and onboard decision-making without relying on every task being sent to the cloud. The right computing platform depends on each application’s processing needs, system design, and deployment environment.
AIM101: Compact Edge AI System for Local Chip Recognition
Computer Vision Inference at the Edge
The AIM101 is designed for computer vision inference at the edge. Powered by an Intel® Processor N150, it features a PCIe Gen 3 x4 M.2 slot for optional AI accelerator cards from vendors including Axelera, DeepX, Hailo, and MemryX.
Flexible AI Accelerator Options
Depending on the accelerator selected, configurations can deliver up to 214 TOPS (INT8), giving system integrators flexibility to match AI performance to their vision workload.
Compact Fanless Connectivity
Dual 2.5GbE LAN supports high-speed wired connectivity, while Wi-Fi 6E and LTE options provide additional network flexibility. Its compact, fanless design can suit installations where space is limited and maintenance access is a consideration. These features make the AIM101 a platform option for integrating local chip recognition into a casino system.
GMB150: AI-Ready Gaming Mini-ITX Board Powered by AMD Ryzen™ AI Embedded P100 Series Processors
Integrated AI Computing Performance
The GMB150 is built around AMD Ryzen™ AI Embedded P100 Series processors, combining AMD “Zen 5” CPU architecture, Radeon™ RDNA 3.5 graphics, and an AMD XDNA™ 2 AI engine in one platform. It delivers up to 80 TOPS of AI computing performance through its NPU and GPU, supporting AI inference without requiring a separate AI accelerator.
Gaming-Specific Expansion
Designed specifically for gaming applications, the GMB150 features two PCIe Golden Finger expansion connectors for Axiomtek Gaming I/O modules and optional 9-bit serial port support for SAS 6.02. It supports up to four independent 4K displays, M.2 storage and expansion, and multiple I/O interfaces, including RS-232, ccTalk, and TTL protocol support.
Hardware-Level Security
The board also includes GLI-verified TrustedBoot, TPM 2.0, and RSA-2048/AES-256 encryption to help protect firmware integrity and sensitive data. Together, its AI acceleration, graphics, gaming-specific expansion, and security features provide a flexible foundation for electronic gaming machines and intelligent edge applications. The specific AI functions depend on the machine software and system configuration.

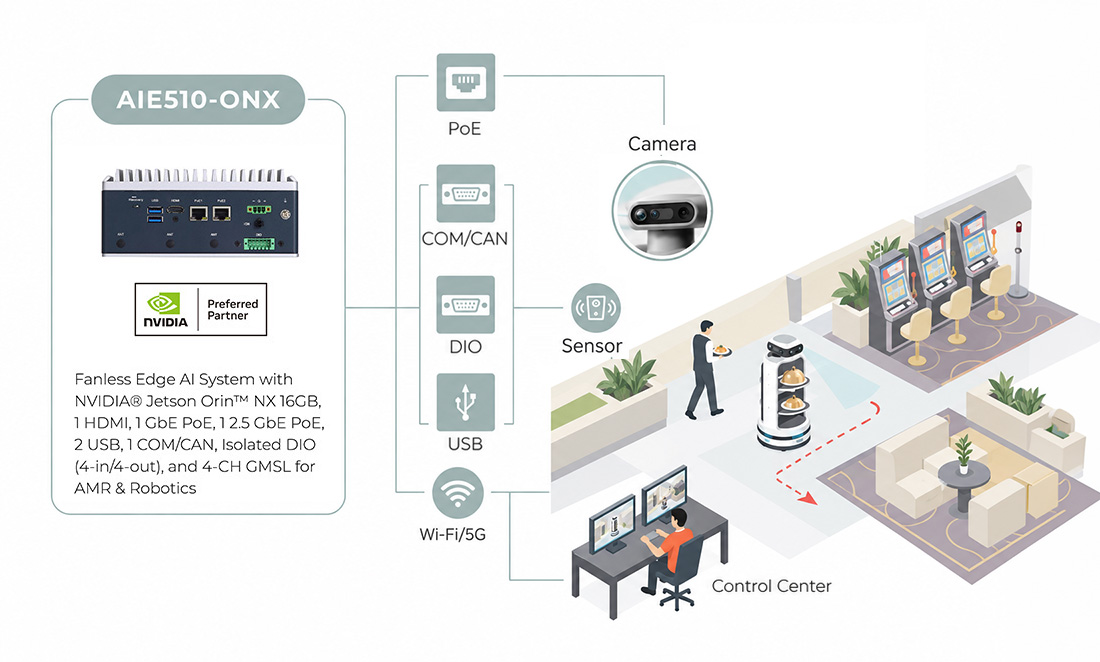

AIE510-ONX: Edge AI System Powered by NVIDIA® Jetson Orin™ NX
NVIDIA® Jetson Orin™ NX AI Performance
The AIE510-ONX is powered by NVIDIA® Jetson Orin™ NX, delivering up to 100 TOPS of AI performance for edge workloads. Its four-channel GMSL camera interface option supports high-speed connections to multiple cameras, while dual PoE supports compatible cameras and sensors. These interfaces can provide a foundation for robot vision systems used for navigation and perception.
Robot Integration Interfaces
For system integration, the AIE510-ONX offers USB, Ethernet, COM/CAN, and isolated digital I/O to connect compatible peripherals and control equipment. It supports the NVIDIA Isaac™ ROS SDK for AI-enabled robotics development. Wi-Fi 6E, 5G/LTE options, and 2.5GbE support communication with venue networks and robot management systems.
Remote Monitoring and OTA Deployment
USB and PoE device power control can help manage connected equipment, while Allxon support enables remote monitoring and over-the-air deployment. The robot’s navigation, food delivery, and guest interaction capabilities depend on the selected sensors, robotics software, and integration with venue systems.
