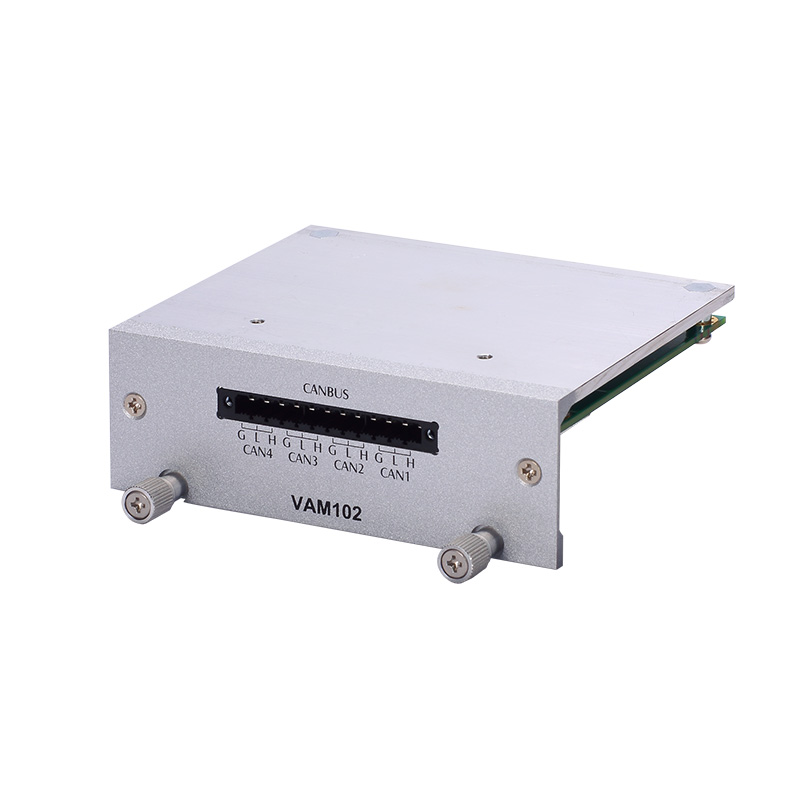

VAM102

Status : Available

Value-added Module with 4 Isolated Terminal Blocks for CANBus 2.0A/B Channels

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
VAM102
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 4 isolated terminal block CANBus 2.0A/B
  • EN 50155 certified
  • Designed for the tBOX500 series

Specifications

I/O
  • 4 x Terminal block isolated CANBus 2.0A/B
Expansion
  • N/A
Isolation Voltage
  • 2kV
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with the tBOX500 series & wide operating temperature peripheral
Vibration
  • 3 Grms with the tBOX500 series (5 to 500Hz, X/Y/Z direction; random, operating)
Certifications
  • LVD, FCC and EN 50155 certified; CE compliant

Ordering Information

  • VAM102 (P/N-E277102100)
    Value-added module with 4 isolated terminal block for CANBus 2.0A/B channels and designed for the tBOX500 series

Download

Drivers

Date Description Version Download File
2025/10/22 VAM102__driver VA1.0
2025/01/14 Driver_FUSBCAN_20230613.00_WHQL VA1.0

Software

Manual

Date Description Version Download File
2025/01/14 Quick manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/05/08 UKCA Declaration of Conformity
2024/05/08 CE-Conformity Declaration
