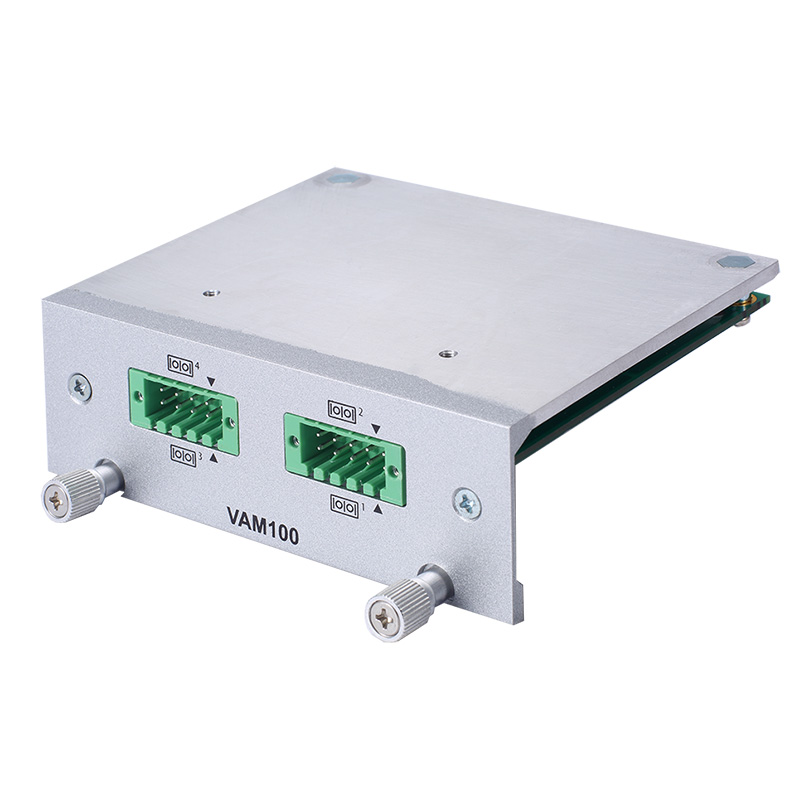

VAM100

Status : Available

Value-added Module with 4 Terminal Blocks for 4-wire Isolated RS-232/422/485 COM Ports

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
VAM100
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 4 4-wire Isolated RS-232/422/485
  • Swappable modular design
  • Maximize I/O flexibility
  • 2kV isolated protection
  • Designed for tBOX500 series
  • LVD, FCC, EN 50155 and IEC 60945 certified; CE compliant

Specifications

I/O
  • 4 x Terminal block for 4-wire isolated RS-232/422/485 COM
Expansion
  • N/A
Isolation Voltage
  • 2kV
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with the tBOX500 series & wide operating temperature peripheral
Vibration
  • 3 Grms with the tBOX500 series (5 to 500Hz, X/Y/Z direction; random, operating)
Certifications
  • LVD, FCC, EN 50155 and IEC 60945 certified; CE compliant

Ordering Information

  • VAM100 (P/N-E277100100)
    Value-added module with 4 terminal blocks for 4-wire isolated RS-232/422/485 COM ports and designed for the tBOX500 series

Download

Drivers

Date Description Version Download File
2025/10/22 VAM100_driver VA1.0

Software

Manual

Date Description Version Download File
2021/06/21 VAM100 Quick Manual VA2_12-14-2018 VA2

Design Guide

Technical Announcement

Certificates
