iNA200

Status : Available

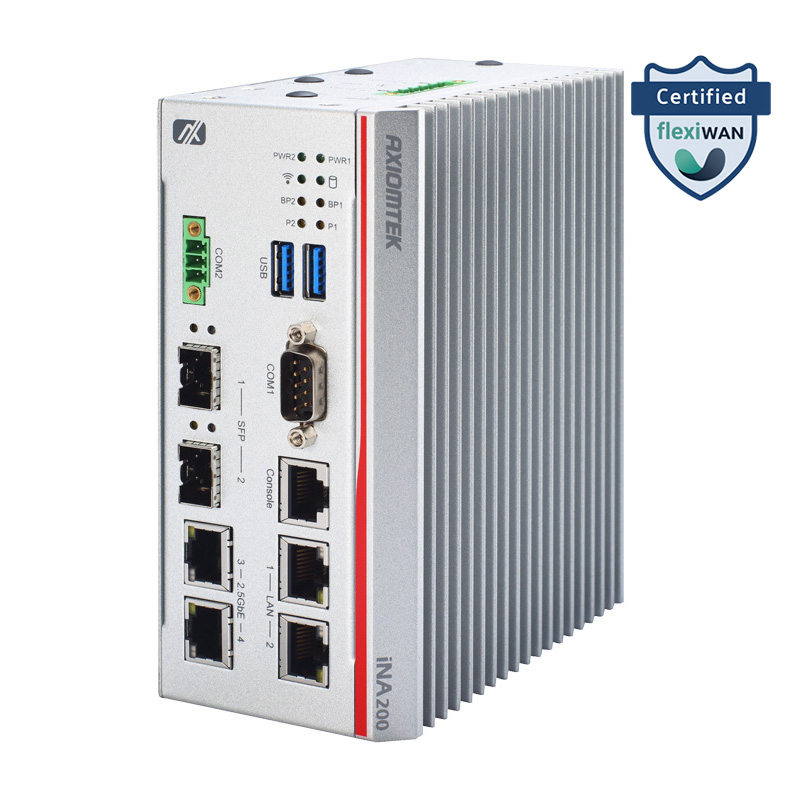

DIN-rail Cybersecurity Gateway with Intel Atom® x6212RE/x6414RE Processor and up to 6 LAN

Datasheet (PDF)
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
iNA200
iNA200
iNA200
iNA200
iNA200
iNA200
iNA200
2.5G LAN

2.5G LAN

Fanless

Fanless

LAN Bypass

LAN Bypass

TPM

TPM

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
  • DDR4-3200 SO-DIMM, up to 32GB
  • 2 1GbE, 2 2.5GbE, and 2 1GbE SFP
  • Wide operating temperature from -40°C to +70°C
  • Wide power input of 9 to 36 VDC with dual power input
  • Supports 5G with M.2 Key B 3042/3052
  • Supports TPM 2.0
  • Ideal for OT field site cybersecurity and secure edge

Specifications

Form Factor

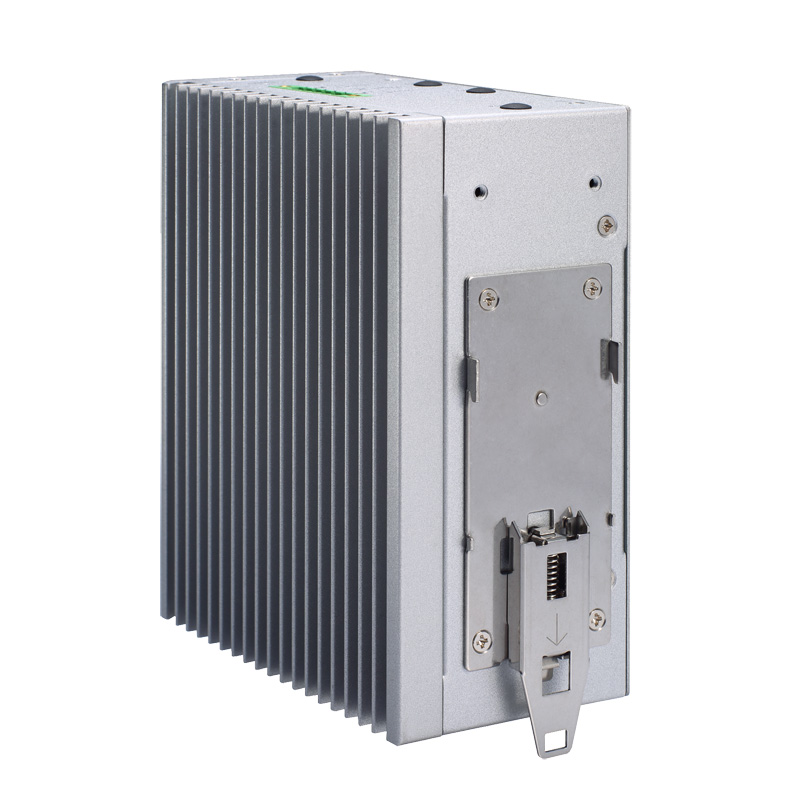

  • DIN-rail
CPU
  • Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
Chipset
  • SoC integrated
System Memory
  • DDR4-3200 SO-DIMM, up to 32GB
BIOS
  • AMI
Ethernet
  • SKU A:
  • 2 x 1GbE (Marvell 88E1512) with LAN bypass
  • 2 x 2.5GbE (Intel® I225-IT) with LAN bypass and TSN function
  • 2 x 1GbE SFP (Intel® I210-IS)
  • SKU B:
  • 4 x 2.5GbE (Intel® I226-IT) with 2-pair LAN bypass and TSN function
  • 2 x 1GbE SFP (Intel® I210-IS)
Storage
  • 1 x 2.5" SATA 3.0 SSD
  • 1 x eMMC onboard (optional)
Expansion
  • SKU A:
  • 1 x M.2 Key B 3042/3052 slot (PCIe + USB interface), for LTE/5G module
  • 1 x full-size PCI Express Mini Card slot (USB + SATA interface)
  • SKU B:
  • 1 x full-size PCI Express Mini Card slot (USB + SATA interface)

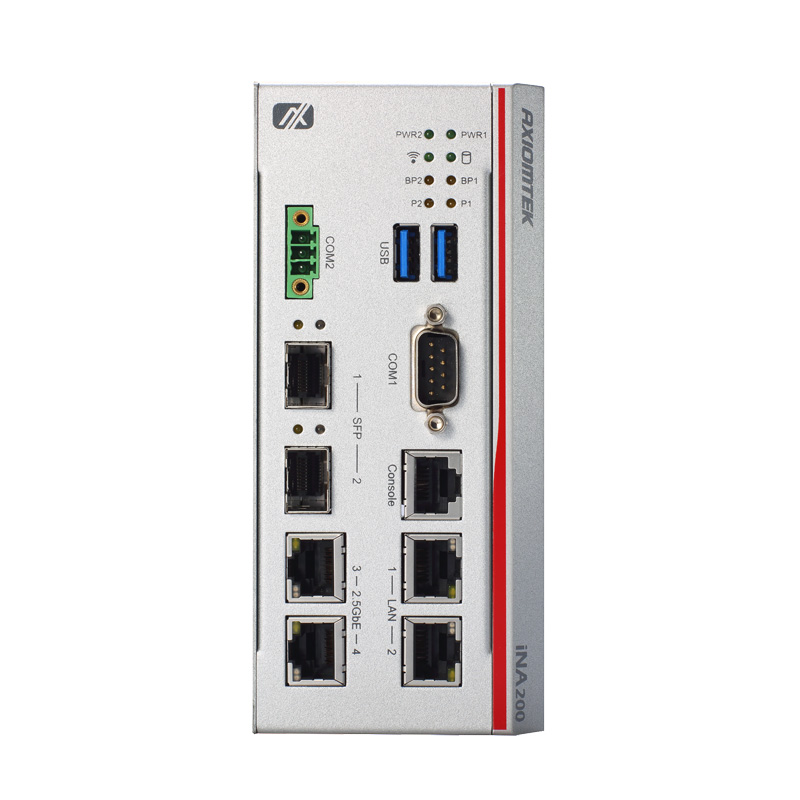

I/O Interface
  • 1 x console port (RJ-45)
  • 1 x RS-232/422/485 with DB9 type
  • 1 x RS-485 with 3-pin terminal block
  • 2 x USB 3.1 Gen 2

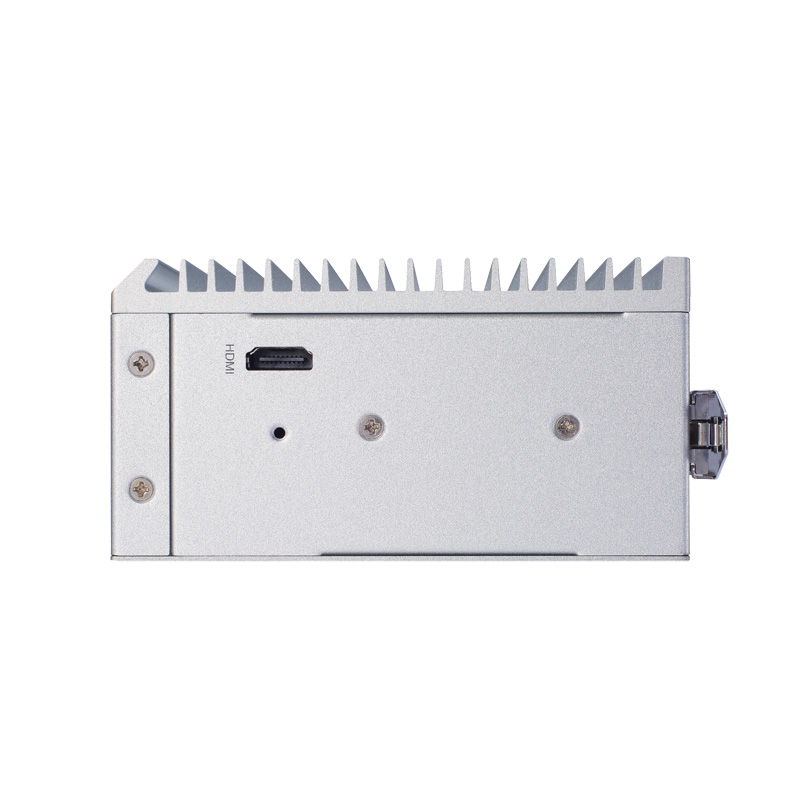

  • 1 x HDMI
  • 1 x tact switch
  • 4 x antenna hole
  • 1 x power input connector
  • 4 x copper
  • 2 x fiber
Power Supply

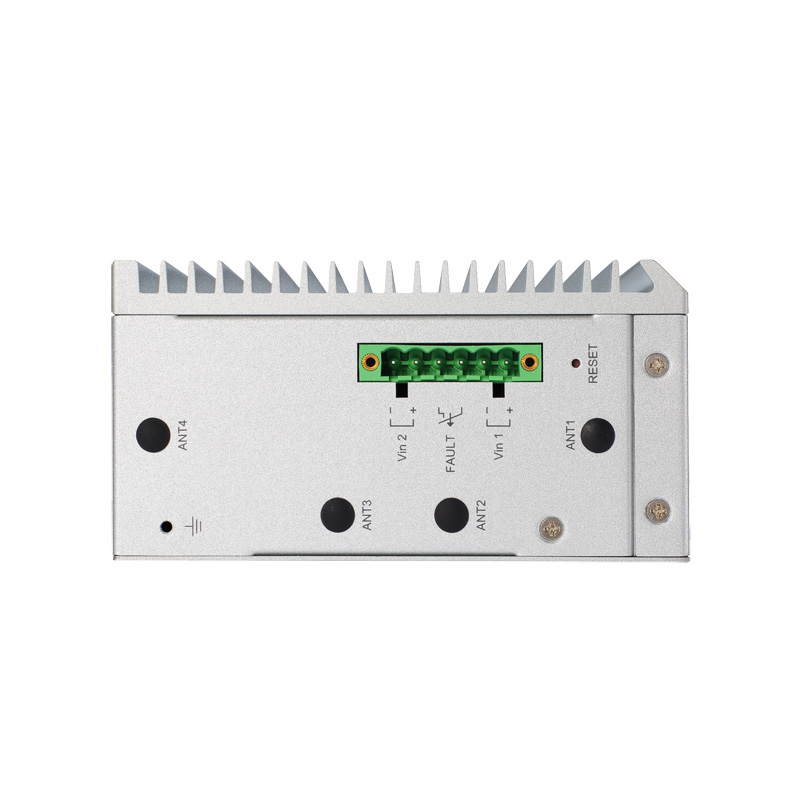

  • 9 to 36V DC (typical 12/24V) with terminal block for dual power input
  • OVP, UVP, OCP, RPP power protection design
Power Consumption (Max.)
  • 32.04W (with 12 VDC)
  • 31.92W (with 24 VDC)
TPM
  • TPM 2.0
Watchdog Timer
  • 255 stepping for system reset
Construction
  • Aluminum and steel, IP40 Rating
Shock
  • 50g, 11 ms (half-sine shock pulse, operating)
Vibration
  • 2 Grms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions (W x D x H)
  • 66 x 127 x 150mm (2.6" x 5" x 5.9")
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Weight (net/gross)
  • 1.5 kg (3.3 lb)/1.8 kg (3.97 lb)
OS
  • Linux, Windows® 10
Certifications
  • CE (Class A), FCC (Class A)
Software Support
  • AXView

Ordering Information

  • iNA200-X6414-A (P/N-E27B200100)
    DIN-rail cybersecurity gateway with Intel Atom® x6414RE processor and up to 6 LAN
  • iNA200-X6212-A (P/N-E27B200101)
    DIN-rail cybersecurity gateway with Intel Atom® x6212RE processor and up to 6 LAN
  • iNA200-X6414-B (P/N-E27B200107)
    DIN-rail cybersecurity gateway with Intel Atom® x6414RE processor and up to 6 LAN (I226 LAN chip)

Download

Drivers

Date Description Version Download File
2022/10/26 Intel PSE_win10_64 VA1.0
2022/10/26 Intel Ethernet_win10_64 VA1.0
2022/10/26 Intel Graphic_win10_64 VA1.0
2022/10/26 Intel Serial I/O_win10_64 VA1.0
2022/10/26 Intel Chipset_win10_64 VA1.0
2022/10/26 RS485_win10_64 VA1.0
2022/10/26 Intel CSE_win10_64 VA1.0
2022/10/26 Intel GbE_win10_64 VA1.0

Software

Manual

Date Description Version Download File
2022/10/26 User's Manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/12/27 UKCA Declaration of Conformity
2022/12/27 FCC Verification
2022/12/27 CE-Conformity Declaration
2022/12/27 CE EMC Verification
