Status : Available
DIN-Rail Cybersecurity Gateway with Intel Atom® x5-3930/E3940 Processor and 4 LAN with LAN Bypass
Intel Atom® x5-E3930/E3940
Operating temperature -40°C to +70°C 9–36 VDC input
4 isolated LAN ports 1-pair LAN Bypass
The iNA110 is a compact cybersecurity gateway, measuring just 51 mm (W) × 110 mm (D) × 155 mm (H), making it ideal for space-constrained environments. Powered by the Intel Atom® x5-E3930/E3940 processor, the iNA110 boasts a TDP lower than 10 W, ensuring low power consumption and high energy efficiency. Its fanless design and affordable pricing make it a perfect choice for cost-sensitive applications.

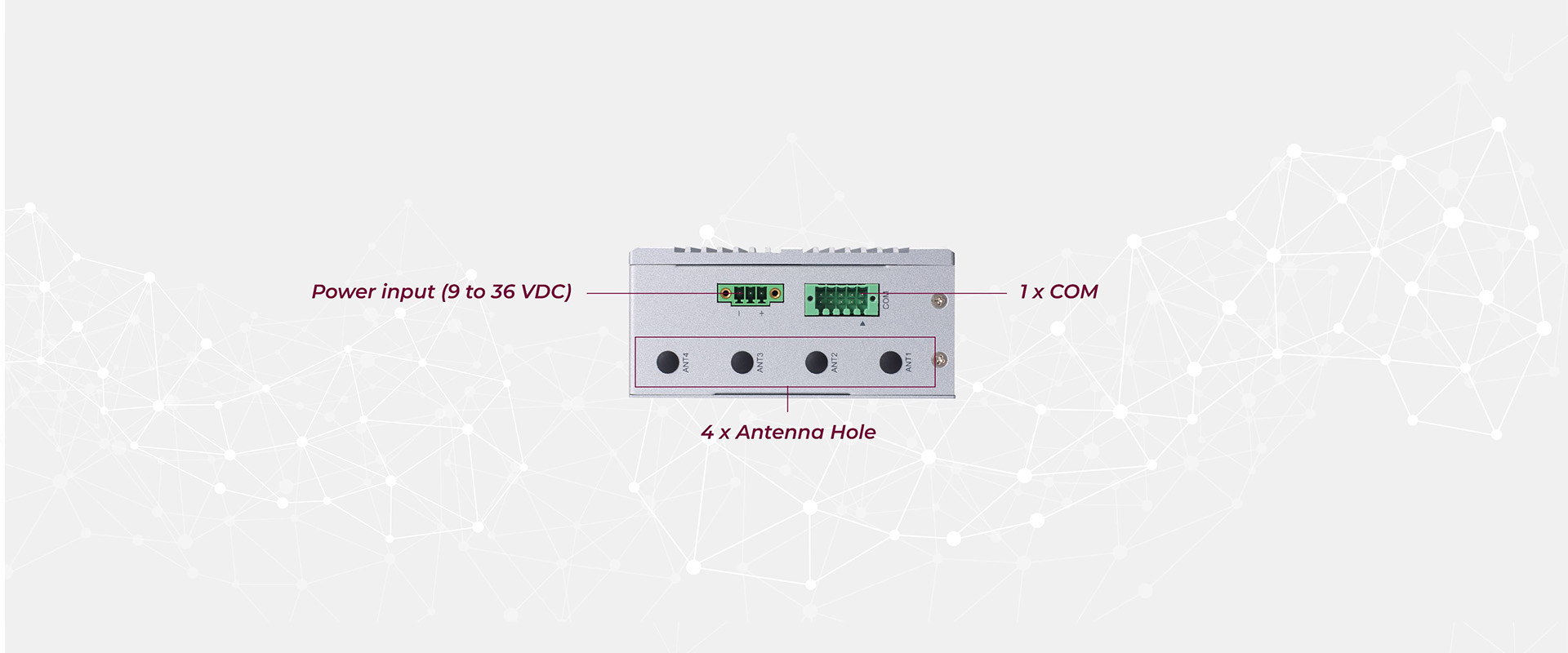

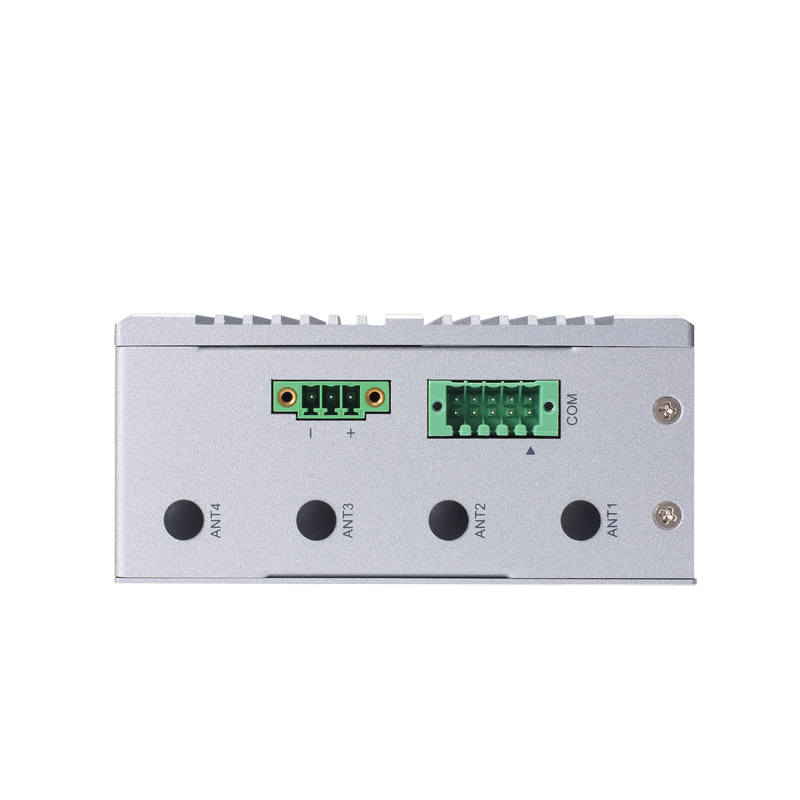

For demanding rugged environments, this fanless industrial cybersecurity platform provides a wide operating temperature range of -40°C to +70°C and IP40 protection. The wide-range 9–36 VDC power input features a lockable terminal block connector and OVP, UVP, OCP, and RPP protections to enhance reliability.
To ensure critical information security, the iNA110 features onboard TPM 2.0 and a watchdog timer, adding layers of security.

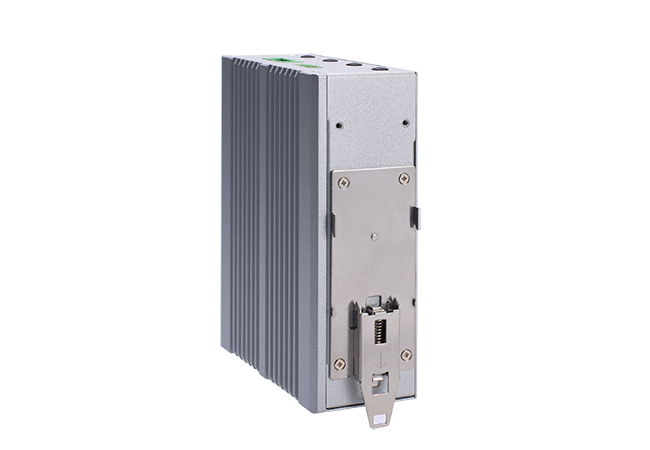

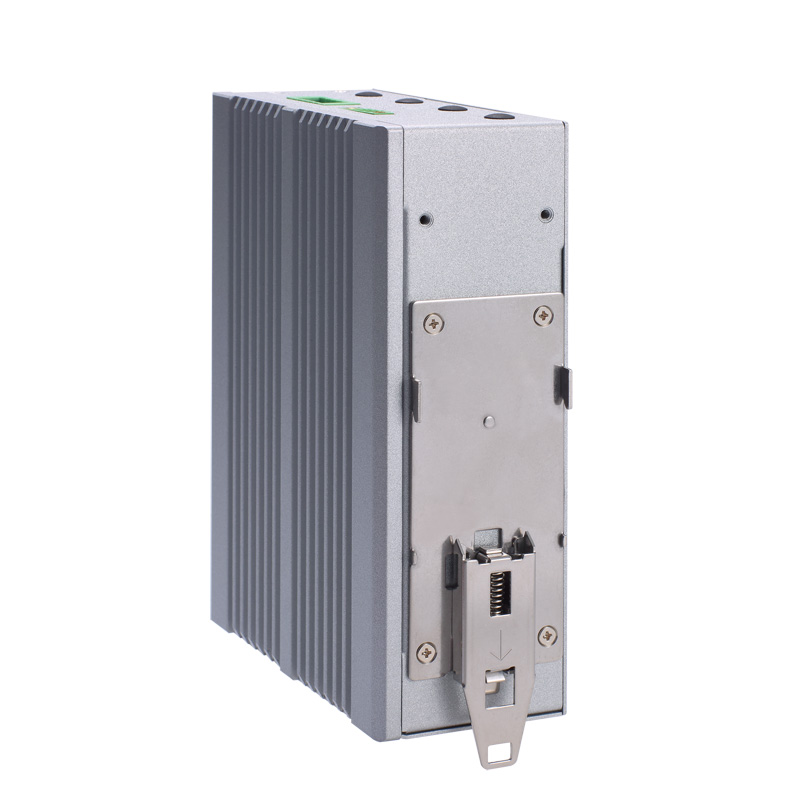

The iNA110 features DIN-Rail mounting, allowing for easy installation. Additionally, its compact size ensures it fits seamlessly into space-limited environments.

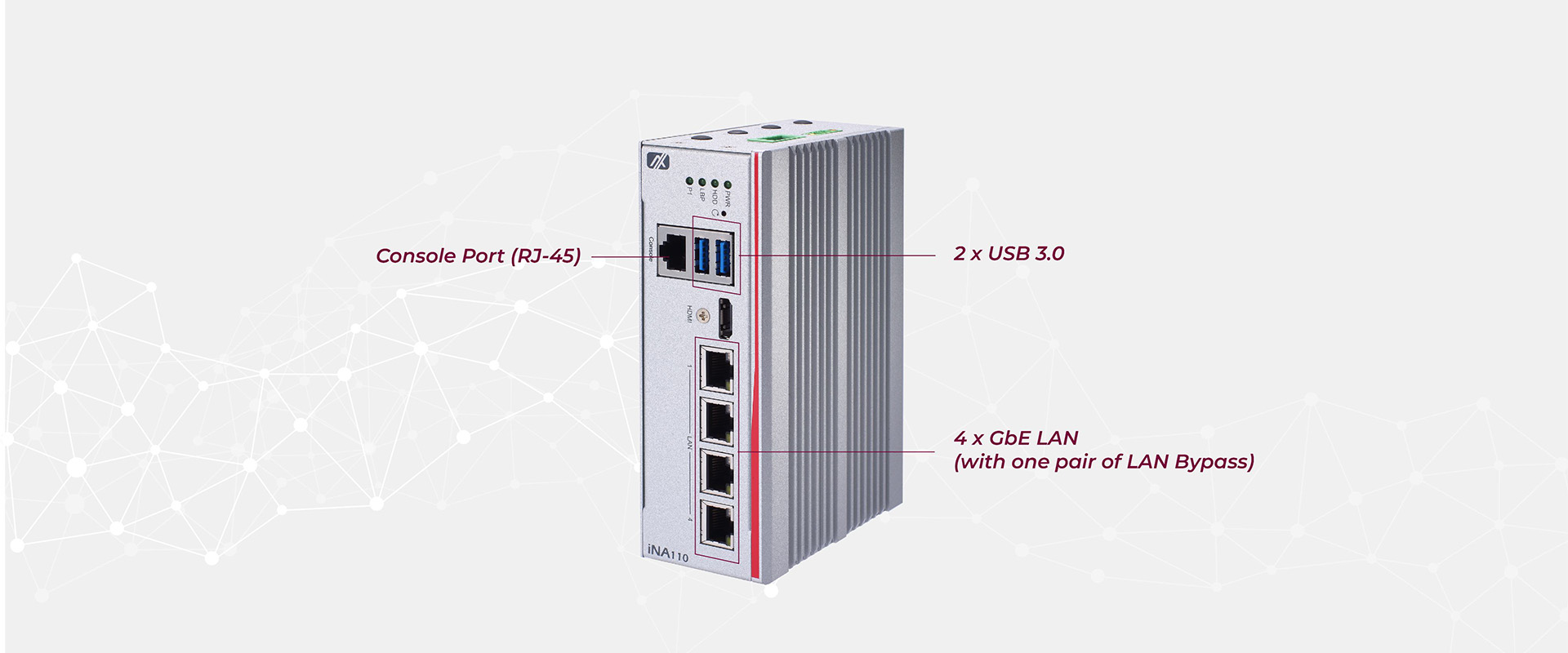

The iNA110 has four 1G LAN ports and one pair of LAN Bypass ports for nonstop connections with OT devices. It is powered by the Intel Atom® x5-E3930/E3940 processor (Apollo Lake) for low power consumption. For demanding rugged environments, this fanless industrial cybersecurity platform provides a wide operating temperature range of -40°C to 70°C and IP40 protection.
