iNA300

Status : Coming Soon

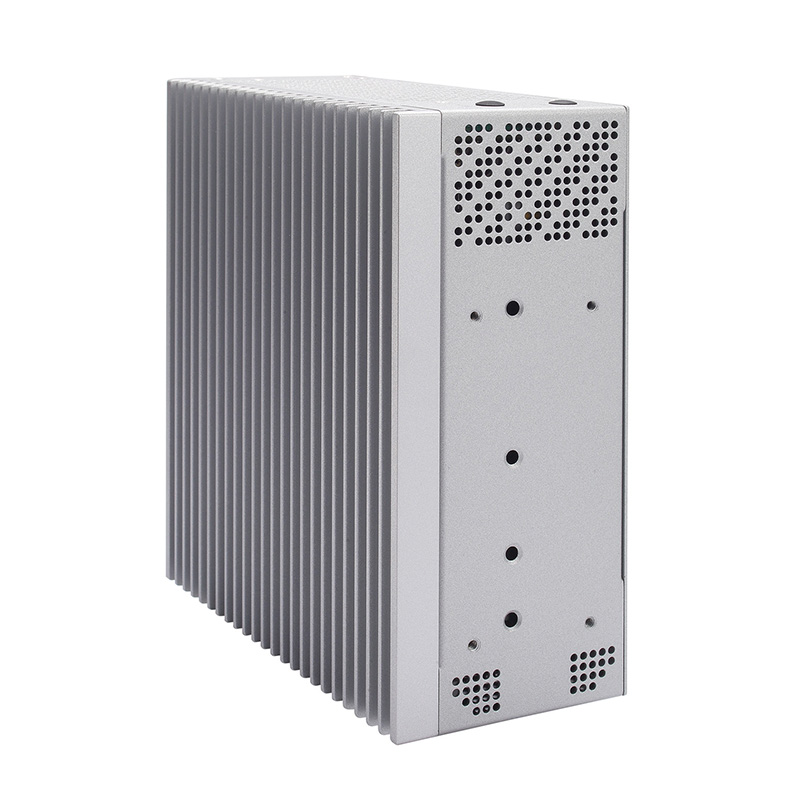

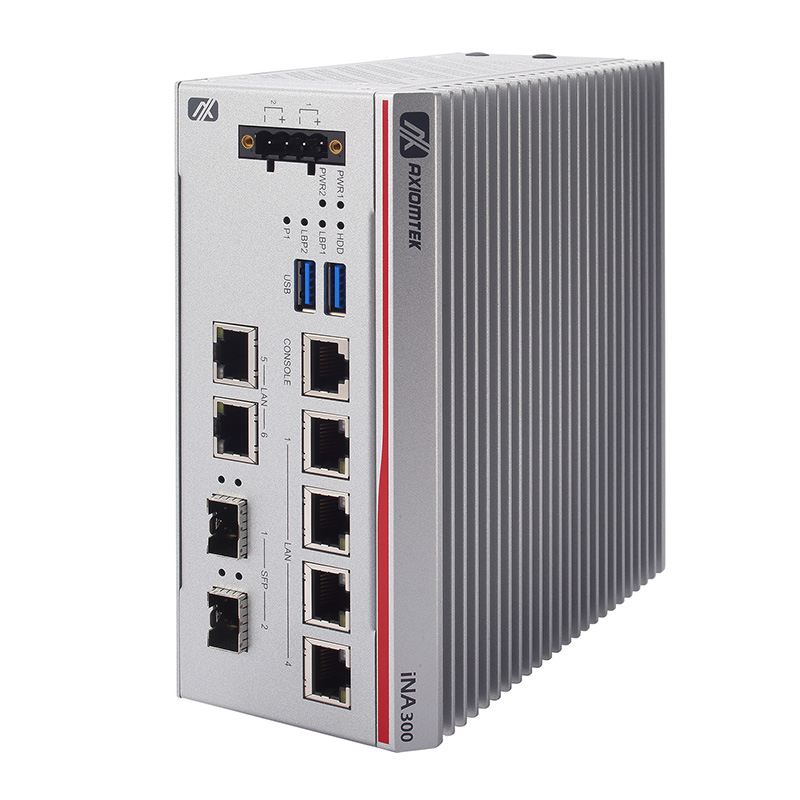

DIN-Rail Cybersecurity Gateway with Intel Atom® x7433RE Processor and up to 8 LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
iNA300
iNA300
iNA300
iNA300
iNA300
Fanless

Fanless

IEC 61850-3

IEC 61850-3

LAN Bypass

LAN Bypass

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel Atom® x7433RE processor (Amston Lake)
  • DDR5-4800 SO-DIMM, up to 16GB
  • Support 6 2.5GbE LAN and 2 1GbE SFP LAN ports
  • Wide operating temperature from -40°C to +60°C, IP30
  • Wide power input of 12 to 48V DC with dual power input
  • Supports TPM 2.0
  • Certified IEC 61850-3 & IEEE 1613 for power utility

Specifications

Form Factor

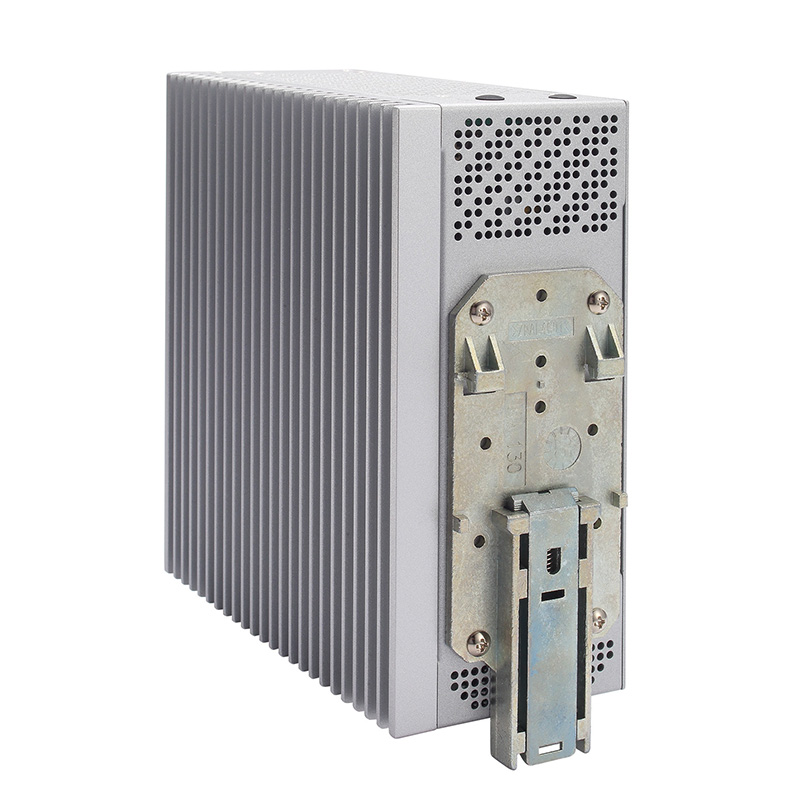

  • DIN-rail
CPU
  • Intel Atom® x7433RE processor (Amston Lake)
Chipset
  • SoC integrated
System Memory
  • DDR5-4800 SO-DIMM, up to 16GB
BIOS
  • AMI
Ethernet
  • 6 x 2.5G (Intel® I226-IT) with 2-pairs LAN bypass
  • 2 x 1G SFP (Intel® I210-IS)
Storage
  • 1 x 2.5" SATA 3.0 SSD
  • 1 x eMMC onboard (optional)
Expansion
  • 1 x full-size PCI Express Mini Card slot with SIM slot (USB interface)

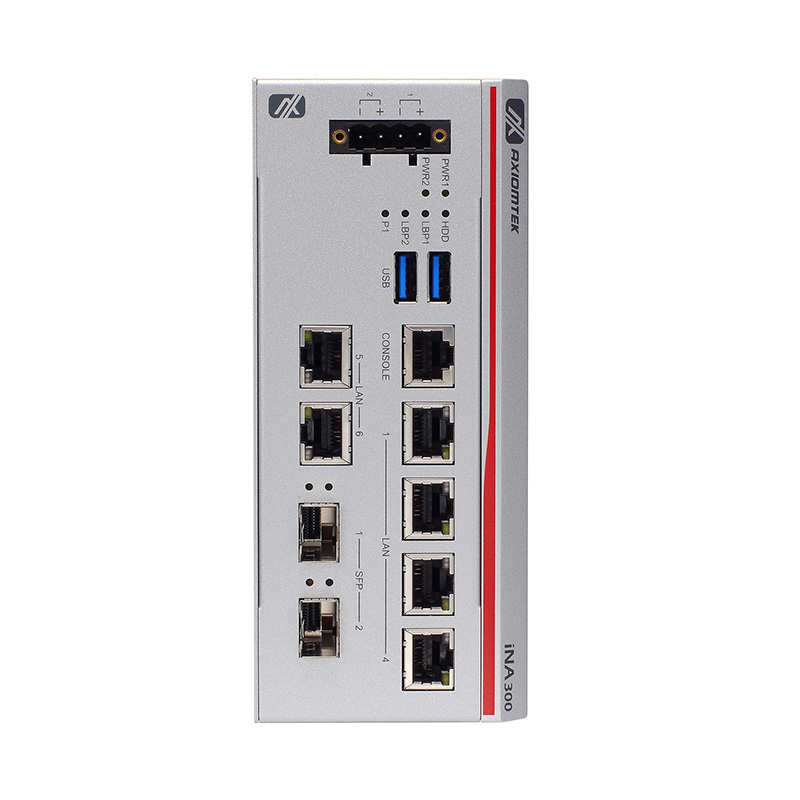

I/O Interface
  • 1 x HDMI
  • 2 x USB 3.2

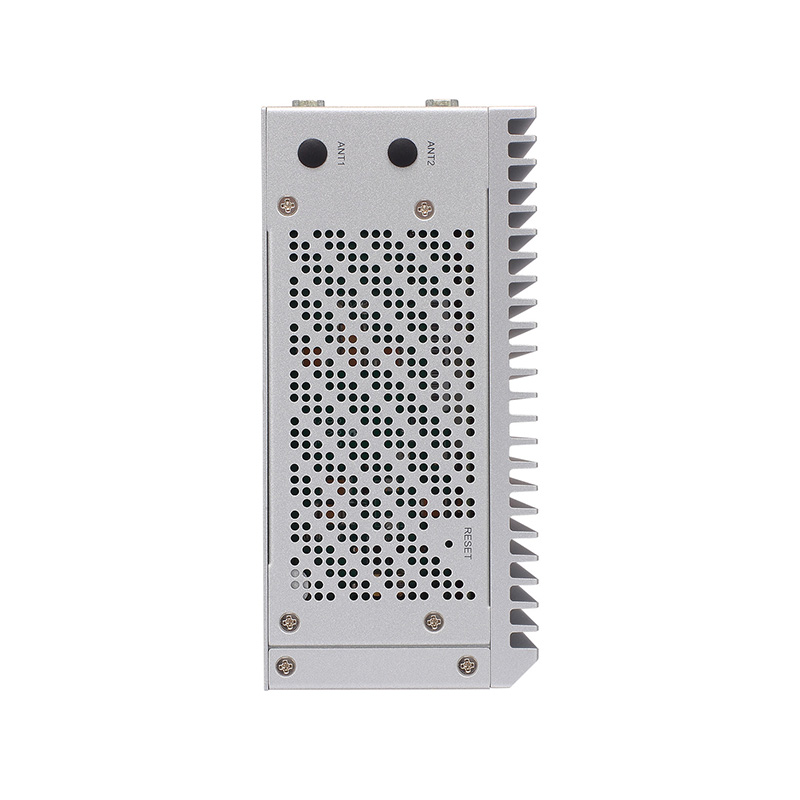

  • 1 x reset button (tactile switch)
  • 2 x antenna hole
  • 1 x power input connector
  • 6 x copper
  • 2 x fiber
  • 1 x console port (RJ-45)
Power Supply
  • 12 to 48 VDC (typical 12/24V) with terminal block for dual power input
  • OVP, UVP, OCP, and RPP power protection design
TPM
  • TPM 2.0
Watchdog Timer
  • 255 stepping for system reset
Dimensions<br>(W x D x H)
  • 71 x 150 x 165 mm (2.8" x 5.9" x 6.5")
Operating Temperature
  • -40°C to +60°C (-40°F to +140°F)
Weight (net/gross)
  • 1.58 kg (3.48 lbs)/2.15 kg (4.74 lbs)
OS
  • Linux, Windows® 11
Certifications
  • CE (Class A), FCC (Class A), UKCA, IEC 61850-3, and IEEE 1613

Ordering Information

  • iNA300-X7433-A (P/N-E27B300100)
    DIN-rail cybersecurity gateway with Intel Atom® x7433RE processor and up to 8 LAN

Download

This object is currently under update, please visit later.
