ICO520

Status : Available

DIN-Rail Fanless Embedded System with 12th Gen Intel® Core™ i7/i5/i3 or Celeron® Processor, 4 2.5GbE LAN, 2 HDMI, 4 USB, 4 Isolated COM, and 2 Isolated DIO (8-in/8-out)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

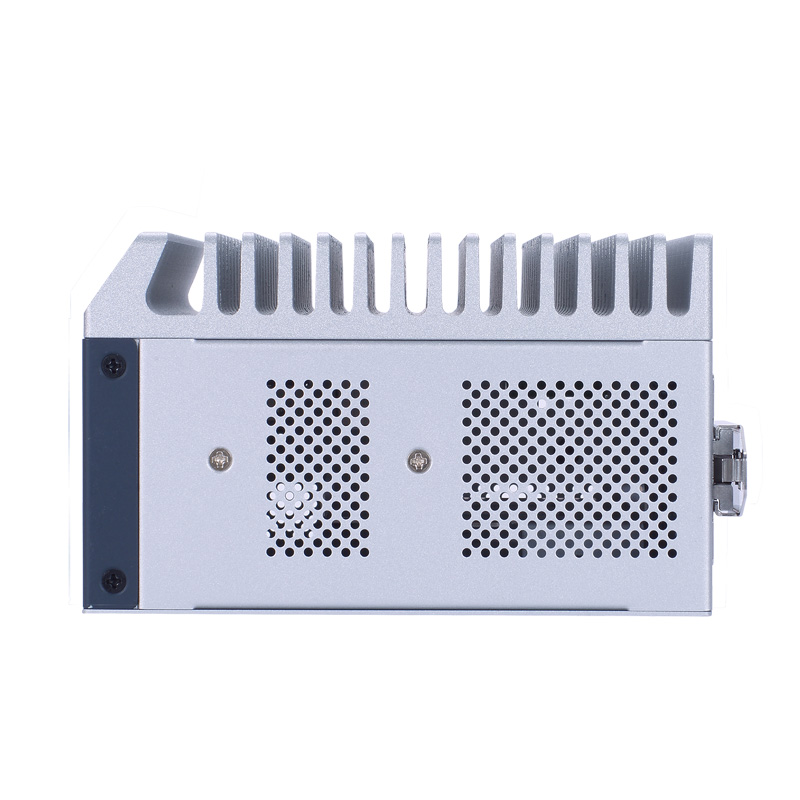

ICO520
ICO520
ICO520
ICO520
ICO520
ICO520
ICO520
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • High performance with fanless and DIN-rail design
  • 12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (Alder Lake-P)
  • 4 isolated COM, 2 isolated DIO (8-in/8-out), and 4 2.5GbE LAN
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC input, typically 12 to 24 VDC, with OVP, UVP, OCP, and RPP
  • Supports TPM 2.0
  • Supports cold boot at -40°C
High-performance CPU
High-performance CPU

12th Gen Intel® Core™

Rugged Design
Reliable Design

Operating temperature -40°C to +70°C
9–36 VDC input

4 isolated LAN ports
Networking Topologies

4 isolated LAN ports

Compact Size with 12th Gen Intel Core™ Processor

The ICO520 is designed with a compact form factor while delivering outstanding edge computing performance. Powered by 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processors, it serves as a high-performance edge gateway for OT applications, improving efficiency and energy savings.




Fan Kit to Unleash Extreme Edge Computing Performance

The ICO520 offers an optional fan kit for high-performance applications. The fan kit allows stable operation under high CPU loads and wide temperature ranges from -40°C to +70°C, ensuring peak performance for demanding environments.



Supports Dual Displays

The ICO520 supports dual display connections, optimizing operation for both operators and management for improved industrial efficiency.

Dual Display Support

DIN-Rail for Easy Installation

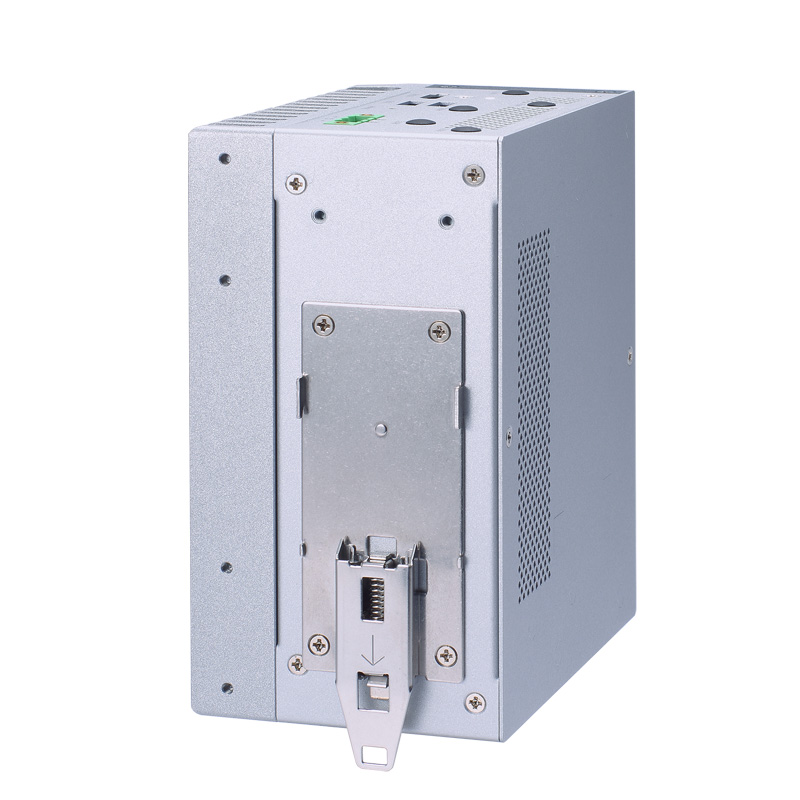

The ICO520 features DIN-Rail mounting for quick installation in space-limited environments.

DIN-Rail Installation

Expansion Capability

  • 1 x M.2 Key B 3042/3052 for 5G/Wi-Fi
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot for LTE/Wi-Fi
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot for mSATA/Wi-Fi
  • 3 x SIM slots: 1 for M.2, 2 for full-size PCI Express Mini Card

Rich I/O Interfaces

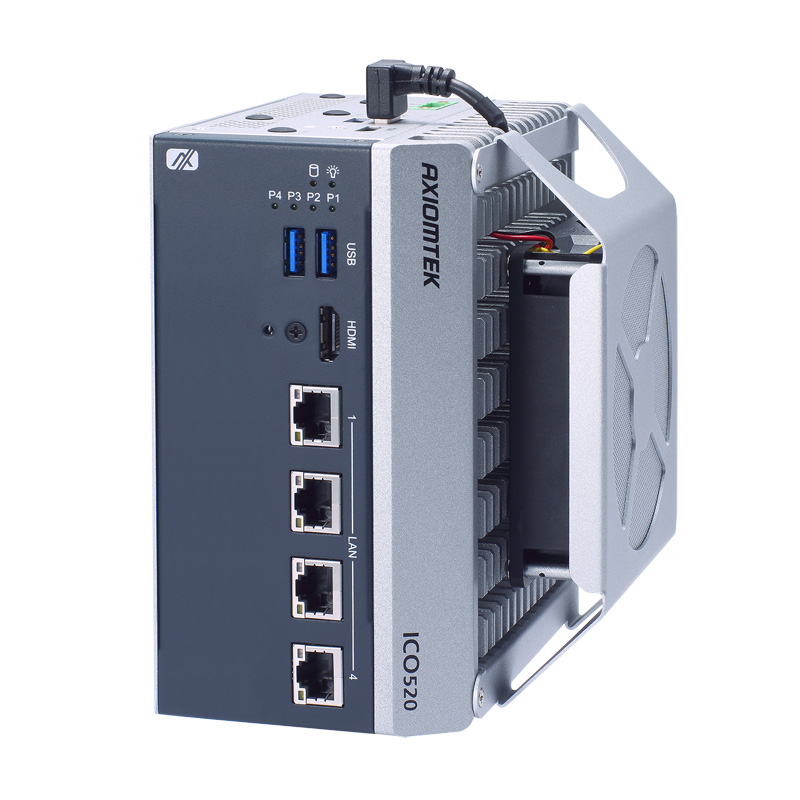

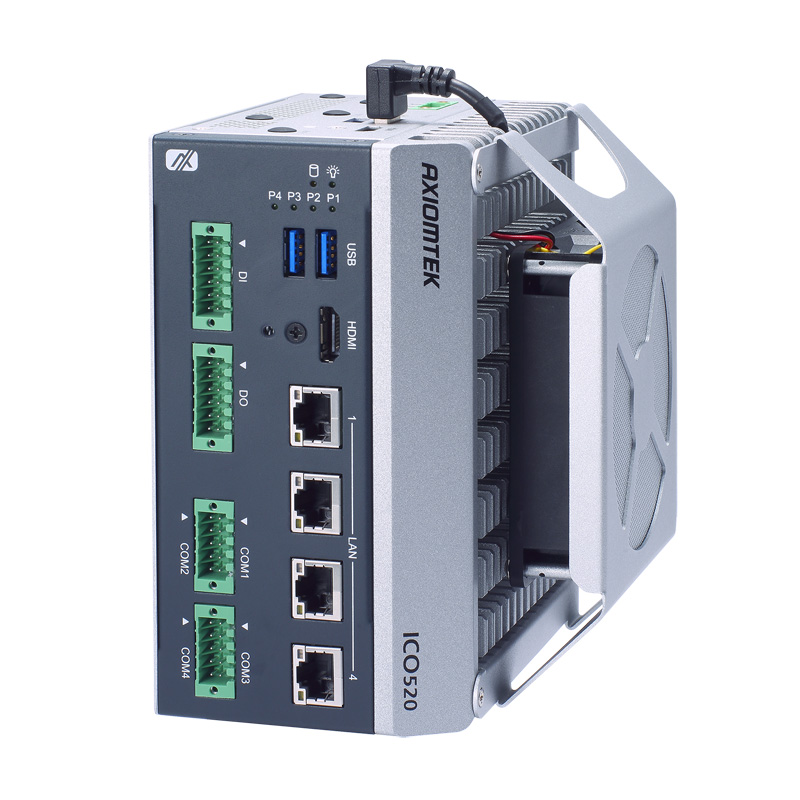

Front View

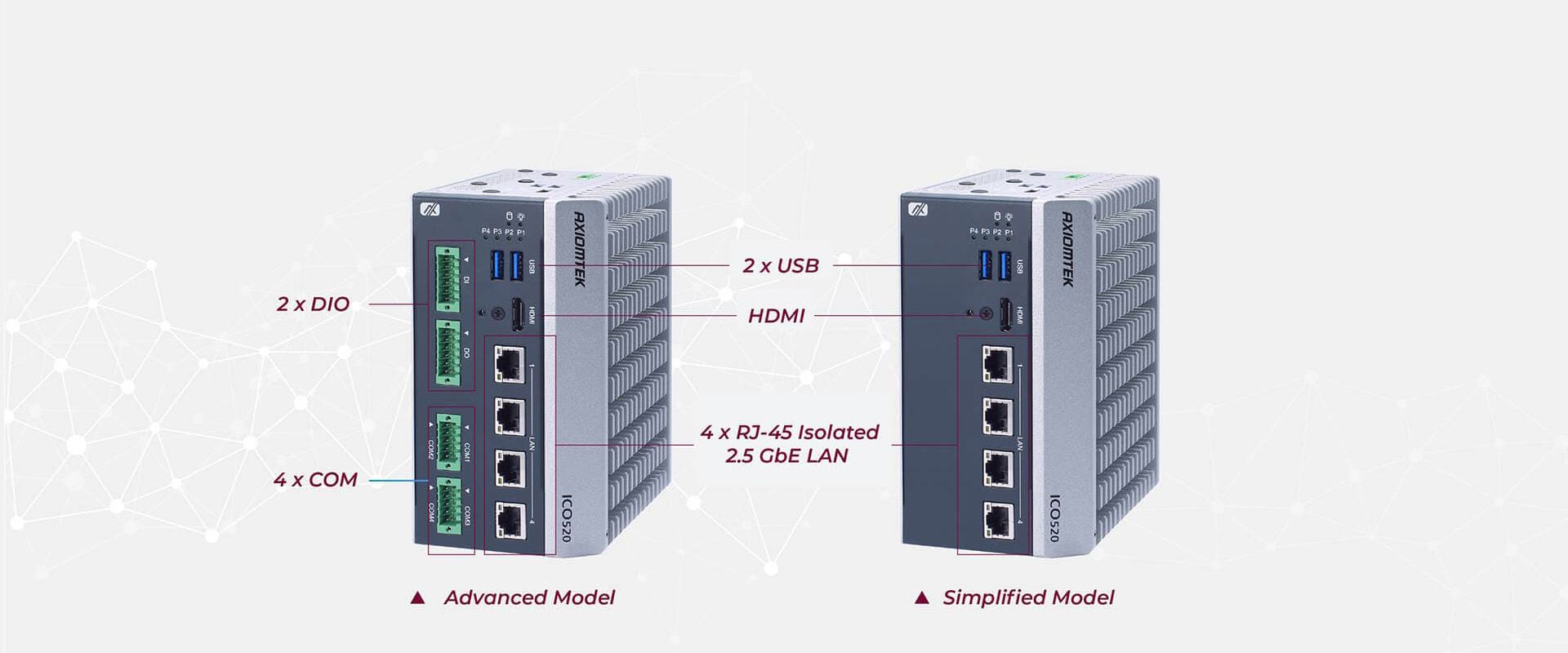

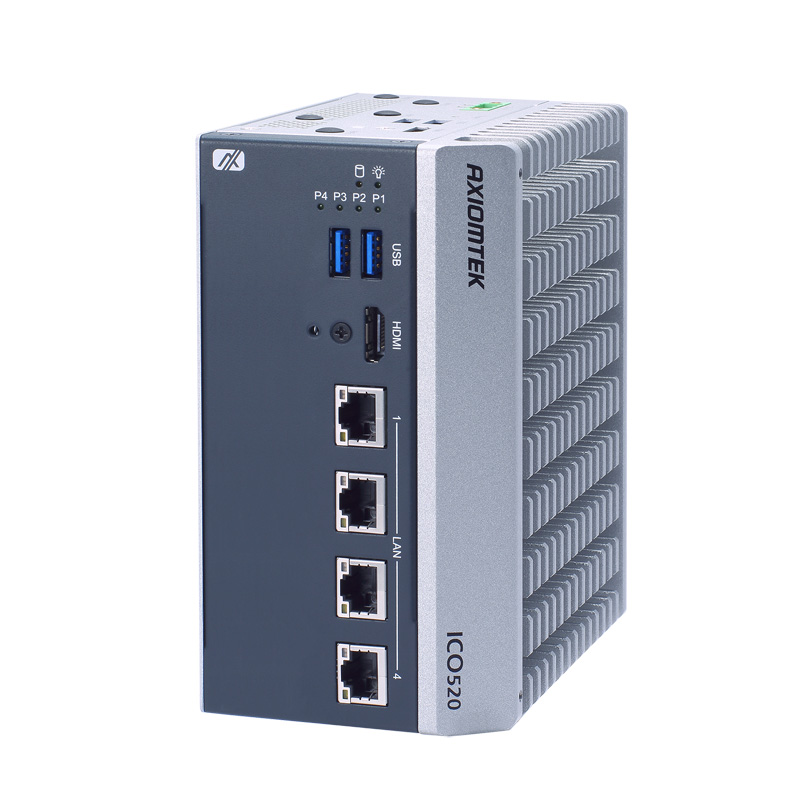

ICO520 Front I/O
Rear View

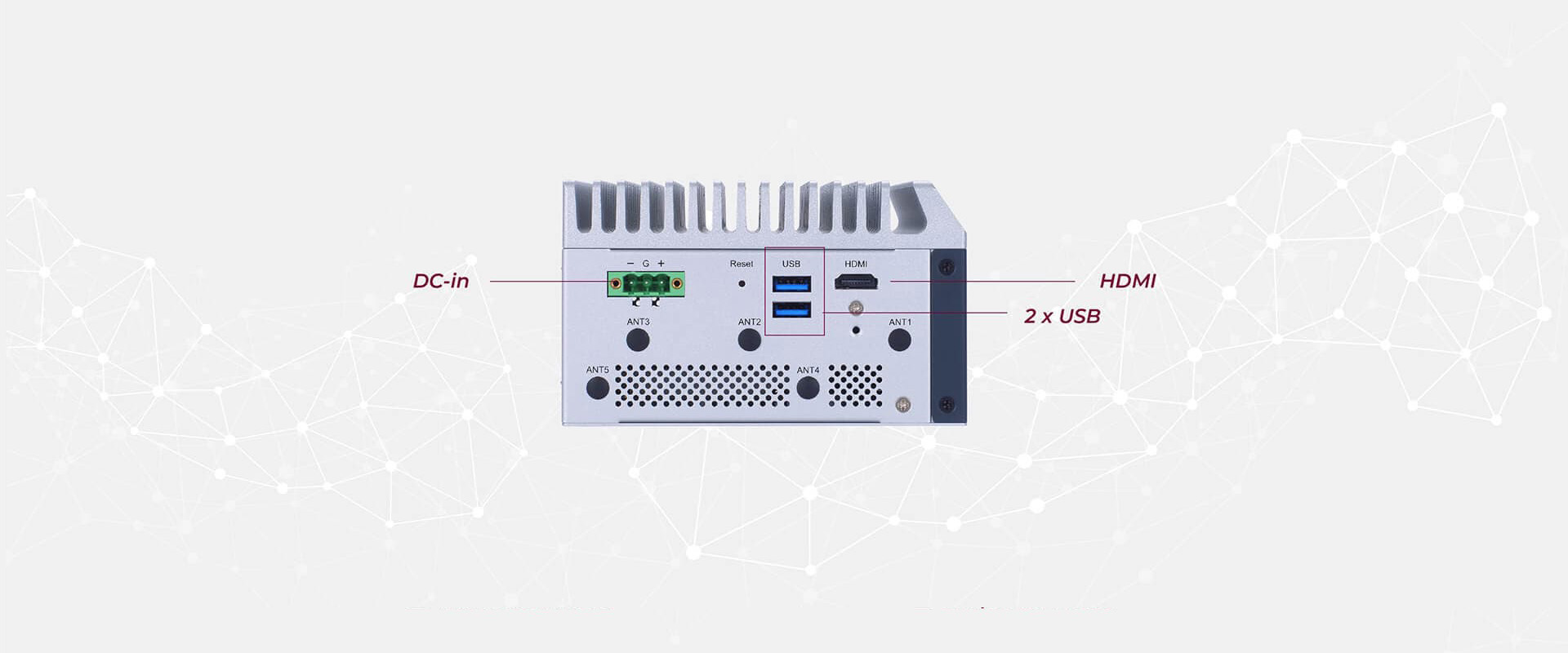

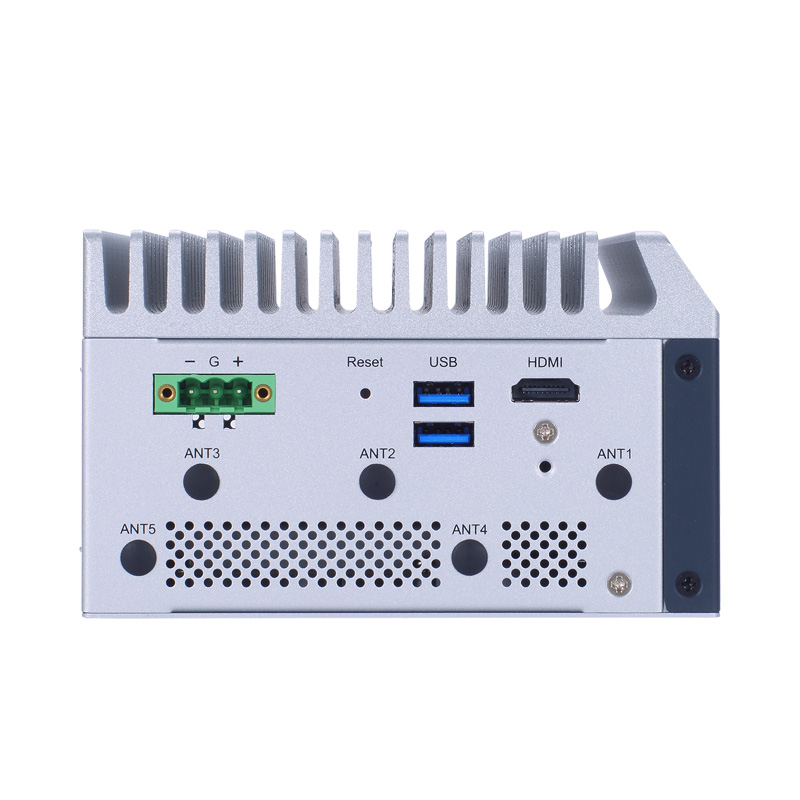

ICO520 Rear I/O

Specifications

CPU
  • Intel® Core™ i7-1265UE (1.7GHz/10C/15W)
  • Intel® Core™ i5-1245UE (1.5GHz/10C/15W)
  • Intel® Core™ i3-1215UE (1.2GHz/6C/15W)
  • Intel® Celeron® 7305E (1GHz/5C/15W)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR4-3200 SO-DIMM, up to 32GB
COM
  • 4 x Isolated RS-232/422/485 (4-wire, Phoenix-type connectors, only for advanced model)
  • Isolation voltage: 2 kV
USB
  • 4 x USB 3.2
Ethernet
  • 4 x RJ-45 isolated 2.5GbE LAN (Intel® I226-IT )
  • Isolation voltage: 1.5 kV
PoE
  • N/A
CANbus
  • N/A
Analog Input
  • N/A
Digital I/O
  • 2 x Isolated 8-in/8-out DIO (only for advanced model)
  • Isolation voltage: 2 kV
Display
  • 2 x HDMI (1920x1080 @60Hz)
Expansion
  • 1 x M.2 Key B 3050/3052 slot: PCIe/USB (for 5G/Wi-Fi)
  • 1 x full-size Rev.1.2 PCI Express Mini Card slot: PCIe/USB (for Wi-Fi/LTE)
  • 1 x full-size Rev.1.2 PCI Express Mini Card slot: SATA/USB (for mSATA/LTE)
  • 3 x SIM slot (1 for M.2 and 2 for full-size PCI Express Mini Card)
Storage
  • 1 x Internal 2.5” SATA drive
  • 1 x mSATA (occupying 1 x PCI Express Mini Card slot)
  • 1 x M.2 (PCIe Gen2 x4): NVMe (2242/2280) (advanced model only)
Others
  • TPM 2.0
  • 5 x Antenna opening
Power
  • 1 x Terminal block, accepts 9 to 36 VDC input, typically 12/24 VDC
  • Power consumption: full loading
  • 54.82W (with 12VDC)
  • 56.52W (with 24VDC)
  • MTBF: 47,832 (hrs, @50°C)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • Cold boot at -40°C
  • With fan kit: All systems support -40°C to +70°C (-40°F to +158°F)
  • Without fan kit:
  • System with i7-1265UE or i5-1245UE supports -40°C to +50°C (-40°F to +122°F)
  • System with i3-1215UE or 7305E supports -40°C to +60°C (-40°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions<br>(W x D x H)
  • 83 x 135 x 155 mm (3.27" x 5.31" x 6.1")
Weight (net/gross)
  • Advanced model: 1.75 kg (3.86 lb)
  • Simplified model: 1.65 kg (3.84 lb)
Certifications
  • CE (Class A), FCC (Class A), and UL
Software Support
  • Axiomtek EAPI
EOS Support
  • Windows® 10 IoT, Linux
Mounting
  • DIN-rail
  • Wall Mounting

Ordering Information

  • ICO520-ALD7-A (P/N-E22C520107)
    DIN-rail fanless embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, 2 isolated DIO (8-in/8-out), and 2 HDMI
  • ICO520-ALD7-AS (P/N-E22C520106)
    DIN-rail fanless embedded system with Intel® Core™ i7-1265UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI
  • ICO520-ALD5-A (P/N-E22C520105)
    DIN-rail fanless embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, 2 isolated DIO (8-in/8-out), and 2 HDMI
  • ICO520-ALD5-AS (P/N-E22C520104)
    DIN-rail fanless embedded system with Intel® Core™ i5-1245UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI
  • ICO520-ALD3-A (P/N-E22C520103)
    DIN-rail fanless embedded system with Intel® Core™ i3-1215UE processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, 2 isolated DIO (8-in/8-out), and 2 HDMI
  • ICO520-ALD3-AS (P/N-E22C520102)
    DIN-rail fanless embedded system with Intel® Core™ i3-1215UE processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI
  • ICO520-ALDC-A (P/N-E22C520101)
    DIN-rail fanless embedded system with Intel® Celeron® 7305E processor, 4 USB 3.1, four 2.5GbE LAN, 4 isolated COM, 2 isolated DIO (8-in/8-out), and 2 HDMI
  • ICO520-ALDC-AS (P/N-E22C520100)
    DIN-rail fanless embedded system with Intel® Celeron® 7305E processor, 4 USB 3.1, four 2.5GbE LAN, and 2 HDMI
  • ACC139-I520-FAN (P/N-E29R139100)
    ACC139 Fan kit for ICO520 to support operating temperature from -40°C to +70°C
