ICO150

Status : Available

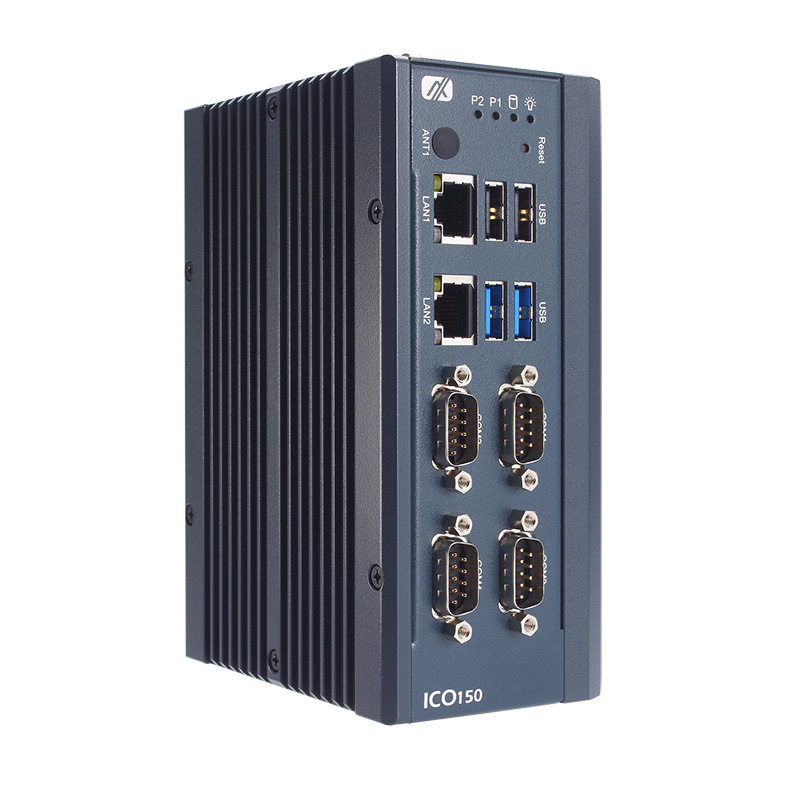

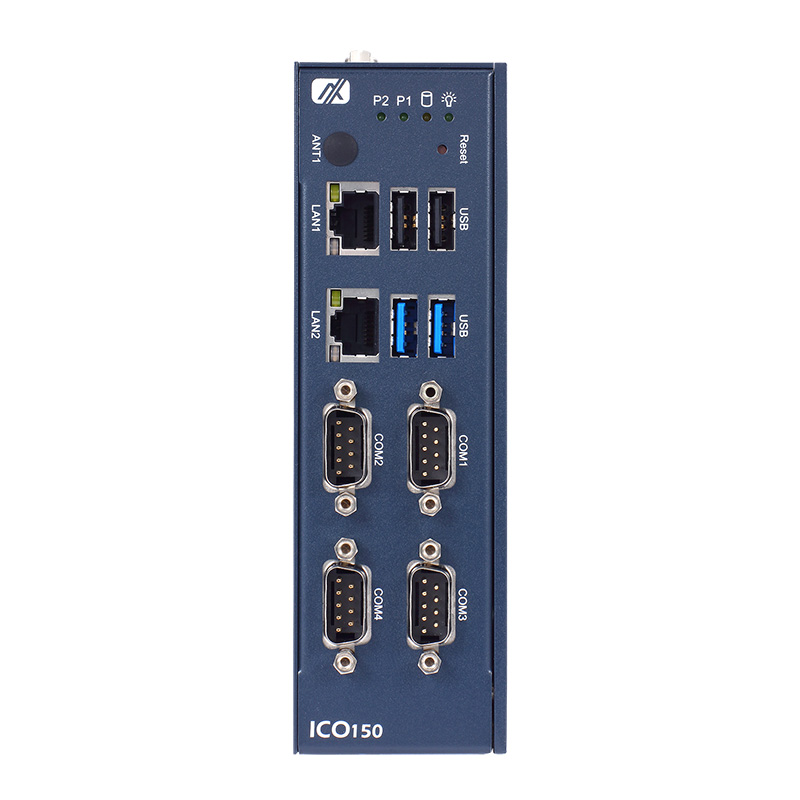

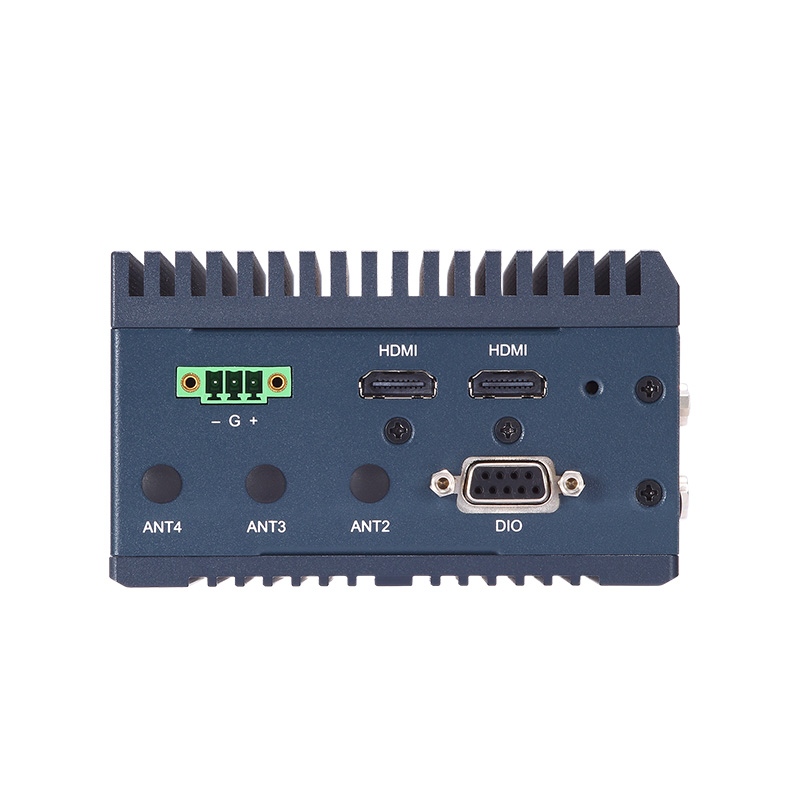

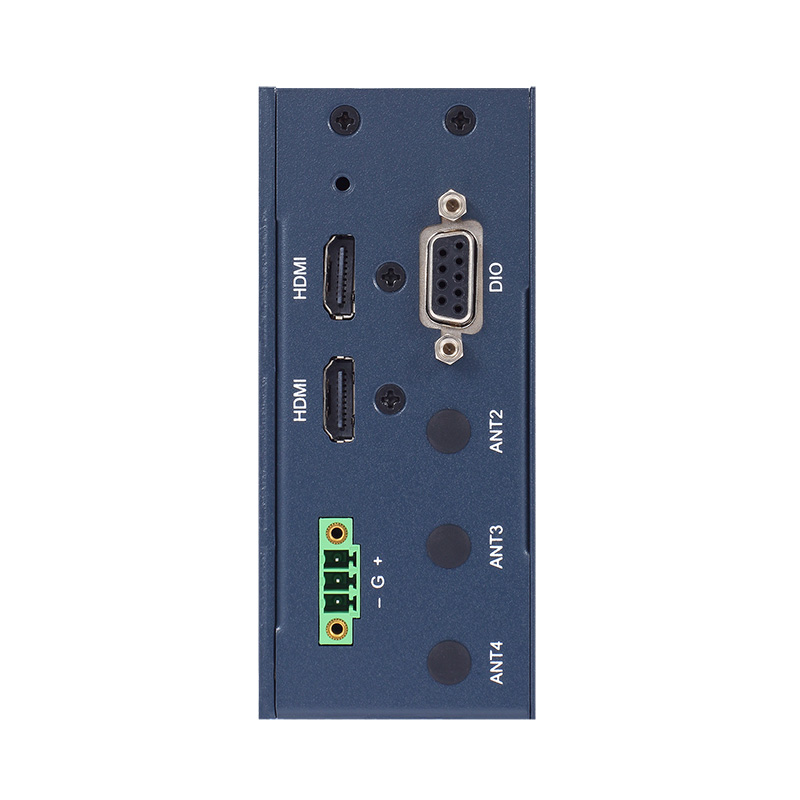

DIN-Rail Fanless Embedded System with Intel Atom® Processor x7433RE, 4 COM, 2 2.5GbE LAN, 4 USB, HDMI, DIO, and Wide Temperature

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ICO150
ICO150
ICO150
ICO150
ICO150
AXView

AXView

Fanless

Fanless

IP30 Rating

IP30 Rating

Low Power

Low Power

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel Atom® processor x7433RE
  • 4 COM, 4 USB, 2 2.5GbE LAN, HDMI, and DIO
  • 9 to 36 VDC wide range power input (typical: 12 to 24 VDC)
  • OVP, UVP, OCP, and RPP power protection design
  • Axiomtek EAPI for intelligent remote monitoring software integration

Specifications

CPU
  • Intel Atom® x7433RE processor, 1.5 GHz/4C/9W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR5-5600 SO-DIMM, up to 16 GB
COM
  • 4 x COM (RS-232/422/485)
USB
  • 2 x USB 3.2
  • 2 x USB 2.0
Ethernet
  • 2 x RJ-45 2.5GbE LAN (Intel® I226-IT; TSN supported)
PoE
  • N/A
CANbus
  • N/A
Analog Input
  • N/A
Digital I/O
  • DIO Others 1 x DIO (8-bit programmable DIO)
Display
  • 1 x HDMI (1.4b, 4K); (2nd HDMI w/ FHD by option)
Expansion
  • 1 x full-size PCI Express Mini Card slot (USB signal) with SIM slot for 4G-LTE module
  • 1 x half-size PCI Express Mini Card slot with SATA or PCIe signal (mini mSATA or Wi-Fi)
  • 1 x M.2 B+M key 2242 with PCIe signal (for NVMe)
Storage
  • 1 x half-size PCI Express Mini Card slot for mSATA (SATA or Wi-Fi selection)
  • 1 x M.2 B+M key 2242 for NVMe
Others
  • TPM 2.0
Power
  • 1 x terminal block, 9 to 36 VDC, typical 12/24V
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • AC: 0°C to +50°C (+32°F to +122°F)
  • AW: - 40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • 3 Grms, 5 to 500Hz, X/Y/Z direction; random, operating
Dimensions<br>(W x D x H)
  • AC: 48 x 110 x 155 mm (1.89" x 4.33" x 6.1")
  • AW: 65 x 110 x 155 mm (2.56" x 4.33" x 6.1")
Weight (net/gross)
  • AC: 0.83 kg (1.76 lbs)
  • AW: 1.5 kg (3.30 lbs)
Certifications
  • CE (EN 55032/EN 55024), FCC (FCC Part 15B), and UL
EOS Support
  • Windows® 11 IoT, Ubuntu 22.04
Software Support
  • Axiomtek EAPI
Mounting
  • DIN-rail kit
  • Wall mount kit (optional)

Ordering Information

  • ICO150-x7433-AW (P/N-E22C150100)
    DIN-rail fanless embedded system with Intel Atom® processor x7433RE, 4 COM, 2 2.5GbE LAN, 4 USB, HDMI, DIO, and wide temperature
  • ICO150-x7433-AC (P/N-E22C150101)
    DIN-rail fanless embedded system with Intel Atom® processor x7433RE, 4 COM, 2 2.5GbE LAN, 4 USB, HDMI, and DIO
