ICO110

Status : Available

DIN-Rail Fanless Embedded System with Intel® Celeron® Processor N3350, COM, 2 LAN, 4 USB, HDMI, and Wide Temperature Support

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ICO110
ICO110
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Super compact size with fanless and cableless design
  • Intel® Celeron® processor N3350, reliable F1 stepping version CPU
  • COM, 4 USB, and 2 GbE LAN
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC wide range power input (typical: 12 to 24 VDC)
  • OVP, UVP, OCP, and RPP power protection design
  • AXEAPI for intelligent remote monitoring software integration
Compact & Efficient
Compact & Efficient

Intel® Celeron® N3350
4.8 × 10 × 10 cm

Reliable Design
Reliable Design

Operating temperature -40°C to +70°C
Power input 9–36 VDC

Software Support
Software Support

Axiomtek EAPI for intelligent remote
monitoring software integration

Compact Yet Durable

The palm-sized ICO110 is designed with durability in mind. This robust system operates reliably within a wide temperature range of -40°C to +70°C and supports a broad power input range of 9–36 VDC, making it an ideal solution for challenging applications in manufacturing, energy, and smart city infrastructures.



Sustainable Design

The ICO110 is designed with a strong focus on environmental responsibility. It is powered by the energy-efficient Intel® Celeron® N3350 processor, which has a TDP of no more than 6 W. Its long life cycle, extending through 2031, significantly reduces electronic waste.



Supports Axiomtek EAPI for Easy Remote Management

The ICO110 supports Axiomtek EAPI, offering seamless remote management and software integration. With our EAPI, customers can minimize their development time and labor costs.

Rich I/O Interfaces

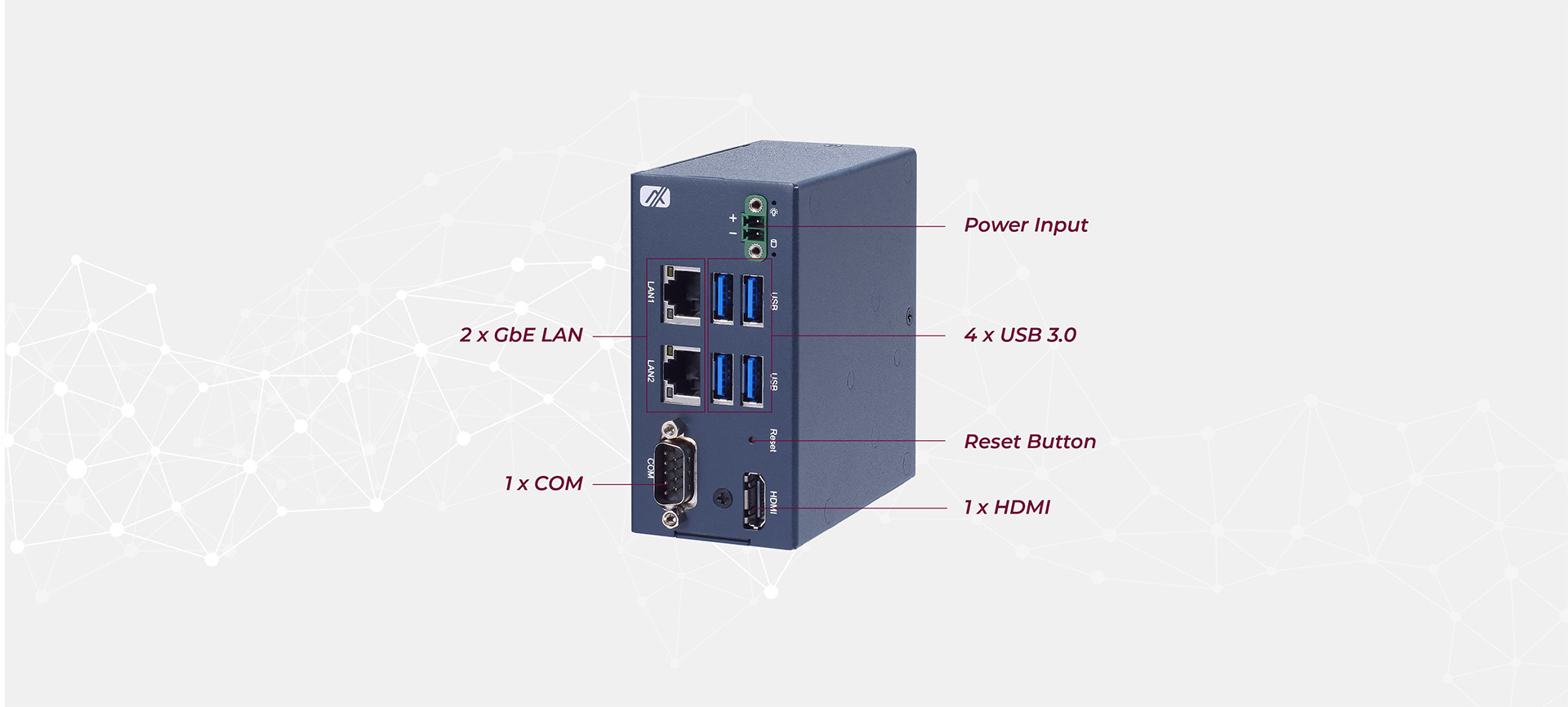

Front View
ICO110 Front I/O

Specifications

CPU
  • Intel® Celeron® N3350 2C @1.1 GHz, 6W TDP
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
COM
  • 1 x RS-232/422/485
USB
  • 4 x USB 3.0
Ethernet
  • 2 x RJ-45 isolated GbE LAN (Realtek RTL8111HN for ICO110-N3350-AC; Realtek RTL8119I for ICO110-N3350-AW)
PoE
  • Isolation voltage: 1.5 kV
CANbus
  • N/A
Analog Input
  • N/A
Digital I/O
  • N/A
Display
  • 1 x HDMI
Expansion
  • 1 x half-size Rev. 1.2 PCI Express Mini Card slot: mini mSATA
Storage
  • 1 x mini mSATA (occupied 1 x PCI Express Mini Card slot)
Others
  • TPM 2.0
Power
  • 1 x Terminal block, 9 to 36 VDC (typical: 12 to 24 VDC)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • ICO110-N3350-AC: 0°C to +50°C (+32°F to +122°F)
  • ICO110-N3350-AW: -40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 0% to 95%
Vibration
  • 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions
(W x D x H)
  • 48 x 100 x 100 mm (1.89" x 3.94" x 3.94")
Weight (net/gross)
  • 0.3 kg (0.67 lb)/0.45 kg (0.99 lb)
Certifications
  • CE/FCC EN 55035 (Class A), FCC part 15 B (Class A)
Software Support
  • Axiomtek EAPI
EOS Support
  • Windows® 10 IoT, Linux
Mounting
  • DIN-rail
  • Wall Mounting (optional)

Ordering Information

  • ICO110-N3350-AC (P/N-E22C110100)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 1 COM, 2 GbE LAN, and 4 USB
  • ICO110-N3350-AW (P/N-E22C110101)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350, 1 COM, 2 GbE LAN, 4 USB, and wide temperature
