P712

Status : Available

12.1" XGA TFT LCD Railway Touchscreen Monitor (-25°C to +55°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
P712
P712
P712
P712
EN 45545

EN 45545

EN 50155

EN 50155

High Brightness

High Brightness

Wide Power Input

Wide Power Input

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • EN 50155 and EN 45545-2 certified railway monitor
  • 12.1" high brightness XGA TFT touchscreen LCD
  • Wide viewing angle and a high brightness of 600 nits
  • Supports VGA, DVI-D, and HDMI
  • Light sensor for auto-dimming
  • Typical 24 to 110 VDC wide power input
  • -25°C to +55°C wide temperature range
  • Supports 5 OSD keys on the front bezel

Specifications

Front Bezel
  • IP65-rated aluminum front bezel and IP40-rated rear protection
LCD Panel
  • 12.1" XGA TFT LCD
Max Colors
  • 16.7M/262k
Active Area (mm)
  • 245.76 (H) x 184.32 (V)
Max. Resolution
  • 1024 x 768
Input Signal
  • VGA
  • HDMI
  • DVI-D
  • Line-in
  • Multi-function of T/S & remote control
Pixel Pitch (mm)
  • 0.24 (H) x 0.24 (V)
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 178°/178°
Response Time
  • 25ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 600 nits
Display Control
  • OSD (on screen display)
I/O Interface
  • 1 x M12 A-coded Male 5-pin DC-in
  • 1 x Multi-function of T/S & remote control
  • 1 x DVI-D
  • 1 x VGA
  • 1 x HDMI
  • 1 x Line-in
Touchscreen
  • 5-wire resistive touchscreen
  • Transparency: 80%
  • Durability: 35 million times
  • Controller interface: RS-232
Power Supply
  • Typical 24 VDC to110 VDC
Relative Humidity
  • 20% to 90% @ +40°C, non-condensing
Operating Temperature
  • -25°C to +55°C (-13°F to +131°F)
Dimensions (W x D x H)
  • 330 x 50.2 x 245 mm (12.99" x 1.98" x 9.65")
Weight (net/gross)
  • 2.3 kg (5.07 lb)/4.36 kg (9.62 lb)
Mounting
  • Panel mount
  • VESA arm
Certifications
  • CE, FCC, EN 50155, EN 50121-3-2, EN 61373, and EN 45545-2 certified

Ordering Information

  • P712-RS1-M (P/N-E226712100)
    12.1" XGA LCD railway touchscreen monitor with 24 to 110 VDC power input
  • 594B8120B30E
    DC in cable M12 female 5P 180cm w/o ACC

Download

Drivers

Date Description Version Download File
2022/03/10 Windows 10_Remote_Driver VA1
2022/03/10 Windows 10_Touch_Driver VA1

Software

Manual

Date Description Version Download File
2022/03/10 User's Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/04/28 EN50155 Certificate
2022/05/06 UKCA Declaration of Conformity
2022/05/06 FCC Verification
2022/05/06 CE-Conformity DeclarationA1
2022/05/06 CE LVD Verification
2022/05/06 CE EMC Verification

Frequently Asked Questions

You Might Also Like

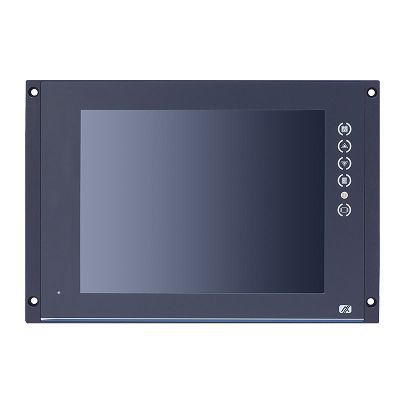

Picture of P710
