P710

Status : Available

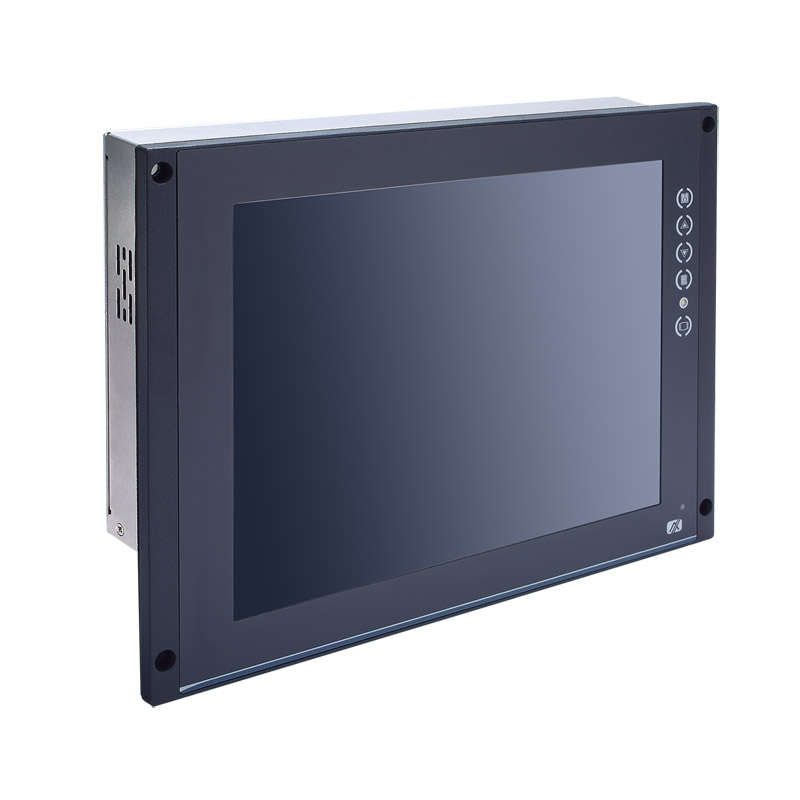

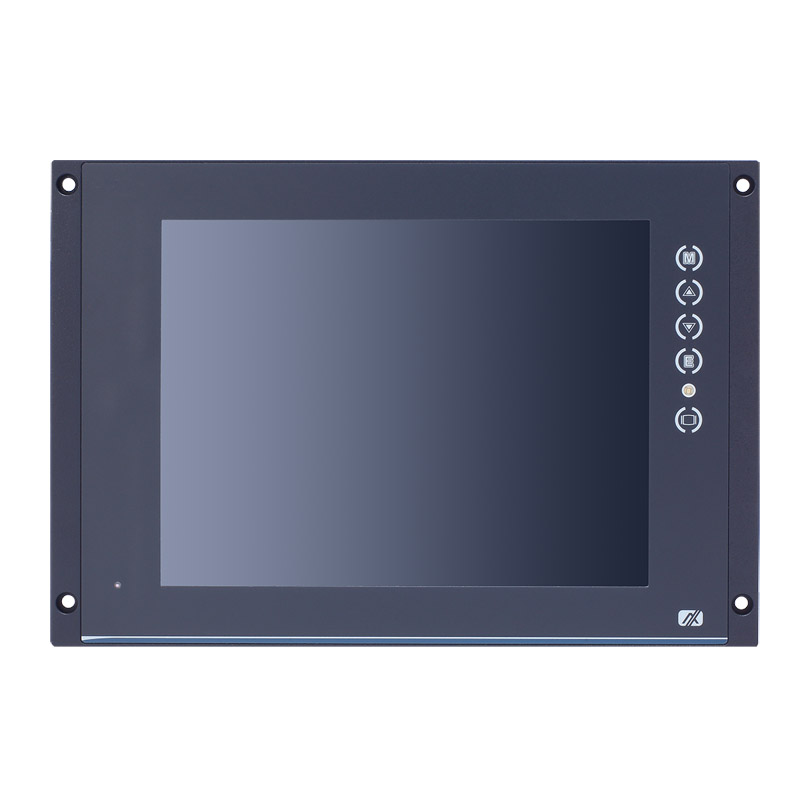

10.4" XGA TFT LCD Railway Touchscreen Monitor (-25°C to +55°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
P710
P710
P710
Auto Diming

Auto Diming

EN 45545

EN 45545

EN 50155

EN 50155

High Brightness

High Brightness

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Certified with EN 50155 and EN 45545-2 standards
  • 10.4" high brightness XGA TFT touchscreen LCD
  • Wide viewing angle and high brightness of 500 nits
  • Supports VGA, DVI-D, and HDMI
  • Light sensor for auto-dimming
  • Typical 24 to 110 VDC wide power input range
  • -25°C to +55°C wide temperature range
  • Supports 5 OSD keys on the front bezel

Specifications

Front Bezel
  • IP65-rated aluminum front bezel and IP40-rated rear protection
LCD Panel
  • 10.4" TFT LCD
Max Colors
  • 16.2M/262k
Active Area (mm)
  • 210.4 (H) x 157.8 (V)
Max. Resolution
  • 1024 x 768
Input Signal
  • VGA
  • HDMI
  • DVI-D
  • RS-232 for touchscreen and IR remote control
Pixel Pitch (mm)
  • 0.0685 (H) x 0.2055 (V)
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 176°/176°
Response Time
  • 25ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 500 nits
Display Control
  • OSD (on screen display)

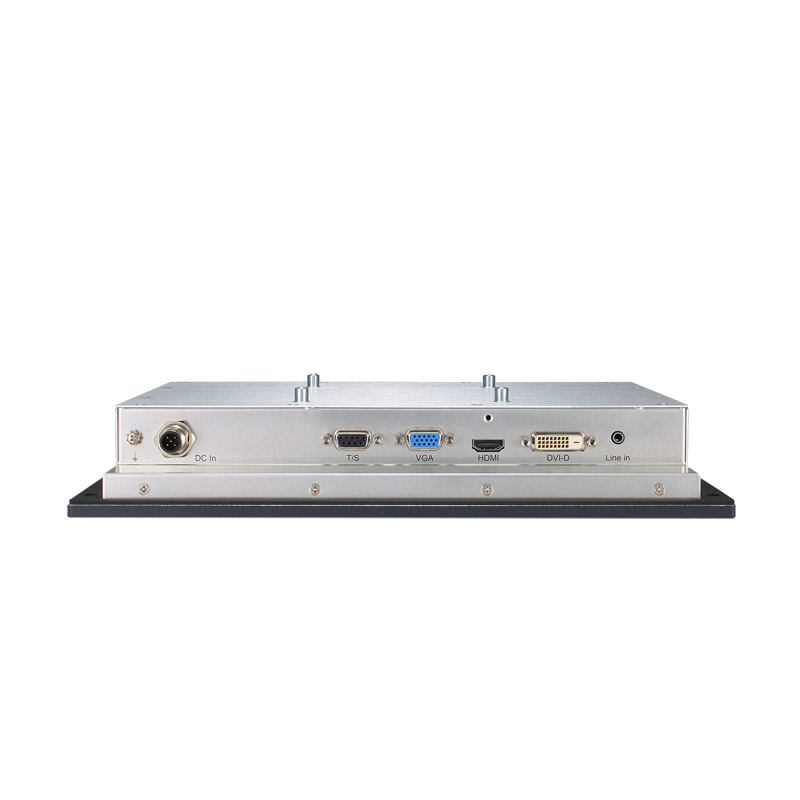

I/O Interface
  • 1 x RS-232 for touchscreen and remote control
  • 1 x M12 A-coded Male 5-pin DC-in
  • 1 x DVI - D
  • 1 x VGA
  • 1 x HDMI
  • 1 x Line-in
Touchscreen
  • 5-wire resistive touchscreen
  • Thickness: 2.2 mm
  • Light Transmission: 80%
  • Touch Life: 35 million touches
  • Controller Interface: RS-232 DB9 male connector
Power Supply
  • Typical 24 VDC to110 VDC
Relative Humidity
  • 20% to 90% @ +40°C, non-condensing
Operating Temperature
  • -25°C to +55°C (-13°F to +131°F)
Dimensions (W x D x H)
  • 310 x 49.2 x 214 mm (12.20" x 1.94" x 8.43")
Weight (net/gross)
  • 1.85 kg (4.08 Ib)/3.29 kg (7.26 lb)
Mounting
  • Panel mount
  • VESA arm
Certifications
  • CE, FCC, EN 50155, EN 50121-3-2, EN 61373, and EN 45545-2 certified

Ordering Information

  • P710-RS1-M (P/N-E226710100)
    10.4" XGA LCD railway touchscreen monitor with 24-110 VDC power input

Download

Drivers

Date Description Version Download File
2022/03/10 Windows 10_Remote_Driver VA1
2022/03/10 Windows 10_Touch_Driver VA1

Software

Manual

Date Description Version Download File
2022/03/10 User's Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/04/28 EN50155 Certificate
2022/05/06 UKCA Declaration of Conformity
2022/05/06 CE-Conformity DeclarationA1
2022/05/06 FCC Verification
2022/05/06 CE LVD Verification
2022/05/06 CE EMC Verification

Frequently Asked Questions

You Might Also Like

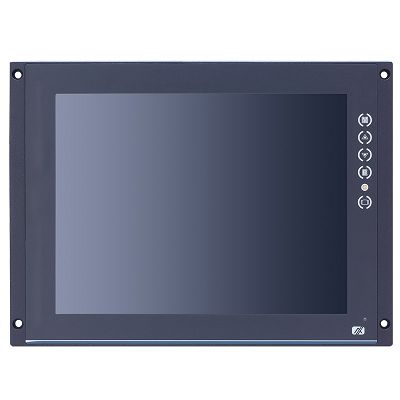

Picture of P712

P712

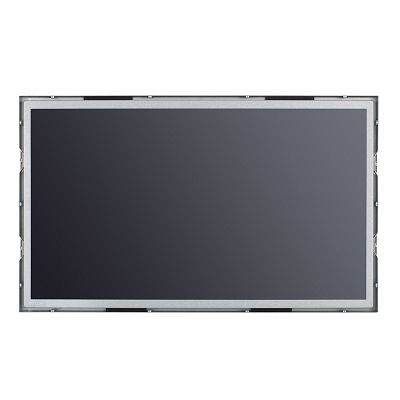

Picture of P718O
