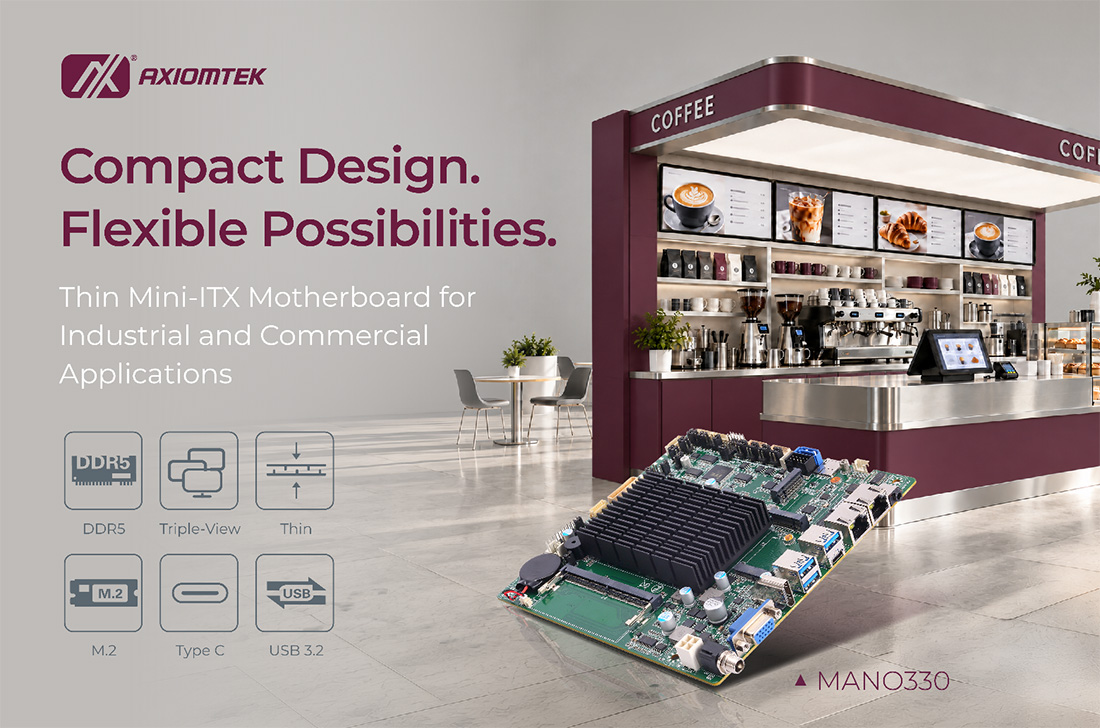

Axiomtek, a world-renowned leader relentlessly devoted to the research, development, and manufacture of innovative, highly efficient, and reliable industrial computer products, proudly introduces the MANO330, a compact Thin Mini-ITX motherboard powered by the Intel® Processor N97 or N150 and DDR5 memory. Designed for space-constrained systems that require flexible connectivity and expansion, the MANO330 combines multi-display capability, dual LAN connectivity, versatile M.2 expansion, and industrial I/O in a compact platform. With a wide 12–24 VDC power input, the MANO330 provides system developers with a flexible foundation for smart manufacturing and industrial automation, digital signage, smart retail, and POS applications.
Compact Performance for Space-Constrained Systems
The MANO330 combines a compact Thin Mini-ITX design with Intel® Processor N97 or N150 and DDR5-4800 memory support. The N97 supports up to 32GB of memory, while the N150 supports up to 16GB. Measuring just 170 x 170 mm, the MANO330 provides the essential computing performance and I/O capabilities needed for embedded systems, helping developers build space-efficient solutions for a wide range of industrial and commercial applications.
Rich Visuals and Reliable Network Connectivity
Designed for information-rich applications, the MANO330 supports multiple independent display outputs through HDMI, VGA, LVDS/eDP interface, and USB Type-C with DisplayPort support. This display flexibility allows system developers to configure multiple screens for applications such as digital signage, retail displays, and industrial monitoring. The board also integrates 2.5GbE and GbE LAN, providing reliable network connectivity for connected systems and industrial applications.
Flexible Expansion to Fit Different Applications
The MANO330 provides flexible expansion options for storage and wireless connectivity. Its M.2 Key M 2280 slot supports SATA/NVMe storage, while M.2 Key E 2230 supports wireless connectivity. The M.2 Key B 3042/3052 interface provides an additional expansion option and is paired with a Nano SIM slot for wireless applications. These options allow customers to configure storage and connectivity according to their application requirements, helping simplify system development and integration.
Built-In I/O for Easier System Integration
The MANO330 integrates commonly used industrial interfaces directly on the board, including RS-232, RS-422/485, USB, SATA, and GPIO, helping reduce the need for additional interface hardware. Two RS-232 ports support jumper-selectable RS-422 or RS-485, while four additional RS-232 ports provide further serial connectivity for industrial devices. Combined with the board's 12–24 VDC power input, these built-in interfaces provide system developers with greater flexibility and help simplify system integration.
“Today’s embedded systems need to balance compact design with flexibility for different application requirements. With versatile display, connectivity, expansion, and industrial I/O options, the MANO330 gives system developers greater freedom to configure and integrate solutions for a wide range of industrial and commercial applications”
— Tina Tu, Product Manager at Axiomtek
The MANO330 is now available. For more product information or customization services, please visit www.axiomtek.com or contact one of our sales representatives at info@axiomtek.com.tw.
Advanced Features of MANO330
- Intel® Processor N97/N150
- DDR5-4800 SO-DIMM, up to 32GB with N97 and 16GB with N150
- Dual LAN ports
- M.2 Key B 3042/3052
- M.2 Key E 2230
- M.2 Key M 2280
