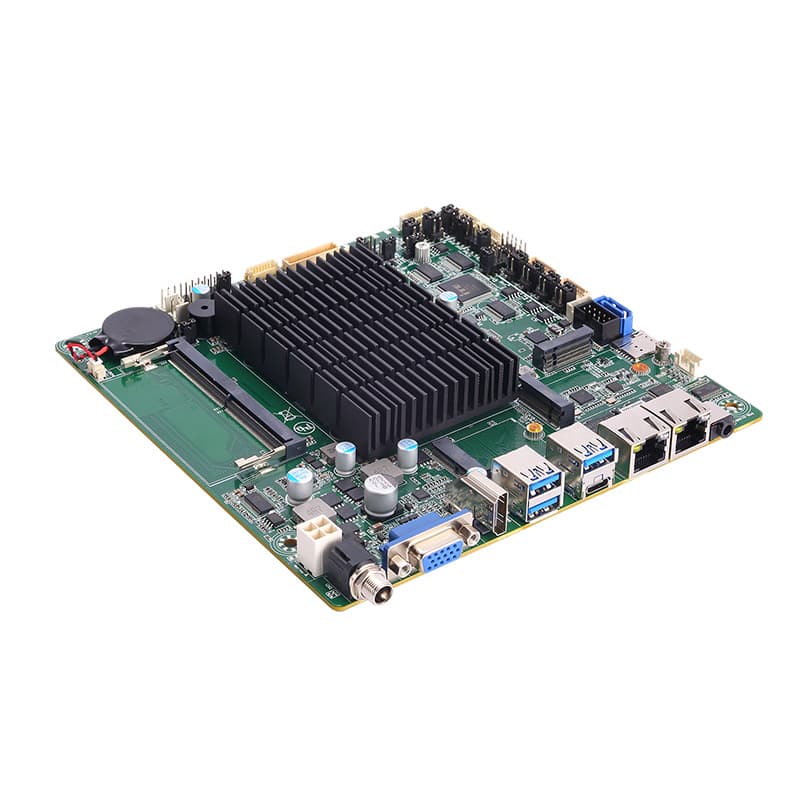

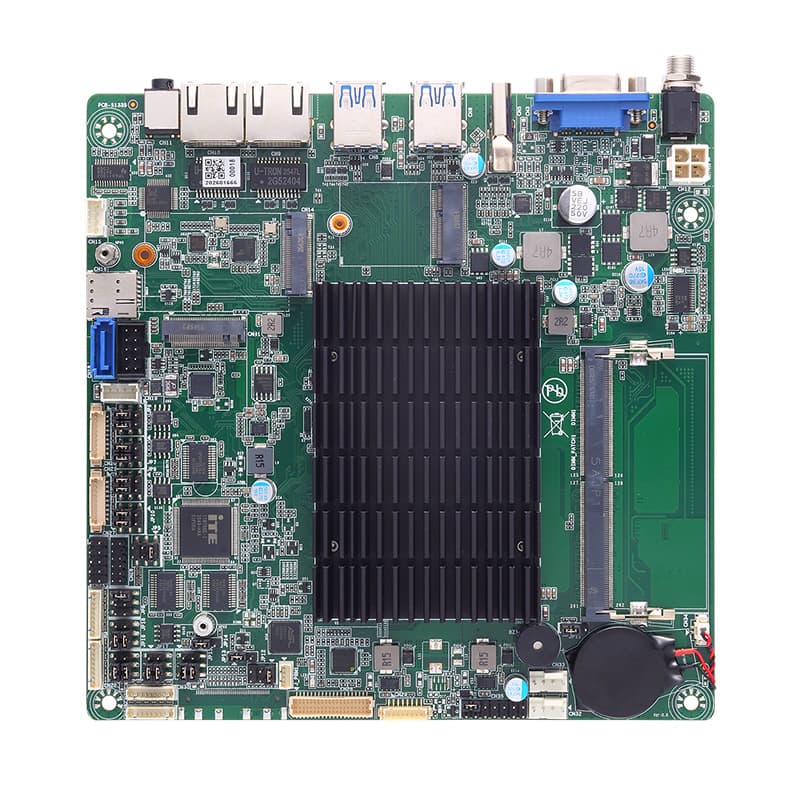

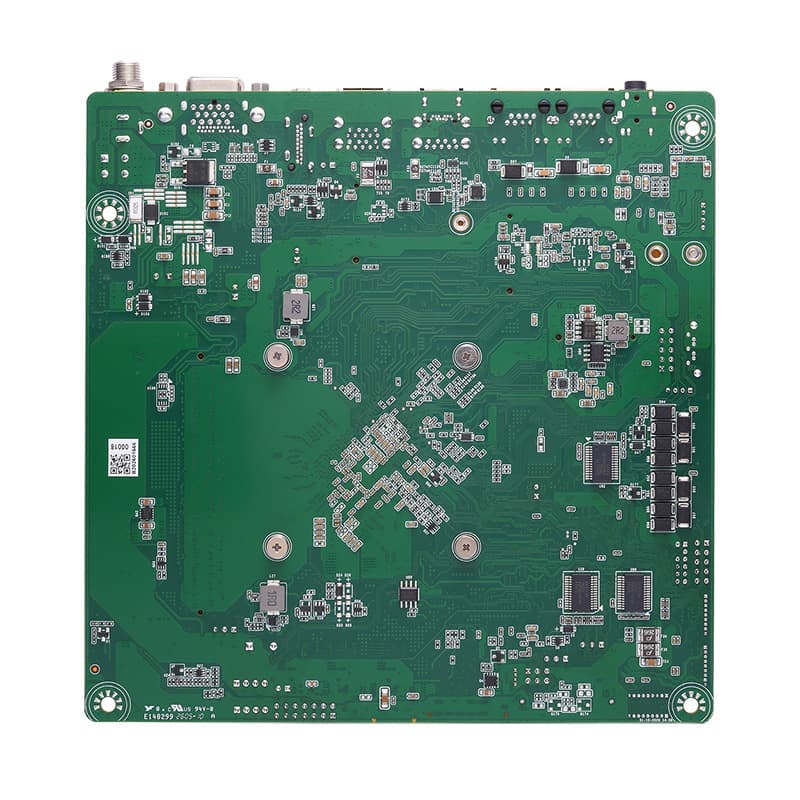

MANO330

Status : Coming Soon

Thin Mini-ITX SBC with Intel® Processor N97/N150, DDR5, Type-C, M.2, HDMI, VGA, LVDS, and Dual LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO330
MANO330
MANO330
2.5G LAN

2.5G LAN

Low Profile

Low Profile

Triple-View

Triple-View

USB 3.2

USB 3.2

USB Type C

USB Type C

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Processor N97/N150
  • DDR5-4800 SO-DIMM for up to 32GB
  • Dual LAN ports
  • M.2 Key B 3042/3052
  • M.2 Key E 2230
  • M.2 Key M 2280

Specifications

CPU
  • Intel® Processor N97/N150
Chipset
  • SoC integrated
System Memory
  • 1 × 262-pin DDR5-4800 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 × RS-232 (wafer) (default: RS-232/jumper-selectable RS-422 or RS-485)
  • 4 × RS-232 (wafer)
USB
  • 3 × USB 3.2 Gen 1 (rear, 1 port co-layout with M.2 Key B)
  • 1 x USB Type-C (DisplayPort/USB 5 Gbps support)
  • 2 × USB 2.0
Ethernet
  • 1 × 2.5GbE Ethernet (RTL8125BG-CG)
  • 1 × GbE Ethernet (RTL8111H-CG)
Display
  • 1 × HDMI
  • 1 x VGA
  • 1 × LVDS (co-layout with eDP)
Digital I/O
  • N/A
Audio
  • MIC-in/Line-out
Storage
  • 1 x M.2 Key M 2280 (SATA/NVMe auto detect)
  • 1 x SATA 3.0
TPM
  • TPM 2.0 supported by Intel® Platform Trust Technology (PTT)
Expansion
  • 1 x M.2 Key E 2230 (PCIe 3.0 x1, USB 2.0)
  • 1 x M.2 Key B 3042/3052 (PCIe 3.0 x1 + USB 3.2 Gen 1 + USB 2.0)
  • 1 x Nano SIM
Others
  • GPIO 8-bit (2.54 mm pitch)
Battery
  • Lithium 3V/220mAH
Power Consumption (Max.)
  • 38.1W
Power Input
  • 12V to 24V DC in, ATX mode (jumper-selectable AT mode)
  • (ATX 2 × 2-pin connector supported by BOM selection)
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Hardware Monitoring
  • Detect CPU/system temperature, voltage, and fan speed
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 5% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO330-N97-S (P/N-S38M330101)
    Thin Mini-ITX SBC with Intel® Processor N97, 1 x VGA, 1 x HDMI, LVDS, 5 x USB, 1 x USB Type-C, 2 x LAN, HD Audio, and single-box packing
  • MANO330-N97-B
    Thin Mini-ITX SBC with Intel® Processor N97, 1 x VGA, 1 x HDMI, LVDS, 5 x USB, 1 x USB Type-C, 2 x LAN, HD Audio, and bulk packing
  • MANO330-N150-S (P/N-S38M330100)
    Thin Mini-ITX SBC with Intel® Processor N150, 1 x VGA, 1 x HDMI, LVDS, 5 x USB, 1 x USB Type-C, 2 x LAN, HD Audio, and single-box packing
  • MANO330-N150-B
    Thin Mini-ITX SBC with Intel® Processor N150, 1 x VGA, 1 x HDMI, LVDS, 5 x USB, 1 x USB Type-C, 2 x LAN, HD Audio, and bulk packing
  • 59411500600E
    SATA power cable 4P 180 mm (RC)
  • 59386831000E
    USB x 2, 2 x 5P 2.54 mm, L=180 mm
  • 59382620000E
    COM port cable W/BRACKET, P=2.0 mm, L=300 mm
  • 50966124050E
    Adapter 12V 60W FSP060-DHAN3 w/Screw
  • 509000002100
    PWS FSP065M-DAA3 FSP 65W ACin=100 to 240V 24V 1200mm

Download

This object is currently under update, please visit later.

You Might Also Like

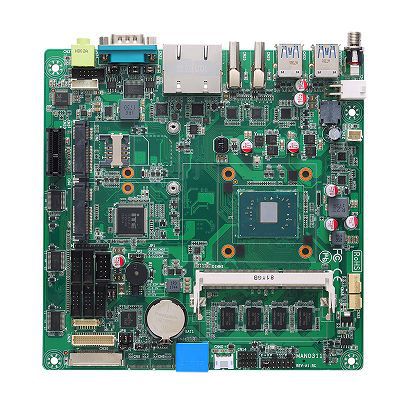

Picture of MANO311
