The Unstoppable Era of Smart Ports
Ports are on the brink of a transformative era. According to McKinsey & Co., inefficiencies in ports cost the industry a staggering USD 17 billion annually. Moreover, the OECD predicts that global container handling in ports could surge fourfold by 2030 and reach five to six times current levels by 2050. The integration of 5G, IoT, and AI is enabling seamless connections among ships, cranes, containers, and trucks, paving the way for efficient unmanned ports. Amsterdam’s port utilizes sensors, AI, and IoT for port turnaround time analysis, striving to achieve connected shipping. Similarly, the Port of Valencia has deployed black boxes on 200 cranes, trucks, and forklifts to collect and analyze location and operational data.

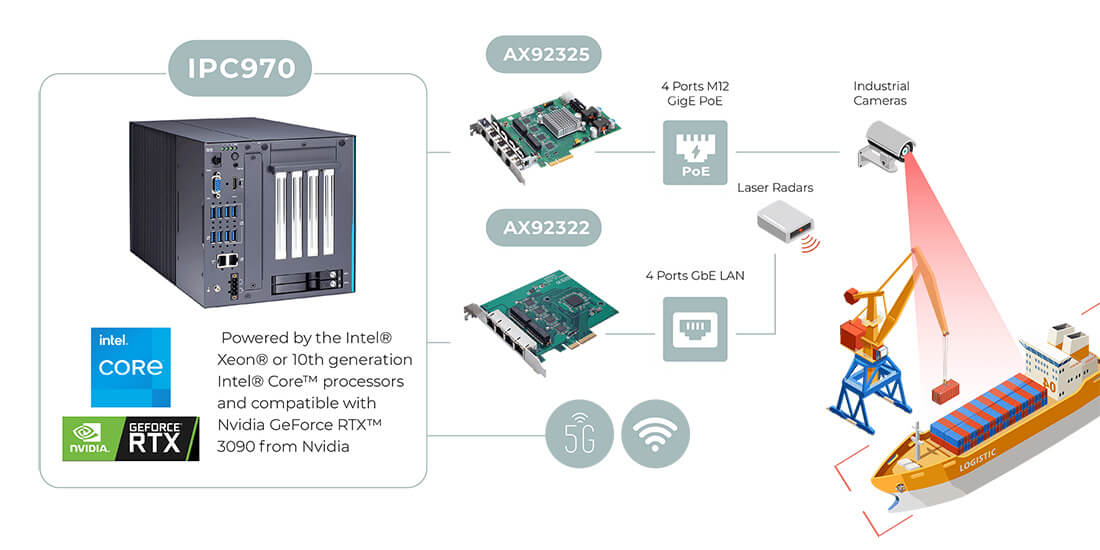

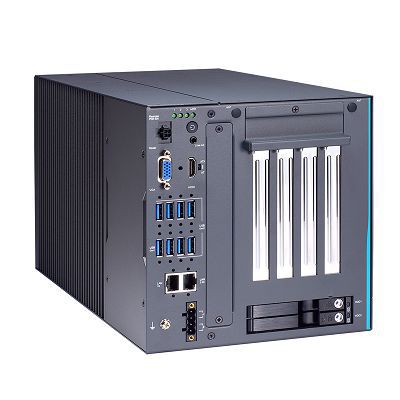

IPC970: High-Performance AI Platform for Gantry Cranes
High-Performance Intel Processor
The IPC970 is powered by Intel® Xeon® or 10th Gen Intel® Core™ processors and is compatible with mainstream graphics cards such as the NVIDIA GeForce RTX™ 3090, helping boost AI computing performance for automated crane control and machine vision applications.
High-Speed and Low-Latency Connectivity
The IPC970 features one M.2 Key B 3042/3050 socket for a 5G module, enabling high-speed, low-latency connectivity for precise crane control. This helps multiple cranes operate in a timely and coordinated manner across smart port environments.
Rugged Design
The IPC970 is designed for harsh working environments, supporting anti-vibration performance up to 3 Grms and a wide operating temperature range from -10°C to +70°C. In addition, it supports 24 VDC power input with a power-on delay function to ensure reliable operation.
AIE900-XNX: Compact Edge AI System Powered by NVIDIA® Jetson Xavier™ NX
NVIDIA® Jetson Xavier™ NX
The AIE900-XNX is powered by the NVIDIA® Jetson Xavier™ NX, featuring a 6-core NVIDIA Carmel Arm® v8.2 64-bit CPU, delivering up to 21 TOPS of AI performance, and integrating a 384-core NVIDIA Volta™ architecture GPU for AI mapping and automated operation.
High-Speed Connectivity
The AIE900-XNX features an M.2 Key B 3050/3042 slot with a SIM slot for 5G connectivity to enable real-time data transmission. A PCI Express Mini Card slot is also available for a GNSS module to support positioning and coordination.
Autonomous-Ready
The AIE900-XNX has four PoE ports for 3D LiDAR and optional four FPD-Link III ports for SerDes cameras, empowering ADAS functions for collision avoidance and pedestrian protection. It supports CAN bus vehicle communication and optional 12/24 VDC power input with ignition power control, making it ideal for autonomous trucks.

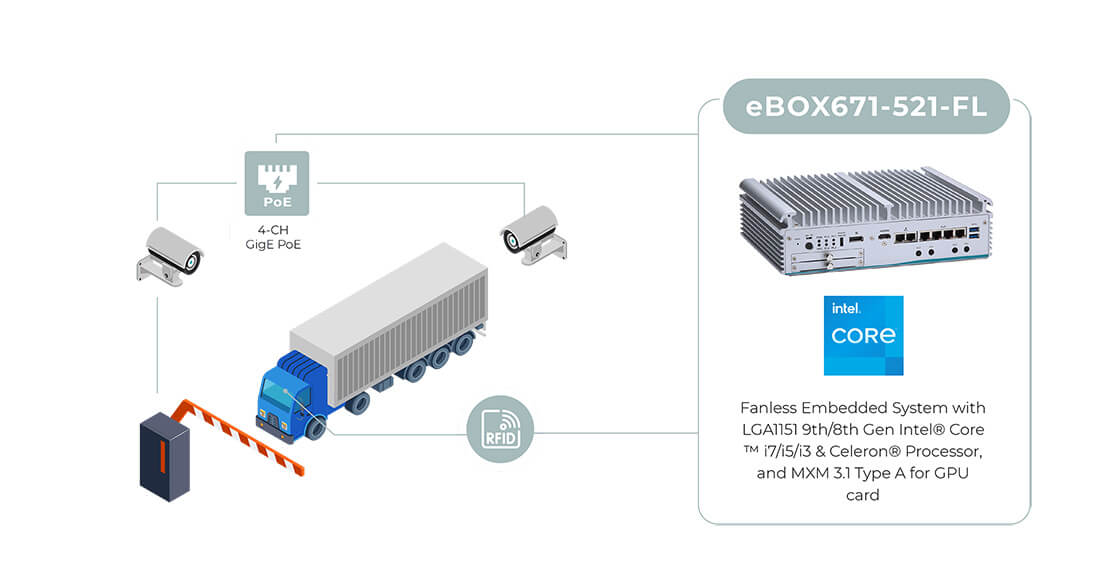

eBOX671-521-FL: Key Controller for E-Gates
Intel Processor and MXM 3.1 GPU
The eBOX671-521-FL offers scalable Intel® CPU options and an MXM 3.1 Type A slot for integrating a GPU module, enabling AI inference and image processing for automated gate applications.
RFID Module for Verification
The eBOX671-521-FL also supports an RFID module to verify that each vehicle has been registered and approved with a specific RFID tag, helping improve access control accuracy and security.
Rich I/O Interface
The eBOX671-521-FL provides 4-channel PoE ports to support multiple cameras installed on both sides of the entrance. Additional I/O ports, such as HDMI, serial, and USB 3.1, are available for LED displays, barrier gate control, and other E-Gate devices.
