Maximize Solar Efficiency with IoT-Powered Edge Solutions
Developing an efficient solar energy system can be challenging due to its dependency on weather conditions and time of day, leading to intermittency and variability in energy generation. Fluctuations during generation also pose challenges in grid integration, management, and energy storage. To address these challenges, Axiomtek has developed a series of rugged industrial-grade IoT gateways equipped with Intel® processors to optimize energy utilization. Our DigiHub smart edge software and embedded application programming interface (eAPI) streamline integration for customers, enable seamless connectivity with their devices, and accelerate development.

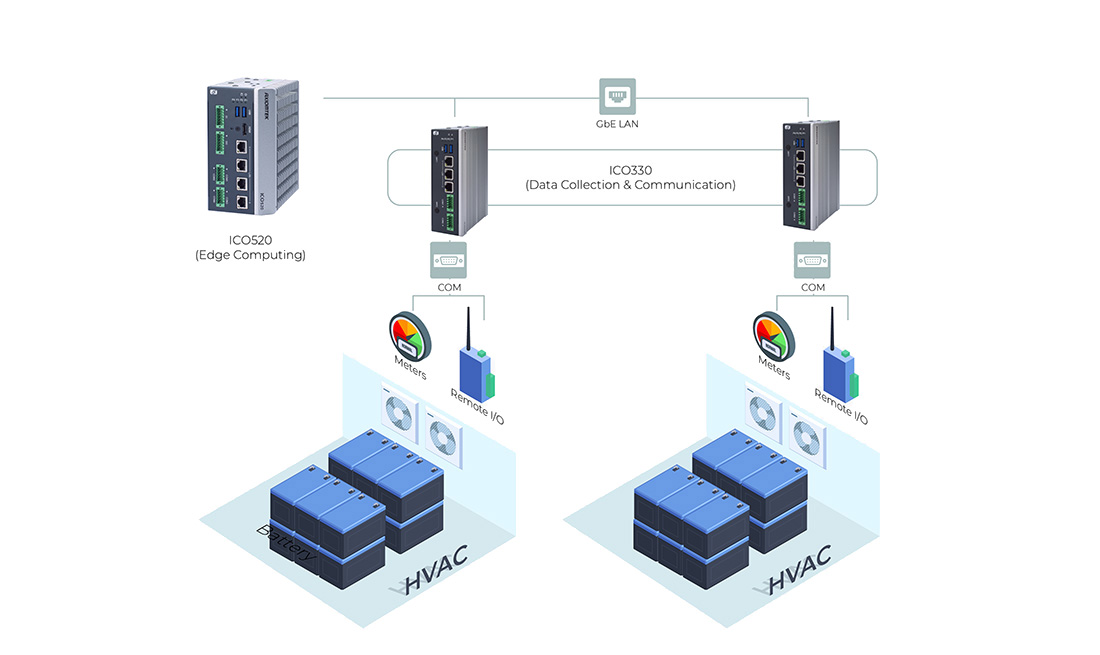

ICO520: Rugged Edge Computing IoT Gateway
High-Performance CPU for Edge Computing
The fanless ICO520, powered by high-performance 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processors, delivers robust data processing capabilities and helps optimize battery management systems at the edge.
DigiHub and eAPI Integration
The ICO520 features eAPI, facilitating seamless integration and data exchange while increasing customization flexibility and control capabilities. Axiomtek also offers DigiHub for improved platform and application integration.
Rugged with Enhanced Connectivity
The rugged ICO520 offers a wide operating temperature range from -40°C to +70°C and a broad 9–36 VDC power input range. It features rich I/O interfaces, enabling seamless connectivity with various sensors and devices such as solar PV systems, meters, and other I/O gateways.

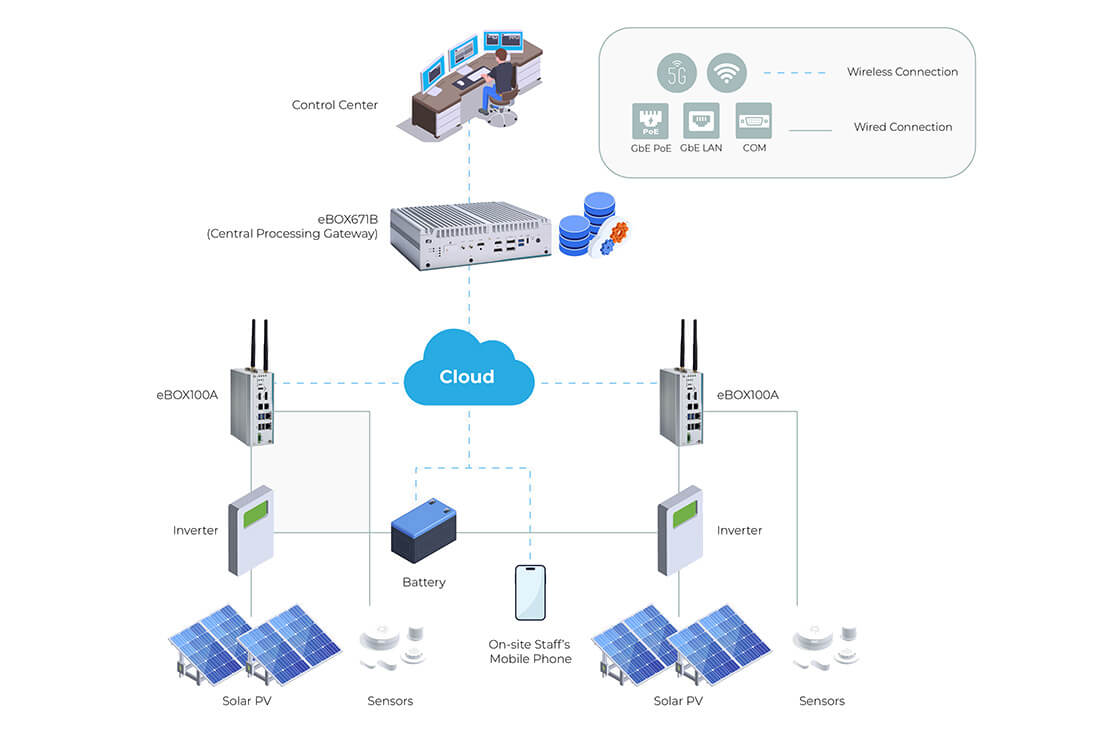

eBOX671B: Central Processing Gateway for Smart Grid
High-Performance Intel CPU
The eBOX671B is powered by high-performance 13th/12th Gen Intel® Core™ i9/i7/i5/i3 and Celeron® processors with the Intel® R680E chipset, allowing it to analyze large volumes of data quickly.
Low-Latency Wireless Connectivity
Edge-to-cloud IoT architecture relies on seamless and low-latency connectivity. In response to this demand, the eBOX671B offers robust support for Wi-Fi 6E and 5G through three 2.5GbE LAN ports, one M.2 Key E 2230 slot, and one M.2 Key B 3052 slot, enabling rapid and stable wireless connectivity.
Sufficient and High-Speed Storage Capacity
The reliable eBOX671B features two 262-pin DDR5-4800 SO-DIMM slots, supporting up to 64GB of system memory. Two 2.5-inch SATA HDD/SSD drive bays with RAID 0/1 support, one high-speed NVMe SSD through an M.2 Key M 2280 slot, and one mSATA are available for extensive storage needs.

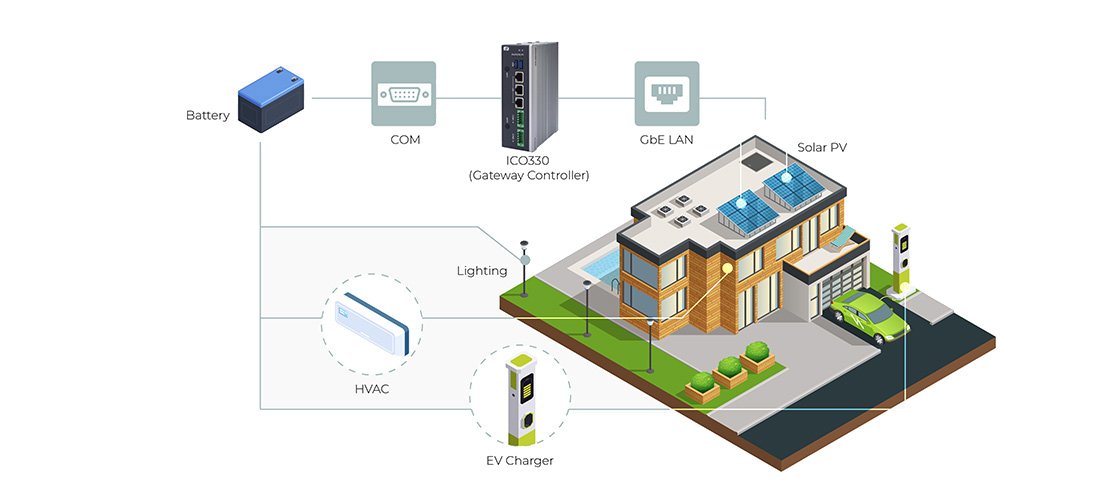

ICO330: Energy-Efficient IoT Gateway Controller
Rugged & Energy-Efficient
The ICO330 is powered by a power-efficient Intel® Atom® processor. It can operate smoothly from -40°C to +70°C and features a wide power input from 9 to 36 VDC, allowing it to function properly in harsh environments.
Compact with Great Connectivity
The compact ICO330 measures just 55 mm x 110 mm x 155 mm, offering versatility to suit various needs. It comes in two types: full and slim. Both types include three 2.5GbE LAN ports, two COM ports, two USB ports, and HDMI connectivity. Customers opting for the full type gain access to an extra four COM ports and DIO capabilities.
DigiHub & eAPI Integration
Our DigiHub and eAPI streamline integration for customers, making it easier to connect with their own devices while optimizing development speed.

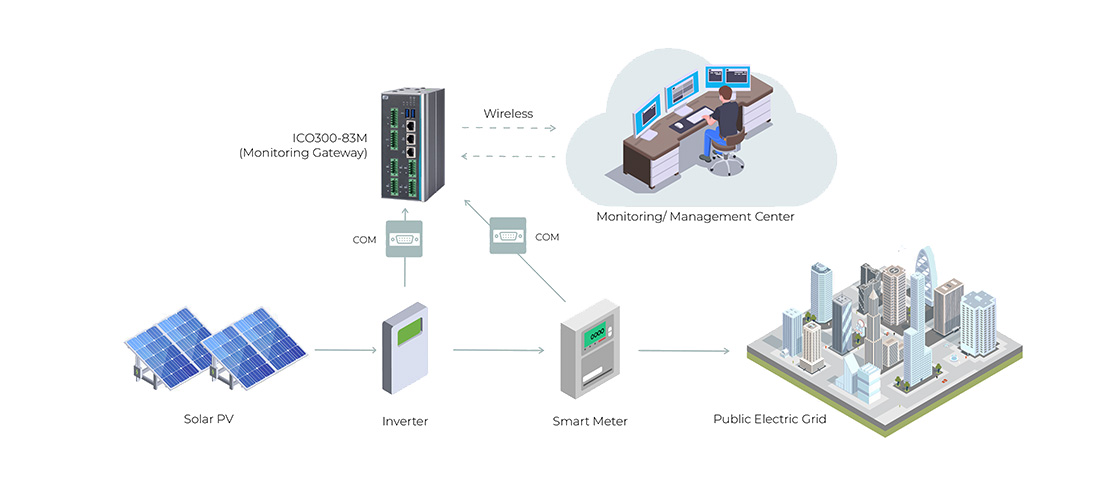

ICO300-83M: ATEX/CID2-Certified DIN-Rail Fanless IIoT Gateway
Low-Latency Connectivity
The ICO300-83M features rich I/O interfaces, including COM, DIO, LAN, and USB. It supports Wi-Fi, 4G, and 5G for wireless and low-latency connections.
Anti-Explosion & Rugged
Safety is paramount in energy generation plants. That is why Axiomtek designed the ICO300-83M to meet anti-explosion requirements with ATEX and CID2 certifications. In addition, it features a rugged design with a wide operating temperature range and wide power input, ensuring resilience in harsh environments.
Realize Remote Monitoring
Axiomtek’s eAPI and DigiHub offer flexibility and convenience during integration with customer devices and applications, enabling customers to realize remote monitoring systems more efficiently.
