Unlocking the Future of Smart Buildings with IoT-Based Technology
Rapid urbanization and the urgent need for greater energy efficiency are accelerating the adoption of smart building technologies. By leveraging IoT-driven systems, smart buildings enable real-time control and automation of critical functions such as HVAC, lighting, and security—delivering significant improvements in energy performance, operational efficiency, and occupant comfort. While the benefits are compelling, implementation presents notable challenges, including integration with legacy systems, escalating cybersecurity risks, and substantial upfront investment. To address these obstacles, Axiomtek has developed a suite of advanced IoT gateways designed to unify diverse devices, streamline protocol translation, enable centralized building management, and safeguard OT assets against external threats.

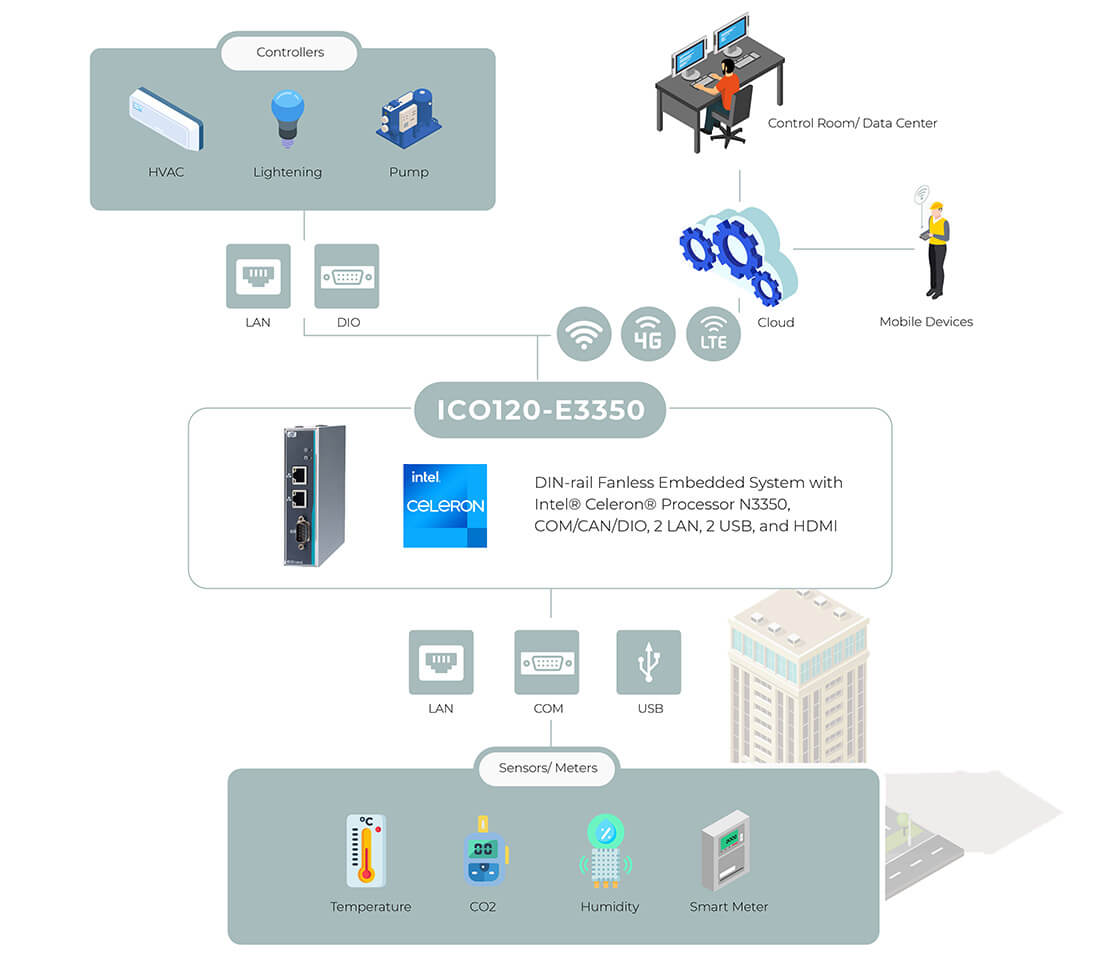

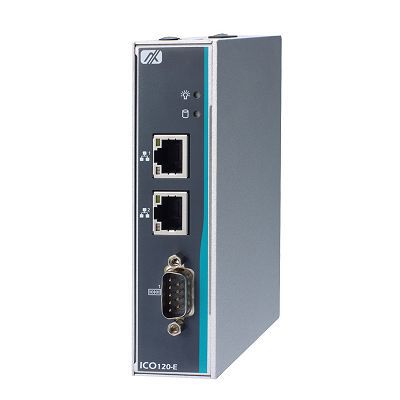

ICO120-E3350: Compact, Fanless DIN-Rail Gateway for Smart BMS
Optimized I/O for Smart Device Integration
The ICO120-E3350 supports 2 x COM, 2 x LAN, 2 x USB, 1 x 8-bit programmable DIO, and 1 x HDMI, enabling seamless connectivity with HVAC systems, smart lighting controllers, and environmental sensors for precise data collection and real-time control.
Compact, Power-Efficient, and Fanless
Powered by the Intel® Celeron® processor N3350 with a 6W TDP, the ICO120-E3350 is a palm-sized DIN-rail gateway designed for space-constrained environments. Its fanless architecture ensures silent, low-maintenance operation.
Wide Temperature and Power Range
Designed for demanding building environments, the ICO120-E3350 operates reliably from -40°C to +70°C and supports a wide 9–36 VDC power input, ensuring stable performance in mechanical rooms and hard-to-access areas.

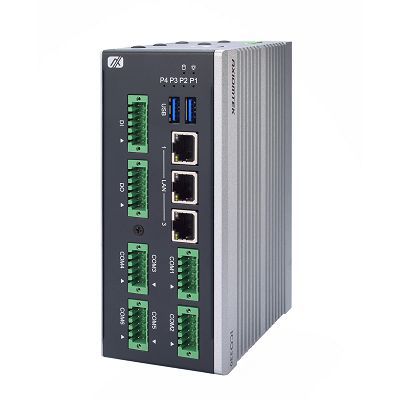

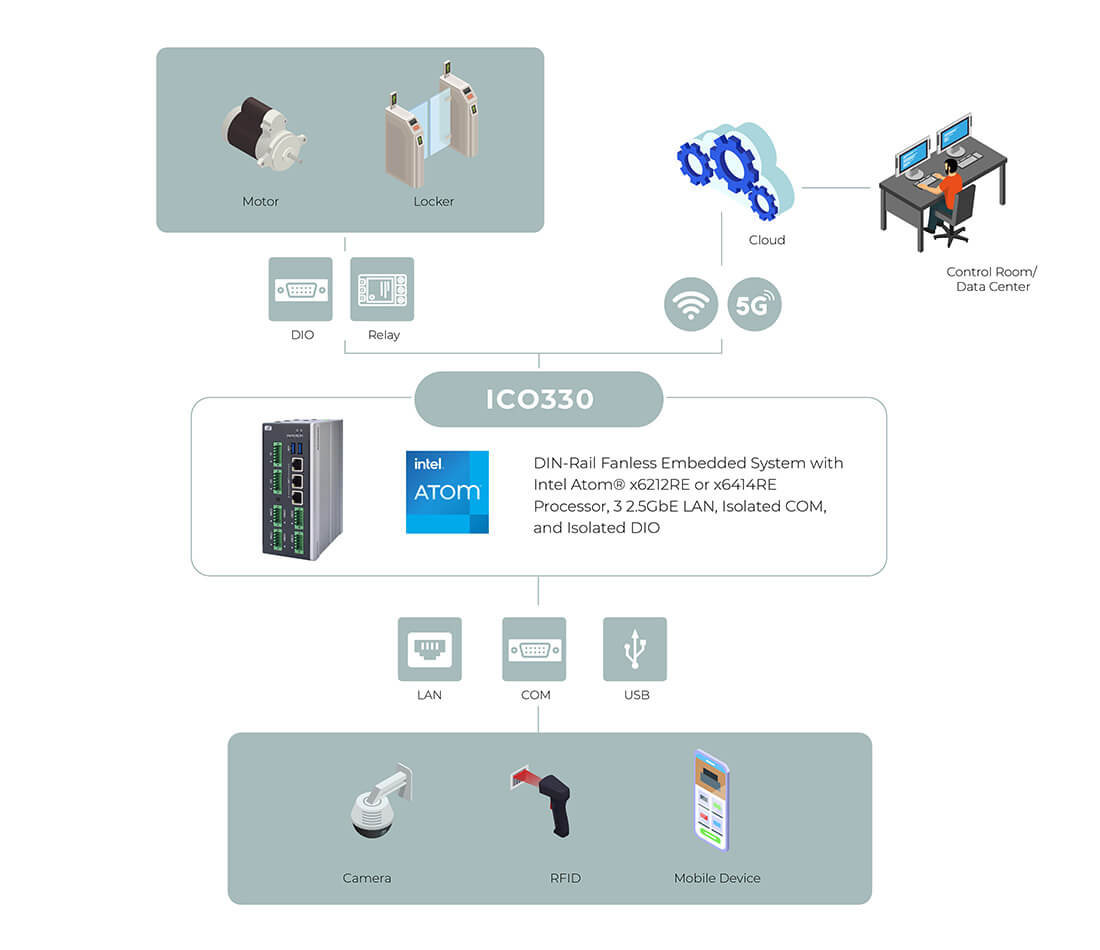

ICO330: Fanless Embedded System for Secure Access Control
High-Speed Networking and Integration
The ICO330 features three isolated 2.5GbE LAN ports and dual USB 3.1 interfaces, enabling high-speed communication with RFID readers, biometric devices, and cloud-based access management platforms.
Isolated COM and DIO
Equipped with up to six isolated RS-232/422/485 ports and 8-in/8-out isolated DIO, the ICO330 protects against electrical surges and interference, ensuring stable operation of critical security systems.
Rugged Design for 24/7 Operation
Supporting -40°C to +70°C operation and 9–36 VDC power input, the ICO330 is engineered for continuous deployment in entry points, server rooms, and secured perimeters.

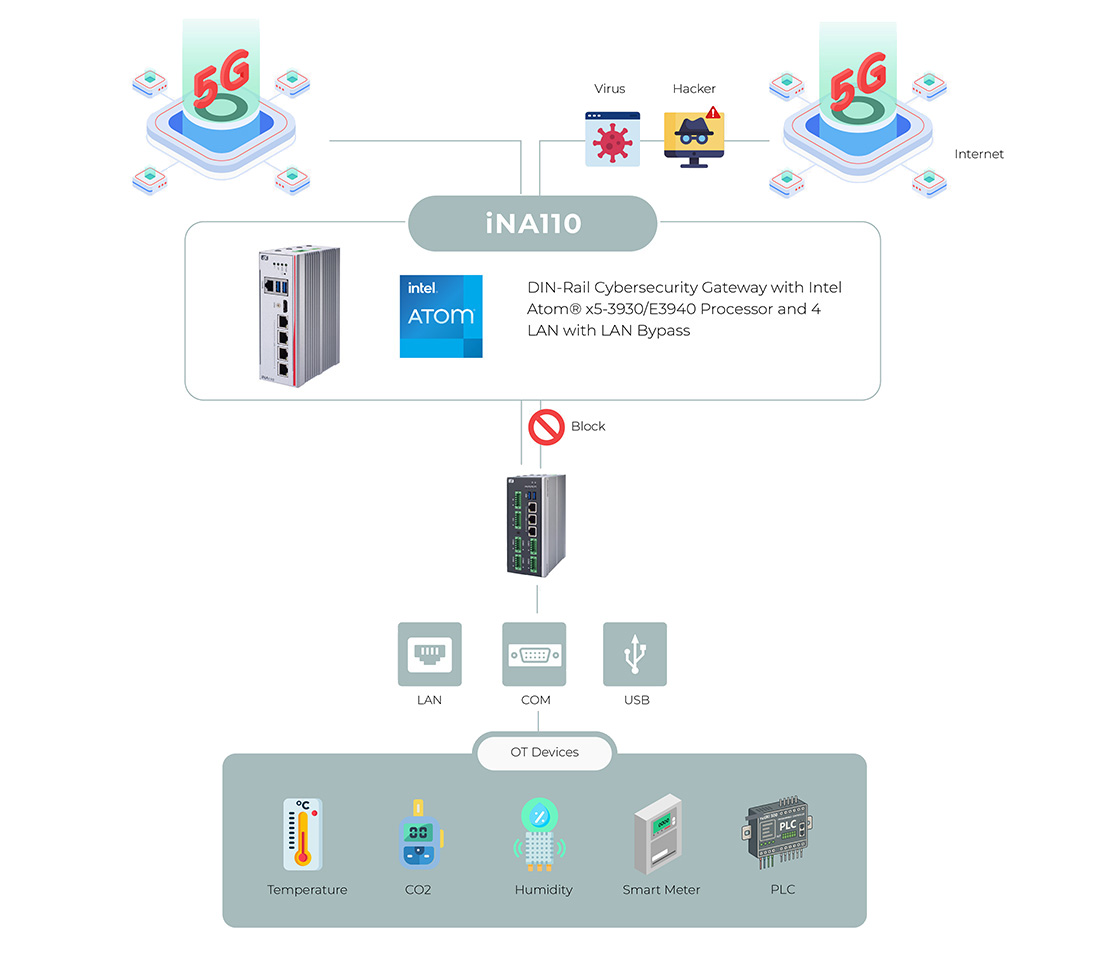

iNA110: DIN-Rail Cybersecurity Gateway with LAN Bypass
Multi-Port Networking with LAN Bypass
Featuring four Intel® I210-IT GbE LAN ports, including one pair with LAN bypass, the iNA110 ensures fail-safe connectivity for SD-WAN edge deployments in smart buildings.
Industrial-Grade Security with TPM 2.0
With built-in TPM 2.0, dual Mini PCIe slots, and SIM card support, the iNA110 enables secure LTE/5G and Wi-Fi expansion for Zero Trust OT network architectures.
Rugged, Fanless Design
Operating from -40°C to +70°C with comprehensive power protection, the fanless iNA110 ensures reliable cybersecurity performance in control panels, power rooms, and network closets.
