NA873

Status : Coming Soon

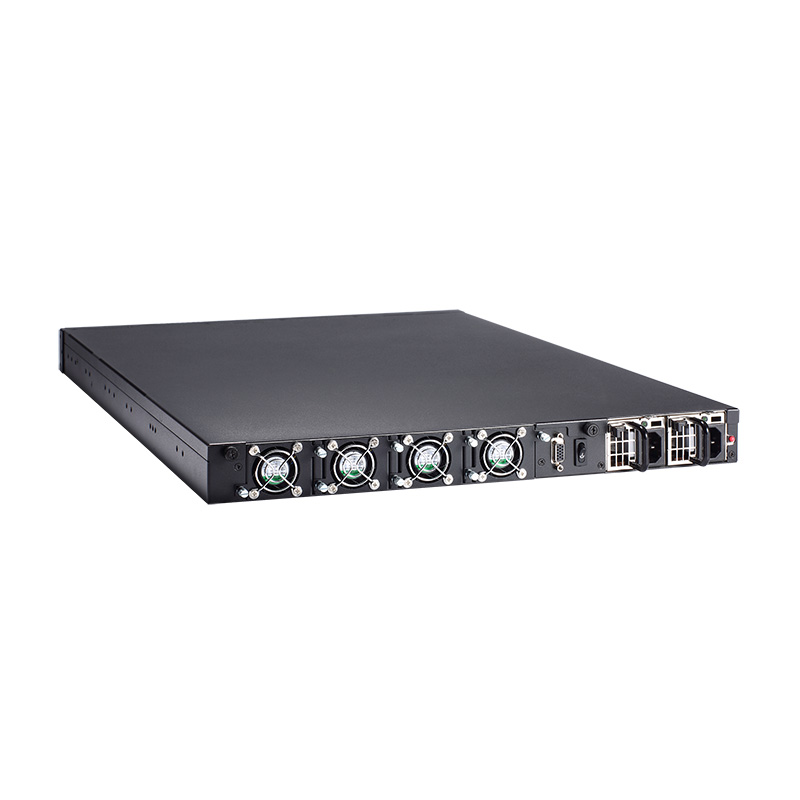

1U Rackmount Network Appliance Platform with 5th/4th Gen Intel® Xeon® Scalable Processors

Datasheet (PDF)
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA873
NA873
IPMI

IPMI

NIC Module

NIC Module

Redundant Power

Redundant Power

Swappable HDD

Swappable HDD

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 5th/4th Gen Intel® Xeon® Scalable processors
  • DDR5-5600 R-DIMM for up to 512GB of memory 1DPC
  • 4 expandable LAN modules supporting 1GbE/10GbE/25GbE/ 40GbE/100GbE
  • Supports IPMI and TPM 2.0
  • Supports Intel® QuickAssist Technology (Intel® QAT)
  • High computing power for SDN, NGFW, IDS, IPS, and UTM applications

Specifications

Form Factor
  • 1U rackmount
CPU
  • 5th/4th Gen Intel® Xeon® Scalable processors (codenamed Sapphire Rapids Edge Enhanced)
Chipset
  • Intel® C741
System Memory
  • 8 x DDR5-5600 R-DIMM, up to 512GB non-buffered non-ECC/ECC memory
BIOS
  • AMI
Ethernet
  • 2 x GbE (RJ-45, Intel® I210/RTL8211F for IPMI)
  • 4 x LAN module (optional)
LAN Bypass
  • Depends on LAN modules
LAN Module
  • 4 x LAN module (optional)
Storage
  • 2 x 2.5" SATA HDD
  • 2 x M.2 Key M 2280/22110 (PCIe x4)
Expansion
  • N/A
I/O Interface
  • 2 x GbE (RJ-45, Intel® I210/RTL8211F for IPMI)
  • 4 x LAN modules (optional)
  • 1 x console (RJ-type)
  • 2 x USB 2.0
  • 2 x RJ-45 (1 x MGMT and 1 x IPMI)
  • 1 x VGA
TPM
  • Onboard TPM 2.0
Power Supply
  • 800W 1U redundant power supply
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 steps for LAN Bypass
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions (H x W x D)
  • 44 x 430 x 600 mm (1.73" x 16.92" x 23.6")
Weight (net/gross)
  • 9.29 kg (20.47 lbs)/14.77 kg (32.56 lbs)
OS
  • Linux
Certifications
  • CE, FCC Class A
Others
  • Onboard BMC AST2600

Ordering Information

  • NA873-C741-RPU (P/N-E26E873100)
    Network appliance platform with 5th/4th Gen Intel® Xeon® Scalable processors, Intel® C741 chipset, 8 x 2.5" drive bays, 2 x RJ-45 (1 x MGMT and 1 x IPMI), LAN ports depending on NIC module, TPM 2.0, 4 x NIC slots (optional), and 800W redundant power supply.
  • 5916E552000E
    DB9F-RJ-45 1.8 m console cable for Cisco
  • E393316109
    AX93316-8GI-I350_PLX E393322102 AX93322-8FI-I350_PLX E393322103 AX93322-8MIL-I350_PLX 4RJ_4SFP_2LBP
  • E393336102
    AX93336-4GIL-I350_2 LBP
  • E393336103
    AX93336-4FI-I350
  • E39Q135100
    MIO135-4FIL-MM 1G with 2 LBP E39Q135101 MIO135-2FIL-MM 1G with 1 LBP
  • E39Q135101
    MIO135-2FIL-MM 1G with 1 LBP
  • E39Q710100
    MIO710-2FI-X710 SFP+
  • E393327101
    AX93327-4FI-XL710 4 x 10G SFP+
  • E393331100
    AX93331-2QFI-XL710 2 x 40G QSFP

Download

This content is currently being updated. Please check back later.
