NA721

Status : Available

1U Rackmount Network Appliance Platform with Intel® Xeon® Processor D-1700 Family and up to 28 LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA721
NA721
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® Xeon® processor D-1700 family
  • 6 DDR4-2933 R-DIMM/U-DIMM, up to 384GB memory
  • Four 10GbE SFP+, and eight 1GbE RJ-45 onboard
  • 2 expandable LAN modules supporting 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass (optional)
  • Suitable for enterprise firewall, network bandwidth controller, and UTM applications
High-Performance CPU
High-performance CPU

Intel® Xeon® D-1700 Family Processors

High-Density LAN
High-Density LAN

Up to 28 LAN ports

Reliable Design
Reliable Design

2-pair LAN Bypass Watchdog timer & TPM 2.0



Expandable LAN Modules Support up to 28 LAN Ports

The NA721 has high-density ports consisting of eight GbE RJ-45 and four 10G SFP+ ports to support high-speed network communication. The flexible LAN modules support 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass, which can meet customers’ various application needs with up to 28 ports.



High-Performance Intel® Xeon® D-1700 Processor

The Intel® Xeon® D-1700 processor, which provides options from two cores up to ten cores with a large bandwidth, allows the NA721 to deliver outstanding computing performance for network applications. It features six DDR4-2933 unbuffered non-ECC/ECC R-DIMM/U-DIMM slots with a maximum of 384GB memory to further boost the computing capability.

Reliable Design

To ensure uninterrupted network connectivity, the NA721 has a 2-pair LAN Bypass and a watchdog timer. It’s also equipped with onboard TPM 2.0 to enhance hardware security.

Reliable Network Design

IPMI for Remote Management

The NA721 supports the onboard BMC AST2500 with IPMI 2.0, catering to specific project needs. IPMI enables centralized server management and remote monitoring, enhancing efficiency and control over server operations.

IPMI Remote Management

Rich I/O Interfaces

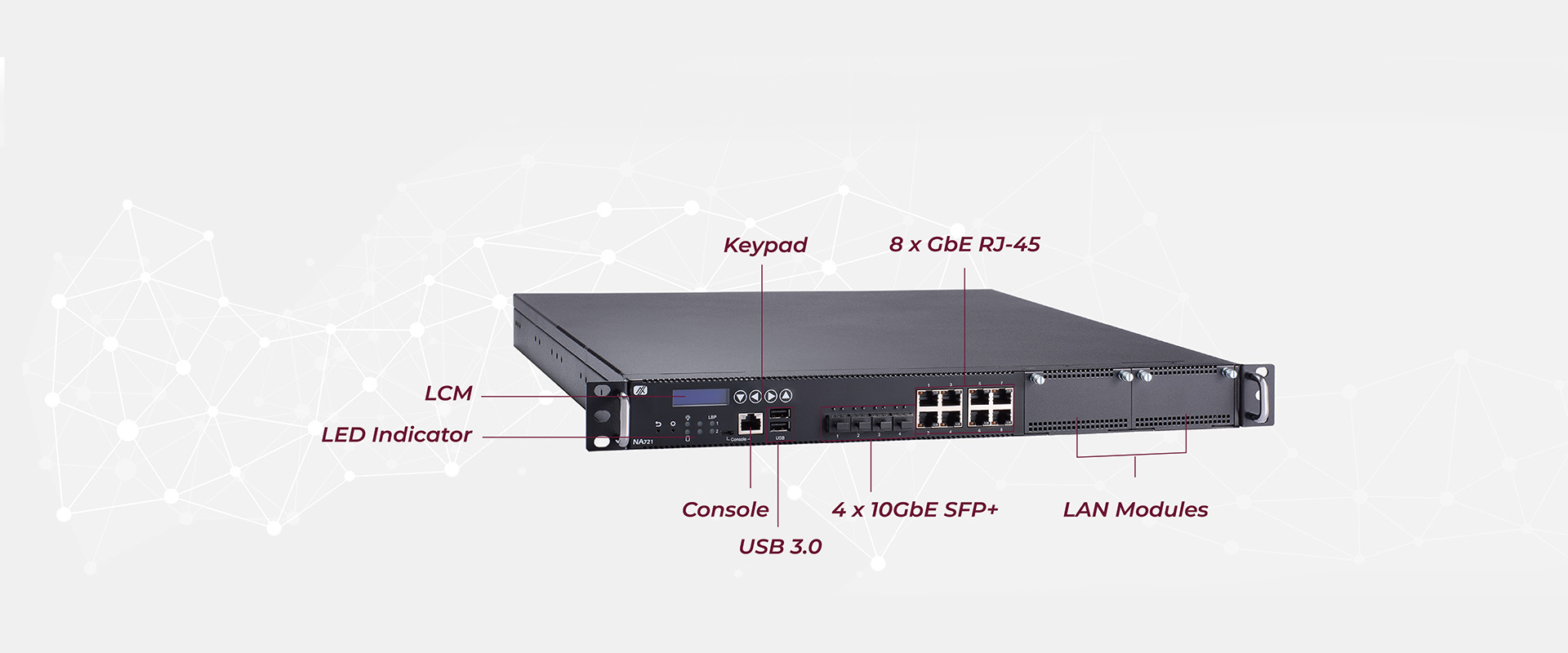

Front View
NA721 Front I/O

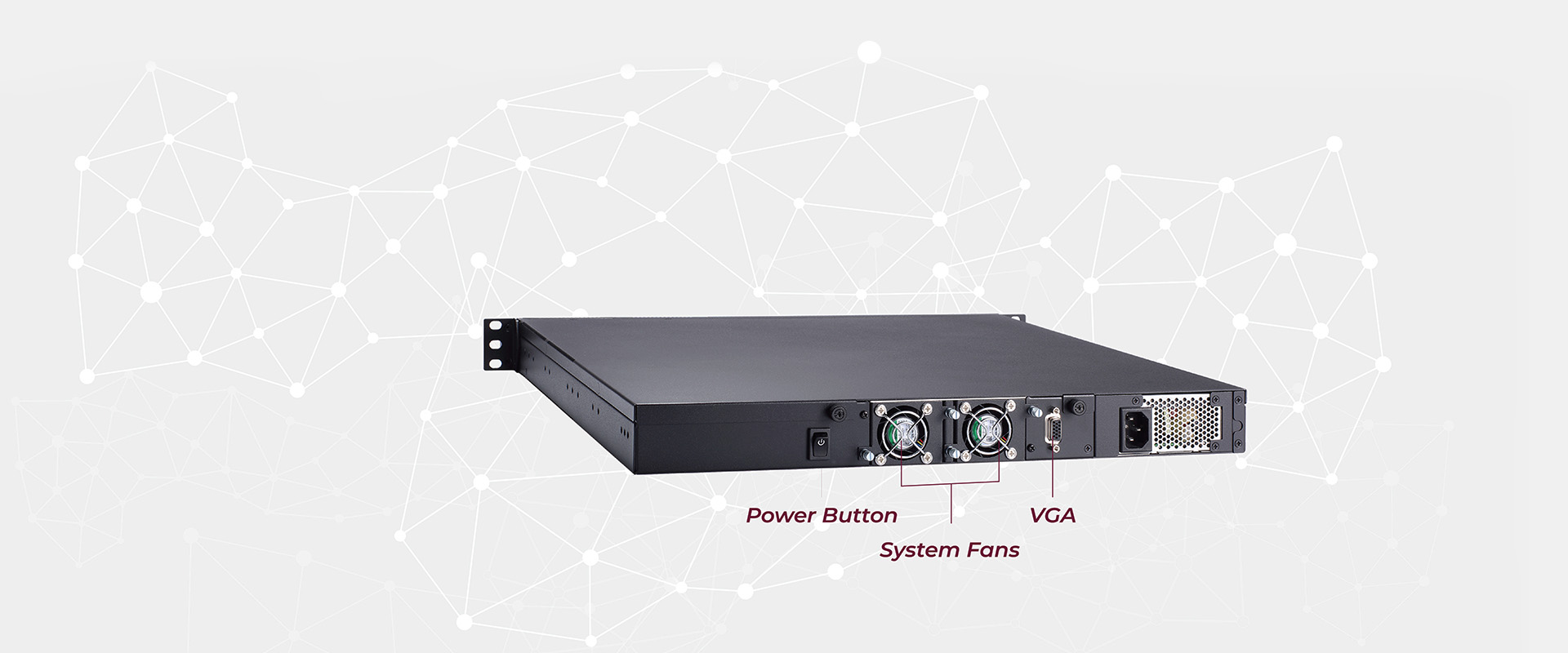

Rear View
NA721 Rear I/O

Specifications

Form Factor
  • 1U rackmount
CPU
  • Intel® Xeon® processor D-1700 family (Ice Lake D)
Chipset
  • SoC integrated
System Memory
  • 4/6 x DDR4-2933 R-DIMM/U-DIMM, up to 384GB non-buffer non-ECC/ECC memory (depending on the CPU)
BIOS
  • AMI
Ethernet
  • 8 x 1GbE RJ45
  • 4 x 10GbE SFP+
  • 2 x LAN module, up to 28 LAN ports (optional)
LAN Bypass
  • LAN Bypass function through latch relay (2 pairs)
LAN Module
  • 2 x LAN module, up to 28 LAN ports (optional)
Storage
  • 2 x 2.5" SATA HDD/SSD bay
  • 1 x M.2 Key M 2280 slot
Expansion
  • N/A
I/O Interface
  • 1 x Console (RJ-45 type)
  • 1 x Console (USB Type-C)
  • 2 x USB 2.0
  • 8 x RJ-45 + 4 x SFP+
  • 1 x VGA
Power Supply
  • 300W ATX power supply (NA721-A)
  • 400W 1U redundant power supply (NA721-B)
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +45°C (+32°F to +113°F)
Dimensions
(H x W x D)
  • 44 x 430 x 450 mm (1.73" x 16.93" x 17.1")
Weight (net/gross)
  • 8.5 kg (18.74 lb)/9.8 kg (21.61 lb)
OS
  • Linux
Certifications
  • CE/FCC Class A
Others
  • Onboard TPM 2.0
  • Onboard BMC AST2500 with IPMI 2.0 (project-based)

Ordering Information

  • NA721-A (P/N-E26E721100)
    1U rackmount network appliance platform with Intel® Xeon® processor D-1700 family, 8 GbE LAN, 4 10GbE SFP+, 2-pair LAN Bypass, TPM 2.0, 2 optional NIC slots, AC single 300W
  • NA721-B (P/N-E26E721101)
    1U rackmount network appliance platform with Intel® Xeon® processor D-1700 family, 8 GbE LAN, 4 10GbE SFP+, 2-pair LAN Bypass, TPM 2.0, 2 optional NIC slots, AC redundant 400W
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco
  • 590000066500
    USB Type-A to Type-C convert cable, L
  • 59906000010E
    Power cord YP-12/YC-12 (Japan)
  • 59903000000E
    Power cord YP-22/YC-12 (Europe)
  • 59905000000E
    Power cord YP-35/YC-12 (Australia)
  • 59904010000E
    Power cord/UK YP-61A/YC-12 L=1830mm
  • E393316109
    AX93316-8GI-i350 with LAN tray
  • E393322102
    AX93322-8FI-350 with LAN tray
  • E393322103
    AX93322-8MIL-350 with LAN tray
  • E393336102
    AX93336-4GIL-i350 2 LBP with LAN tray
  • E393336103
    AX93336-4FI-i350 with LAN tray
  • E393327101
    AX93327-4FI 10G XL710 with LAN tray
  • E393331100
    AX93331-2QFI dual-port 40GbE with LAN tray
  • E393332100
    AX93332-25FI dual-port 25GbE with LAN tray

Download

Drivers

Software

Manual

Date Description Version Download File
2024/11/08 NA721 User's Manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/05/24 FCC Verification
2024/05/24 UKCA Declaration of Conformity
2024/05/24 CE-Conformity Declaration
2024/05/24 CE EMC Verification
2024/05/24 CE LVD Verification
