AX93322

Status : Available

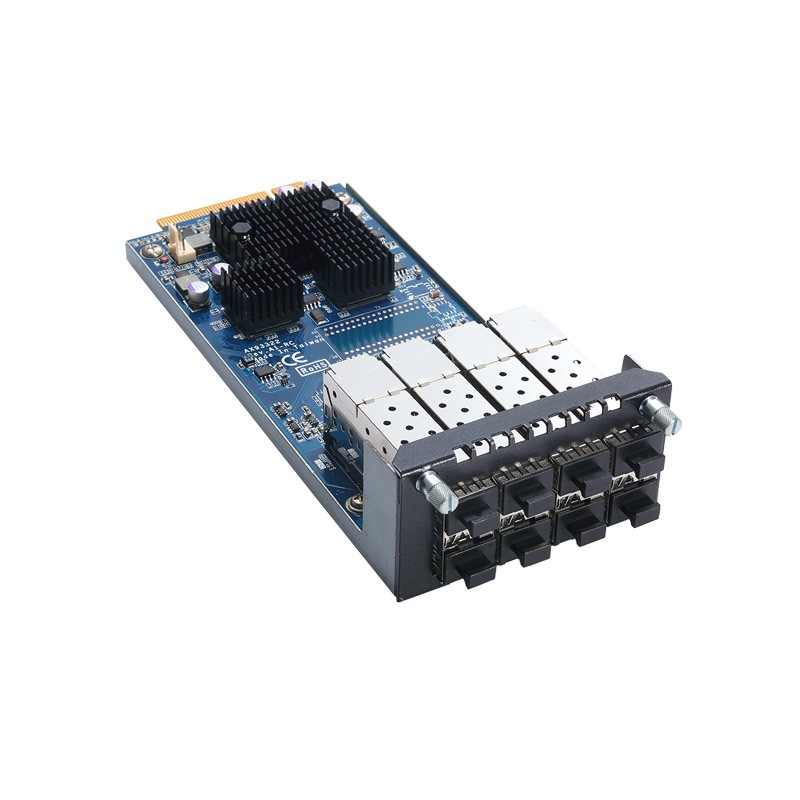

8- Port LAN Module with Intel® I350-AM4 GbE Ethernet Controller

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX93322
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® I350-AM4 Ethernet controller
  • 8 SFP or 4 SFP and 4 RJ-45
  • PCIe 2.0 x8 golden finger
  • 2-pair LAN Bypass (optional)
  • Supports Intel® Virtualization Technology for connectivity
  • RoHS compliant

Specifications

Controller
  • Intel® I350-AM4
Speed/Connector
  • 8 x SFP or 4 x SFP & 4 x RJ-45
Interface
  • PCIe 2.0 x8
LAN Bypass
  • Optional (refer to ordering Information)
Jumbo Frames
  • Yes
Virtualization
  • VMDq, SR-IOV
Acceleration
  • DPDK
Watchdog Timer
  • Yes
Available Models
  • NA363R, NA580, NA590, NA592, NA720, NA721, NA860, NA861, and NA870
Operation Temperature
  • 0°C to +40°C (+32°F to +104°F)
Humidity
  • 10% - 90% RH, non-condensing
Dimensions
  • 78.9 x 175 x 42.8 mm (3.11" x 6.89" x 1.69")

Ordering Information

  • AX93322-8FI-350 LAN Module (P/N-E393322102)
    LAN module with Intel® I350-AM4 and 8 fiber LAN ports with LAN tray
  • AX93322-8MIL-350 LAN Module (P/N-E393322103)
    LAN module with Intel® I350-AM4, 4 copper, and 4 fiber LAN ports with 2-pair LAN bypass
