TEN100-0800-H

Status : Available

8-port 10/100BASE-TX Hardened Unmanaged Ethernet Switch

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
TEN100-0800-H
TEN100-0800-H
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Compact size for easy deployment in confined environments
  • Power input reverse polarity protection
  • High reliability and durability fanless design
  • QoS (Quality of Service) prioritized messages

Specifications

Standards
  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TX/FX
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.1p Quality of Service (QoS)
Forward/ Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
Packet Buffer Memory
  • 768K bits
Address Table Size
  • 2K MAC addresses
Processing Type
  • Store-and-Forward
  • Auto-Negotiation
  • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • Auto MDI/MDIX
Interface of Ethernet
  • 10/100BASE-TX: 8 ports
LED Indicators
  • Per Unit: Power 1 (Green), Power 2 (Green), Fault (Red)
  • Per Port: Link/Activity (Green)
Power Input
  • 9-55VDC, 3.4W max. (Terminal Block) with Reverse Polarity Protection
Operating Temperature
  • -40°C to 75°C (-40°F to 167°F)
Dimensions (W x D x H)
  • 45 x 75 x 100mm (1.77" x 2.95" x 3.94")
Weight
  • 336 g (0.74 lbs)
Installation
  • DIN-Rail (Top hat type 35mm) mounting
EMI
  • FCC Part 15B Class A
  • EN 61000-6-4
  • ICES-003
EMS
  • EN 61000-4-2 (ESD Standards)
  • EN 61000-4-3 (Radiated RFI Standards)
  • EN 61000-4-4 (Burst Standards)
  • EN 61000-4-5 (Surge Standards)
  • EN 61000-4-6 (Induced RFI Standards)
  • EN 61000-4-8 (Magnetic Field Standards)

Ordering Information

  • TEN100-0800-H (P/N-E231100101)
    8-port 10/100BASE-TX Hardened Unmanaged Ethernet Switch

Download

Drivers

Software

Manual

Date Description Version Download File
2023/11/09 User Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/11/07 FCC Verification
2023/11/07 UKCA Declaration of Conformity
2023/11/07 CE EMC Verification
2023/11/07 CE-Conformity Declaration

You Might Also Like

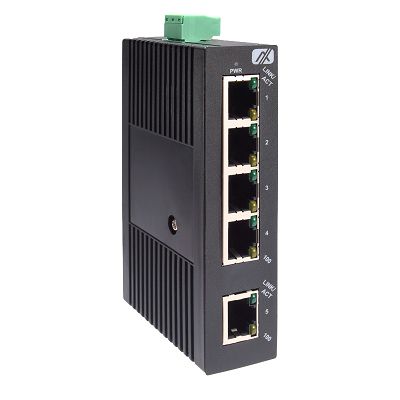

Picture of TEN100-0500-i
