TEN100-0500-i

Status : Available

5-port 10/100BASE-TX Industrial Unmanaged Ethernet Switch with 4kV surge protection

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
TEN100-0500-i
TEN100-0500-i
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Compact size for easy deployment in confined environments
  • Power input reverse polarity protection
  • High reliability and durability fanless design
  • QoS (Quality of Service) prioritized messages
  • 4kV surge protection on data port

Specifications

Standards
  • IEEE 802.3u 100BASE-TX/FX
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.1p Quality of Service (QoS)
Forward/ Filtering Rate
  • 14,880pps for 10Mbps
  • 148,810pps for 100Mbps
Packet Buffer Memory
  • 448K bits
Address Table Size
  • 1K MAC addresses
Processing Type
  • Store-and Forward
  • Auto-Negotiation
  • Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
  • Auto MDI/MDIX
Interface of Ethernet
  • 10/100BASE-TX: 5 ports
LED Indicators
  • Per Unit: Power (Green)
  • Per Port: Link/Activity (Green), Speed (Yellow)
Power Input
  • 12-48VDC (Terminal Block) w/Reverse Polarity Protection
Operating Temperature
  • -10°C to 60°C (14°F to 140°F)
Dimensions (W x D x H)
  • 26 x 70 x 110mm
Weight
  • 0.2 kg (0.44 lbs)
Installation
  • DIN-Rail (Top hat type 35mm)
EMI
  • FCC Part 15B Class A
  • EN 61000-6-4
  • EN 61000-3-2
  • EN 61000-3-3
EMS
  • EN 61000-4-2 (ESD Standards)
  • EN 61000-4-3 (Radiated RFI Standards)
  • EN 61000-4-4 (Burst Standards)
  • EN 61000-4-5 (Surge Standards) Signal ports: ±4kV line-to-ground
  • EN 61000-4-6 (Induced RFI Standards)
  • EN 61000-4-8 (Magnetic Field Standards)

Ordering Information

  • TEN100-0500-i (P/N-E231100100)
    5-port 10/100BASE-TX Industrial Unmanaged Ethernet Switch with 4KV surge protection

Download

Drivers

Software

Manual

Date Description Version Download File
2023/11/09 User Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/11/07 UKCA Declaration of Conformity
2023/11/07 CE-Conformity Declaration
2023/11/07 FCC Verification
2023/11/07 CE EMC Verification

You Might Also Like

Picture of TEN300-0800-H

TEN300-0800-H

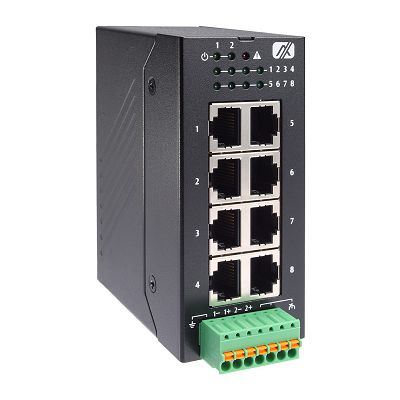

Picture of TEN100-0800-H
