NA366

Status : Available

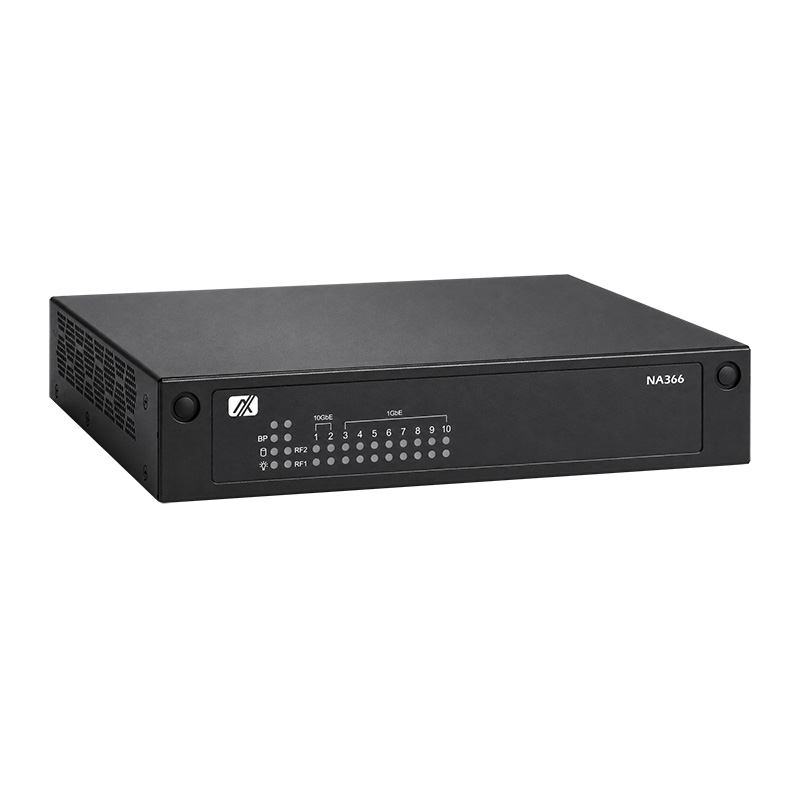

Desktop Network Appliance with Intel Atom® x7000C Processor, supporting up to 10 LANs for VPN, 5G Edge Gateway, Firewall, and UTM

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA366
NA366
NA366
10G LAN

10G LAN

5G

5G

DDR5

DDR5

LAN Bypass

LAN Bypass

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel Atom® x7000C processor
  • 1 DDR5-4800 SO-DIMM, up to 16GB
  • 2 10G SFP+ and 8 GbE RJ-45 (4 1G SFP by SKU)
  • 1-pair LAN bypass
  • 1 M.2 Key M slot and 1 2.5" HDD/SSD for SSD
  • 1 M.2 Key B slot with SIM socket for 5G NR/LTE
  • 1 full-size PCI Express Mini Card slot for Wi-Fi
  • Supports onboard TPM 2.0

Specifications

Form Factor
  • 1U desktop
CPU
  • Intel Atom® processor x7000C (Amston Lake)
Chipset
  • SoC integrated
System Memory
  • 1 x DDR5-4800 SO-DIMM, up to 16GB
BIOS
  • AMI
Ethernet
  • 2 x 10G SFP+ (Intel® X710)
  • 4 x RJ-45 GbE (Intel® I350)
  • 4 x RJ-45 GbE or 1G SFP (Intel® I350) by SKU
LAN Bypass
  • 1 pair LAN bypass
LAN Module
  • N/A
Storage
  • 1 x M.2 Key M 2242/2280 slot (SATA 3.0)
  • 1 x 2.5" SATA 3.0 HDD/SSD
Expansion
  • 1 x M.2 Key M 2242/2280 slot (SATA 3.0)
  • 1 x M.2 Key B 3042/3052 slot with Nano SIM socket (USB 2.0 + USB 3.0)
  • 1 x full-size PCI Express Mini Card slot (PCIe x1 + USB 2.0)
I/O Interface
  • 1 x console (RJ-45 Type, shared Type-C interface, one active only)
  • 1 x console (USB Type-C, shared RJ Type interface, one active only)
  • 2 x USB 2.0
  • 2 x 10G SFP+
  • 4 x RJ-45 GbE
  • 4 x RJ-45 GbE or SFP by SKU
  • 1 x reset button
  • 1 x DC Jack (screw-type)
  • 1 x power button with LED
  • 5 x antenna openings
Power Supply
  • 1 x DC power adapter 12V/5A or 12V/7A by SKU
LCM Module
  • N/A
TPM
  • Onboard TPM 2.0
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 44 x 257 x 197 mm (1.73" x 10.12" x 7.76")
Weight (net/gross)
  • 1.85 kg (4.08 lbs)/3.2 kg (7.05 lbs)
EOS Support
  • Linux
Certifications
  • CE/FCC

Ordering Information

  • NA366-x7405C-A (P/N-E26E366100)

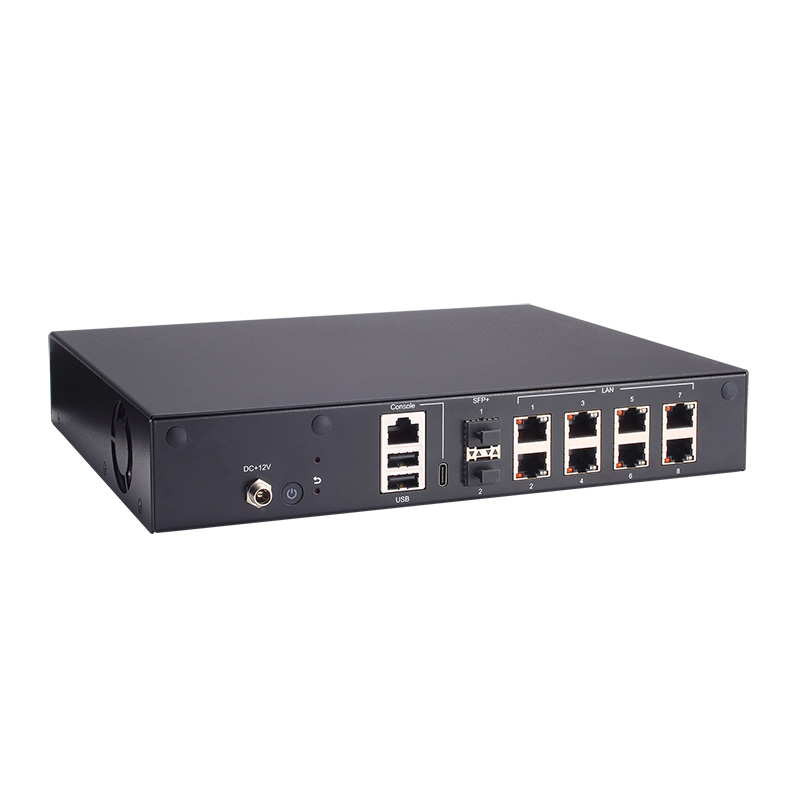

    Fanless network appliance with Intel® Atom® x7405C processor, 2 x 10G SFP+, 8 x RJ-45, 1 pair LAN Bypass, TPM 2.0, M.2 & PCIe Mini Card expansion, 60W power adapter
  • NA366-x7405C-B (P/N-E26E366101)

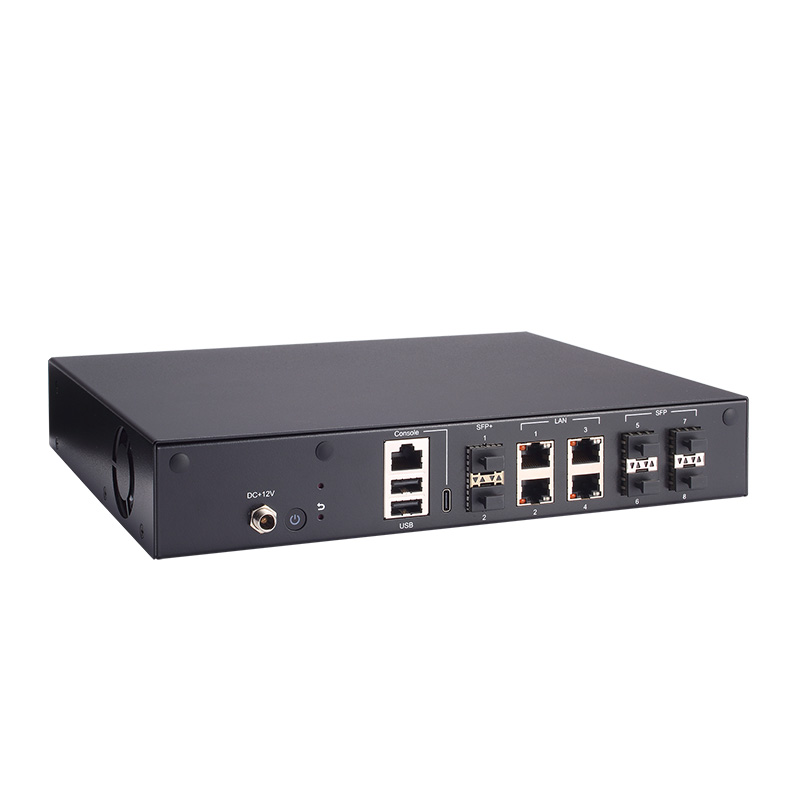

    Fanless network appliance with Intel® Atom® x7405C processor, 2 x 10G SFP+, 4 x RJ-45, 4 x 1G SFP, 1 pair LAN Bypass, TPM 2.0, M.2 & PCIe Mini Card expansion, 60W power adapter
  • NA366-x7809C-A (P/N-E26E366102)
    Fanless network appliance with Intel® Atom® x7809C processor, 2 x 10G SFP+, 8 x RJ-45, 1 pair LAN Bypass, TPM 2.0, M.2 & PCIe Mini Card expansion, 84W power adapter
  • NA366-x7809C-B (P/N-E26E366103)
    Fanless network appliance with Intel® Atom® x7809C processor, 2 x 10G SFP+, 4 x RJ-45, 4 x 1G SFP, 1 pair LAN Bypass, TPM 2.0, M.2 & PCIe Mini Card expansion, 84W power adapter
