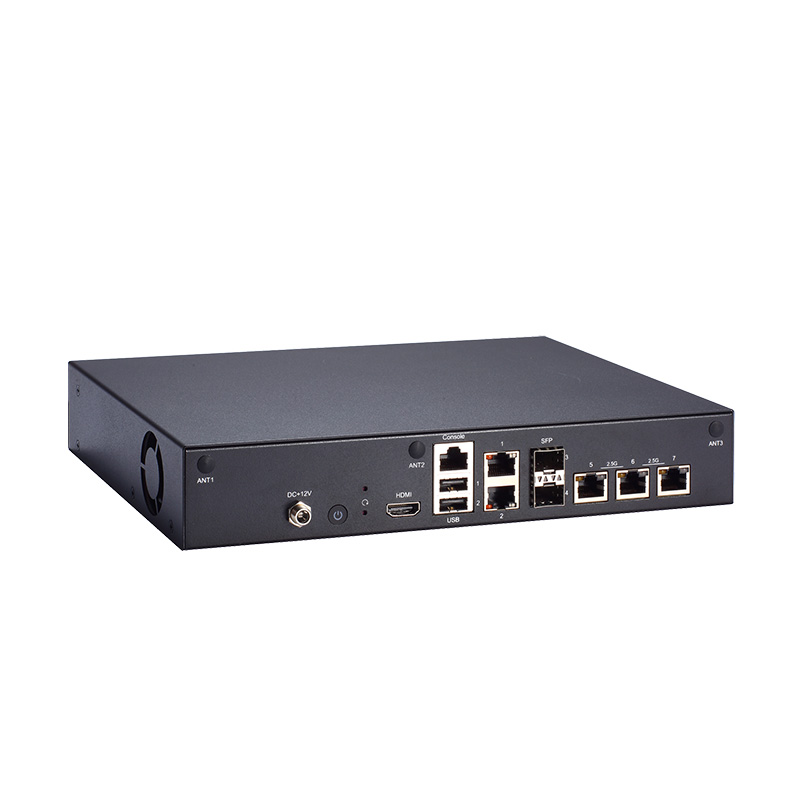

NA350C

Status : Available

Desktop Network Appliance Platform with Intel Atom® Processor x6425E and up to 7 LAN for VPN, 5G Edge Gateway, Firewall and UTM

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA350C
NA350C
NA350C
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel Atom® x6425E processor
  • 2 DDR4 SO-DIMM for up to 32GB of memory
  • Two 1G SFP and 2 GbE RJ-45 LAN ports (Intel® I350)
  • Three 2.5G RJ-45 LAN ports (MaxLinear GPY211)
  • 1 M.2 Key B slot for 5G NR/LTE
  • 1 M.2 Key E slot for Wi-Fi
  • 1 full-size PCI Express Mini Card slot for LTE
  • 1 half-size PCI Express Mini Card slot for Wi-Fi
  • Supports 2 SIM sockets
Powerful Yet Energy-Efficient
Great Power Efficiency

Intel Atom® x6425E

SD-WAN Open Architecture
SD-WAN Open Architecture

flexiWAN certified

Network Interfaces
Network Interfaces

2 types of network interfaces



Certified by flexiWAN for SD-WAN Open Architecture Deployment

In a strategic effort to help customers achieve faster time-to-market, Axiomtek’s NA350C has joined forces with the trusted SD-WAN expert, flexiWAN. By leveraging flexiWAN’s expertise and optimizing DPDK (Data Plane Development Kit), the NA350C delivers significantly enhanced network performance, ensuring reliable and efficient data transmission.



Space- and Energy-Efficient

The NA350C harnesses the power of the Intel Atom® x6425E processor, featuring 4 cores that accelerate computing performance while maintaining energy efficiency with a low 12 W TDP. Its compact design makes it an ideal solution for firewall, VPN, SD-WAN, and 5G gateway applications in small business environments.

Versatile Ethernet Port Options

The NA350C offers two versatile network configurations: seven RJ-45 ports, or a combination of five RJ-45 and two SFP ports. These options support high-speed Ethernet connectivity and provide flexible, customizable networking solutions.

Reliable & Trusted Design

The NA350C features LAN Bypass to ensure stable data transmission and reliable operation. It also has onboard TPM 2.0 to enhance hardware security.

Reliable & Trusted Design

Wireless Expansion Capability

The NA350C features great expandability for wireless connectivity: one M.2 Key B slot for 5G NR/LTE, one M.2 Key E slot for Wi-Fi, one full-size PCI Express Mini Card slot for LTE, and one half-size PCI Express Mini Card slot for Wi-Fi.

Wireless Expansion Capability

Rich I/O Interfaces

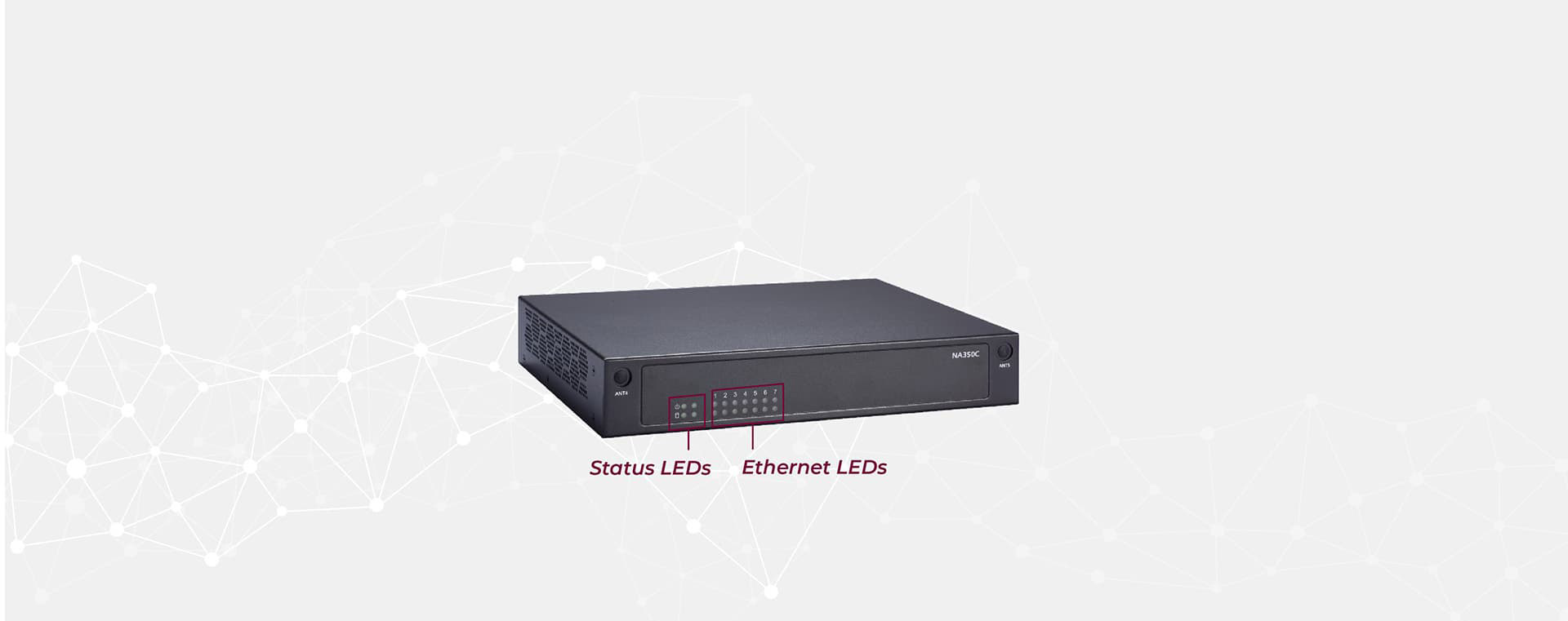

Front View
NA350C Front I/O

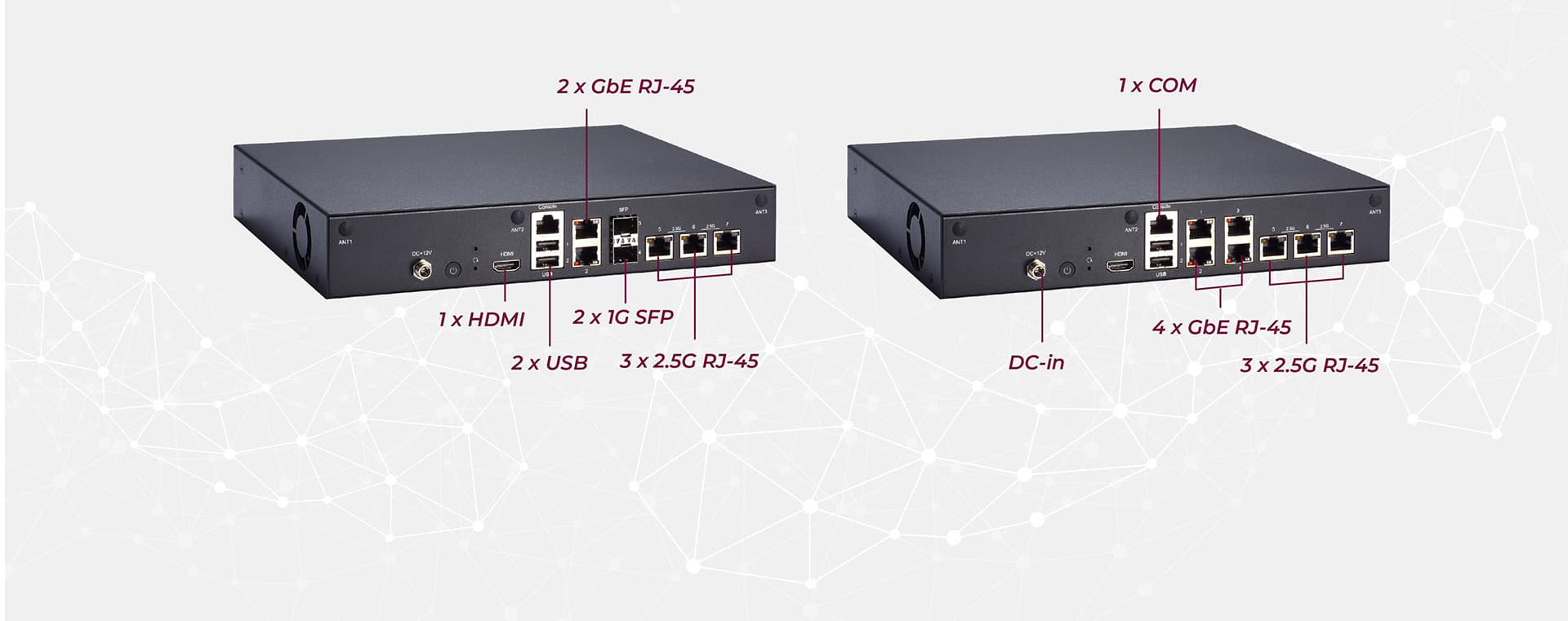

Rear View
NA350C Rear I/O

Specifications

Form Factor
  • 1U desktop
CPU
  • Intel Atom® x6425E processor (Elkhart Lake)
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4-3200 non-ECC SO-DIMM, up to 32GB
BIOS
  • AMI
Ethernet
  • 2 x GbE RJ-45
  • 2 x 1G SFP (Intel® I350)
  • 3 x 2.5G RJ-45 (MaxLinear GPY211)
LAN Bypass
  • 1 pair
LAN Module
  • N/A
Storage
  • 1 x M.2 Key M 2242 slot (SATA3)
Expansion
  • 1 x Half-size PCI Express Mini Card slot (PCIe+USB 2.0)
  • 1 x Full-size PCI Express Mini Card slot with Nano SIM (USB 2.0)
  • 1 x M.2 Key B 3052/3042 slot with Nano SIM (USB 2+USB 3.0)
  • 1 x M.2 Key E 2230 slot (PCIe+USB 2.0)
I/O Interface
  • 1 x Console (RJ-type)
  • 5 x RJ-45
  • 2 x SFP
  • 2 x USB 2.0
  • 1 x HDMI
  • 1 x Reset button
  • 1 x DC Jack (Screw type)
  • 1 x Power button with LED
Power Supply
  • 1 x DC power adapter 12V/5A
TPM
  • Onboard TPM 2.0 (optional)
LCM Module
  • N/A
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions
(H x W x D)
  • 44 x 257 x 197 mm (1.73" x 10.12" x 7.76")
Weight (net/gross)
  • 1.598 kg (3.52 lb)/2.45 kg (5.4 lb)
EOS Support
  • Linux
Certifications
  • CE/FCC Class B

Ordering Information

  • NA350C-x6425E-A (P/N-E26E350C00)
    1U desktop with Intel Atom® x6425E processor (4C 2.00GHz 12W), 4 GbE RJ-45 LAN, three 2.5G RJ-45 supporting 1 LBP, and TPM 2.0
  • NA350C-x6425E-B (P/N-E26E350C01)
    1U desktop with Intel Atom® x6425E processor (4C 2.00GHz 12W), 2 GbE RJ-45 LAN, two 1G SFP, three 2.5G RJ-45 LAN supporting 1 LBP, and TPM 2.0
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco
  • 59906000010E
    Power cord YP-12/YC-12 (JP)
  • 59903000000E
    Power cord YP-22/YC-12 (EU)
  • 59905000000E
    Power cord YP-35/YC-12 (AU)
  • 59904010000E
    Power cord YP-61A/YC-12 (UK)
  • 826E350C020E
    NA350C Rackmount kit semi-finished

Download

Drivers

Software

Manual

Date Description Version Download File
2024/11/08 NA350C User's Manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/04/22 CE-Conformity Declaration
2024/04/22 UKCA Declaration of Conformity
2024/04/22 CE EMC Verification
2024/04/15 CE LVD Verification
2024/04/15 FCC Verification

Frequently Asked Questions

You Might Also Like

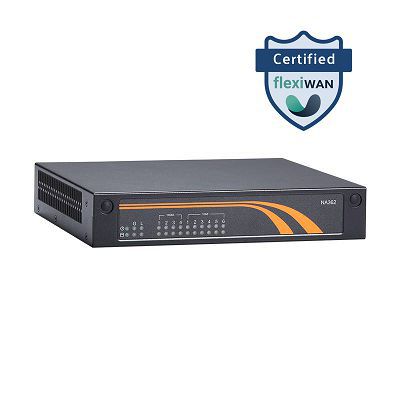

Picture of NA362
