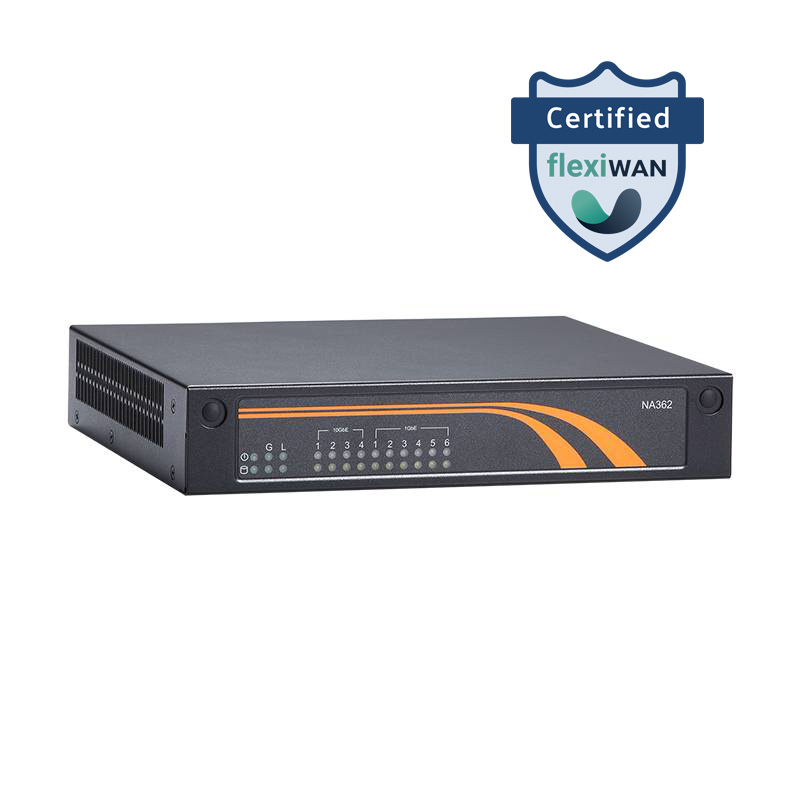

NA362

Status : Available

Desktop Network Appliance Platform with Intel® Atom® Processor C3338/C3558/C3758 and up to 10 LAN for VPN, Network Bandwidth Controller, Firewall and UTM

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA362
NA362
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Atom® processor C3338/C3558/C3758 (Denverton)
  • 4 DDR4 R-DIMM for up to 128GB of memory or U-DIMMfor up to 64GB of memory
  • 6 GbE RJ-45 and 4 SFP+ ports (Intel® i210)
  • Wi-Fi/3G/LTE through PCI Express Mini Card slot for optional
  • Supports Intel® QuickAssist Technology
  • Supports Intel® Data Plane Development Kit (Intel® DPDK)
  • Suitable for VPN, network bandwidth controller, firewall and UTM applications
  • Certified by flexiWAN for SD-WAN open architecture deployment

Specifications

Form Factor
  • 1U desktop
CPU
  • Intel® Atom® processor C3338/C3558/C3758 (Denverton)
Chipset
  • SoC integrated
System Memory
  • 4 x DDR4 R-DIMM (up to 128GB)/U-DIMM, up to 64GB non-buffer non-ECC/ECC memory (Atom® C3558/C3758)
  • 2 x DDR4 R-DIMM (up to 64GB)/U-DIMM, up to 32GB non-buffer non-ECC/ECC memory (Atom® C3338)
BIOS
  • AMI
Ethernet
  • 6 x GbE RJ-45 (Intel® i210) (C3338)
  • 6 x GbE RJ-45 (Intel® i210) and 2 x SFP+ (C3558)
  • 6 x GbE RJ-45 (Intel® i210) and 4 x SFP+ (C3758)
LAN Bypass
  • 1 pair
LAN Module
  • N/A
Storage
  • 1 x 2.5" SATA3 HDD
  • 1 x mSATA
Expansion
  • 1 x PCI Express Mini Card slot (USB+PCIe)

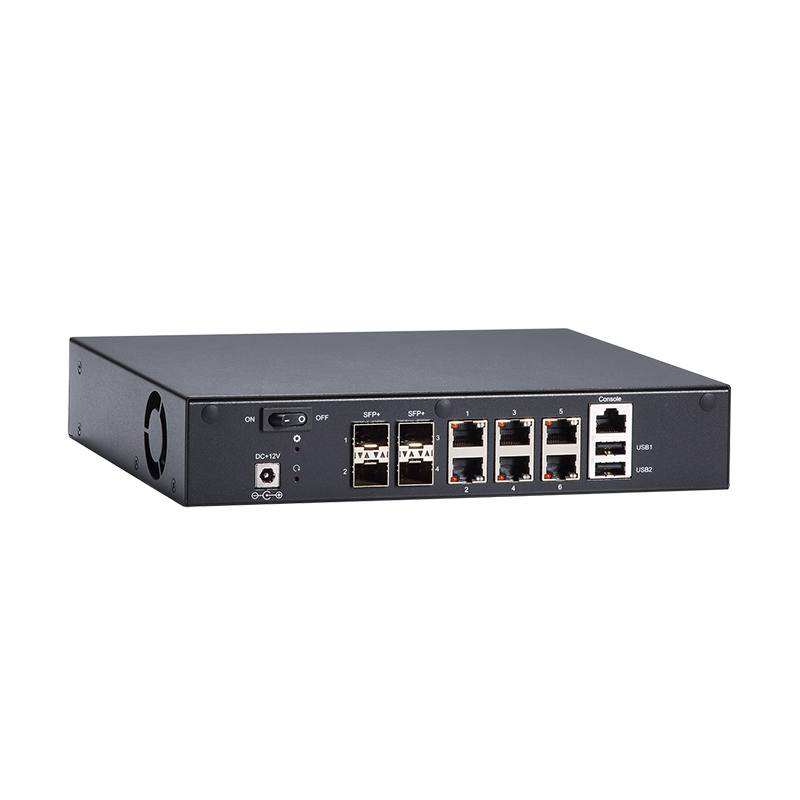

I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 2.0
  • 6 x RJ-45
  • 2 x SFP+ or 4 x SFP+
Power Supply
  • 1 x 12V, 5A power adapter (Atom® C3338/C3558)
  • 1 x 12V, 7A power adapter (Atom® C3758)
LCM Module
  • N/A
TPM
  • Onboard TPM 1.2 (optional)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions<br>(H x W x D)
  • 44 x 231 x 197 mm (1.73" x 9.09" x 7.76")
Weight (net/gross)
  • 1.64 kg (3.62 lb)/2.54 kg (5.60 lb) with 12V/5A adapter (C3338/C3558)
  • 1.64 kg (3.62 lb)/2.69 kg (5.93 lb) with 12V/7A adapter (C3758)
EOS Support
  • Yocto, Linux
Certifications
  • FCC class B
  • CE class B

Ordering Information

  • NA362-D6GI-C3338-US w/o LBP (P/N-E26E362102)
    1U compact network appliance with Intel® Atom® processor C3338, 2 R-DIMM/U-DIMM and 6 GbE LANs
  • NA362-D6GI-C3558-US w/o LBP (P/N-E26E362100)
    1U compact network appliance with Intel® Atom® processor C3558, 4 R-DIMM/U-DIMM and 6 GbE LANs
  • NA362-D8MI-C3558-US w/o LBP (P/N-E26E362105)
    1U compact network appliance with Intel® Atom® processor C3558, 4 R-DIMM/U-DIMM, 6 GbE LANs and 2 10GbE SFP+ ports
  • NA362-DAMI-C3758-US w/ LBP (P/N-E26E362101)
    1U compact network appliance with Intel® Atom® processor C3758, 4 R-DIMM/U-DIMM, 6 GbE LANs and 4 10GbE SFP+ ports
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco

Download

Drivers

Software

Manual

Date Description Version Download File
2018/01/19 User's Manual VA3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/07/18 UKCA Declaration of Conformity
2022/05/26 CE-Conformity DeclarationA1
2022/05/26 CE LVD Verification
2022/05/26 CE EMC Verification
2018/01/02 FCC Verification
