NA348

Status : Available

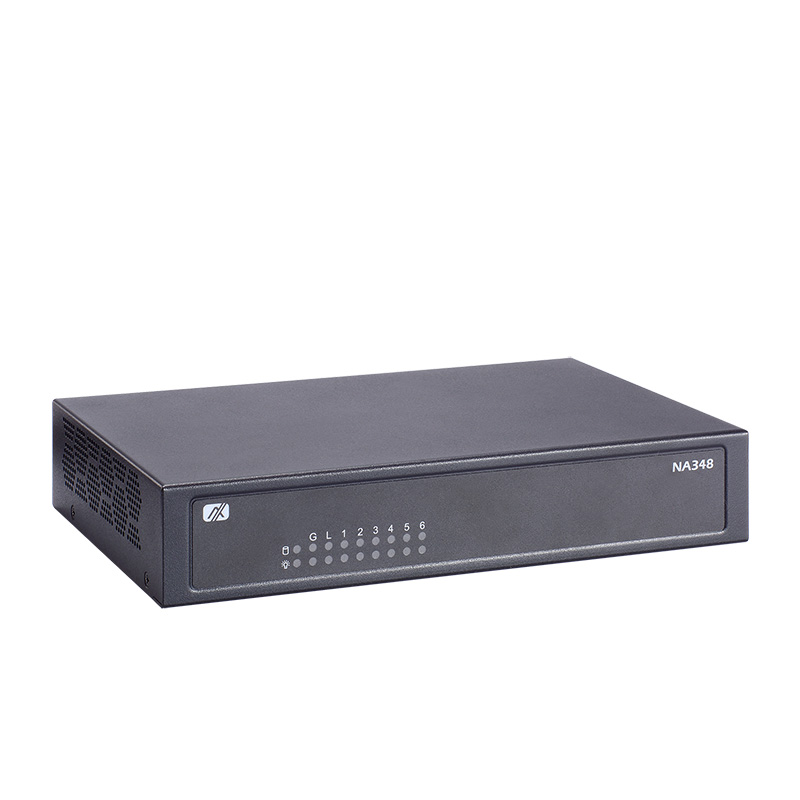

Desktop Network Appliance Platform with Intel Atom® Processor x7211RE and x7433RE

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA348
NA348
NA348
2.5G LAN

2.5G LAN

Compact

Compact

DDR5

DDR5

LAN Bypass

LAN Bypass

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel Atom® Processor x7211RE (2C) and x7433RE (4C)
  • DDR5-4800 SO-DIMM for up to 16GB of memory
  • 4 2.5GbE RJ-45 and 2 × 1G SFP or 2 × GbE RJ-45 (by SKU)
  • 1 M.2 2242 Key M slot for SSD
  • 1 SATA 3.0 connector for 2.5" HDD/SSD
  • 1 M.2 expansion slot for Wi-Fi
  • 1 PCI Express Mini Card slot for LTE
  • Onboard TPM 2.0

Specifications

Form Factor
  • 1U desktop
CPU
  • Intel Atom® x7211RE processor
  • Intel Atom® x7433RE processor
Chipset
  • SoC integrated
System Memory
  • 1 x DDR5-4800 SO-DIMM, up to 16GB
BIOS
  • AMI
Ethernet

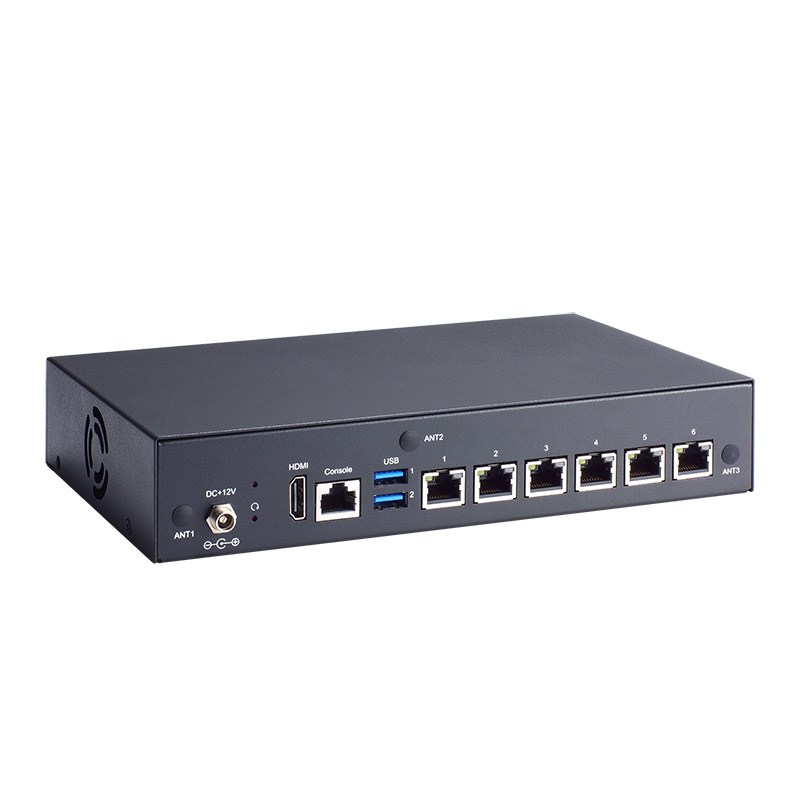

  • 4 x 2.5G RJ-45 via I226-V and 2 x 1G RJ-45 via I210-AT or

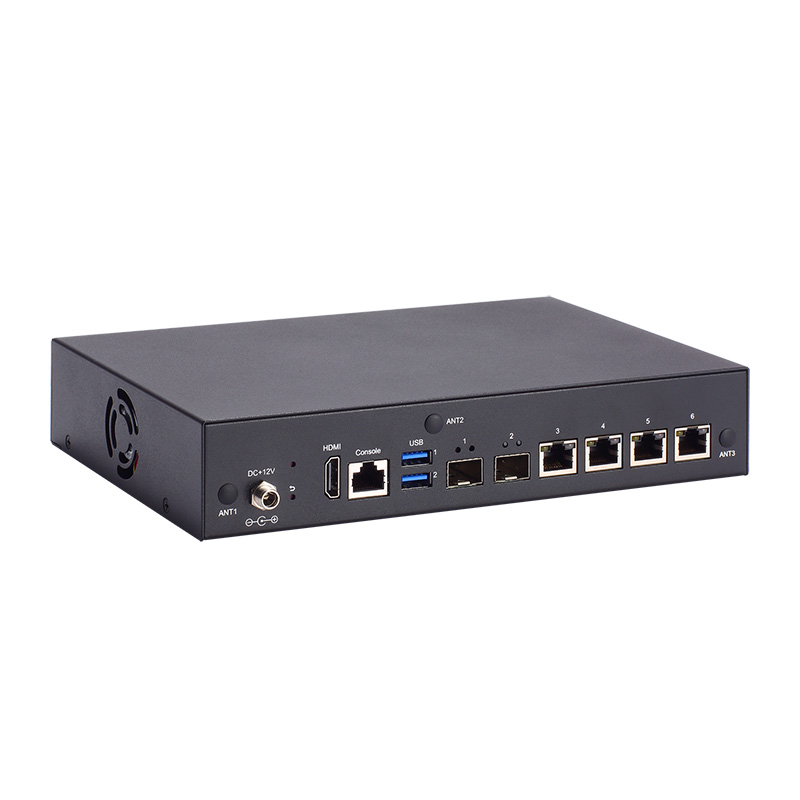

  • 4 x 2.5G RJ-45 via I226-V and 2 x 1G SFP via I210-IS (optional)
LAN Bypass
  • 1-pair LAN bypass between LAN3 and LAN4
LAN Module
  • N/A
Storage
  • 1 x 2.5" SATA 3.0 SSD/HDD
  • 1 x M.2 Key M 2242 slot
Expansion
  • 1 x M.2 Key M 2242 slot for SSD (SATA 3.0)
  • 1 x M.2 Key E 2230 for Wi-Fi (PCIe x1 + USB 2.0)
  • 1 x Nano SIM slot
I/O Interface
  • 1 x DC jack with screw type
  • 1 x tact switch for reset button
  • 1 x tact switch for GPI button
  • 1 x console RJ-type
  • 2 x USB 3.2
Power Supply
  • 12VDC power jack screw type for desktop
  • 12VDC power 1 x 4 wafer for rackmount
LCM Module
  • N/A
TPM
  • Onboard TPM 2.0
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions<br>(H x W x D)
  • 44 x 231.9 x 152mm (1.73" x 9" x 5.98")
Weight (net/gross)
  • 2.35 kg (5.18 lbs)/2.61 kg (5.75 lbs)
EOS Support
  • Linux
Certifications
  • CE/FCC Class A

Ordering Information

  • NA348-x7211RE-A (P/N-E26E348102)
    Network appliance with Intel® Atom® x7211RE processor, DDR5-4800 memory, 2 x 1G SFP, 4 x 2.5G RJ-45, 1 pair LAN Bypass, TPM 2.0, 60W power adapter
  • NA348-x7211RE-B (P/N-E26E348100)
    Network appliance with Intel® Atom® x7211RE processor, DDR5-4800 memory, 2 x 1G RJ-45, 4 x 2.5G RJ-45, 1 pair LAN Bypass, TPM 2.0, 60W power adapter
  • NA348-x7433RE-C (P/N-E26E348103)
    Network appliance with Intel® Atom® x7433RE processor, DDR5-4800 memory, 2 x 1G RJ-45, 4 x 2.5G RJ-45, 1 pair LAN Bypass, TPM 2.0, 60W power adapter
  • NA348-x7433RE-D (P/N-E26E348101)
    Network appliance with Intel® Atom® x7433RE processor, DDR5-4800 memory, 2 x 1G SFP, 4 x 2.5G RJ-45, 1 pair LAN Bypass, TPM 2.0, 60W power adapter59906000010E Power cord YP-12/YC-12 (JP)
  • 59903000000E
    Power cord YP-22/YC-12 (EU)
  • 59905000000E
    Power cord YP-35/YC-12 (AU)
  • 59904010000E
    Power cord YP-61A/YC-12 (UK)
  • 826E3420220E
    Rackmount kit (Available via CTOS)
