mHPC202

Status : Available

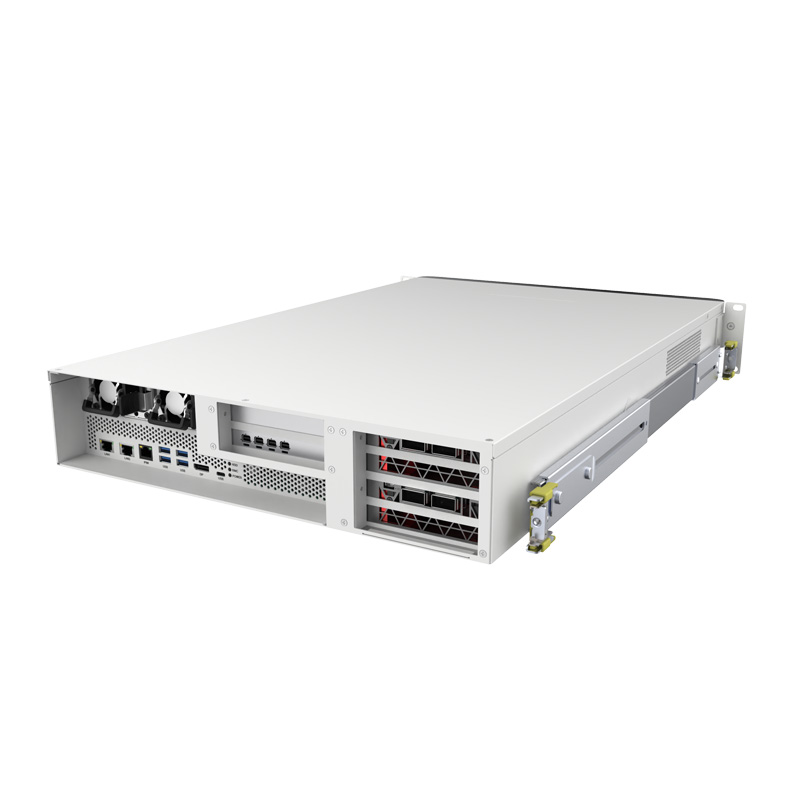

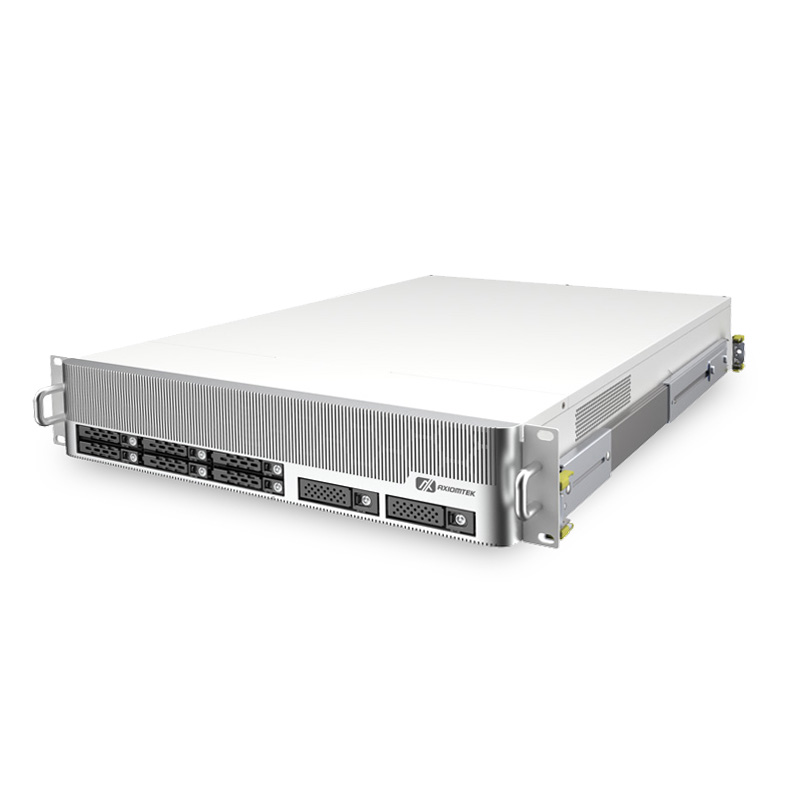

2U Rackmount Server with Dual 5th/4th Gen Intel® Xeon® Scalable Processors and Intel® C741 PCH for HPC in Medical Applications

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
mHPC202
mHPC202
IPMI

IPMI

Redundant BIOS

Redundant BIOS

Redundant Power

Redundant Power

Swappable HDD

Swappable HDD

USB 3.2

USB 3.2

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Dual 5th/4th gen Intel® Xeon® Scalable processors, up to 270W
  • 16 DDR5-4800 ECC registered DIMM
  • Supports 2 U.3 SSD and 6 SATA SSD slots
  • 1600W redundant ATX power supply
  • Supports full HD output via DisplayPort
  • Supports dual 10G Base-T connectivity

Specifications

CPU
  • Dual FCLGA4677 sockets for 5th/4th gen Intel® Xeon® Scalable processors, up to 270W
Chipset
  • Intel® C741, TDP 11W
  • BMC: ASpeed AST2600
System Memory
  • 16 x DDR5-4800 ECC RDIMM, up to 1TB
Graphics
  • TBD
BIOS
  • AMI
Remote Management
  • IPMI 2.0 supported by OpenBMC
COM
  • N/A
USB
  • 4 x USB 3.0
  • 1 x USB 3.0 Type-C
Ethernet
  • 2 x 10G Base-T
  • 1 x IPMI GbE LAN
Storage
  • 6 x Swappable 2.5" SATA SSD, supporting RAID 0, 1, 5, 10
  • 2 x Swappable 2.5" U.3 SSD
Display
  • 1 x DisplayPort 1.1a (2560x1600)
Expansion
  • 2 x PCIe x16 Gen 5.0 slot for double-width cards
  • 2 x PCIe x16 Gen 5.0 slot
  • 1 x M.2 Key M 2280 slot with PCIe x4 (NVMe
Others
  • 1 x Green LED for system power-on
  • 1 x Green LED for SSD active
  • 1 x Green/Orange LED for system health status
Power Supply
  • 2 x 1600W redundant ATX power supply
Watchdog Timer
  • Reset: 1 to 65535 sec./min. and 1 sec. or 1 min./step
Operating Temperature
  • 0°C to +40°C (32°F to +104°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration Endurance
  • N/A
Dimensions (W x D x H)
  • 430 x 700 x 88 mm (19” x 27.5” x 3.5”)
Weight (net/gross)
  • 13 kg (28.66 lb)
EOS Support
  • TBD
Certifications
  • TBD

Ordering Information

  • mHPC202-CCL
    2U 19" rackmount server with dual 5th/4th gen Intel® Xeon® Scalable processors, 512GB DDR5-4800 ECC registered DIMM memory,
  • 2 Micron PCIe NVMe U.3 SSD slots, 6 SATA III SSD slots, two 10GbE Base-T LAN, and dedicated IPMI LAN port
  • RAM (P/N-MTC40F2046S1RC48BA1)
    64GB DDR5 4800 REG-DIMM 2Rx4, quantity
  • U.3 SSD
    Micron 7450 max series 3.84TB NVMe U.3 SSD, quantity
  • SATAIII SSD (P/N-E9B2F1256R)
    Transcend 2.5“ 256GB SATA III SSD (TS256S2MAX02IK1), quantity
  • 22" Rack rail (P/N-7421A610000E)
    NJ-21A61 server slide 22”
