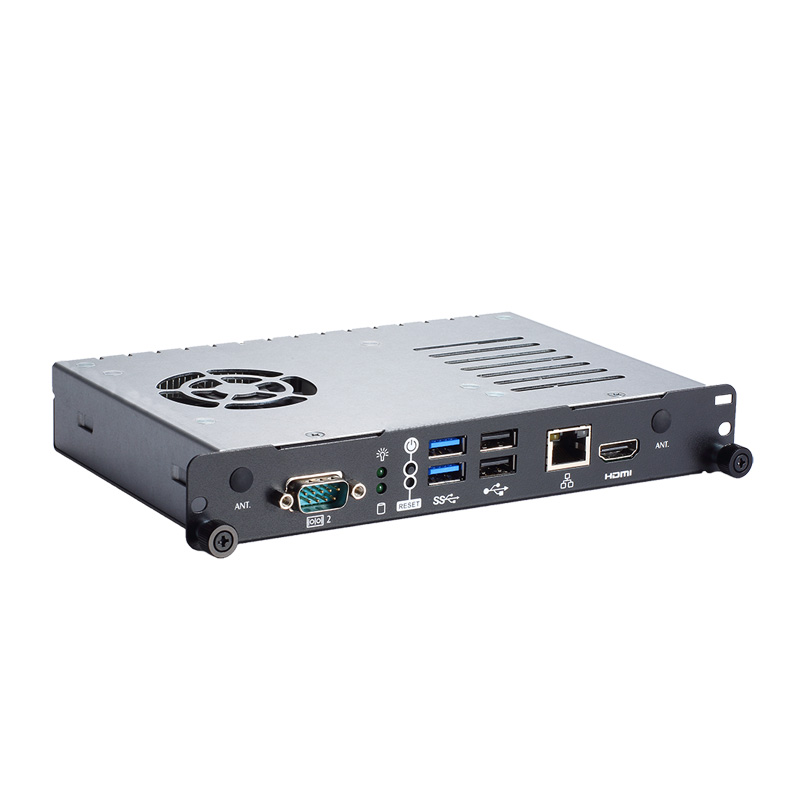

What is the OPS500-520-H designed for? + The OPS500-520-H is an OPS-compliant digital signage player designed for 4K multimedia applications. It is ideal for use in retail, transportation, education, entertainment, and interactive environments such as smart classrooms and meeting rooms.
What processors does the OPS500-520-H support? + It supports 8th generation Intel® Core™ i7/i5/i3 and Celeron® processors (Coffee Lake S) with an LGA1151 socket, allowing flexible CPU selection based on performance requirements.

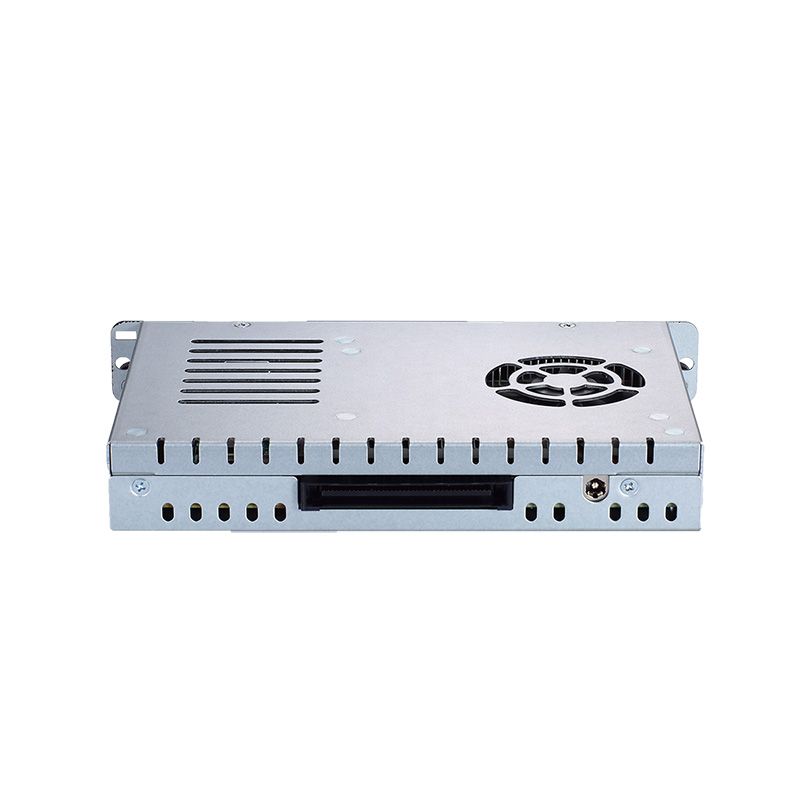

How does the OPS form factor benefit system integration? + The OPS (Open Pluggable Specification) design enables a cableless connection to OPS-compliant displays via a standardized JAE TX-25A connector. This simplifies installation, maintenance, and upgrades for digital signage deployments.
What kind of display performance can the OPS500-520-H deliver? + The system supports HDMI output with 4K Ultra HD resolution, providing high-quality visuals for digital signage, interactive whiteboards, and multimedia content.
What memory and storage options are available? + The OPS500-520-H supports up to 32GB of DDR4-2400 memory via two SO-DIMM slots. For storage, it includes an M.2 Key M slot supporting PCIe and SATA SSDs.
Does the OPS500-520-H support wireless connectivity? + Yes, it features an M.2 Key E slot for Wi-Fi modules, enabling wireless networking for flexible deployment scenarios.

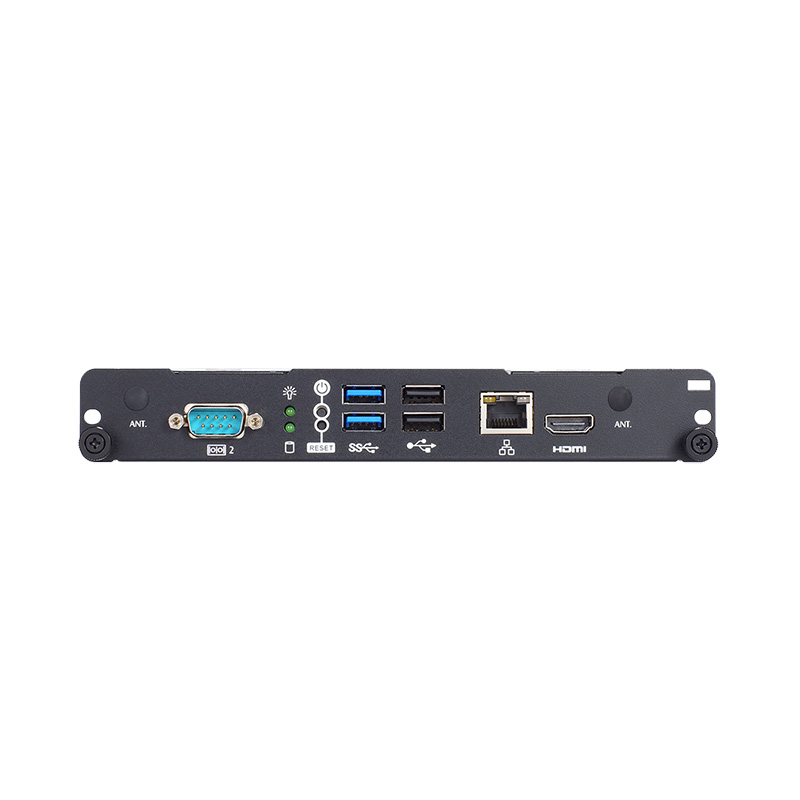

What I/O interfaces does the OPS500-520-H provide? + It offers multiple I/O options, including USB 3.1 Gen 1, USB 2.0, RS-232, Gigabit LAN, and HDMI. Through the OPS connector, it also supports DisplayPort, audio, and additional USB signals.
How does the OPS500-520-H ensure secure operation? + It includes TPM 2.0 support, providing hardware-based security for data protection and system integrity.
Is the OPS500-520-H suitable for quiet environments? + Yes, it features an ultra-low noise fan design, making it suitable for environments such as classrooms, hospitals, and conference rooms.
Which operating systems are supported? + The OPS500-520-H supports Windows® 10 64-bit and Linux, offering flexibility for different application requirements.
