ITC241

Status : Available

23.8" FHD TFT LCD Slim Bezel Modular Panel PC with Intel® Smart Display Module (SDM) CPU Card

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ITC241
ITC241
ITC241
ITC241
10-Point Touchscreen

10-Point Touchscreen

Intel SDM

Intel SDM

QR code

QR code

Slim Bezel

Slim Bezel

Thermal Tickets Printer

Thermal Tickets Printer

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 23.8" FHD TFT LCD
  • 16:9 aspect ratio; 250 nits brightness
  • Diamond-cut slim bezel under 47.5 mm thickness
  • Projected capacity touch supported (10-point touch)
  • Swappable Intel® SDM CPU card
  • Modular design for various applications
  • Supports an add-on RFID reader, barcode scanner, and camera modules (optional)
  • Supports a thermal printer (optional)
  • Supports desktop stand, floor stand, and wall mount (optional)

Specifications

LCD Panel
  • 23.8" FHD TFT LCD
  • 250 nits
  • 16:9 ratio
  • 1920 x 1080 pixels
SDM Module
  • Intel® SDM Small (SDM-S, 60 x 100 mm)
  • Intel® SDM Large (SDM-L, 175 x 100 mm)
CPU
  • SDM300S: Quad-core Intel® Pentium® N4200 1.1GHz processor or dual-core Intel® Celeron® N3350 1.1GHz processor
  • SDM500L: Intel® Celeron® 4305UE 2.0GHz processor or Intel® Core™ processor (optional)
Chipset
  • SoC integrated
System Memory
  • SDM300S: Onboard LPDDR4 2400 MHz 4GB (8GB optional)
  • SDM500L: 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB
SDM-S I/O
  • 1 x GbE LAN
  • 2 x USB 3.0 Type A
  • 2 x SMA antenna reserved hole
SDM-L I/O
  • 1 x Power button with LED
  • 1 x GbE LAN
  • 4 x USB 3.0 Type A
  • 1 x Audio output
  • 1 x Microphone input
  • 2 x SMA antenna reserved hole
I/O
  • N/A
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • TBD
Expansion
  • SDM300S: 1 x M.2 Key E 2230 slot (for Wi-Fi)
  • SDM500L: 1 x M.2 Key E 2230 slot (for Wi-Fi)
Storage
  • SDM300S: eMMC 64GB onboard
  • SDM500L: 1 x M.2 Key B 2242 slot, 1 x M.2 Key M 2280 slot
Others
  • 2 x S.P.L. 88dB, 1.5W, 4 ohm
Power Supply
  • 24V AC to DC power adapter
Power Consumption
  • Average 65W
Dimensions
  • 580.3 x 47.5 x 354.7 mm (22.8" x 1.9" x 14")
Weight (net/gross)
  • 9.8kg (21.6 lb)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Operating Humidity
  • 20% - 90%, non-condensing
Certications
  • CE, FCC Class A

Ordering Information

  • ITC241-SDM300S- N4200
    23.8-inch FHD PCAP touch slim bezel panel with SDM300S Intel® Pentium® N4200 processor, onboard DDR4 4G, eMMC 64GB, 1 LAN, 2 USB 3.0, and 2 speakers
  • ITC241-SDM500L-i5-8365UE
    23.8-inch FHD PCAP touch slim bezel panel with SDM500L Intel® Core™ i5 8365UE processor, 2 SO-DIMM slots, 2 M.2 SSD slots, 1 LAN, 4 USB 3.0, 2 speakers, and 1 Mic-in/Line-out
  • RFID module
  • Barcode scanner module
  • Camera module
  • Thermal printer with counter-top stand or floor stand
  • SSD
    M.2 2280-B-M (SDM500L)
  • SSD M.2 2242-B (SDM500L)
  • DDR4 SO-DIMM
    4GB~32GB (SDM500L)
  • 822T1500050E
    Mounting kit
  • 8812T1500A0E
    Wi-Fi kit
  • 59903000000E
    AC power cord EU, L=1830 mm
  • 59902000000E
    AC power cord US, L=1830 mm
  • 59909010000E
    AC power cord China, L=1830 mm
  • 59906000010E
    AC power cord Japan, L=1830 mm
  • 59905000000E
    AC power cord Australia, L=1830 mm
  • 59918000000E
    AC power cord Brazil, L=1830 mm

Download

This object is currently under update, please visit later.

Frequently Asked Questions

You Might Also Like

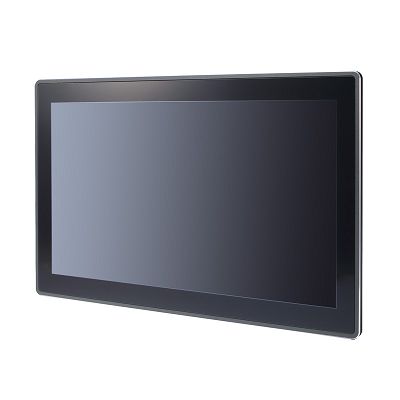

Picture of ITC211
