P6217W-V3

Status : Available

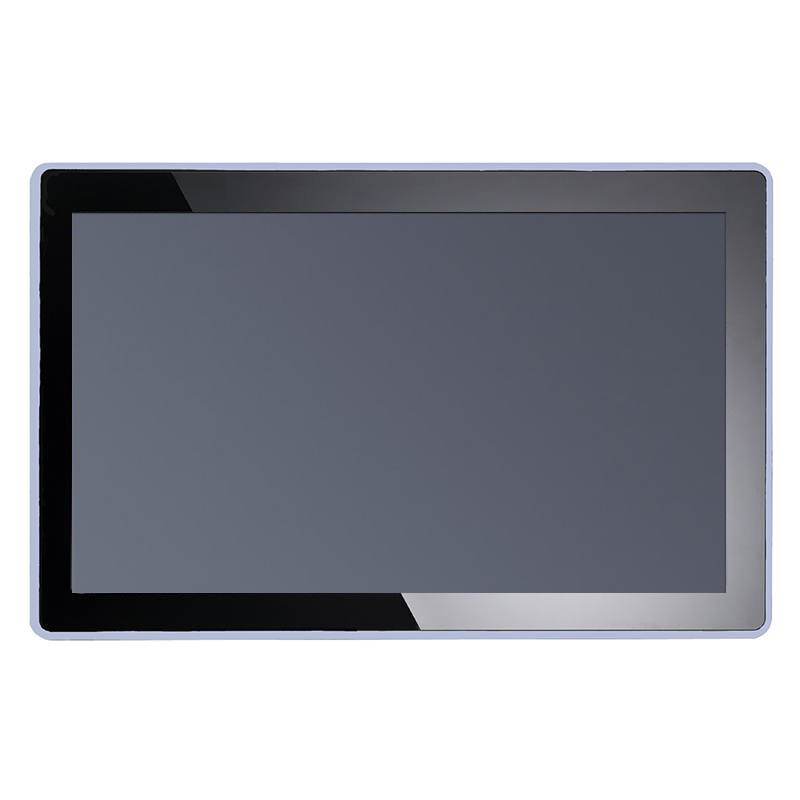

21.5" FHD TFT Widescreen Industrial LCD Monitor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
P6217W-V3
P6217W-V3
IP65 Rating

IP65 Rating

PCAP

PCAP

Slim Bezel

Slim Bezel

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 21.5" FHD TFT LCD with 250 nits of brightness
  • Projective capacitive multi-touch
  • NEMA 4/12 (IP65) compliant flat panel monitor
  • Supports panel mount, wall mount, and VESA mount
  • Full range screw-type (locked) AC-in or 24 VDC in (optional)
  • VGA, HDMI, and DisplayPort with multi-signal inputs

Specifications

Front Bezel
  • NEMA 4/12 (IP65)-compliant, flat front bezel
LCD Panel
  • 21.5" FHD TFT LCD
Max Colors
  • 16.7M
Active Area (mm)
  • 476.064 x 267.786
Max. Resolution
  • 1920 x 1080
Backlight
  • LED
Pixel Pitch (mm)
  • 247.95 x 247.95
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 178°/178°
Response Time
  • 22 ms
Contrast Ratio
  • 1000 (TYP.)
LCD Brightness (cd/m²)
  • 250 nits
Display Control
  • OSD (on screen display)

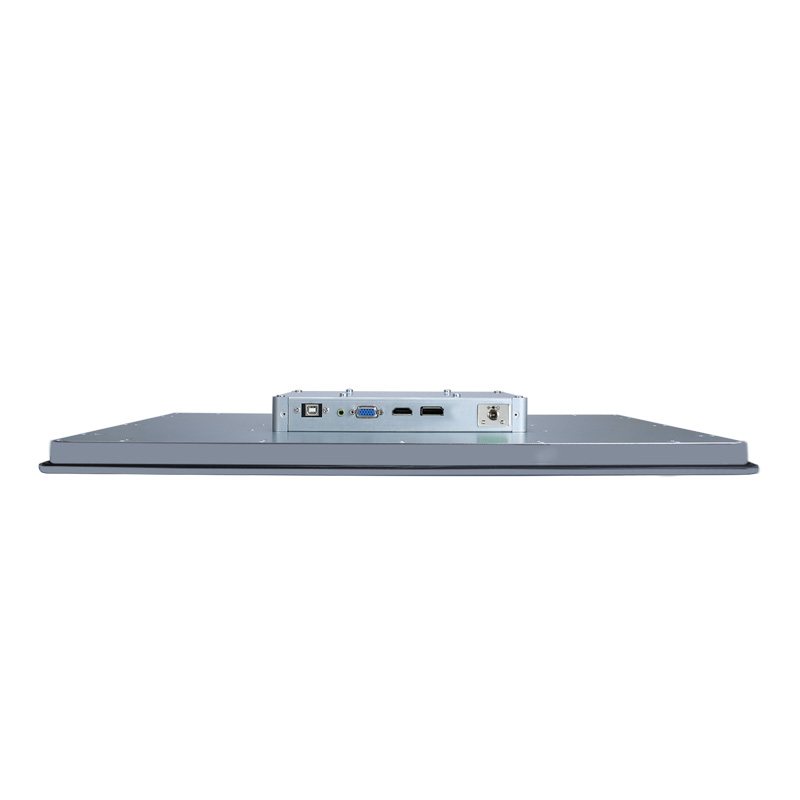

I/O Connectors
  • 1 x USB for touchscreen version
  • 1 x Audio (Line-in)
  • 1 x VGA
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Power input with screw type connector (AC version)
  • 1 x Power input with terminal block (DC version)
Audio
  • 2 x Speaker
Touchscreen
  • Projective capacitive multi-touch
Power Adapter
  • AC version: 100 - 240VAC-DC, 36W power adapter
  • DC Version: 24VDC
Power Comsumption
  • 21W
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F)
Dimensions
(W x D x H)
  • 547.6 x 52.6 x 339.1 mm (21.56" x 2.07" x 13.35")
Weight (net/gross)
  • 7.56 kg (16.67 lb)/ 8.92 kg (19.67 lb)
Mounting
  • Panel mount
  • Wall mount
  • Desktop stand
  • VESA FPMPMI mount
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A

Ordering Information

  • P6217WPC-AC-U-V3 (P/N-E226217106)
    21.5" industrial monitor with capacitive touch screen, AC version
  • P6217WPC-DC-U-V3 (P/N-E226217107)
    21.5" industrial monitor with capacitive touch screen, DC version
  • 509000001500
    Adaptor 24V/120W, wire only
  • 599000001100
    US 1.8M power cord
  • 59904010000E
    UK 1.83M power cord
  • 59903000000E
    EU 1.83M power cord
  • 590000012700
    HDMI cable
  • 590000020900
    DisplayPort cable 2M
  • E29R131107
    Panel mount kit
  • E29R131114
    Wall mount kit
  • E221177116
    Desktop stand for 15.6" to 21.5"

Download

Drivers

Software

Manual

Date Description Version Download File
2021/08/17 User's manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/12/11 DC_FCC Verification
2023/12/11 DC_UKCA Declaration of Conformity
2023/12/11 DC_CE EMC Verification
2023/12/11 DC_CE-Conformity Declaration
2023/12/11 AC_CE LVD Verification
2023/12/11 AC_FCC Verification
2023/12/11 AC_UKCA Declaration of Conformity
2023/12/11 AC_CE-Conformity Declaration
2023/12/11 AC_CE EMC Verification
