P6157W-V3

Status : Available

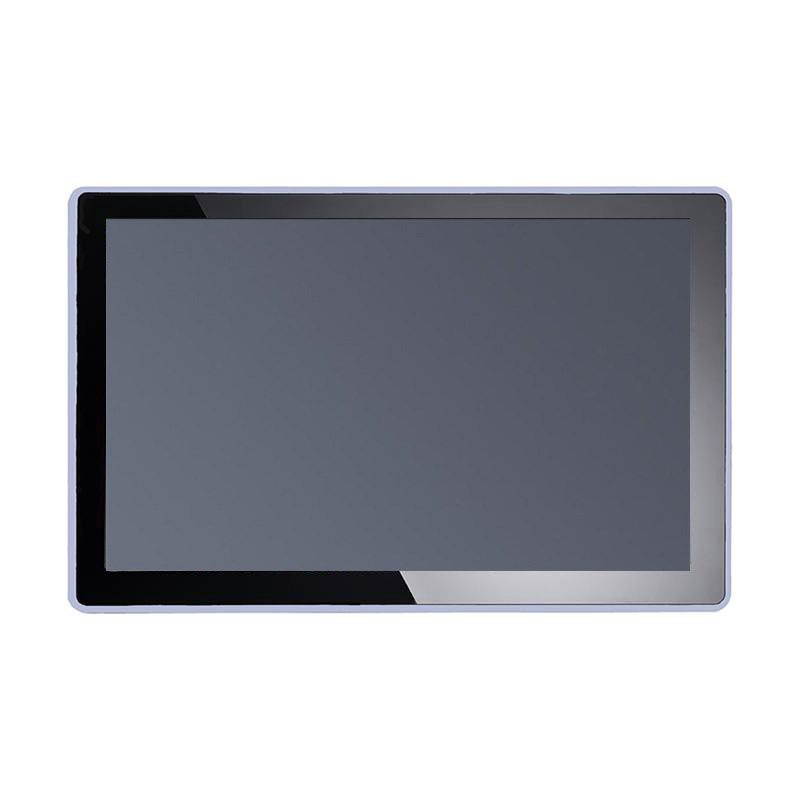

15.6" WXGA TFT Widescreen Industrial LCD Monitor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
P6157W-V3
P6157W-V3
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 15.6" WXGA TFT with 400 nits of brightness
  • Projective capacitive multi-touch
  • NEMA 4/12 (IP65) compliant flat panel monitor
  • Supports panel mount, wall mount, and VESA mount
  • Full range screw-type (locked) AC-in or 24VDC in (optional)
  • VGA, HDMI and DisplayPort, with multi-signal inputs

Specifications

Front Bezel
  • NEMA 4/12 (IP65)-compliant, flat front bezel
LCD Panel
  • 15.6" WXGA TFT LCD
Max Colors
  • 16.7 M
Active Area (mm)
  • 344.232 x 193.536
Max. Resolution
  • 1366 x 768
Backlight
  • LED
Pixel Pitch (mm)
  • 0.252 x 0.252
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 170°/160°
Response Time
  • 8 ms
Contrast Ratio
  • 500 (TYP.)
LCD Brightness (cd/m²)
  • 400 nits
Display Control
  • OSD (on screen display)
I/O Connectors
  • 1 x USB for touchscreen version
  • 1 x Audio (Line-in)
  • 1 x VGA
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x Power input with screw type connector (AC version)
  • 1 x Power input with terminal block (DC version)
Touchscreen
  • Projective capacitive multi-touch
Audio
  • 2 x Speaker
Power Adapter
  • AC version: 100 - 240 VAC-DC, 12V3A, 36W power adapter
  • DC version: 24 VDC
Power Comsumption
  • 17W
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F)
Dimensions<br>(W x D x H)
  • 396.8 x 54 x 247.1 mm (15.62" x 2.13" x 9.73")
Weight (net/gross)
  • 4.1 kg (9.1 lb)/6.1 kg (13.44 lb)
Mounting
  • Panel mount
  • Wall mount
  • Desktop stand
  • VESA arm
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4, and FCC Class A

Ordering Information

  • P6157WPC-AC-U-V3 (P/N-E226157127)
    15.6" industrial monitor with capacitive touch screen and AC version
  • P6157WPC-DC-U-V3 (P/N-E226157129 )
    15.6" industrial monitor with capacitive touch screen and DC version
  • 509000001500
    Adaptor 24V/120W,wire only
  • 599000001100
    US 1.8M power cord
  • 59904010000E
    UK 1.83M power cord
  • 59903000000E
    EU 1.83M power cord
  • 590000012700
    HDMI cable
  • 590000020900
    DisplayPort cable 2M
  • E29R131102
    Panel mount kit
  • E29R131114
    Wall mount kit
  • E221177116
    Desktop stand for 15.6" to 21.5"

Download

Drivers

Software

Manual

Date Description Version Download File
2021/08/17 User's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/12/11 DC_FCC Verification
2023/12/11 DC_UKCA Declaration of Conformity
2023/12/11 DC_CE EMC Verification
2023/12/11 DC_CE-Conformity Declaration
2023/12/11 AC_CE LVD Verification
2023/12/11 AC_UKCA Declaration of Conformity
2023/12/11 AC_FCC Verification
2023/12/11 AC_CE-Conformity Declaration
2023/12/11 AC_CE EMC Verification
