GOT315W-521

Status : Available

15.6" WXGA TFT Multi-touch Panel Computer with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® Processor (up to 35W)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT315W-521
GOT315W-521
GOT315W-521

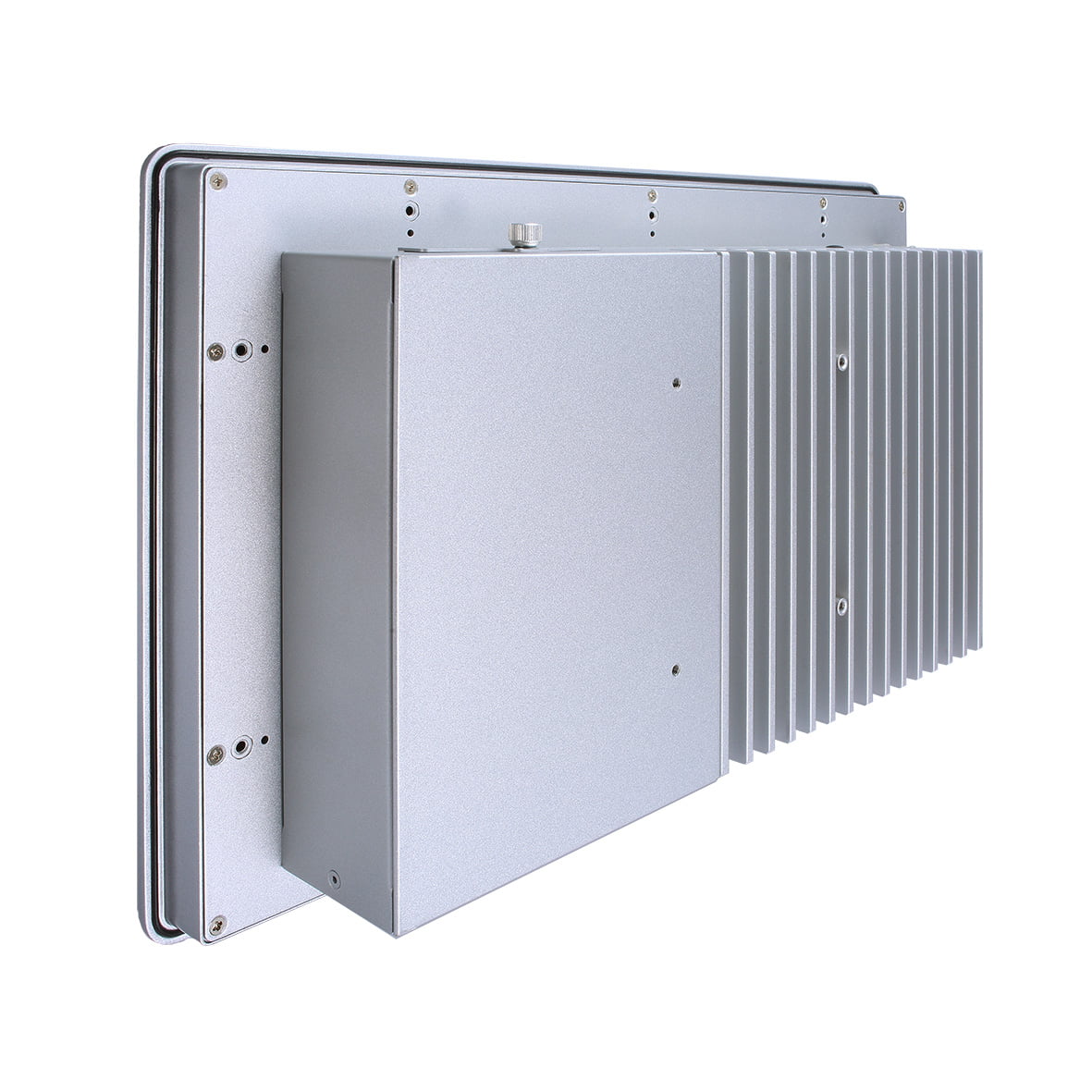

Fanless

Fanless

IP65 Rating

IP65 Rating

PCAP

PCAP

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 15.6" WXGA projected capacitive multi-touch widescreen
  • Fanless design with support for LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor
  • Supports WLAN module and antenna (optional)
  • 2.5" SATA HDD/SSD

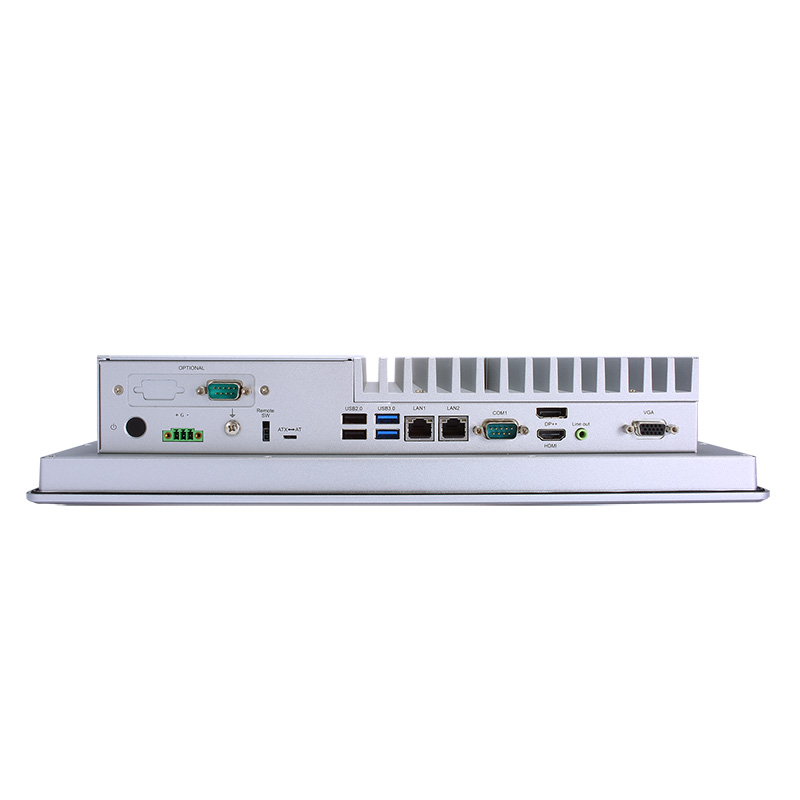

  • 2 LAN, 4 USB, 2 COM, 1 HDMI, 1 DisplayPort, and 1 VGA
  • IP65-rated aluminum front bezel
  • Supports panel mount, VESA mount, and wall mount

Specifications

LCD Panel
  • 15.6" WXGA TFT
  • 400 nits
  • 1366 x 768 pixels
CPU
  • LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W)
Chipset
  • Intel® H310
System Memory
  • 1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x 9-pin D-sub Male for RS-232
  • 1 x COM for RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet
Display
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x VGA
Audio
  • 1 x Line-out
Storage
  • 1 x mSATA
  • 1 x Removable 2.5” SATA HDD/SSD (7 mm or 9.5 mm height)
Expansion
  • 1 x Full-size PCI Express Mini Card slot (PCIe + SATA + USB)
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • 1 x Phoenix type connector for DC power input
  • 1 x Switch for power on/off (ATX)
  • 1 x Remote power switch
  • 1 x AT/ATX switch (DC type only)
  • 1 x Grounding hole (DC Version)
  • TPM 2.0
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65 front bezel
Power Supply
  • +12V/+19V/+24VDC
  • 1 x Terminal block
Power Comsumption
  • 70W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 1G, 10 - 500 Hz, random for 2.5" SATA HDD
Dimensions<br>(W x D x H)
  • 396.8 x 77 x 247.1 mm (15.6" x 3.04" x 9.73")
Weight (net/gross)
  • 6.5 kg(14.3 lb)/8.5kg(18.7 lb)
Certifications
  • CE, EN 61000-6-2, EN 61000-6-4
EOS
  • Windows® 11
  • Windows® 10
Mounting
  • Panel mount
  • Wall mount
  • VESA arm

Ordering Information

  • GOT315W-521-PCT-DC (P/N-E22B315105)
    15.6" WXGA TFT fanless touch panel computer with LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W), projected capacitive multi-touch screen, and 24 VDC terminal block with small Phoenix connector
  • 4G LTE kit
  • Wi-Fi kit
  • E29R131114
    Wall mount kit
  • 509000001500
    Adaptor 24V/120W, wire only, FSP120-AAAN3
  • E29R131102
    Panel mount kit
  • E392903102
    AX92903 full-size PCI Express Mini module with CAN Bus
  • E392904102
    AX92904 full-size PCI Express Mini module with 32-bit DIO
  • E392906101
    AX92906 full-size PCI Express Mini module with COM

Download

Drivers

Date Description Version Download File
2025/04/22 Graphic(windows10) VA1.2
2025/04/22 Option(windows10) VA1.2
2025/04/22 Touch(windows10) VA1.2
2025/04/22 Seral IO(windows10) VA1.2
2025/04/22 IRST(windows10) VA1.2
2025/04/22 ME(windows10) VA1.2
2025/04/22 Audio(windows10) VA1.2
2025/04/22 Lan(windows10) VA1.2
2025/04/22 Chipset(windows10) VA1.2
2025/04/22 Touch(Windows11) VA1.2
2025/04/22 Option(Windows11) VA1.2
2025/04/22 LAN(windows11) VA1.2
2025/04/22 Audio(windows11) VA1.2
2025/04/22 Seral IO(windows11) VA1.2
2025/04/22 Graphic(windows11) VA1.2
2025/04/22 IRST(windows11) VA1.2
2025/04/22 ME(windows11) VA1.2
2025/04/22 Chipset(windows11) VA1.2

Software

Manual

Date Description Version Download File
2021/08/19 User's manual VA1
2021/08/19 Quick manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/12/05 UKCA Declaration of Conformity
2023/12/05 FCC Verification
2023/12/05 CE-Conformity Declaration
2023/12/05 CE EMC Verification
