GOT3156T-834

Status : Available

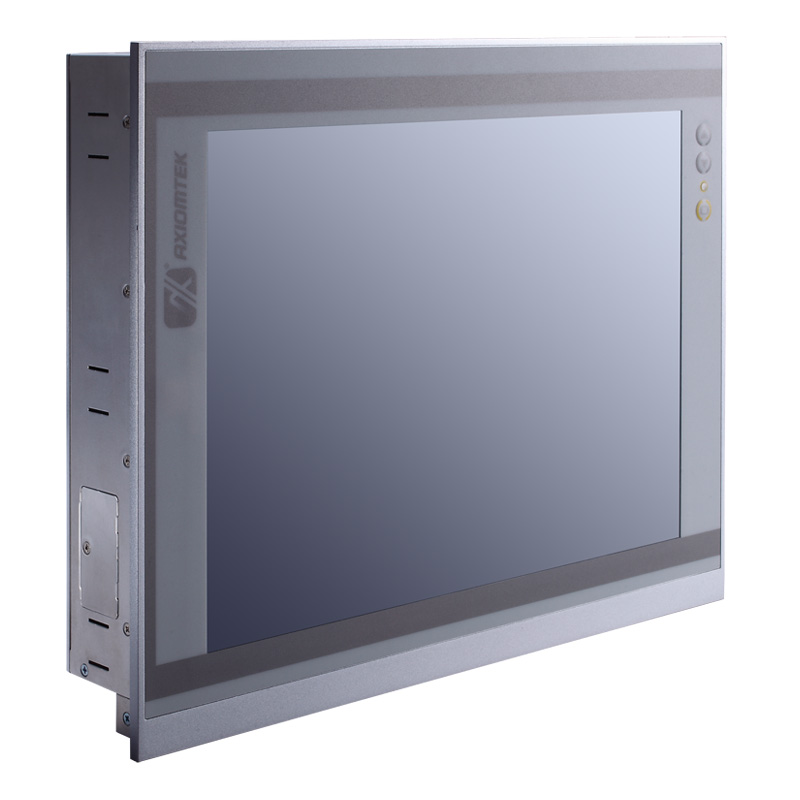

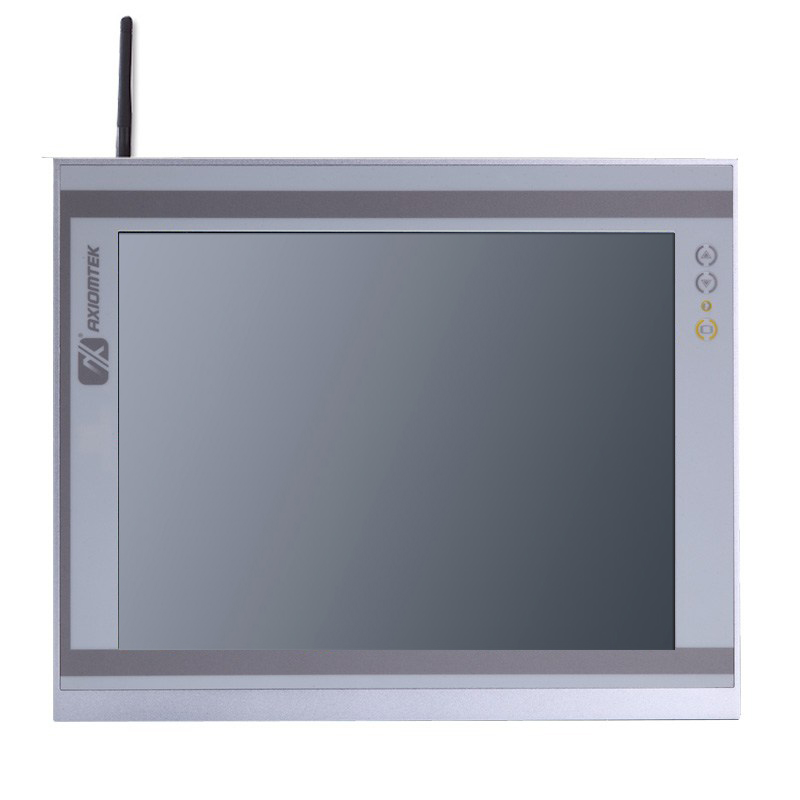

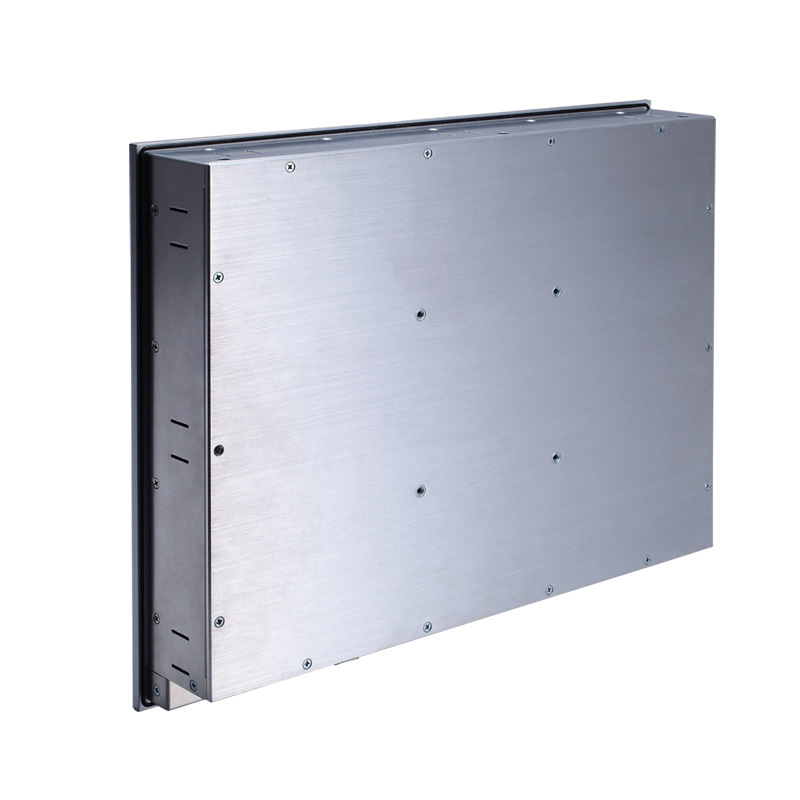

15" XGA TFT Fanless Touch Panel Computer with Intel® Atom™ Processor E3827 (-20°C to +55°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT3156T-834
GOT3156T-834
GOT3156T-834
GOT3156T-834
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

Wide Power Input

Wide Power Input

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 15" XGA color TFT LCD display
  • Fanless cooling system with Intel® Atom™ processor E3827 (1.75 GHz) (Bay Trail)

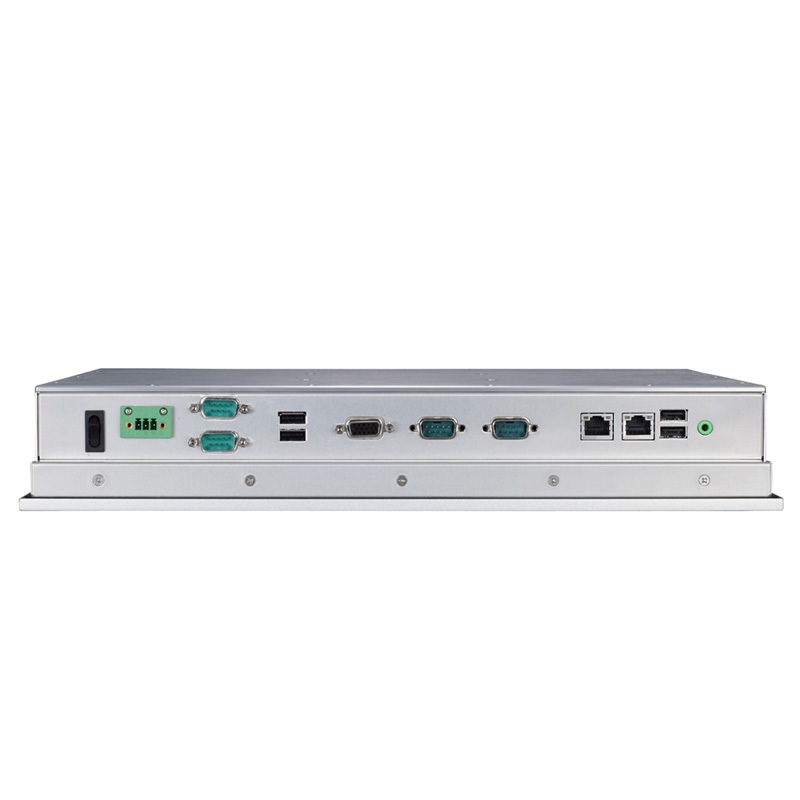

  • 2 Gigabit LAN, 2 USB 3.0, 2 USB 2.0 & 4 COM ports
  • WLAN/3G module and antenna (optional)
  • 2 PCI Express Mini Card slots
  • 9~36 VDC wide voltage and over current protection
  • Supports panel mount and optional VESA arm, desktop stand, wall mount
  • 2.5" 7/9.5 mm SATA HDD and CFast™/mSATA
  • -20°C to +55°C wide temperature range
  • Adjust RS-232/422/485 setting via BIOS

Specifications

LCD Panel
  • 15" XGA TFT LCD
  • 400 nits
  • 1024 x 768 pixels
CPU
  • Intel® Atom™ processor E3827 (1.75GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1333 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 4 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I210-IT)
Display
  • 1 x VGA
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" SATA HDD (7-9.5 mm height)
  • 1 x CFast™ or 1 x mSATA
Expansion
  • 2 x PCI Express Mini Card slot
Others
  • WLAN antenna
Touchscreen
  • 5-wire resistive touch screen
Front Bezel
  • IP65, NEMA 4 rugged protection, aluminum front bezel
Power Supply
  • 9 to 36 VDC with power protection
Power Comsumption
  • 40W
Watchdog Timer
  • 255 levels, 0 ~ 255 sec.
Operating Temperature
  • -20°C to +55°C (-4°F to +131°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 1.3G, 10 to 500Hz, random for 2.5" HDD
  • 2G, 10 to 500Hz, random for CFast™
Dimensions<br>(W x D x H)
  • 377.9 x 60.7 x 309.3 mm (14.89" x 2.39" x 12.17")
Weight (net/gross)
  • 4.2 kg (9.26 lb)/ 6.8 kg (14.99 lb)
Certifications
  • CE
EOS
  • Windows® 8.1, WE8S, Windows® 7, WES 7
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount

Ordering Information

  • GOT3156T-834 (P/N-E223156108)
    15" XGA TFT fanless touch panel computer with Intel Atom® E3827 1.75 GHz dual core processor, resistive touch screen and 9 to 36 VDC terminal block connector
  • Wi-Fi
  • E29R131114
    Wall mount kit
  • 50906D24000E
    Adaptor 24V/120W, wire only, FSP120-AAAN3

Download

Drivers

Date Description Version Download File
2018/12/18 Win10 driver VA1.8
2018/12/18 Win8.1 driver VA1.8
2018/12/18 Win7 driver VA1.8

Software

Manual

Date Description Version Download File
2017/07/21 GOT3156T-834 User's Manual VA1_11-20-2014 VA1.1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2020/02/15 CE-Conformity Declaration

You Might Also Like

Picture of GOT3126T-834

GOT3126T-834

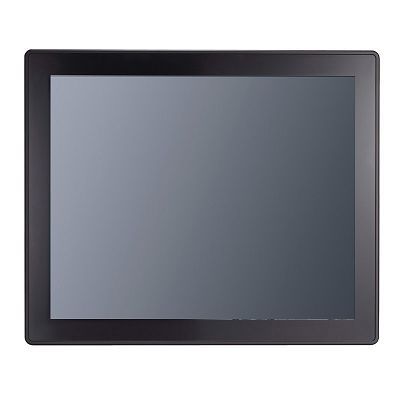

Picture of GOT3177T-834
