GOT5840T-845

Status : Available

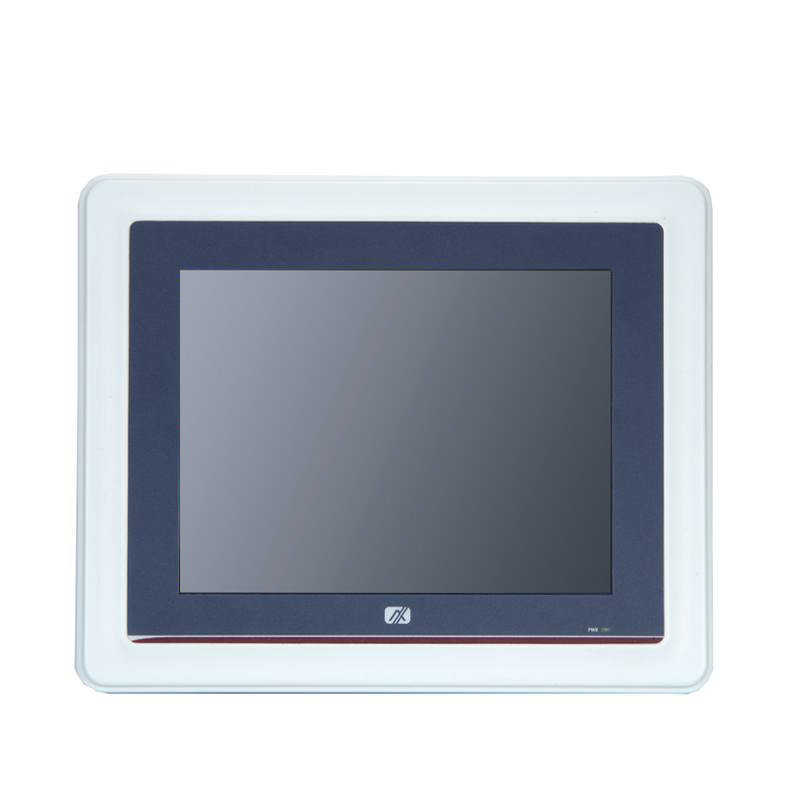

8.4" SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT5840T-845
GOT5840T-845
Dual-View

Dual-View

Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 8.4" SVGA TFT LCD display with LED backlight
  • Fanless cooling system with Intel® Celeron® processor N3060 (up to 2.48 GHz)
  • Ultra slim and super light design
  • WLAN module and internal antenna
  • 2 PCI Express Mini Card slots

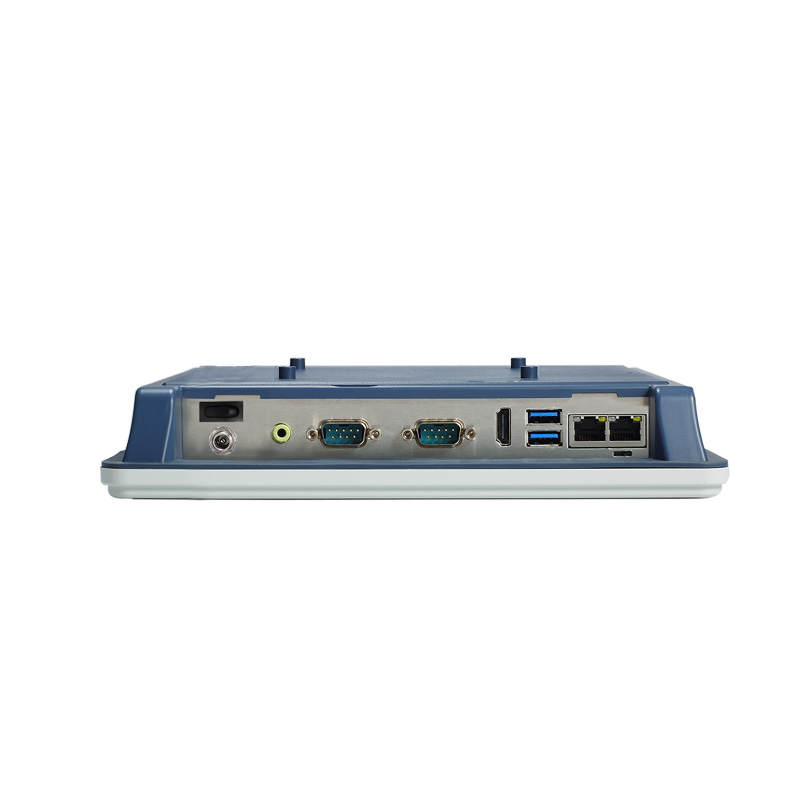

  • 2 GbE LAN, 2 USB and 2 COM
  • Supports optional panel mount/wall mount/VESA/arm/desktop stand
  • Plastic and IP65-rated front bezel

Specifications

LCD Panel
  • 8.4" SVGA TFT LCD with LED backlight
  • 350 nits
  • 800 x 600
CPU
  • Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210AT)
Display
  • 1 x HDMI
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • 1 x Switch for power On/Off
  • 1 x AT/ATX mode selection switch
Touchscreen
  • Resistive type
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • 9 to 36 VDC with over current protection fuse
Power Comsumption
  • 25W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F) (with W.T. DRAM/HDD in airflow condition)
  • 0°C to +45°C (+32°F to +113°F) (with W.T. DRAM)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Shock/Vibration
  • 2G, 5 - 500Hz, random for mSATA
Dimensions<br>(W x D x H)
  • 250.7 x 45.8 x 204.7 mm (9.87" x 1.80" x 8.06")
Weight (net/gross)
  • 1.3 kg (2.87 lb)/ 2.25 kg (4.96 lb)
Certifications
  • CE, FCC, UL60950-1
EOS
  • WES 7, Windows® 7, WE8S (64-bit), Windows® 8.1 (64-bit), Windows® 10
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand

Ordering Information

  • GOT5840T-845 N-DC (P/N-E225840129)
    8.4" SVGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen and 9 to 36 VDC power input (terminal block connector)
  • Wi-Fi + Bluetooth kit
  • E29R131105
    Panel mount kit
  • E29R131103
    Wall mount kit
  • E226171106
    Stand kit
  • E29R334100
    RFID kit

Download

Drivers

Date Description Version Download File
2017/07/17 Wifi Module.part2 VA1.0
2017/07/17 Wifi Module.part1 VA1.0
2017/07/17 Penmount Touch Driver (Only for Resistive touch ) VA1.0
2017/07/17 Step5 HD Audio VA1.0
2017/07/17 Step6 Intel USB 3.0 Driver VA1.0
2017/07/17 Step7 Volume Sync (Only for GOT5103-845) VA1.0
2017/07/17 Step4 LAN VA1.0
2017/07/17 Step3 TXE VA1.0
2017/07/17 Step2 Graphic VA1.0
2017/07/17 Step1 Chipset VA1.0

Software

Date Description Version Download File
2017/07/17 AX-USB30-Utility VA1.0

Manual

Date Description Version Download File
2017/07/17 GOT5840T-845 User's Manual VA1_12-05-2016 VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2020/07/01 CE EMC Verification
2020/06/02 CE-Conformity Declaration
2020/06/02 FCC Verification
2019/02/11 UL Certificate
2018/02/26 CE LVD Verification
