GOT5120T-845

Status : Available

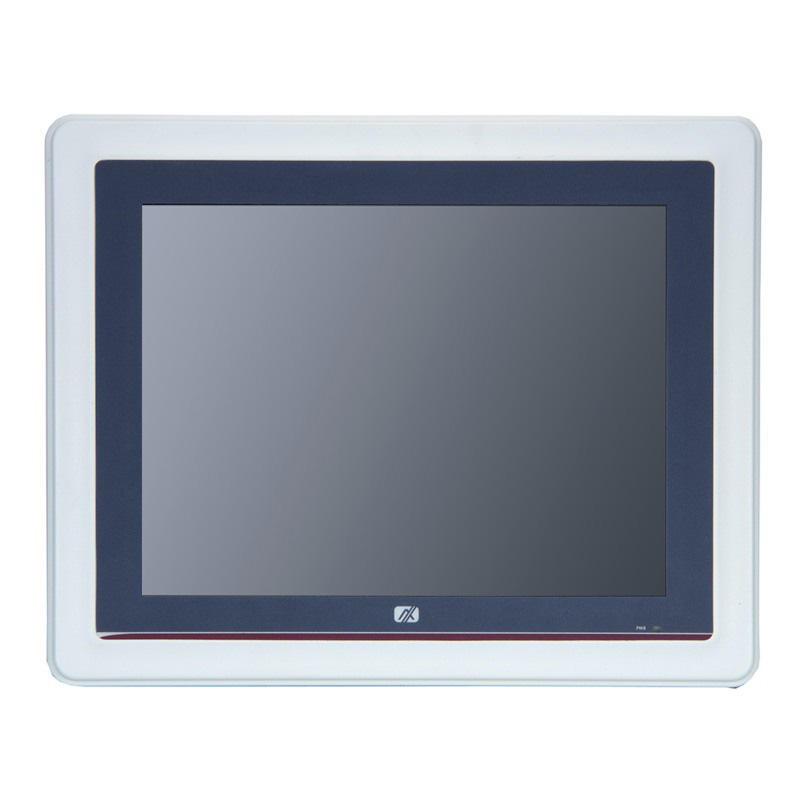

12.1" XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT5120T-845
GOT5120T-845
Fanless

Fanless

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 12.1" XGA/SVGA TFT LCD display with LED backlight
  • Fanless design with Intel® Celeron® processor N3060 (up to 2.48 GHz)
  • 2.5" 7/9.5 mm SATA HDD and mSATA with easy acess design

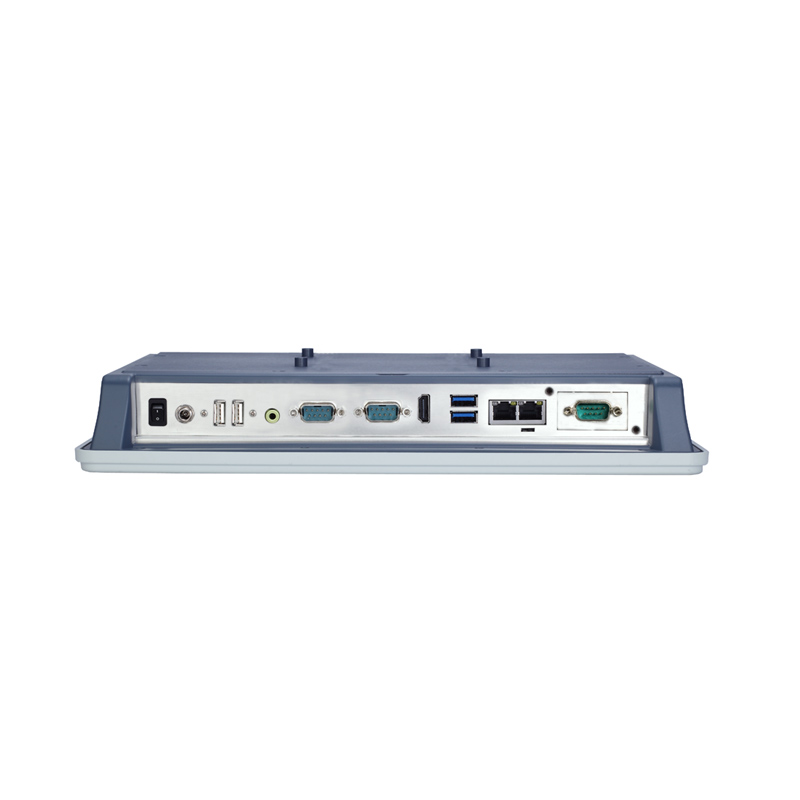

  • 2 GbE LAN, 4 USB, 2 COM and speakers (optional)
  • IP65 front bezel design
  • Supports optional panel mount/wall mount/VESA arm/desktop stand
  • External AT/ATX mode selectable switch
  • Supports RFID (optional)
  • Adjust RS-232/422/485 setting via BIOS

The GOT5120T-845 features the Intel® Celeron® N3060 dual-core processor up to 2.48 GHz. The cost-effective industrial touch panel PC offers options of XGA color resolution 1024 x 768 TFT LCD display with a brightness of 500 nits or SVGA color resolution 800 x 600 TFT LCD display with a brightness of 500 nits. For wireless network connection, the power-efficient 12.1” IP65 / NEMA 4 industrial human machine interface provides two full-size PCI Express Mini Card slots and a built-in WLAN antenna. With its slim, extremely light weight and fanless design, the GOT5120T-845 is well-suited for use in shopping malls and supermarkets as a self-service kiosk and in smart factory automation, medical & healthcare industry, and building automation

Specifications

LCD Panel
  • 12.1" XGA/SVGA TFT LCD with LED backlight
  • 500 nits (XGA) & 500 nits (SVGA)
  • 1024 x 768 (XGA) & 800 x 600 (SVGA)
CPU
  • Intel® Celeron® processor N3060 up to 2.48 GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8 GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
Display
  • 1 x HDMI
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" SATA HDD (9.5 mm)
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • 1 x 8-bit DIO port (programmable, DB9)
  • 1 x Switch for power on/off
  • 1 x AT/ATX mode selection switch
Touchscreen
  • 5-wire resistive touch
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • DC version: 24 VDC over current protection fuse (optional)
  • AC version: 100 - 240VAC-DC, 60W power adapter
Power Comsumption
  • 34W
Watchdog Timer
  • 255 levels, 0~255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Shock/Vibration
  • 2G, 10 to 500Hz, random for SSD
Dimensions
(W x D x H)
  • 327.5 x 52.5 x 261.8 mm (12.9" x 2.07" x 10.3")
Weight (net/gross)
  • 2.48 kg (5.46 lb)/3.84 kg (8.46 lb)
Certifications
  • CE, FCC, UL60950-1
EOS
  • Windows® 7, WES 7, Windows® 8.1, WE8S, Windows® 10
Mounting
  • Panel mount
  • Wall mount
  • VESA arm
  • Desktop stand

Ordering Information

  • GOT5120T-845 J-US (P/N-E225120139)
    12.1" SVGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class A
  • GOT5120T-845 J-XGA-US (P/N-E225120143)
    12.1" XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen, AC-DC 60W power adapter (screw type connector) and EMI class A
  • GOT5120T-845-XGA-24VDC (P/N-E225120141)
    12.1" XGA fanless touch panel computer with Intel® Celeron® processor N3060, 5-wire resistive touch screen and 24 VDC power input (terminal block connector)
  • Wi-Fi + Bluetooth kit
  • Speaker kit
  • E29R131105
    Panel mount kit
  • E29R131103
    Wall mount kit
  • E226171106
    Stand kit
  • E29R334100
    RFID kit
