SSK515

Status : Available

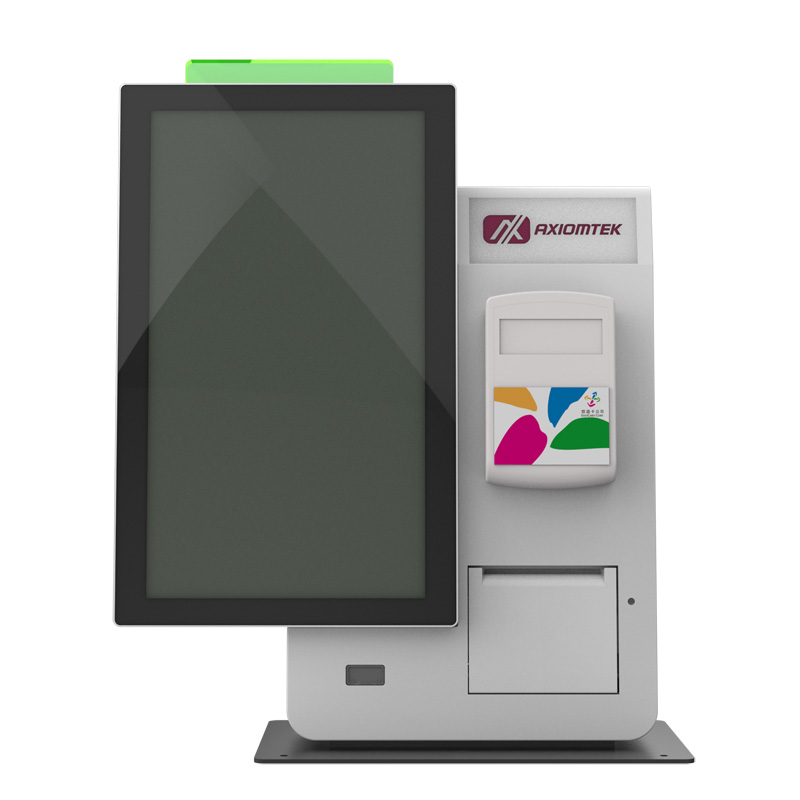

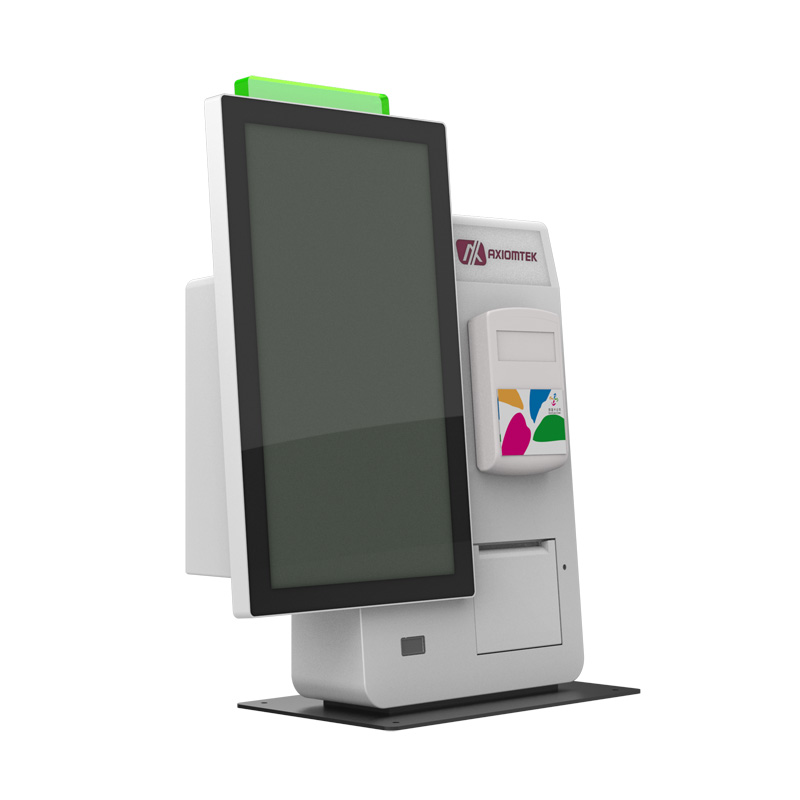

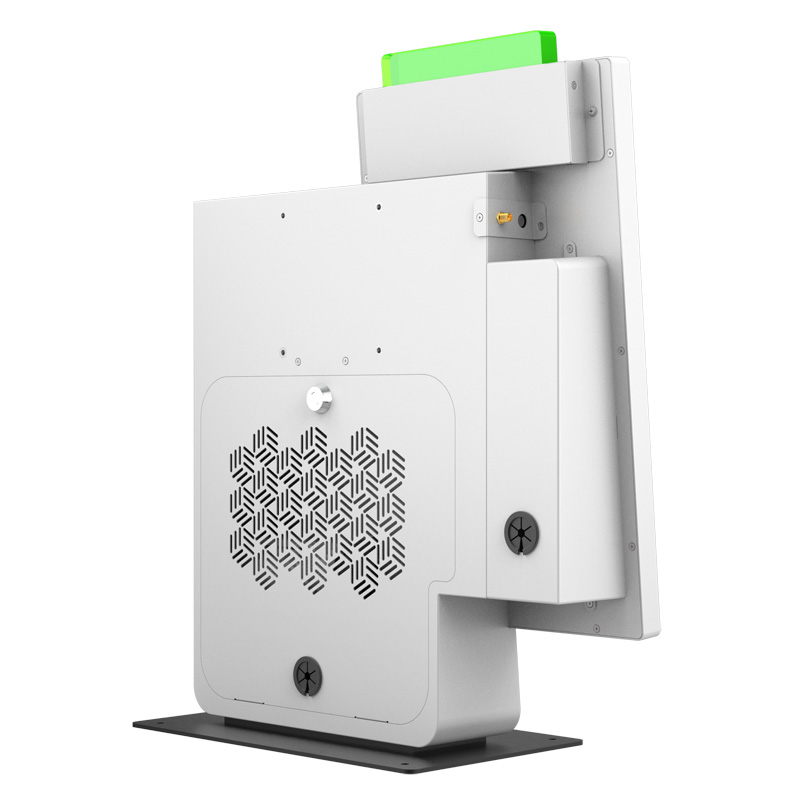

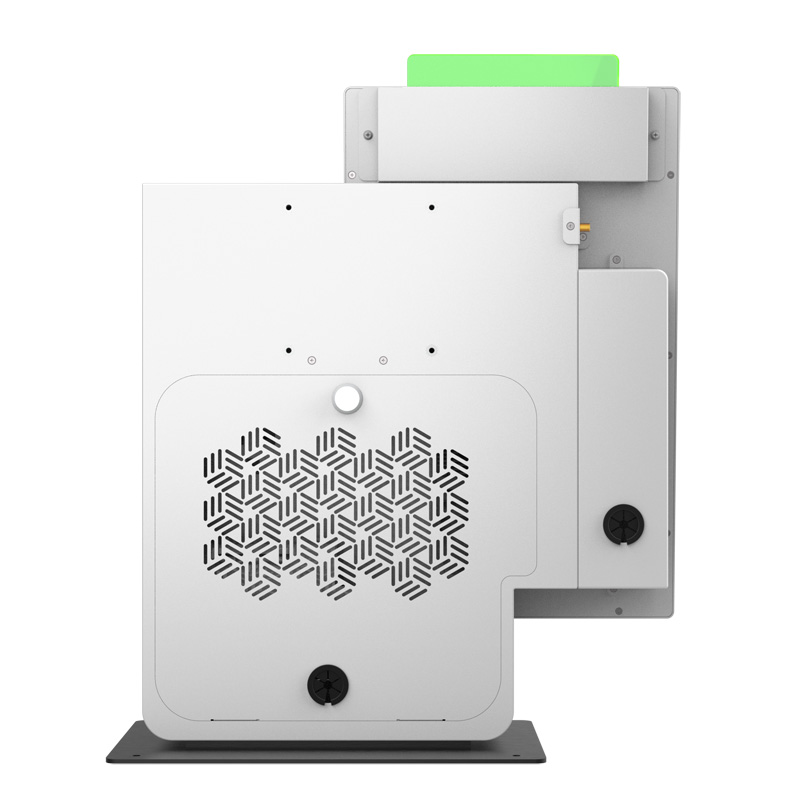

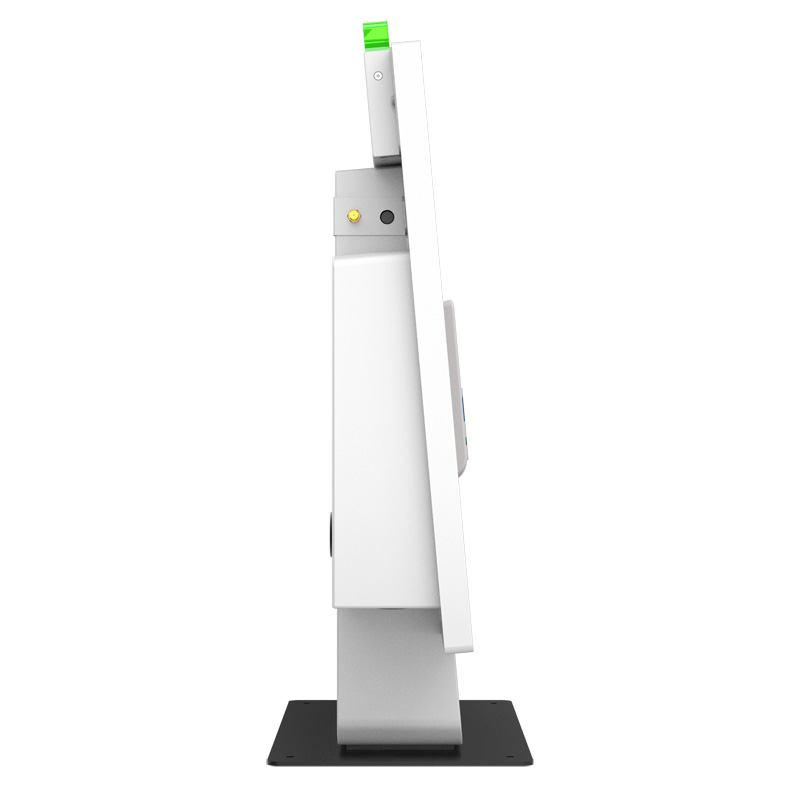

15.6" Self-Service Kiosk with Intel® Smart Display Module (SDM-L) CPU Card, 10-point PCAP Touch, 2D Barcode Scanner, Thermal Printer, and NFC

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
SSK515
SSK515
SSK515
SSK515
SSK515
POS

POS

QR code

QR code

Thermal Tickets Printer

Thermal Tickets Printer

Touchscreen

Touchscreen

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 15.6" TFT LCD with wide viewing angle; 300 nits of brightness
  • Supports Intel® Smart Display Module Large (Intel® SDM-L)
  • with Intel® Core™ i5/i3 and Intel® Celeron® processor (Whiskey Lake)
  • Super slim design with only 8.7 cm thickness
  • Supports Verifone & Ingenico EFT terminal
  • Dual illuminating status LEDs
  • All-in-one seamless modular design

Specifications

Display
  • LCD Panel Size: 15.6" FHD TFT LCD
  • Brightness (cd/m2): 300 nits
  • Resolution: 1920 (H) x 1080 (V)
  • Aspect Ratio: 16:9
  • Touchscreen: 10-point projected capacitive touch with direct bonding
System
  • Intel® SDM Large (SDM500-L, 175 x 100 mm):
  • Intel® Core™ i5-8365UE processor, 1.6GHz; Intel® Core™ i3-8145UE processor 1.6GHz; Intel® Celeron® 4305UE processor, 2.0GHz
  • Intel® UHD Graphics 620/610
  • 2 x 260-pin DDR4-2400 SO-DIMM slot, up to 64GB
  • 1 x M.2 Key B 2280 slot
  • 1 x M.2 Key E 2230 slot (for the Wi-Fi/4G LTE)
I/O
  • Intel® SDM Large (SDM500-L, 175 x 100 mm):
  • 1 x Power button with LED
  • 1 x GbE LAN
  • 4 x USB 3.0 Type A
  • 1 x Audio output
  • 1 x Microphone input
Devices
  • 2D Barcode Scanner
  • Thermal Printer
  • NFC
  • 2 x Stereo Speaker; 96dB, 1.5W, 4 ohm
  • 1 x LED light bar; supports 256 color
Others
  • N/A
Front Bezel
  • Metallic front bezel
Power Supply
  • 150W DC adapter
  • Average 90W power consumption
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Mounting
  • Wall mount
  • Countertop stand
Dimensions (W x D x H)
  • 308 x 85 x 471 mm (14.96" x 3.34" x 18.54")
Weight (net/gross)
  • 9.4 kg (20.8 lb)/14.5 kg (32 lb)
Operation System
  • 20% - 80%, non-condensing
Certifications
  • CE, FCC Class A

Ordering Information

  • SSK515-TIBSL-1
    15.6 FHD with PCAP touch slim bezel panel with SDM-L, Intel® Core™ i5 8365UE processor, M.2 SSD 4GB memory (up to 64GB), thermal printer, 2D barcode scanner, NFC, 1 LAN, 4 USB 3.0, 1 Mic-in, 1 Line-out, and 1 DC Jack
  • SSK515-TIASL-1
    15.6 FHD with PCAP touch slim bezel panel with SDM-L, Intel® Core™ i3 8145UE processor, M.2 SSD 4GB memory (up to 64GB), thermal printer, 2D barcode scanner, NFC, 1 LAN, 4 USB 3.0, 1 Mic-in, 1 Line-out, and 1 DC Jack
  • SSK515-TIDSL-1
    15.6 FHD with PCAP touch slim bezel panel with SDM-L, Intel® Celeron 4305UE processor, M.2 SSD 4GB memory (up to 64GB), thermal printer, 2D barcode scanner, NFC, 1 LAN, 4 USB 3.0, 1 Mic-in, 1 Line-out, and 1 DC Jack

Download

This object is currently under update, please visit later.
