Status : Available
Digital Signage Player with Intel® Core™ i5-1335UE Processor and Intel® Processor U300E, 4 HDMI, 2 RS-232, and 2 LAN
Intel® Core™ i5-1335UE Intel® processor U300E
Quad 4K UHD
Low Power CPU (15W TDP) Automated power scheduling

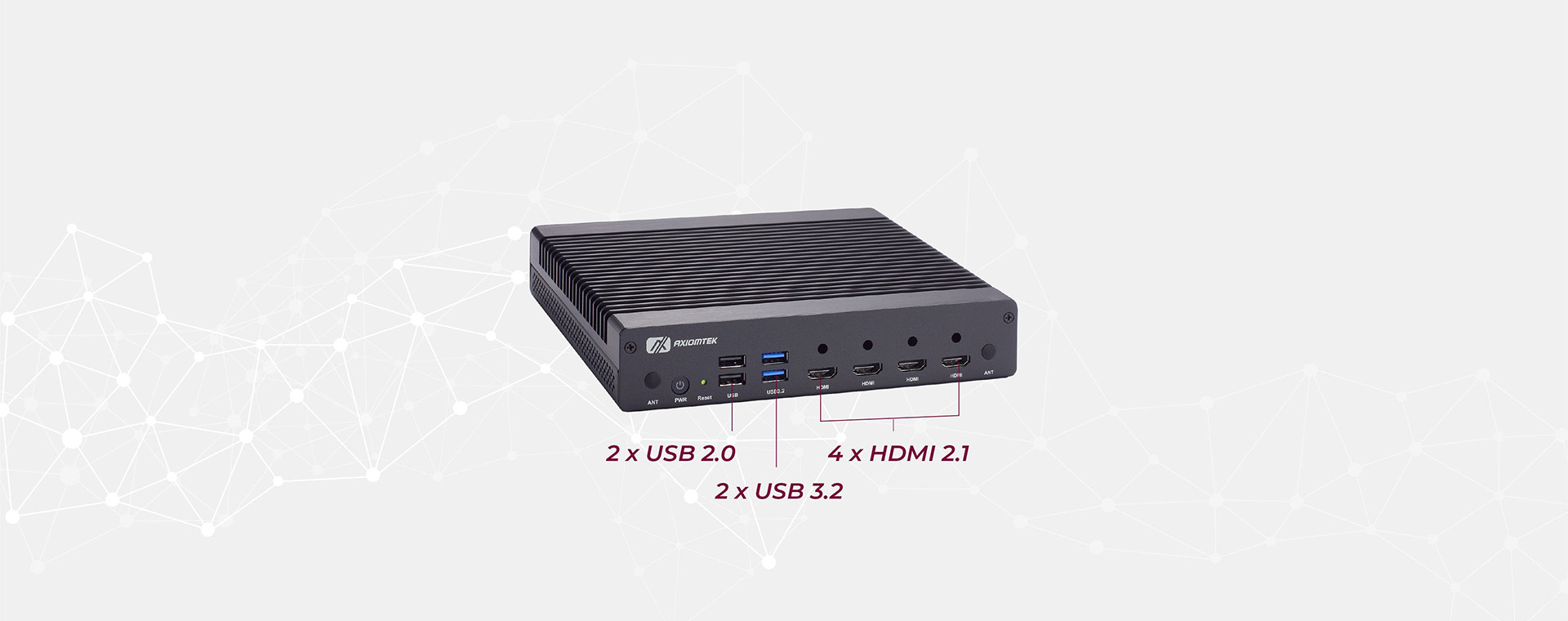

The DSP522 drives up to four independent 4K UHD displays via HDMI 2.1 (TMDS) ports, delivering stunning visual experiences. Its cable-lock design prevents accidental disconnections, while the onboard MCU supports Fixed EDID to maintain consistent resolution—even when used with matrix switches or during system reboots.

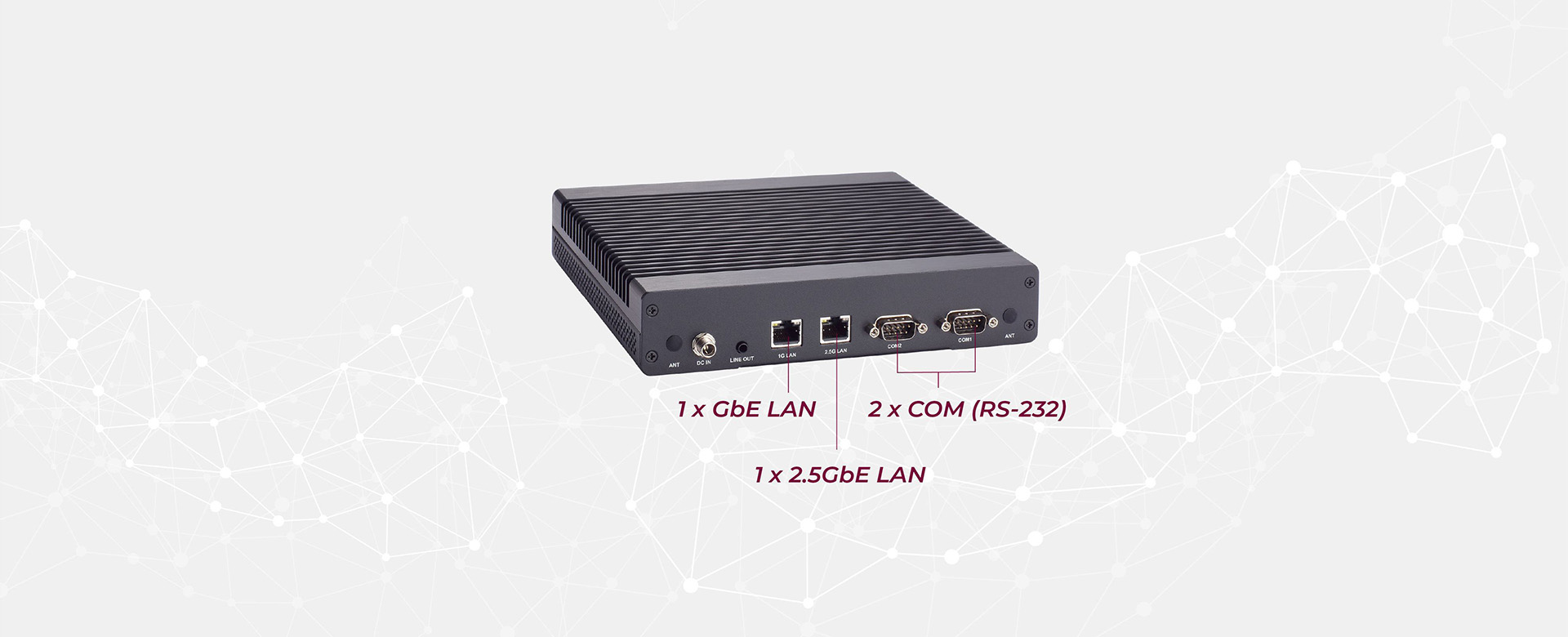

Designed for data-intensive applications, the DSP522 features three M.2 slots (Key B/E/M) to support NVMe drives, 5G, and Wi-Fi 6E modules, enabling rapid content updates and cloud integration. Dual LAN ports, including 2.5GbE, provide reliable bandwidth for real-time streaming and remote system management.
With a 40 mm slim profile, the DSP522 fits discreetly behind screens or inside compact kiosks. Its fanless design ensures silent, maintenance-free operation from 0°C to +50°C, while a lockable 12V DC input secures power in public areas. With support for up to 96GB of DDR5‑5200 memory, the DSP522 handles demanding multimedia tasks with long-term stability and zero risk of fan-related failure.
Featuring 13th Gen Intel® Core™ i5‑1335UE or Intel® Processor U300E and equipped with four 4K HDMI outputs, the DSP522 delivers exceptional visual performance, energy efficiency, and long-term reliability, making it an ideal solution for smart retail, corporate branding, transportation hubs, QSR digital menu boards, and large-scale video wall deployments.
