Which processors and chipsets are supported by the MMB566? + The MMB566 supports 12th, 13th, and 14th Gen Intel® Core™ i9/i7/i5/i3 or Celeron® processors with the Intel® Q670E, R680E, or H610E chipsets, providing high processing power for industrial and commercial workloads.

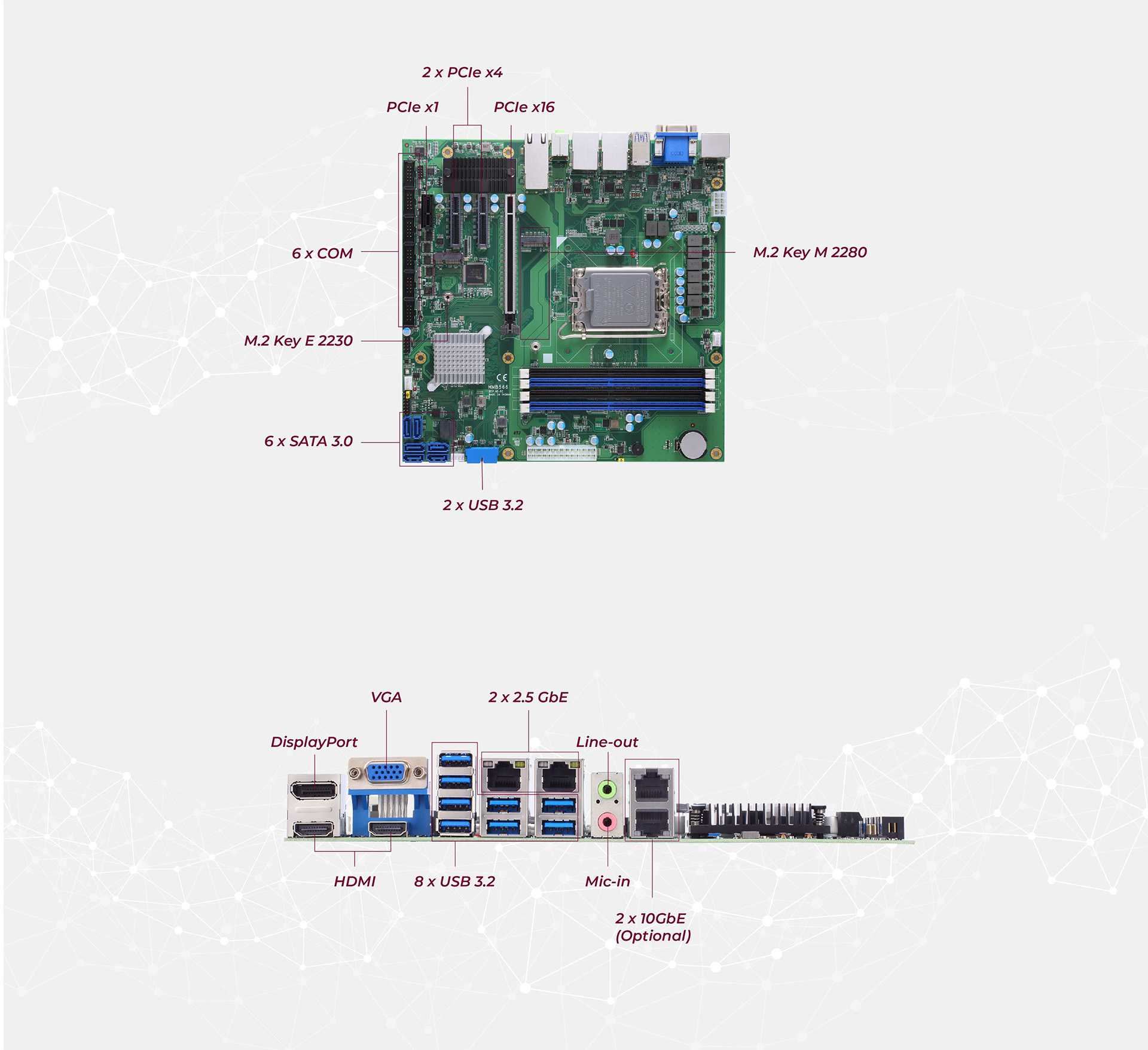

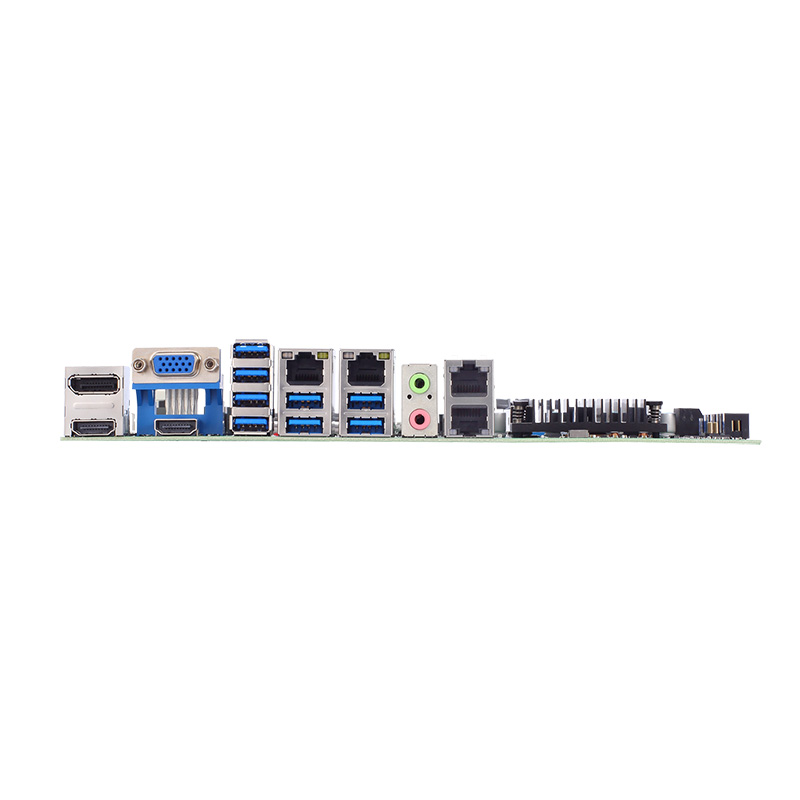

What I/O and expansion options does the MMB566 offer? + The MMB566 provides two 2.5GbE LAN ports (optional dual 10GbE), six SATA 3.0 ports with RAID 0/1/5/10, twelve USB ports, six COM ports, and 8-channel programmable digital I/O. Expansion slots include PCIe x16, two PCIe x4, PCIe x1, M.2 Key E 2230 for Wi-Fi/Bluetooth, and M.2 Key M 2280 for NVMe SSDs.
What graphics and display options are available? + The MMB566 integrates Intel® UHD Graphics 700 series, supporting quad-display output via DisplayPort++, dual HDMI, and VGA, enabling multi-monitor setups for industrial monitoring and commercial applications.
How does the MMB566 ensure reliability and stable operation? + It operates in a 0°C to +60°C temperature range and features hardware monitoring for CPU/system temperature, voltage, and fan speed, along with TPM 2.0 with Intel® PTT support. The 24+8-pin ATX power connector with AT Mode Auto Power ensures stable, efficient power delivery for continuous operation.
What makes the MMB566 suitable for long-term industrial use? + The MMB566 is guaranteed for a 10-year supply, ensuring long-term availability for embedded systems. Its robust industrial design, high reliability, and comprehensive connectivity make it ideal for future-proof industrial and commercial deployments.
How versatile is the MMB566 for different industrial applications? + With rich connectivity, multi-display support, extensive expansion slots, RAID storage options, and programmable digital I/O, the MMB566 can be tailored for automation systems, data analysis, ATMs, and complex embedded projects, delivering optimized performance and flexibility.
