MMB541

Status : Available

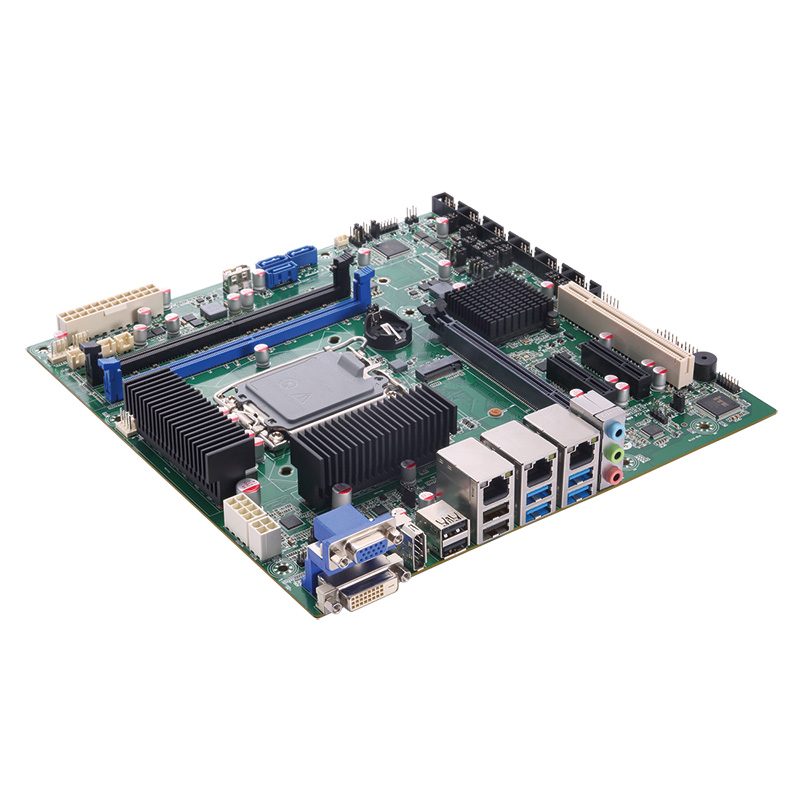

Micro ATX Motherboard with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ Processor, Intel® H610, USB 3.2 Gen1x1 , SATA 3.0, Dual GbE, 2.5GbE, VGA, DP and DVI-D

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MMB541
MMB541
MMB541
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
  • Dual 288-pin DDR4-3200 Long-DIMM, up to 64GB
  • Supports triple-view display via DisplayPort, VGA, and DVI-D
  • Supports M.2 Key M 2280/2242
  • Supports USB 3.2 Gen1x1 and USB 2.0
High-performance
High-performance

14th/13th/12th Gen Intel® Core™
Dual DDR4-3200 up to 64GB

AI Workstations
AI Workstations

PCIe x16 & 2 x PCIe x4

AI Development
High-Speed Data Transfer

4 x USB 3.2, 9 x USB 2.0, 2 x 2.5 GbE LAN



Designed for AI Workstations and Automation

The MMB541 is powered by 14th, 13th, and 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium®, and Celeron® processors with the Intel® H610 chipset. Supporting up to 125W CPUs, it delivers exceptional performance for demanding applications. Equipped with a PCIe x16 slot for GPU or accelerator cards and PCIe x4 slots for additional add-on cards, this micro ATX motherboard provides robust computing power and high-speed data processing, making it ideal for AI workstations and factory automation environments.



High-Speed and High-Capacity Memory

The MMB541 features dual 288-pin DDR4-3200 non-ECC Long-DIMM slots, delivering high-speed data transfer and low latency. Supporting up to 64GB of RAM, it provides ample memory capacity to handle large datasets and run complex processes concurrently, making it an ideal choice for applications that demand both performance and scalability.



Advanced Connectivity for Speedy Data Transfer

The MMB541 motherboard provides advanced connectivity, making it highly versatile for demanding industrial applications. It includes high-speed USB 3.2 Gen1x1 and USB 2.0 ports for seamless data transfer and peripheral integration. Triple LAN support—with dual Gigabit Ethernet (GbE) ports and a 2.5GbE port—ensures robust and reliable network performance, essential for handling high-volume data and real-time communication in automation and AI applications.



Triple Display

Featuring triple-display output options—DisplayPort, VGA, and DVI-D—the MMB541 is ideal for multi-screen setups commonly used in factory automation and AI-driven applications.

Triple Display

Fast Storage Option

To realize fast and reliable storage functions, the MMB541 includes an M.2 Key M 2280/2242 slot, offering support for SATA SSDs. It ensures quick data access and efficient system performance.

Fast Storage Option

Great Expandability

  • 1 x PCIe Gen4 x16 slot for GPU or accelerator cards
  • 2 x PCIe Gen3x2 from PCH (with x4 open-ended slots)
  • 1 x 32-bit PCI slot, default clock is 33 MHz

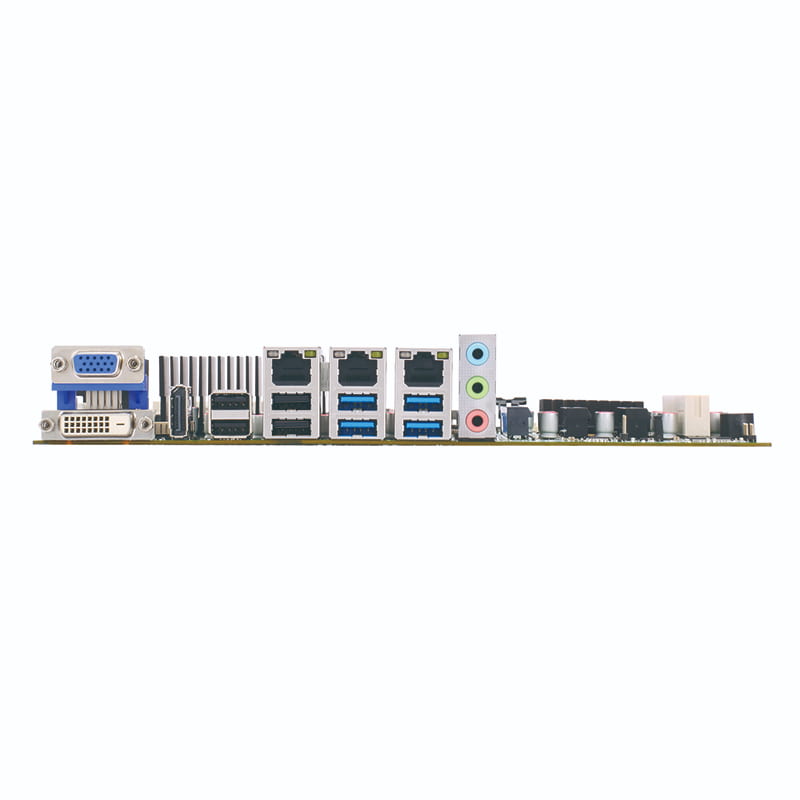

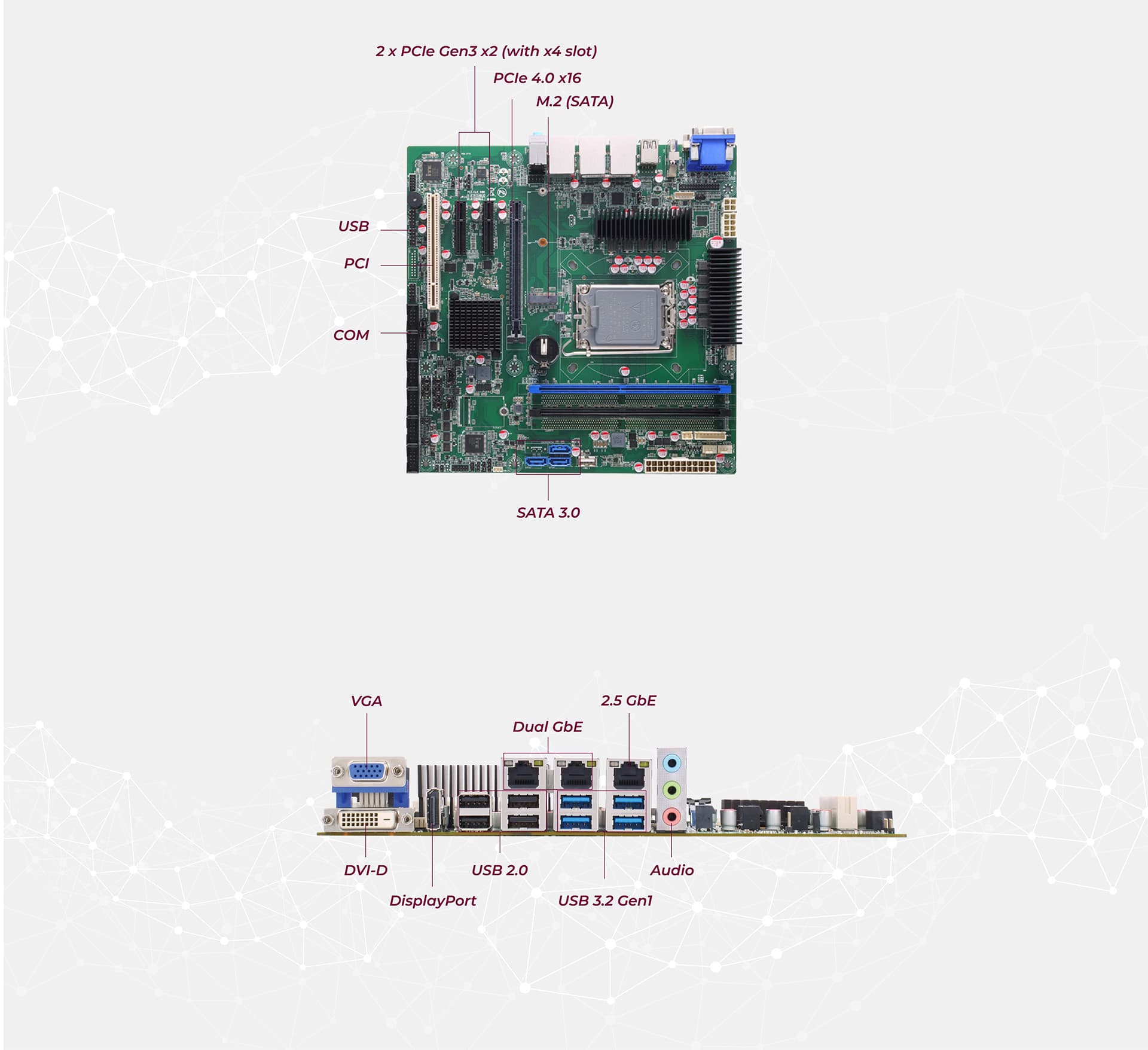

Rich I/O Interfaces

MMB541 I/O

Specifications

CPU
  • LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® H610
System Memory
  • Dual 288-pin DDR4-3200 non-ECC Long-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 4 x RS-232
  • 1 x RS-232/RS-485/RS-422
  • 1 x RS-232/RS-485
USB
  • 4 x USB 3.2 Gen1x1 (Type-A, rear I/O)
  • 4 x USB 2.0 (Type-A, rear I/O)
  • 1 x USB 2.0 (vertical Type-A, internal)
  • 4 x USB 2.0 (header, internal)
Ethernet
  • 1 x 10/100/1000/2500 Mbps (Intel® I226-V)
  • 2 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x DP; max. resolution up to 4096 x 2160@30Hz
  • 1 x DVI-D; max. resolution up to 1920 x 1200@60Hz
  • 1 x VGA; max. resolution up to 1920 x 1200@60Hz
Digital I/O
  • 8-channel programmable
Audio
  • MIC-in/Line-in/Line-out
Storage
  • M.2 Key M 2280/2242 (Supports SATA SSD)
  • 3 x SATA-600 without RAID
Expansion
  • 1 x PCIe Gen4 x16 slot
  • 2 x PCIe Gen3 x2 from PCH (with x4 open-ended slots)
  • 1 x 32-bit PCI slot, default clock is 33 MHz
Others
  • TPM 2.0 (optional)
Battery
  • Lithium 3 V/ 220 mAH
Power Requirements
  • TBD
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 244mm x 244mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MMB541-H610-SP (P/N-E38W541101)
    Micro ATX motherboard with LGA1700 socket 14th/13th/12th gen Intel® Core™ processor, Intel® H610, USB 3.2 Gen1x1, SATA 3.0, triple LAN including dual GbE and 2.5GbE, VGA, DisplayPort, and DVI-D; single packing
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 594G5208000E
    SATA3 Cable 180D with lock & B.sleeve L50cm
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 713000000500
    CPU heatsink for 1U chassis
  • 711000002500
    CPU cooler for 2U, 4U, and wall mount chassis

Download

Drivers

Date Description Version Download File
2024/11/06 06. Intel® Serial IO_Win10_Win11_x64 VA1.0
2024/11/06 05. Intel_CSME_Win10_Win11_x64 VA1.0
2024/11/06 04. I226-Win11-x64-2.1.3.15 VA1.0
2024/11/06 04. I226-Win10-x64-1.1.4.38 VA1.0
2024/11/06 02. Intel Graphics_Win10_Win11_x64 VA1.0
2024/11/06 03. Realtek Audio Driver_Win10_Win11_x64 VA1.0
2024/11/06 04. i210 Driver 14.0.2.0_Win10_Win11_x64 VA1.0
2024/11/06 01. Intel Chipset_Win10_Win11_x64 VA1.0

Software

Manual

Date Description Version Download File
2025/03/18 MMB541 User's Manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2026/01/08 CE-Conformity Declaration
2026/01/08 UKCA Declaration of Conformity

Frequently Asked Questions

You Might Also Like

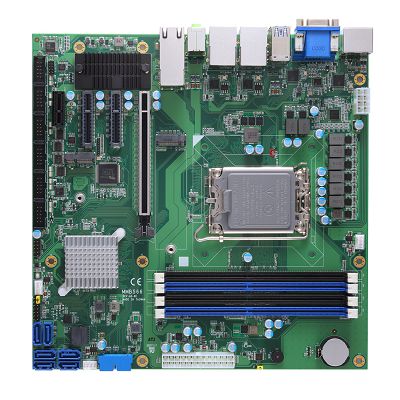

Picture of MMB566
