KIWI330

Status : Available

1.6" SBC with Intel Amston Lake/Alder Lake-N® Processor, LPDDR5, eDP, M.2 Key E, 2 USB 3.2 (Type-C), and USB 3.2 (Vertical Type-C)

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
KIWI330
KIWI330
KIWI330
KIWI330
KIWI330
KIWI330
KIWI330
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

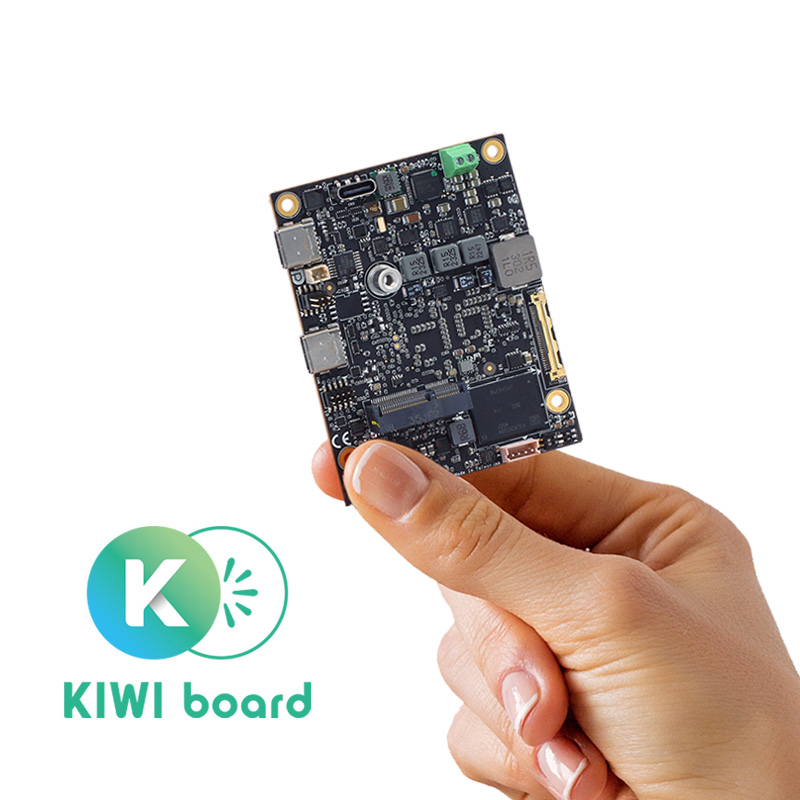

  • Super tiny 1.6-inch embedded board
  • Intel Amston Lake/Alder Lake-N® processor onboard
  • Onboard 4GB LPDDR5 memory
  • Onboard 64GB NVMe SSD storage
  • Supports M.2 Key E socket
  • Supports eDP for display
  • Supports operating system: Linux, Windows®
Powerful Yet Energy-Efficient
Powerful Computing

Intel® Processor N50 (6W TDP)
LPDDR5 Memory and NVMe SSD

Ultra-Compact & Rugged
Ultra-Compact & Rugged

 1.6” SBC (7.2 × 5.6 cm)
-30°C to +60°C

Flexible Expansion
Flexible Expansion

MIO Expansion Modules
Onboard M.2 Key E 2230



Ultra-Compact & Energy-Efficient Computing for Edge Applications

Designed for space- and power-constrained edge environments, the KIWI330 features the Intel® N50 processor with only 6 W TDP. With 4GB onboard LPDDR5 memory and a 64GB NVMe SSD, it delivers responsive performance while maintaining low power consumption. Its ultra-small footprint (7.2 × 5.6 cm) enables flexible deployment in robotics, smart devices, industrial automation, edge AI computing, and intelligent gateway solutions.

High Integration Capability with Flexible I/O and Expansion

Despite its small footprint, the KIWI330 offers rich connectivity, including two USB 3.2 Type-C ports — one horizontal with DisplayPort support — and an M.2 Key E 2230 slot for wireless modules or AI accelerators. The board also supports eDP for high-resolution embedded display applications, while optional MIO expansion modules enable the effortless addition of COM, LAN, or GPIO ports.



Industrial-Grade Reliability for Continuous Edge Operation

The KIWI330 supports a wide operating temperature range from -30°C to +60°C and operates on a stable 12 VDC power input. An onboard RTC backup battery ensures system time retention during unexpected power interruptions. Combined with hardware monitoring features and comprehensive middleware support, the compact SBC is designed for long-term, unattended operation and supports both Windows® and Linux® platforms.

Rich I/O Interfaces

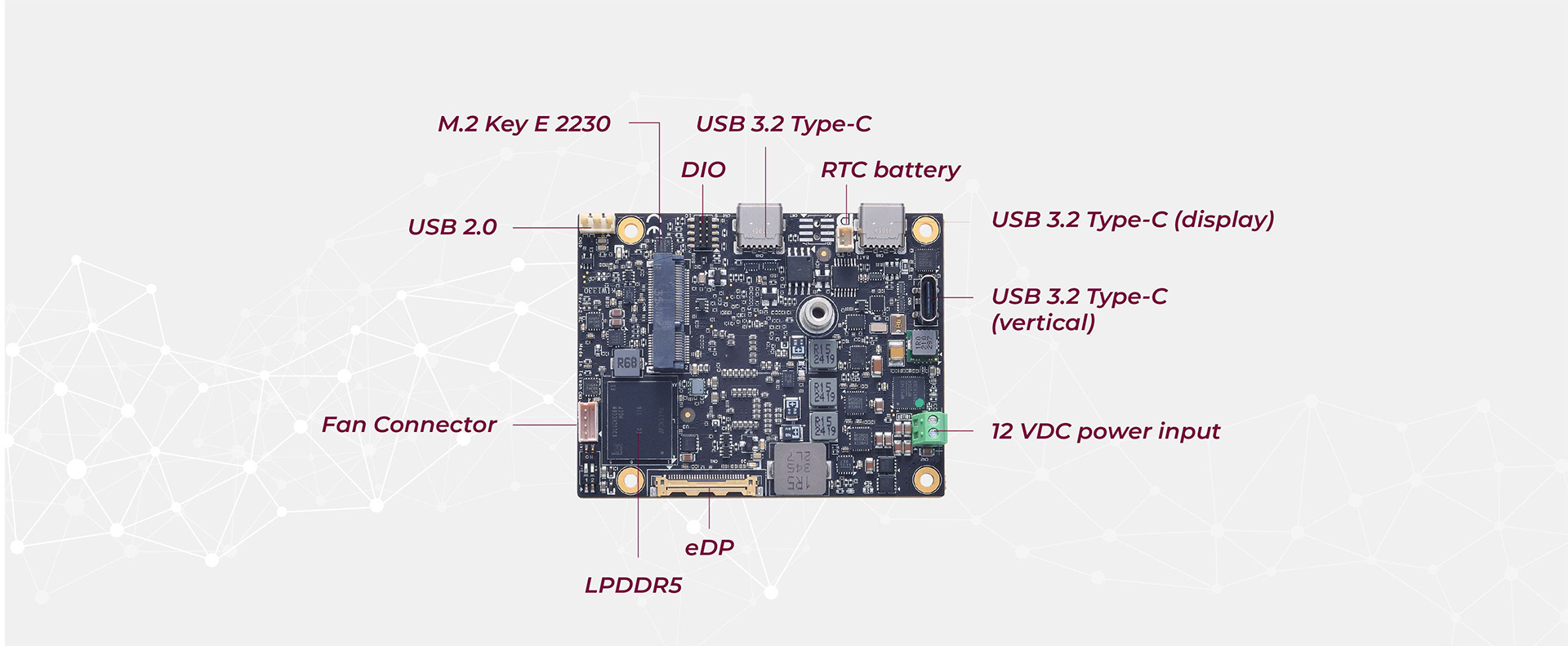

Front View
KIWI330 Front I/O

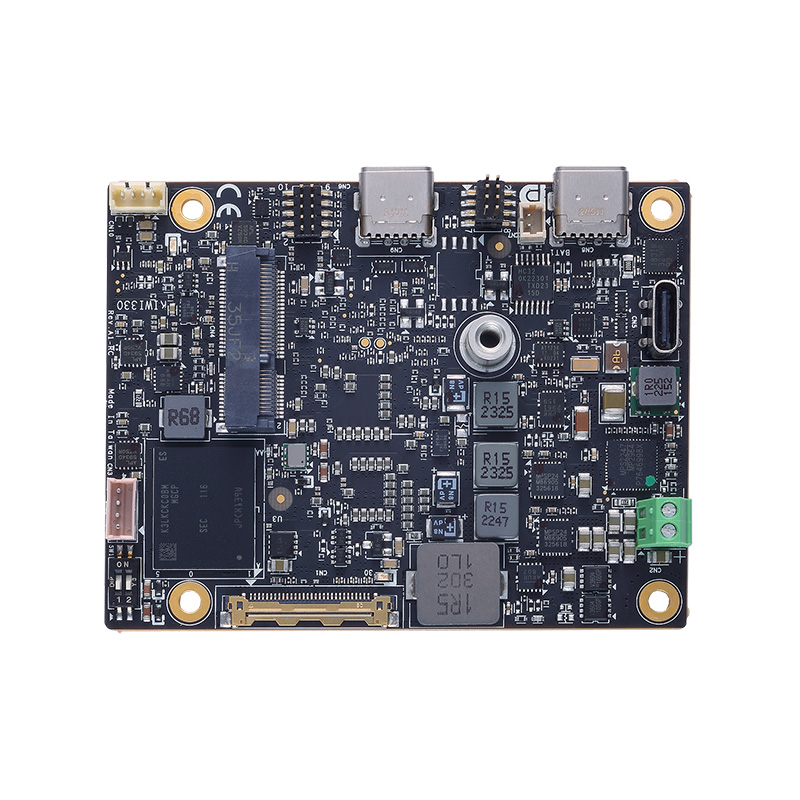

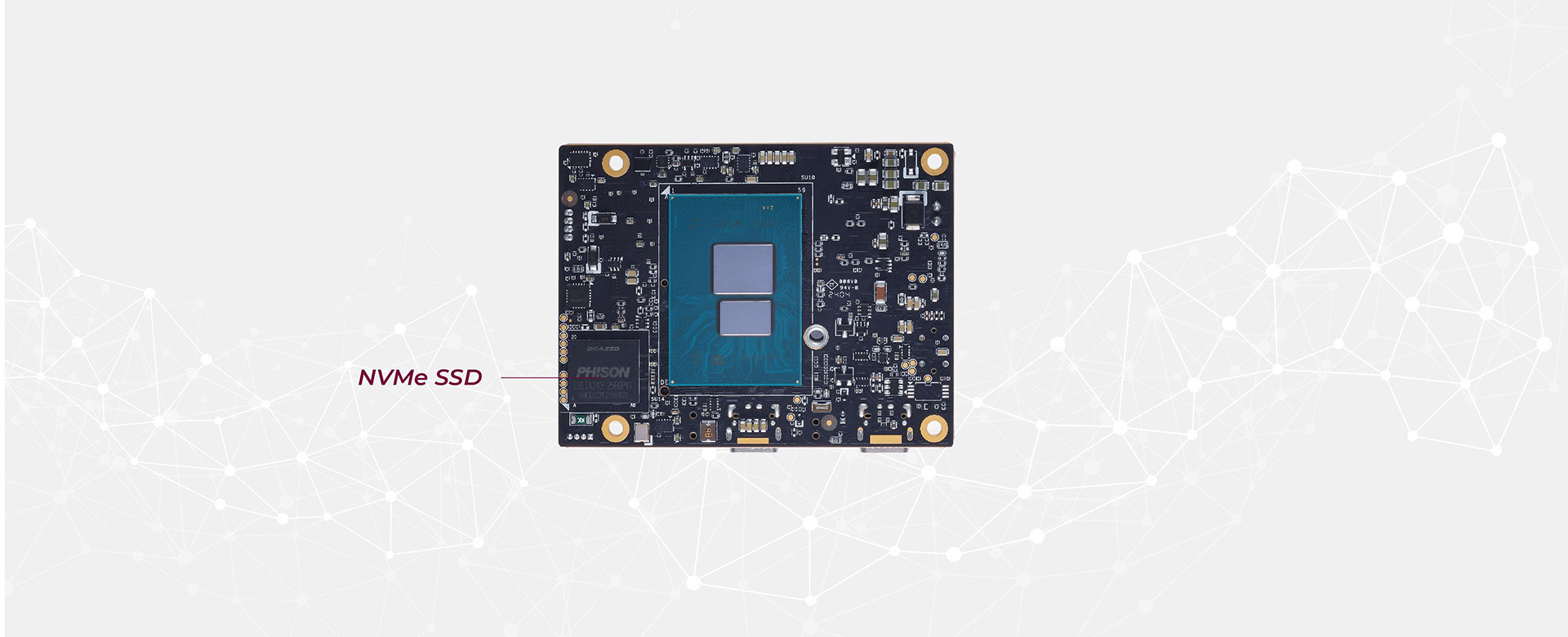

Rear View
KIWI330 Rear I/O

Specifications

CPU
  • Intel Amston Lake/Alder Lake-N® processor
Chipset
  • SoC integrated
System Memory
  • On-board 4GB LPDDR5
BIOS
  • AMI
COM
  • N/A
USB
  • Horizontal:
  • 1 x USB 3.2 Type-C DP Alt Mode
  • 1 x USB 3.2 Type-C
  • Vertical:
  • 1 x USB 3.2 Type-C
  • Internal:
  • 1 x USB 2.0 header (1 x 4-pin wafer)
Ethernet
  • N/A
Display
  • 1 x eDP
Audio
  • N/A
Storage
  • BGA 64GB NVMe
Expansion
  • 1 x M.2 Key E 2230 (USB 2.0, PCIe)
Others
  • N/A
Battery
  • Lithium 3V/225 mAh
Power Input
  • 2-pin Phoenix type
Power Requirements
  • 12 VDC/5A
Watchdog Timer
  • 255 levels, 1 to 255 sec
Hardware Monitoring
  • Yes
Operating Temperature
  • -30°C to +60°C (-22°F to +140°F) for Amston Lake SKU
  • 0°C to +60°C (+32°F to +140°F) for Alder Lake-N SKU
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 72 mm × 56 mm
Operating System
  • Linux, Windows®
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • KIWI330-X7211-S (P/N-E3D0330105)
    Intel Atom® x7211RE processor, 4GB LPDDR5 & 64GB NVMe SSD with cooler, and -30°C to +60°C
  • KIWI330-N50-S (P/N-E3D0330100)
    Intel® processor N50, 4GB LPDDR5, and 64GB NVMe SSD with cooler
  • KIWI330-N50-M5 (P/N-E3D0330103)
    Intel® processor N50, 4GB LPDDR5, and 64GB NVMe SSD with MIO335 and cooler

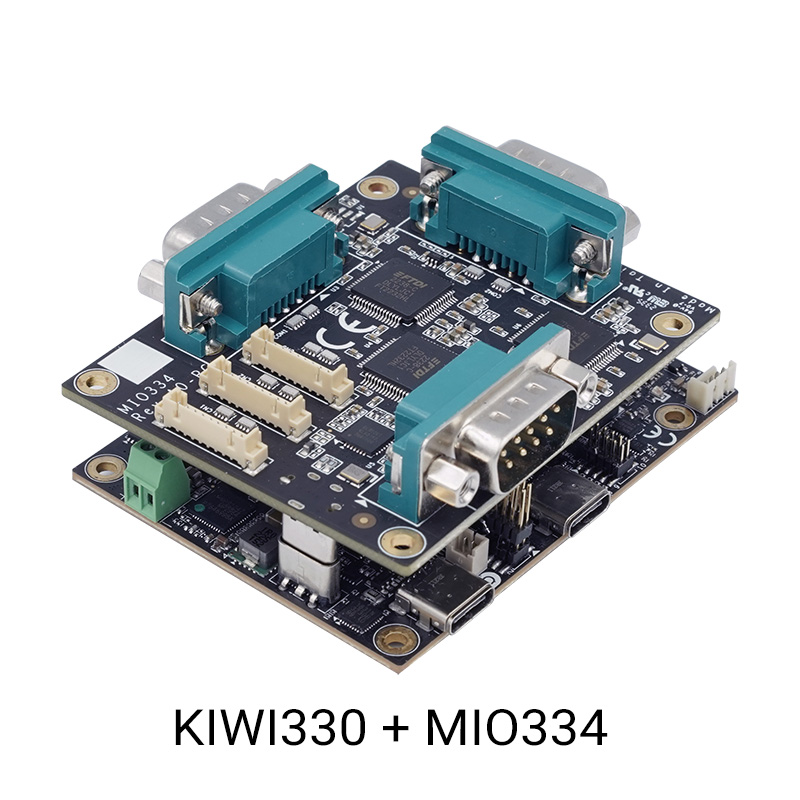

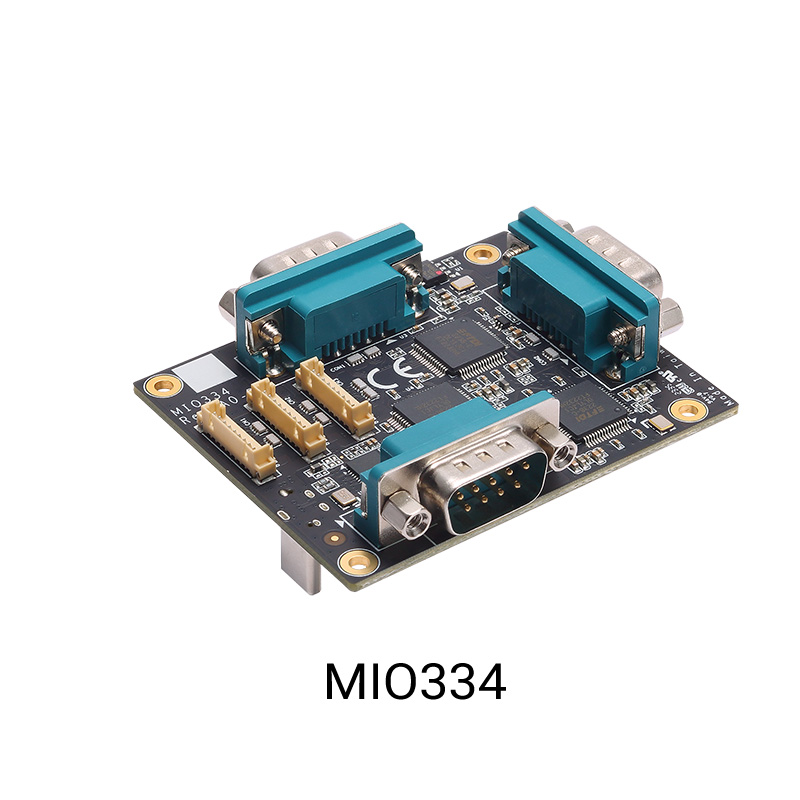

  • MIO334-6COM-S (P/N-E39Q334101)
    6-port COM module, 3 DB9 RS-232, and 3 header RS-232

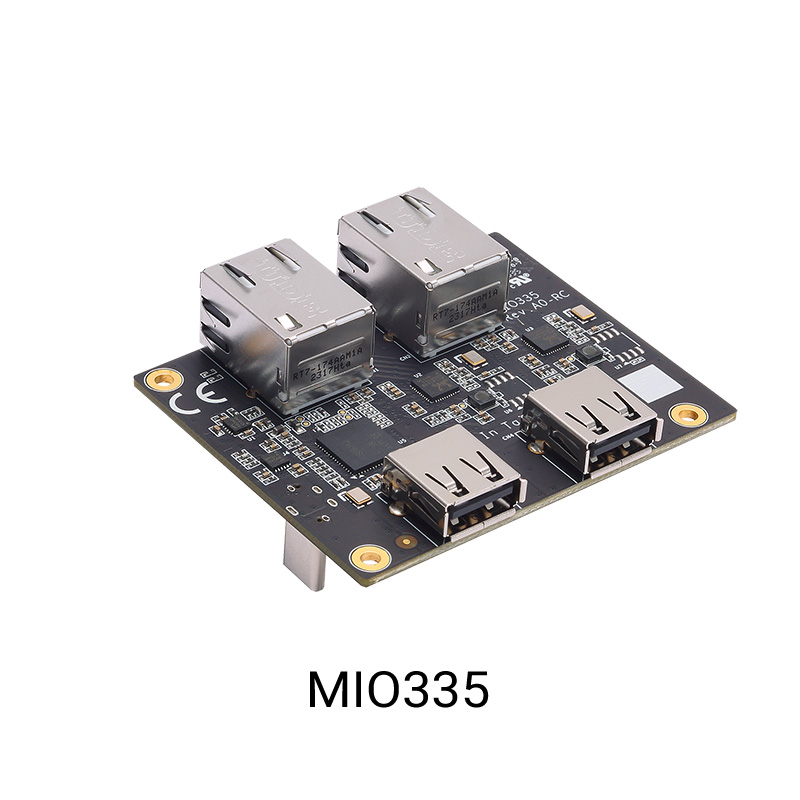

  • MIO335-2LAN-S (P/N-E39Q335101)
    Dual GbE LAN module, 2 RJ-45 GbE LAN, and 2 USB 2.0 Type-A
  • USB cable (P/N-594P8802810E)
    USB‑to‑1.25_4‑pin housing, L = 150 mm
  • COM cable (P/N-59380880250E)
    COM‑port cable, DB9 - 9 × 1 P, L = 250 mm, P = 1.25
  • Adapter (P/N-50966124050E)
    Adapter 12V 60W FSP060-DHAN3 with screw
