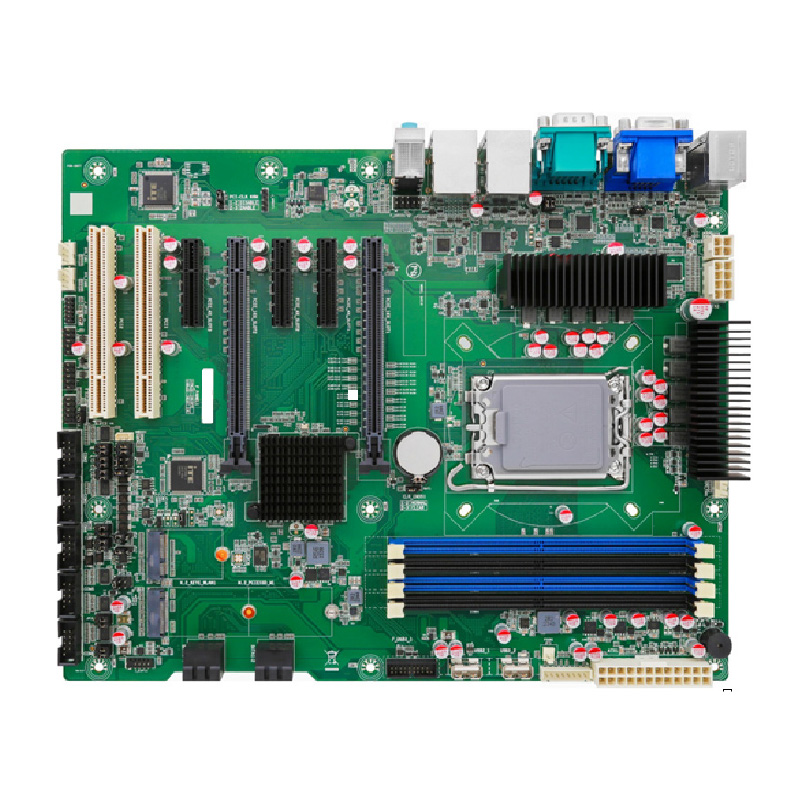

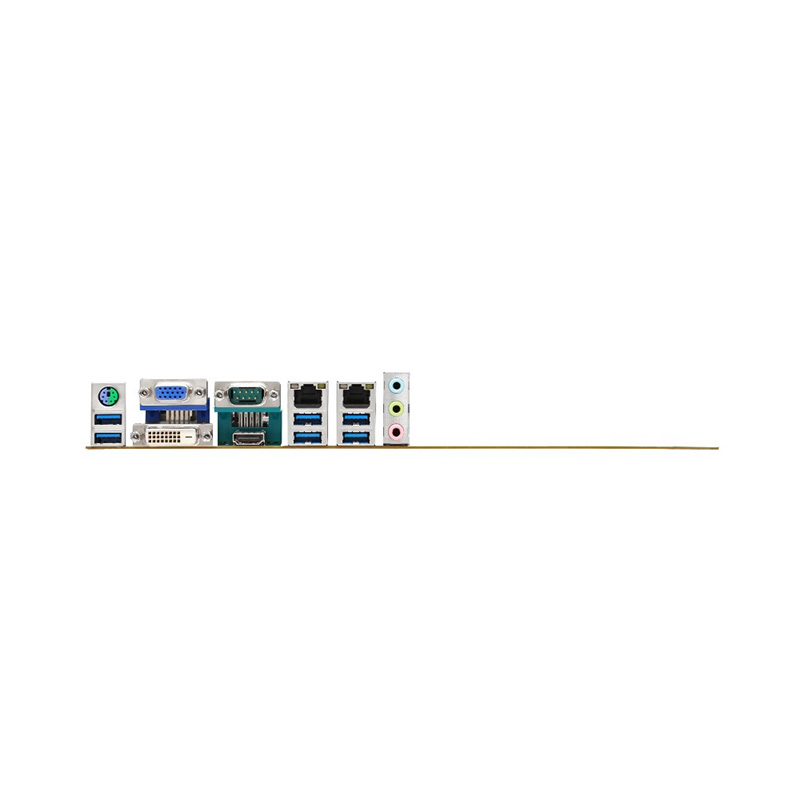

IMB542

Status : Coming Soon

ATX Motherboard with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® Q670, USB 3.2 Gen 1x1, SATA 3.0, GbE, VGA, DVI-D, and HDMI

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
IMB542
IMB542
PCIe Expansion

PCIe Expansion

RAID

RAID

TPM

TPM

Triple-View

Triple-View

USB 3.2

USB 3.2

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
  • Four 288-pin DDR5-4400 non-ECC Long-DIMM, up to 192GB
  • Supports triple-view with VGA, DVI-D, and HDMI interfaces
  • Supports M.2 Key M 2280 and Key E 2230
  • 6 USB 3.2 Gen 1x1 and 2 USB 3.2 Gen 1x1 (internal)
  • TPM 2.0 supported

Specifications

CPU
  • LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (up to 125W)
Chipset
  • Intel® Q670
System Memory
  • 4 x 288-pin DDR5-4400 non-ECC Long-DIMM, up to 192GB
BIOS
  • AMI
COM
  • 1 x RS-232 (rear I/O)
  • 3 x RS-232 (internal box header)
  • 1 x RS-232/422/485 (internal box header)
  • 1 x RS-232/485 (internal box header)
USB
  • 6 x USB 3.2 Gen 1x1 (5Gbps, rear I/O)
  • 2 x USB 3.2 Gen 1x1 (5Gbps, internal box header)
  • 4 x USB 2.0 (internal pin header)
  • 1 x USB 2.0 (internal 180D Type-A)
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I210-AT)
  • 1 x 10/100/1000 Mbps (Intel® I219-V)
Display
  • 1 x VGA, up to 1920 x 1200 @ 60Hz
  • 1 x HDMI 2.0, up to 4096 x 2160 @ 60Hz
  • 1 x DVI-D, up to 1920 × 1200 @ 60Hz
Digital I/O
  • 8-channel programmable
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out
Storage
  • M.2 Key M 2280 with support for PCIe x4 via PCH
  • 4 x SATA-600 with RAID 0/1/5/10
Expansion
  • 2 x PCIe x16 slot (signal: PCIe Gen 4 x16 + PCIe Gen 3 x4)
  • 3 x Open-ended PCIe Gen 4 x4 slot
  • 1 x M.2 Key E 2230 (supports PCIe x1 + USB 2.0)
  • 2 x 32-bit PCI slot; default clock is 33 MHz
Others
  • 1 x PS/2 keyboard (rear I/O)
Battery
  • Lithium 3 V/ 220 mAH
TPM
  • Not included by default; supports Intel® PTT as default
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • IMB542-Q670-SP
    ATX motherboard with LGA1700 socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor, Intel® Q670, USB 3.2 Gen 1x1, SATA 3.0, GbE LAN, VGA, DVI-D, and HDMI (single packaging)
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen 1 cable with bracket, L=400 mm
  • 594G5208000E
    SATA 3.0 signal cable, L=500 mm with locking latch
  • 594G5208010E
    SATA 3.0 signal cable, L=500 mm without locking latch
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 711000002500
    CPU cooler for 2U, 4U, and wall mount chassis with smart fan

Download

This object is currently under update, please visit later.

You Might Also Like

Picture of IMB540

IMB540
Picture of IMB541

IMB541

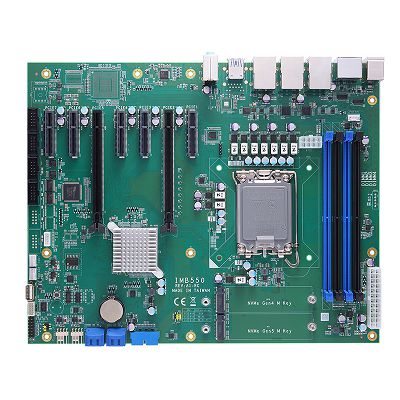

Picture of IMB550
