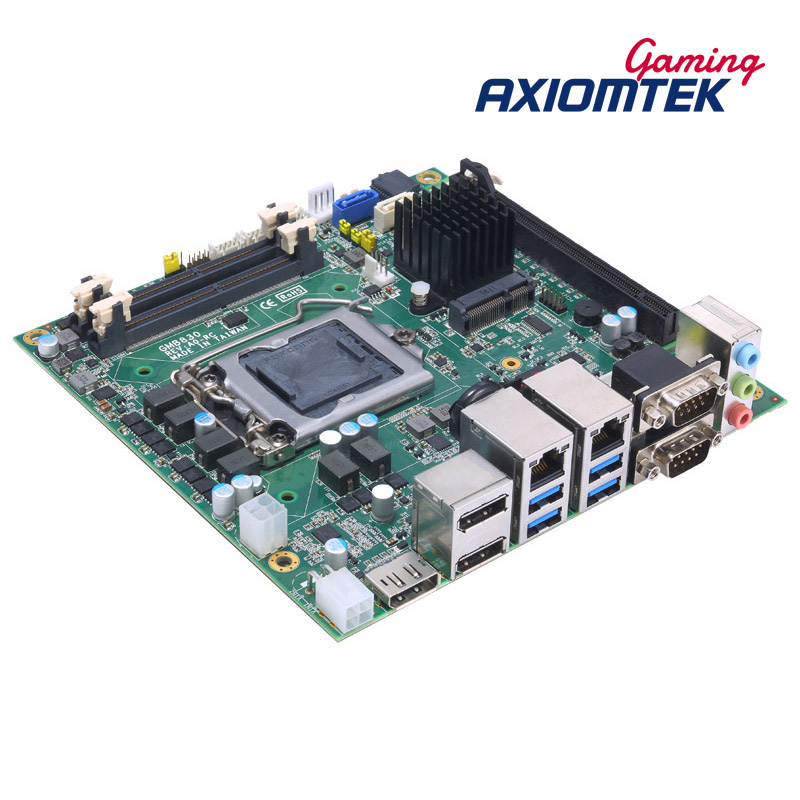

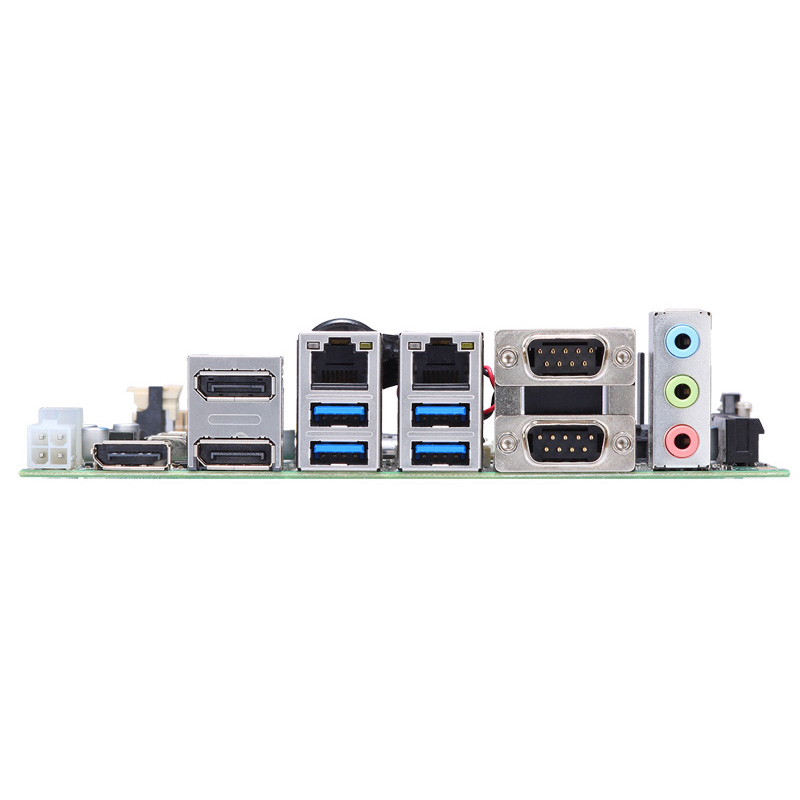

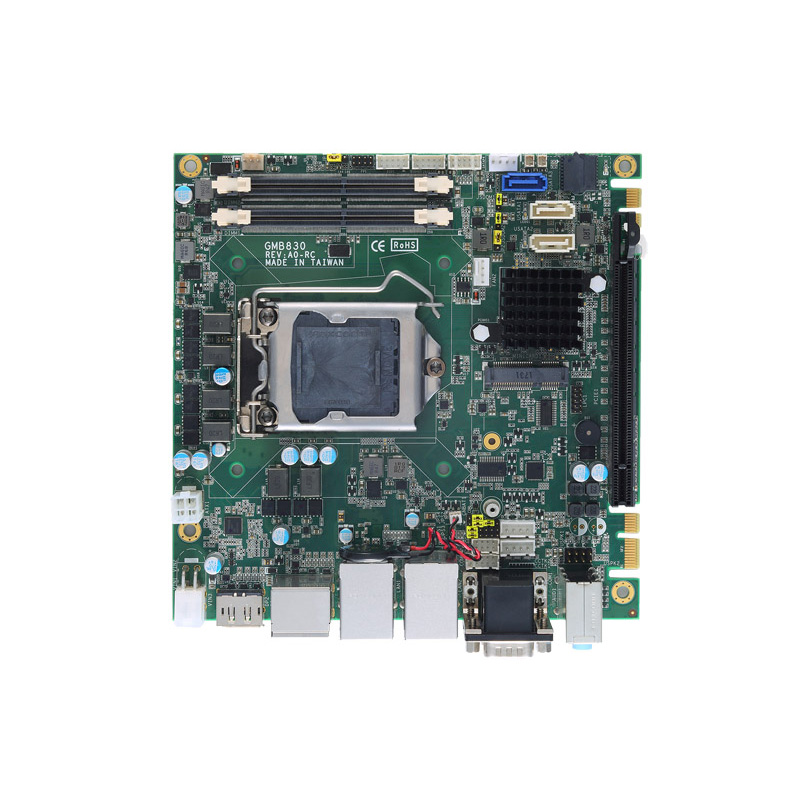

GMB830

Status : Available

Mini-ITX Gaming Board with 8th/9th Generation Intel® Core™

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
GMB830
GMB830
GMB830
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • High performance Intel® platform
  • GLI verified TrustedBoot
  • PCIe golden finger expansion for Gaming I/O Module
  • Optional 9-bit serial port for SAS 6.02
  • Lifetime long-term supply

Specifications

CPU
  • LGA1151 socket supports 8th/9th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
Chipset
  • Intel® Q370 / H310
System Memory
  • 2 x 260-pin DDR4 SO-DIMM up to 2400/2666 MHz, max. up to 64GB
BIOS
  • AMI -uEFI
Watchdog Timer
  • 1 sec to 255 min
USB
  • 4 x USB 3.2 Gen1x1 (5Gb/s)
  • 4 x USB 2.0 pin header
Serial Interface
  • 2 x Full RS-232 DB9 (COM1 supports RS-232/422/485)
  • 1 x Full RS-232 box header
  • 3 x Simple RS-232 box header
Ethernet
  • 2 x GbE LAN ports
Audio
  • HD Audio: Line-in/ Line-out/ Mic-in phone jack (7.1 Ch.)
  • Stereo: 6W + 6W audio amplier outputs pin header
  • SPDIF output pin header
Display
  • 3 x DP++ port (up to 4096 x 2160 @60Hz)
  • H310 supports dual displays
GPIO
  • N/A
Expansion
  • 1 x PCIe x16 (Gen3)
  • 1 x Full-size Mini-PCIe (PCIe x1 & USB 2.0 signal)
  • 2 x PCIe golden nger expansion for Axiomtek Gaming I/O Module
Storage
  • 3 x SATA 6Gb/s
Security
  • Onboard TPM 2.0
  • Axiomtek TrustedBoot for BIOS security boot
Power Input
  • DC +12V Input, ± 5%
Dimensions
  • 170 mm x 170 mm
Operating Temperature
  • 0°C to 60°C (32 °F to 140 °F)
Humidity
  • 10% to 90%, non-condensing
OS
  • Windows® 10 Enterprise & IoT Enterprise, 64-bit
Software
  • SAS 6.02 COM port driver provided (via Gaming I/O module)

Ordering Information

  • GMB830-Q370 (P/N-E38V830105)
    8th/9th Gen Intel® Core™ Mini-ITX board with Q370 PCH, 3 x DP++, 2 x GbE, 6 x COM, 8 x USB, 12V DC-in
  • GMB830-H310 (P/N-E38V830104)
    8th/9th Gen Intel® Core™ Mini-ITX board with H310 PCH, 3 x DP++, 2 x GbE, 6 x COM, 8 x USB, 12V DC-in
  • 5078V820000E
    LGA1151/1200 cooler kit, 2U chassis compatible, 65W
  • E9C900C000
    LGA1151/1200 cooler kit, 1U chassis compatible, 35W
  • 59403208000E
    SATA cable 180D to 180D with lock L=20cm-UL
  • 590000001800
    SATA+power cable 7+15P female 180° and housing pitch 2.54mm 1x 4P, L=45cm
  • 594Q8302100E
    COMPort cable, DB9 male x 3, PHD4 x 2P, L=30cm
  • 594Q8302110E
    COMPort cable, DB9 male, PHD5 x 2P, L=30cm
  • 594Q3002800E
    USB2.0 cable HS2 x 5P P2.0/USB x 2 stack AF 20cm
