GMB140

Status : Available

Mini-ITX Gaming Board with AMD Ryzen™ Embedded V1000 / R1000 SoC

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote

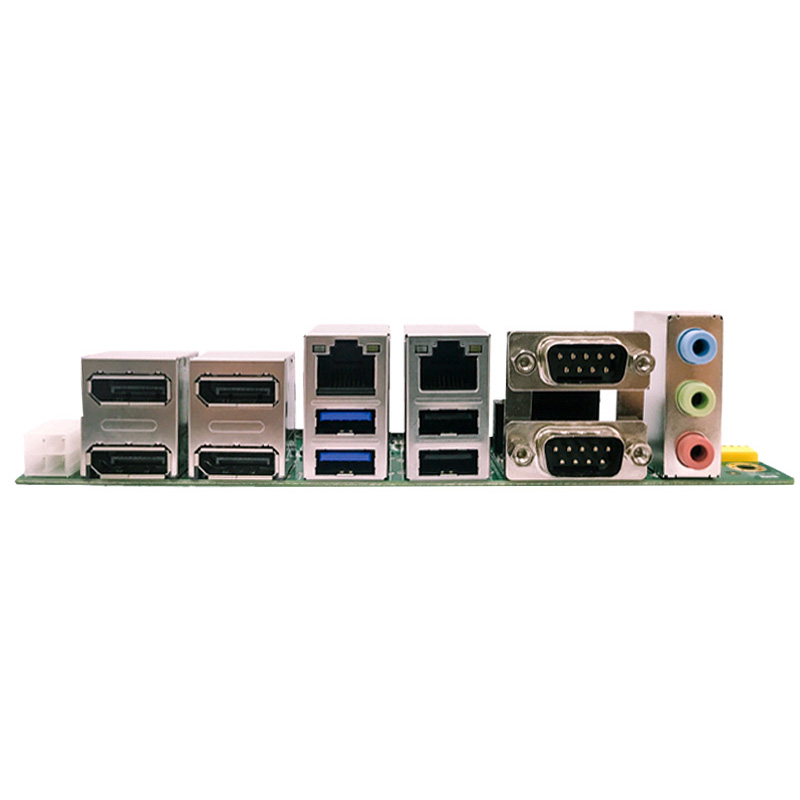

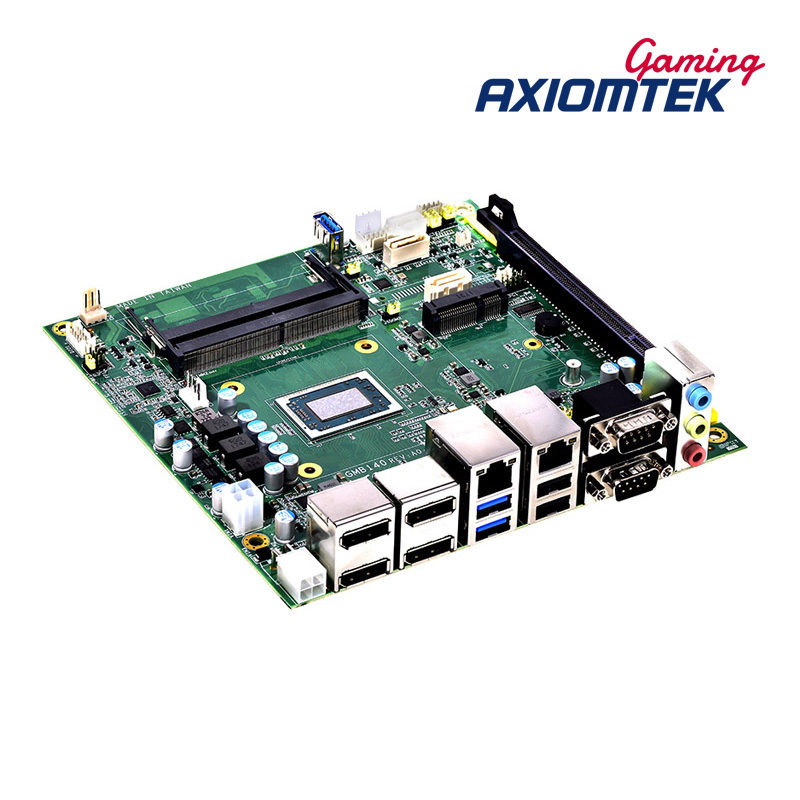

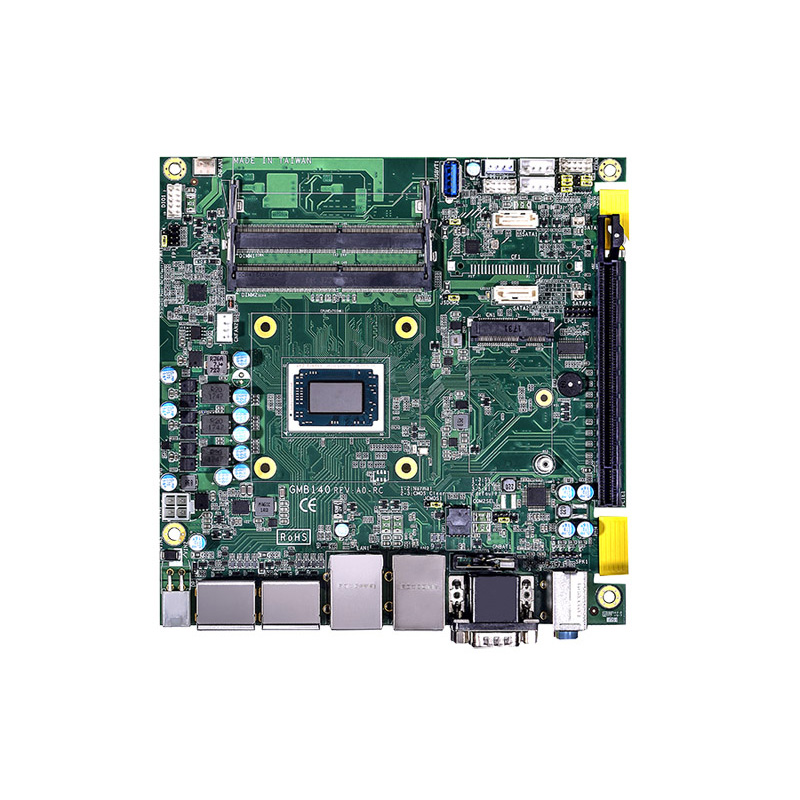

GMB140
GMB140
GMB140
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • High performance AMD platform
  • GLI verified TrustedBoot
  • Extension PCIe I/F for gaming I/O module
  • Optional support for a 9-bit serial port for SAS 6.02
  • Lifetime long-term supply

Specifications

CPU
  • AMD Ryzen™ Embedded V1000/R1000 SoC
Chipset
  • SoC integrated
System Memory
  • 2 x DDR4 SO-DIMM up to 3200 MHz, max. up to 64 GB
BIOS
  • AMI -uEFI
  • GLI verified TrustedBoot
Watchdog Timer
  • 1 sec to 255 min
USB
  • 7 x USB
Serial Interface
  • 4 x RS-232
Ethernet
  • 2 x GbE LAN
Audio
  • HD audio 5.1 channels Line-out
  • Stereo 6 W+6 W audio amplified output
Display
  • V1000 series : 4 x DP++
  • R1000 series : 3 x DP++
GPIO
  • 8-bit GPIO
Expansion
  • 1 x PCIe x16 (supports PCIe x8 signal only)
  • 1 x Mini-PCIe
Storage
  • 2 x SATA III port
Security
  • TPM 2.0 engine
  • RSA2048 and AES256 hybrid encryption
Power Input
  • DC +12 V
Dimensions
  • 170 mm x 170 mm
Operating Temperature
  • 0°C to 60°C (32°F to 140°F)
Humidity
  • 10% to 90%, non-condensing
OS
  • Windows® 10 IoT Enterprise, Linux
Software
  • SAS 6.02 COM port driver provided (via Gaming I/O module)

Ordering Information

  • GMB140-V1807-H (P/N-E38V140114)
    AMD Ryzen™ Embedded V1807 Mini-ITX Board with VEGA 11 graphics 4 x DP++, 6 x COM, 7 x USB, 2 x GLAN, Audio, PCIe x8 and Mini-PCIe, DC 12 V input
  • GMB140-V1605-H (P/N-E38V140116)
    AMD Ryzen™ Embedded V1605 Mini-ITX Board with VEGA 8 graphics 4 x DP++, 6 x COM, 7 x USB, 2 x GLAN, Audio, PCIe x8 and Mini-PCIe, DC 12V input
  • GMB140-R1606-H (P/N-E38V140120)
    AMD Ryzen™ Embedded R1606 Mini-ITX Board with VEGA 3 graphics 3 x DP++, 6 x COM, 7 x USB, 2 x GLAN, Audio, PCIe x8 and Mini-PCIe, DC 12V input
  • GMB140-R1505-H (P/N-E38V140121)
    AMD Ryzen™ Embedded R1505 Mini-ITX Board with VEGA 3 graphics 3 x DP++, 6 x COM, 7 x USB, 2 x GLAN, Audio, PCIe x8 and Mini-PCIe, DC 12V input
  • 59403208000E
    SATA cable 180D to 180D with lock L=20cm-UL
  • 590000001800
    SATA+power cable 7+15P female 180° and housing pitch 2.54mm 1x 4P, L=45cm
  • 594Q6002110E
    COM Port cable DB9 Male x4 L=30CM
  • 594Q3002800E
    USB 2.0 cable HS2 x 5P P2.0/USB x 2 stack AF 20cm

Download

This object is currently under update, please visit later.

Frequently Asked Questions

You Might Also Like

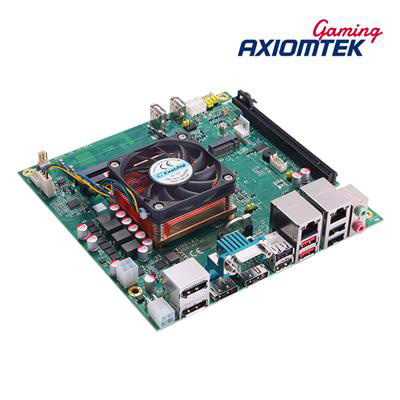

Picture of GMB143
