AGP151

Status : Available

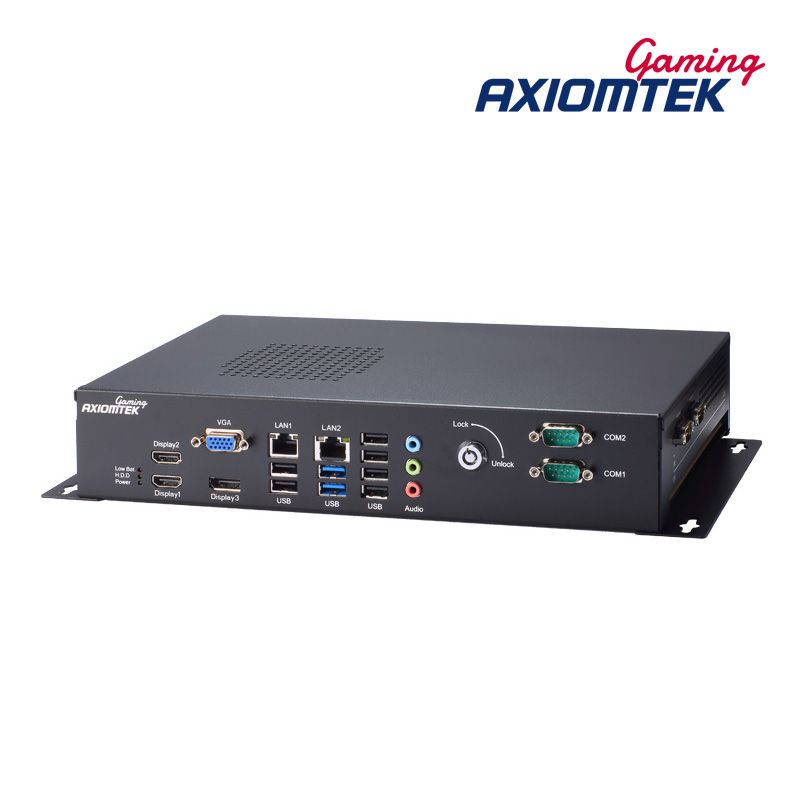

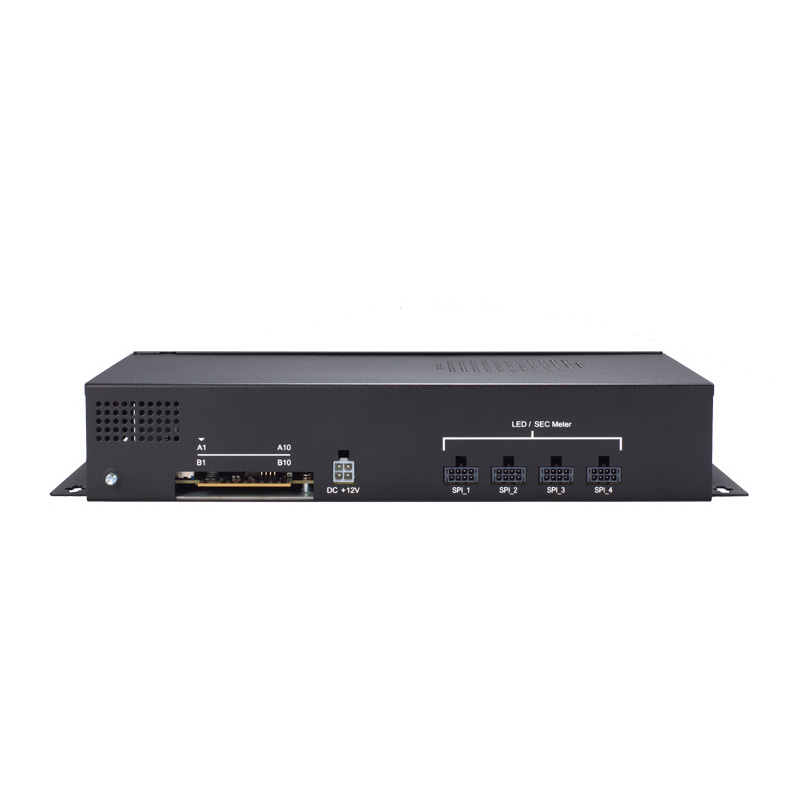

JAMMA-Type Gaming Control System with 12th/13th/14th Gen Intel® Core™ Processor

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AGP151
AGP151
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 12th/13th/14th gen Intel® Core™ processor
  • PCIe x16 expansion
  • Two sockets of DDR4 SODIMM 260 pins
  • Two SATADOM, 1x CFast, one M.2 (PCIe Gen3 x4)
  • One VGA, two HDMI, and one DP++
  • Optional support for TPM 2.0 & secure BIOS
  • 72-pin JAMMA interface
  • 6W+6W Audio amplied output
  • Optional support 4ch LED strip, up to 4000pcs LED chips

Specifications

CPU
  • 12th/13th/14th Generation Intel® Core™, TDP 35W
Chipset
  • Intel® H610, Q670
System Memory
  • 2x DDR4-3200, 260-pin SO-DIMM, max up to 64GB
BIOS
  • AMI
  • Secure BIOS & storage integrity, by request
Serial Interface
  • 1 x RS-232/422/485 DB9
  • 1 x RS-232/TTLD B9
  • 2 x RS-232/ccTalk DB9
  • 2 x simple COM by pin header or JAMMA 72-pin
Ethernet
  • 2 x GbE LAN
Audio
  • 5.1-ch audio output by jack connector
  • 6W + 6W (R/L) class-D amplied output by JAMMA 72-pin
Display
  • 1 x VGA. D-Sub15 connector
  • 2 x HDMI
  • 1 x DP++
Gaming I/0
  • Intrusion type:
  • 2 x by internal pin header
  • 6 x by JAMMA 72-pin
  • SRAM / MRAM(battery-less backup):
  • 2 x bank supported with battery backup, supports up to 8MB, 16MB by request
  • Default 2MB by a single bank
  • DI/DO:
  • 27 x bits isolated digital input
  • 27 x bits high current output. 0.5A/30V
  • Tachometer:
  • 2 x fan speed detection
  • Event log:
  • Up to 200 event logs
  • EEPROM:
  • Default 1KB
  • Low battery warning for SRAM and intrusion:
  • 2 x low battery detection
  • LED strip control (optional)
  • 4-ch LED strip support
  • Support up to 4000 LED
Expansion
  • 1 x PCIe x16
Storage
  • 2 x SATA DOM, support pin-7 power
  • 1 x vertical CFast socket (option)
  • 1 x M.2 M-key (PCIe x4) NVMe supported
Security
  • Onboard TPM 2.0 (optional)
Power Input
  • DC+12V / DC+5 V
  • Power failure detection
Dimensions
  • 329.4 mm(W) x 192.6 mm(D) x 56.3 mm(H)
Operating Temperature
  • 0°C to +40°C
Humidity
  • 10% to 95%, non-condensing
OS
  • Windows, Linux
EMC
  • CE/FCC Class A
  • Air: -/+ 8kv criteria B, Contact : -/+4kv criteria B

Ordering Information

  • AGP151-Q670
    JAMMA-Type Gaming Control System with 12th/13th/14th Gen Intel® Core™ processor, Q670 PCH, DP++, 2 x HDMI, 1 x VGA, 2 x GbE, 6 x COM, 9 x USB, 12V DC-in
  • AGP151-H610
    JAMMA-Type Gaming Control System with 12th/13th/14th Gen Intel® Core™ processor, H610 PCH, DP++, 2 x HDMI, 1 x VGA, 2 x GbE, 6 x COM, 7 x USB, 12V DC-in
  • 713000001500
    LGA1700 cooler kit, 1U chassis compatible, 65W
  • 713000001600
    LGA1700 cooler kit, 1U chassis compatible, 35W

Download
